Introducció
The Fender Blues Deluxe Reissue is a 40-watt tube amplifier designed for guitarists seeking classic blues, country, and rock tones. This amplifier features a 1x12-inch Special Design Eminence speaker, two 6L6 Groove Tubes output tubes, and three 12AX7 preamp tubes. It offers two channels (Normal with bright switch, and Drive) and includes Fender spring reverb and an effects loop. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your ampmés viu.
Davant view of the Fender Blues Deluxe Reissue ampvidador, espectacleasing its classic tweed covering and grille cloth.
Configuració
- Desembalatge: Traieu amb cura amplifier from its packaging. Retain all packing materials for future transport or storage.
- Col·locació: Col·loca el amplifier on a stable, level surface. Ensure adequate ventilation around the unit to prevent overheating. Avoid placing it near heat sources or in direct sunlight.
- Connexió d'alimentació: Assegureu-vos el amplifier's power switch is in the OFF position. Connect the supplied power cord to the amplifier's AC inlet and then to a grounded electrical outlet.
- Connexió de l'instrument: Connect your guitar to one of the input jacks on the front panel using a high-quality instrument cable. The amplifier features two inputs, typically for different impedance levels or signal strengths.
- Bucle d'efectes (opcional): If using external effects pedals, connect them to the "PREAMP OUT" and "POWER AMP IN" jacks on the rear panel. Ensure the signal chain is correct (e.g., guitar -> preamp -> effects loop -> power amp -> speaker).
- Footswitch Connection: Connect the included two-button footswitch to the designated jack on the rear panel for remote control of channel switching and reverb.
- Engegada inicial: With all connections secure and volume controls set to a low level, flip the power switch to ON. Allow a few moments for the tubes to warm up before engaging the standby switch (if present) or increasinvolum en g.
Rear panel of the amplifier, showing power input, effects loop, and footswitch connections.
Instruccions de funcionament
The Fender Blues Deluxe Reissue amplifier features a straightforward control layout designed for intuitive use.

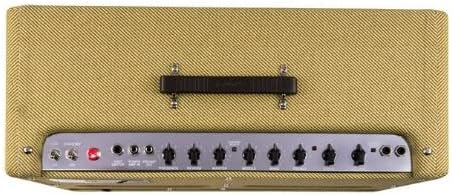

A dalt view de la amplifier's control panel, featuring knobs for volume, tone, reverb, and channel selection.
Controls acabatsview:
- Preses d'entrada: Connecteu el vostre instrument aquí.
- Volume (Normal Channel): Controls the output level of the clean channel.
- Interruptor brillant: Adds high-end sparkle to the Normal channel.
- Condueix: Controls the amount of gain/overdrive in the Drive channel.
- Mestre: Controls the overall output volume of the Drive channel.
- Treble, Mid, Bass: Tone controls for shaping the amplifier's frequency response.
- Reverb: Adjusts the intensity of the built-in spring reverb effect.
- Presència: Controls the amount of high-frequency boost in the power amp section, affecting overall brightness and cut.
- Commutador de selecció de canal: Toggles between the Normal (clean) and Drive (overdriven) channels. This can also be controlled via the footswitch.
- Interruptor d'alimentació: Gira el amplificador ON o OFF.
Funcionament bàsic:
- Encès: After connecting all cables, turn the Power switch ON. Allow approximately 30-60 seconds for the tubes to warm up.
- Selecció de canals: Use the front panel switch or the footswitch to select between the Normal (clean) and Drive (overdriven) channels.
- Ajust de volum: Start with the Volume (Normal) or Master (Drive) controls at a low setting and gradually increase to your desired level. This amplifier is capable of very high volumes.
- Formació del to: Experiment with the Treble, Mid, and Bass controls to find your preferred sound. The Presence control can further refine the amplifier's high-end response.
- Reverb: Adjust the Reverb knob to add depth and ambiance to your sound.
Manteniment
- Neteja: Desconnecteu el amplifier from power before cleaning. Use a soft, dry cloth to wipe down the exterior. Avoid abrasive cleaners or solvents.
- Cura del tub: Vacuum tubes have a finite lifespan and may need replacement over time. If you notice a decrease in performance, unusual noise, or a change in tone, consult a qualified technician for tube inspection and replacement. Always use tubes specified by Fender.
- Atenció a l'altaveu: The speaker is a crucial component. Avoid exposing it to extreme temperatures or moisture. Do not attempt to repair a damaged speaker yourself.
- Reverb Tank: The spring reverb tank is sensitive to physical shock. If the amplifier is moved frequently, ensure the reverb tank is secured. If you experience unusual feedback or no reverb effect, check the springs within the tank for proper seating.
- Emmagatzematge: Quan no s’utilitzi, emmagatzemeu el fitxer amplifier in a dry, temperature-controlled environment. Use a protective cover to prevent dust accumulation.
Resolució de problemes
Si teniu problemes amb el vostre amplifier, refer to the following common troubleshooting steps. For complex problems, contact Fender customer support or a qualified technician.
- Sense so:
- Assegureu-vos el amplifier is powered ON and the power cord is securely connected.
- Check that your instrument cable is fully inserted into both the guitar and the ampmés viu.
- Verify that all volume controls (Volume, Master) are not set to zero.
- Test with a different instrument cable and guitar to rule out external equipment issues.
- Allow sufficient warm-up time for the tubes.
- Humming or Unwanted Noise:
- Assegureu-vos el amplifier is connected to a grounded outlet.
- Proveu de connectar el amplifier into a different electrical circuit.
- Check for loose connections in instrument cables or effects loop.
- Mou el amplifier away from other electronic devices that may cause interference.
- Faulty tubes can cause humming; consult a technician.
- Reverb Issues (Feedback, No Effect):
- If the reverb produces loud feedback, the spring reverb tank may have been dislodged or a spring may be stuck. Gently inspect the reverb tank (located inside the cabinet) to ensure all springs are properly seated and the tank is not resting against the metal casing.
- If there is no reverb effect, ensure the Reverb knob is turned up and the footswitch (if used) is not disengaging the reverb.
- Check the cables connecting the reverb tank to the ampplaca de circuits de lificació.
- So distorsionat o feble:
- Ensure the correct channel is selected (Normal for clean, Drive for overdrive).
- Check the condition of your tubes. Worn or faulty tubes can cause distortion or a weak signal.
- Verify that the speaker cable is securely connected.
Especificacions
| Característica | Detall |
|---|---|
| Nom del model | Blues Deluxe Reissue |
| Número de model | 2232200000 |
| Potència de sortidatage | 40 watts |
| Altaveu | 1x12" Special Design Eminence |
| Preamp Tubs | 3 x 12AX7 |
| Tubs d’energia | 2 x 6L6 Groove Tubes |
| Canals | 2 (Normal with Bright Switch, Drive) |
| Reverb | Fender Spring Reverb |
| Bucle d'efectes | Sí |
| Dimensions (A x A x P) | 26 x 20.5 x 12 polzades (aproximadament) |
| Material (Chassis) | Acer inoxidable |
| Cobriment | Tweed |
Informació de la garantia
Fender products are covered by a manufacturer's warranty. For specific details regarding the warranty period, coverage, and terms for your Blues Deluxe Reissue amplifier, please refer to the warranty card included with your purchase or visit the official Fender weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.
Atenció al client
Should you require technical assistance, service, or have questions not covered in this manual, please contact Fender customer support.
- Assistència en línia: Visit the official Fender weblloc web amb preguntes freqüents, articles de suport i informació de contacte.
- Centres de servei autoritzats: For repairs, locate an authorized Fender service center near you through the Fender weblloc.
