Introducció
The KODAK Zx1 Pocket Video Camera is designed for capturing high-definition video in a compact, weather-resistant form factor. This manual provides essential information for the proper setup, operation, and maintenance of your device, ensuring optimal performance and longevity.
Please read this manual thoroughly before using your camera and retain it for future reference.
Configuració
1. Instal·lació de la bateria
The KODAK Zx1 camera operates on two Ni-MH rechargeable AA batteries. Ensure batteries are fully charged before first use.
- Localitzeu la porta del compartiment de la bateria al lateral o a la part inferior de la càmera.
- Feu lliscar el pestell per obrir el compartiment.
- Insert two AA Ni-MH batteries, observing the polarity indicators (+/-) inside the compartment.
- Tanqueu la porta del compartiment de la bateria de manera segura fins que encaixi al seu lloc.
2. Instal·lació de la targeta SD
The camera requires an SD (Secure Digital) memory card for storing videos. A 2GB SD card is typically included with the bundle.
- Locate the SD card slot, usually adjacent to the battery compartment.
- Insert the SD card with the metal contacts facing the camera, pushing gently until it clicks into place.
- To remove, push the card in again until it springs out slightly, then pull it out.
3. Càrrega de les bateries
Use the provided charger to recharge the Ni-MH AA batteries.
- Remove the rechargeable AA batteries from the camera.
- Place the batteries into the designated slots on the charger.
- Connecteu el carregador a una presa de corrent elèctrica estàndard.
- Refer to the charger's indicator lights for charging status. Charging time may vary.
4. Engegada inicial
After installing batteries and an SD card, press and hold the power button until the camera turns on. Follow any on-screen prompts for initial setup, such as setting the date and time.
Funcionament de la càmera
1. Gravació de vídeo
The KODAK Zx1 records video in 720p HD resolution, utilizing digital blur reduction technology for clearer footage.
- Enceneu la càmera.
- Apunta l'objectiu cap al subjecte.
- Premeu el botó Registre button (usually marked with a red circle) to start recording. A red indicator light or on-screen icon will confirm recording is active.
- Premeu el botó Registre botó de nou per aturar la gravació.
2. Reproducció
Per tornarview your recorded videos:
- Enter playback mode (usually by pressing a dedicated playback button or navigating through the menu).
- Use the navigation buttons to select the desired video.
- Premeu el botó Jugar per iniciar la reproducció.
3. Connexió a un televisor
Tu pots view your videos on a larger screen using the provided A/V or HDMI cables.
- Using A/V Cable: Connect the A/V cable from the camera's A/V output port to the corresponding A/V input ports (yellow for video, white/red for audio) on your television. Select the correct input source on your TV.
- Ús del cable HDMI: Connect the HDMI cable from the camera's HDMI output port to an available HDMI input port on your television. Select the correct HDMI input source on your TV.
4. Connexió a un ordinador
Transfer videos to your computer using the supplied USB cable.
- Enceneu la càmera.
- Connect one end of the USB cable to the camera's USB port and the other end to an available USB port on your computer.
- The camera should appear as a removable drive or device on your computer.
- Access the video files from the camera's storage. The camera may also prompt you to install or launch built-in video software for editing and sharing.
Manteniment
1. Neteja de la càmera
Una neteja regular ajuda a mantenir el rendiment i l'aspecte de la càmera.
- Feu servir un drap suau i sense borrissol per netejar el cos de la càmera. Per a la brutícia persistent, netegeu lleugeramentampen el drap amb aigua.
- Per a la lent, feu servir un drap i una solució especials per a la neteja de lents. Eviteu tocar la lent amb els dits.
- No utilitzeu productes químics agressius, dissolvents ni netejadors abrasius.
2. Cura de la bateria
- Always use Ni-MH rechargeable AA batteries.
- Traieu les piles si no heu d'utilitzar la càmera durant un període prolongat per evitar fuites.
- Guardeu les piles en un lloc fresc i sec.
3. Emmagatzematge
When not in use, store the camera in a protective bag or case to prevent scratches and damage. Avoid extreme temperatures and high humidity.
Resolució de problemes
This section addresses common issues you might encounter with your KODAK Zx1 camera.
| Problema | Causa possible | Solució |
|---|---|---|
| La càmera no s'encén. | Piles gastades o incorrectament inserides. | Ensure batteries are fully charged and inserted with correct polarity. |
| No es pot gravar vídeo. | Targeta SD plena, no inserida o malmesa. | Check SD card. Delete old files, insert correctly, or try a different card. |
| No image on TV when connected. | Incorrect cable connection or TV input. | Verify cables are securely connected. Select the correct A/V or HDMI input on your TV. |
| Computer does not recognize camera. | USB cable issue or camera not in correct mode. | Try a different USB port or cable. Ensure camera is powered on. |
Especificacions
Below are the technical specifications for the KODAK Zx1 Pocket Video Camera:
- Dimensions del producte: 5 x 2 x 4 polzades
- Pes de l'article: 1.4 lliures
- Resolució de captura de vídeo: 720p
- Tipus de memòria flash: SD
- Format de captura de vídeo: H.264
- Tecnologia de connectivitat: HDMI, USB
- Color: Blau
- Característica especial: Capacitat de poca llum
- Zoom òptic: 2x
- Tipus de càmera de vídeo: Càmera de vídeo
- Components inclosos: Battery, USB Cable (Note: Bundle may include additional items like SD Card, Bag, Charger)
- Fabricant: Kodak
- Data de primera disponibilitat: 22 d'octubre de 2009
Imatges del producte

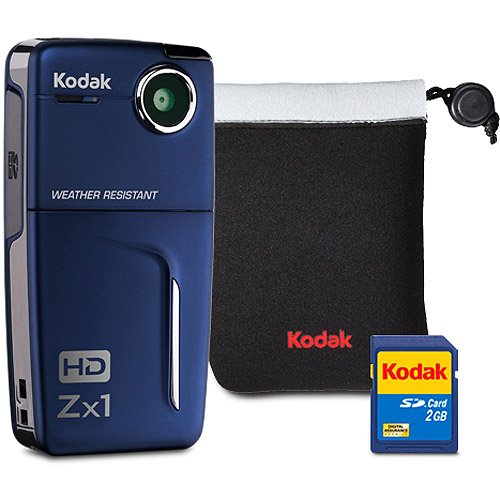

Image: The KODAK Zx1 Pocket Video Camera, shown in blue. This compact device features a lens on the front, a screen on the back, and control buttons for recording and navigation. It is designed for portability and ease of use.
Vídeos de productes
No official seller videos were found for this product that meet the criteria for inclusion in this manual.
Garantia i Suport
For information regarding warranty coverage, technical support, or service for your KODAK Zx1 Pocket Video Camera, please refer to the documentation provided at the time of purchase or visit the official KODAK support weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
