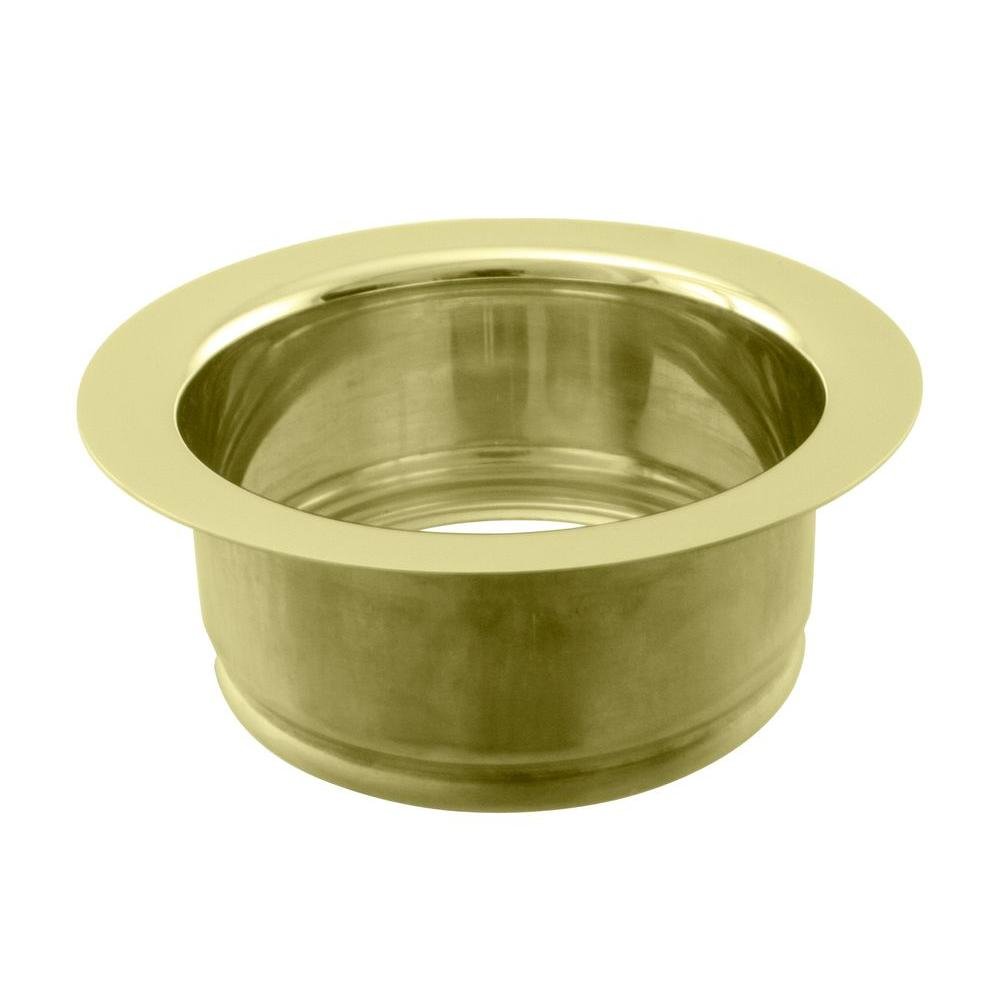

The Westbrass D208-01 is a 4-1/4 inch standard kitchen sink waste disposal flange designed for use with garbage disposal units. This flange is crafted from solid brass and features a polished brass finish, providing both durability and a decorative appearance for your kitchen sink.
It is specifically designed to fit standard sinks with a 3-1/2 inch drain opening and has a 4-1/4 inch rim diameter with a 1-5/8 inch deep collar. The D208-01 is compatible with the Westbrass D209 stopper and accommodates most major disposal brands, including ISE, Emerson, Kenmore, and Grainger waste disposal units.
Instruccions d'instal·lació
Follow these steps for proper installation of your Westbrass D208-01 disposal flange. It is recommended to use silicone sealant for a leak-free and lasting installation, avoiding plumber's putty.
- Remove Existing Disposal Unit: Support the disposal unit with one hand. Insert a wrench or flat blade screwdriver into the mounting lug on the lower ring and turn the ring to the left until the disposer is free.
- Disassemble Mounting Assembly: Loosen the three mounting screws and remove the snap ring to detach the existing mounting assembly from the sink.
- Prepare Sink Opening: Apply a bead of silicone sealant around the drain hole on the sink.
- Install New Flange: Push the new Westbrass D208-01 flange into the hole, ensuring it sits evenly on the silicone. Remove any excess silicone from around the flange.
- Reattach Mounting Assembly: Reattach the snap ring and mounting assembly to the underside of the flange, tightening the three bolts evenly to secure the flange.
- Align and Lock Disposal: Align the mounting tabs on the disposal unit with the tracks on the lower mounting ring. Turn the lower mounting ring until the tabs lock over the ridges, securing the disposal unit in place.
Funcionament
The Westbrass D208-01 disposal flange serves as the connection point between your kitchen sink and your garbage disposal unit. Once installed, it allows waste water and food scraps to pass from the sink into the disposal for grinding. When not in use, a compatible stopper (such as the Westbrass D209) can be inserted into the flange to seal the drain opening, allowing the sink to hold water.
Cura i Manteniment
- Neteja regular: Clean the flange regularly with a soft cloth and mild soap to maintain its polished brass finish. Avoid abrasive cleaners or harsh chemicals, as these can damage the finish.
- Prevenir les taques: Wipe away food debris and standing water promptly to prevent mineral deposits or staining on the brass surface.
- Inspeccionar si hi ha fuites: Periodically check the area around the flange for any signs of leaks. Address any leaks immediately to prevent water damage.
Resolució de problemes
- Leaking Around Flange: If water is leaking from around the flange, it may indicate an improper seal. Ensure the silicone sealant was applied correctly and that the mounting assembly bolts are tightened evenly. You may need to re-install the flange with fresh silicone.
- Disposal Not Seating Properly: If the garbage disposal unit does not seat correctly, check that the mounting tabs are fully engaged with the tracks on the lower mounting ring and that the ring is turned to the locked position.
- Finish Discoloration: Brass finishes can naturally tarnish over time. Regular cleaning as described in the maintenance section can help preserve the finish. Avoid prolonged contact with acidic foods or harsh cleaning agents.
Especificacions del producte
| Característica | Especificació |
|---|---|
| Número de model | D208-01 |
| Material | Llautó massís |
| Acabar | Llautó polit |
| Sink Drain Opening | 3-1/2 inches (standard) |
| Diàmetre de la vora | 4-1/4 polzades |
| Collar Depth | 1-5/8 polzades |
| Pes de l'article | 3.2 unces |
| Dimensions del producte | 4.25 x 4.25 x 1.63 polzades |
| UPC | 747028208017 |
Informació de la garantia
The Westbrass D208-01 Standard Kitchen Sink Waste Disposal Flange comes with a Garantia limitada d'1 any. Please retain your proof of purchase for any warranty claims. For specific details regarding warranty coverage and procedures, refer to the official Westbrass warranty documentation or contact customer support.
Atenció al client
For further assistance, technical support, or to inquire about replacement parts, please visit the official Westbrass weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Podeu trobar més informació i dades de contacte al Westbrass Storefront on Amazon.
