Progress Lighting Wisten Collection P3290-09 Two-Light 14" Close-to-Ceiling Fixture User Manual

1. Introducció

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Progress Lighting Wisten Collection Two-Light 14-inch Close-to-Ceiling Fixture (Model P3290-09). This fixture is designed to provide ambient lighting in various indoor settings such as bedrooms, bathrooms, and hallways. Its minimalist design with etched glass and brushed nickel details offers a modern aesthetic suitable for rooms with standard or low ceiling heights.

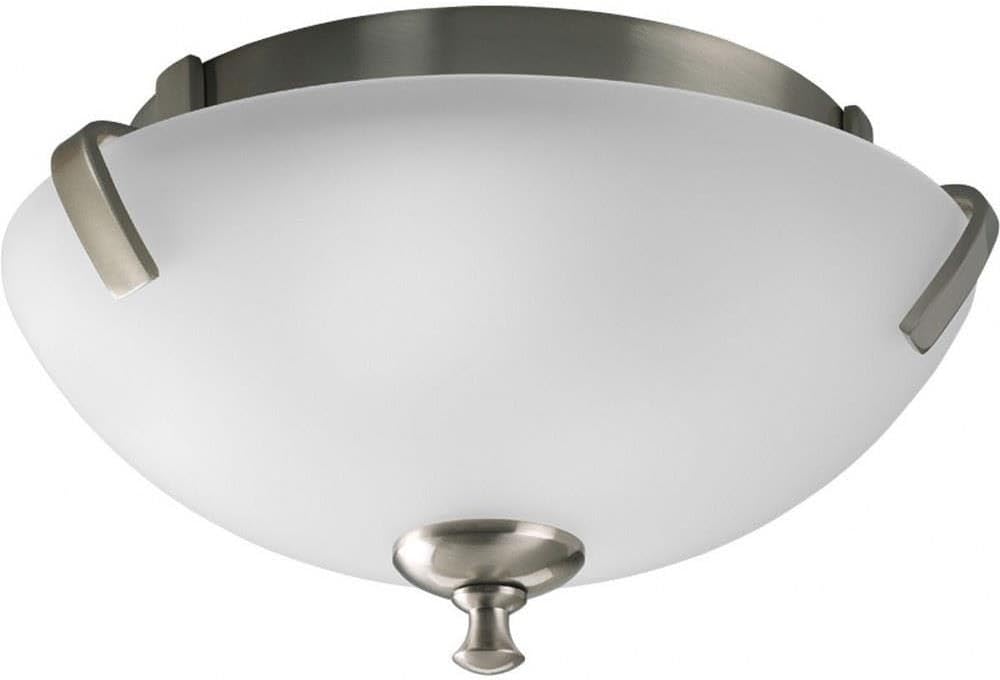

Figure 1: Progress Lighting Wisten Collection P3290-09 Close-to-Ceiling Fixture.

2. Informació de seguretat

AVÍS: Risc de descàrrega elèctrica. Desconnecteu l'alimentació a la caixa de fusibles o al disjuntor abans de la instal·lació o el manteniment.

• Always consult a qualified electrician if you are unsure about the installation process.
• Assegureu-vos que totes les connexions elèctriques compleixin els codis i les ordenances locals, així com el Codi Elèctric Nacional (NEC).
• This fixture is intended for indoor use only and is suitable for damp locations. Do not install in areas exposed to direct water spray.
• Utilitzeu només el tipus de bombeta i la potència especificatstage per evitar el sobreescalfament i els possibles riscos d'incendi.
• Manipuleu els components de vidre amb cura per evitar trencaments i lesions.
• Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.

3. Contingut del paquet

Verify that all components are present before beginning installation. If any parts are missing or damaged, do not proceed with installation and contact customer service.

• Wisten Collection Two-Light 14" Close-to-Ceiling Fixture (P3290-09)
• Mounting Hardware Kit (screws, wire nuts, mounting strap)
• Etched Glass Shade
• Full d’instal·lació

4. Especificacions

Figure 2: Dimensional drawing of the P3290-09 fixture, showing a 14-inch diameter and 7-1/8-inch height.

5. Configuració i instal·lació

Abans de començar: Turn off power at the circuit breaker or fuse box. It is recommended to have a second person assist with installation.

1. Prepareu la superfície de muntatge: Assegureu-vos que la caixa elèctrica estigui ben muntada i que pugui suportar el pes de l'aparell.
2. Fixeu la corretja de muntatge: Secure the mounting strap to the electrical box using the screws provided. Ensure the strap is level and firm.
3. Connexions elèctriques:
   • Connect the bare copper ground wire from the fixture to the ground wire from the electrical box (usually bare copper or green) using a wire nut.
   • Connect the white wire from the fixture to the white (neutral) wire from the electrical box using a wire nut.
   • Connect the black wire from the fixture to the black (hot) wire from the electrical box using a wire nut.
   • Introduïu amb cura tots els cables a la caixa elèctrica.
4. Muntar l'aparell: Align the fixture base with the mounting strap and secure it using the provided screws. Ensure the fixture is flush against the ceiling.
5. Instal·leu les bombetes: Insert two E26 medium base bulbs (max 100W each) into the sockets. LED or CFL equivalent bulbs are recommended for energy efficiency.
6. Fixeu la pantalla de vidre: Carefully place the etched glass shade onto the fixture. Secure it by attaching the decorative screws and brackets. Note that this step may require careful alignment and dexterity.

Refer to the included "Installation Sheet" for detailed diagrams and specific instructions. If you encounter difficulties, consider consulting a professional electrician.

6. Instruccions de funcionament

Once installed and power is restored, the fixture operates via a standard wall switch (not included). Ensure the switch is in the "ON" position for the lights to illuminate.

• Tipus de bombeta: Uses two E26 medium base bulbs. Incandescent, LED, or CFL bulbs can be used, provided they do not exceed 100 watts per socket.
• Dimecres: If using dimmable bulbs and a compatible dimmer switch (sold separately), the light output can be adjusted.

7. Manteniment

• Neteja:
  • Desconnecteu sempre l'alimentació de l'aparell abans de netejar-lo.
  • Wipe the metal parts with a soft, dry cloth. Do not use abrasive cleaners or polishes, as they may damage the finish.
  • Clean the glass shade with a mild glass cleaner and a soft cloth. Ensure the glass is completely dry before reassembling.
• Substitució de bombetes:
  • Apagueu l'alimentació a l'interruptor.
  • Carefully unscrew the decorative finial at the bottom of the glass shade.
  • Loosen the two side screws that secure the glass shade brackets.
  • Gently lower and remove the glass shade.
  • Unscrew the old bulbs and replace them with new E26 medium base bulbs (max 100W each).
  • Reattach the glass shade by reversing the removal steps, ensuring it is securely fastened.

8. Solució De Problemes

9. Garantia i Suport

Garantia: This Progress Lighting fixture is covered by a Garantia limitada de 1 anys. This warranty guarantees your satisfaction with the purchase and includes professional after-sales customer service support. Please retain your proof of purchase for warranty claims.

Atenció al client: For technical assistance, missing parts, or warranty inquiries, please contact Progress Lighting customer service. Refer to the contact information provided on the original packaging or the official Progress Lighting weblloc.

Per a més informació, podeu visitar el Progress Lighting Store on Amazon.
