Manual d'instruccions del woofer Visaton W200S-4 de 8 polzades

1. Producte acabatview

The Visaton W200S-4 is an 8-inch woofer designed for audio applications, offering a treated paper cone and 4 Ohm impedance. This driver is suitable for achieving deep bass response, particularly in moderately sized ported enclosures.

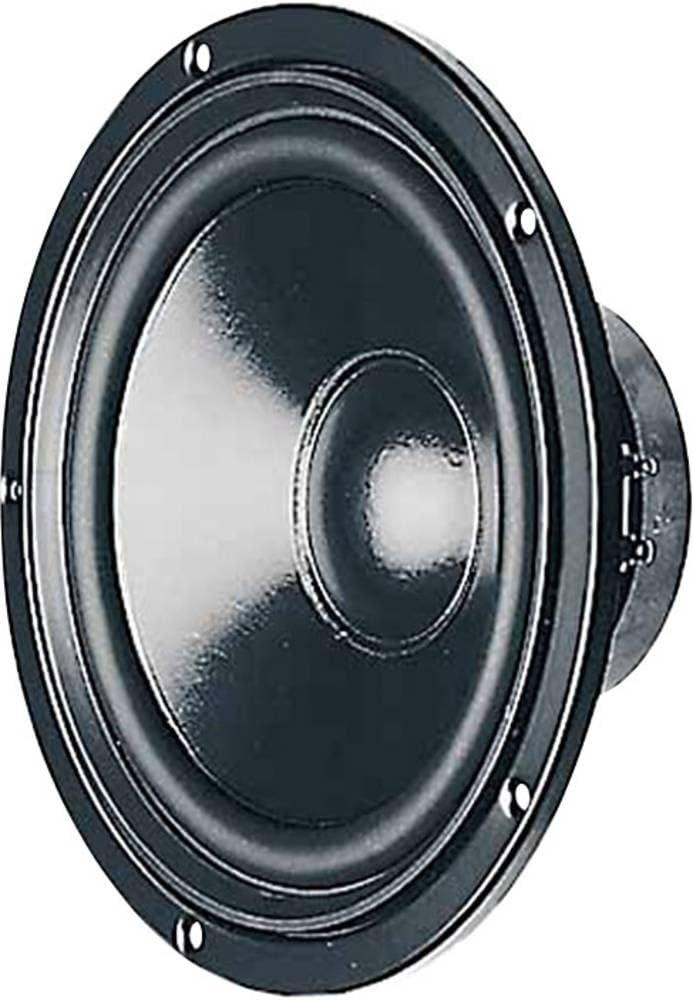

Imatge: Frontal view of the Visaton W200S-4 8-inch woofer, showcasing its black treated paper cone, rubber surround, and mounting frame with screw holes.

Característiques principals:

• High-value HiFi woofer for quality audio reproduction.
• 3.5 mm of Xmax and a ±10 mm excursion limit, allowing for use as a subwoofer.
• Super-low 29 Hz Fs (resonant frequency) and 0.35 Qts specifications for extended low-frequency performance.
• Designed to produce deep bass in a moderate-sized enclosure.
• 4-ohm impedance, suitable for various car audio and home audio applications.

2. Configuració i instal·lació

Proper installation is crucial for optimal performance and longevity of your woofer. Ensure all connections are secure and correctly polarized.

2.1 Disseny de tancaments

• This woofer is optimized for deep bass in a ported enclosure. Consult speaker design software or resources for appropriate enclosure volume and port tuning frequency based on the woofer's Thiele-Small parameters.
• Ensure the enclosure is robust and sealed (if applicable) to prevent air leaks and unwanted resonances.

2.2 Muntatge

• The woofer is designed for muntatge encastat instal·lació.
• Cut a circular opening in your enclosure with the correct diameter to accommodate the woofer.
• Secure the woofer to the enclosure using appropriate screws through the mounting holes on the frame. Do not overtighten, as this can warp the frame or damage the woofer.

2.3 Cablejat

• Connect the woofer to your amplifier using high-quality speaker wire.
• Observe correct polarity: connect the positive (+) terminal of the woofer to the positive (+) output of the amplificador i el terminal negatiu (-) del woofer a la sortida negativa (-) del amplifier. Incorrect polarity can lead to phase cancellation and reduced bass output.
• The woofer has a Impedància de 4 ohms. Ensure your amplifier is stable and capable of driving a 4 Ohm load.

3. Instruccions de funcionament

Once installed, the woofer requires appropriate signal and power to operate correctly.

3.1 Manipulació de potència

• The woofer has a maximum output power of 75 watts. Avoid exceeding this power rating to prevent damage.
• Utilitzeu un amplifier that provides sufficient, clean power within the woofer's rated limits. Underpowering an amplifier can lead to clipping, which can be more damaging to speakers than overpowering with a clean signal.

3.2 Període de rodatge

Like many new speakers, this woofer may benefit from a break-in period. During the first few hours of use, operate the woofer at moderate volumes. This allows the suspension components (surround and spider) to loosen up, potentially leading to improved low-frequency response and overall sound quality.

3.3 Configuració del crossover

If using a dedicated subwoofer amplifier or a receiver with crossover capabilities, set the low-pass filter to an appropriate frequency (e.g., 80-120 Hz) to integrate the woofer smoothly with your main speakers. This ensures the woofer only reproduces the frequencies it is designed for.

4. Manteniment

Regular, simple maintenance can help preserve the performance and appearance of your Visaton W200S-4 woofer.

• Neteja: Gently wipe the cone and surround with a soft, dry cloth to remove dust. Avoid using harsh chemicals or excessive moisture, especially on the treated paper cone.
• Inspecció: Periodically inspect the speaker surround and cone for any signs of damage, tears, or deterioration. Ensure mounting screws remain snug.
• Medi ambient: Avoid exposing the woofer to extreme temperatures, direct sunlight for prolonged periods, or high humidity, as these can degrade materials over time.

5. Solució De Problemes

If you encounter issues with your woofer, refer to the following troubleshooting steps:

5.1 Sense so

• Comproveu les connexions: Ensure all speaker wires are securely connected to both the woofer and the amplifier, and that polarity is correct.
• AmpEstat de l'abonament: Verifiqueu que el vostre amplifier is powered on, not in protection mode, and receiving an audio signal.
• Dispositiu font: Confirm that your audio source (e.g., head unit, receiver) is functioning correctly and outputting sound.
• Configuració de crossover: If using a crossover, ensure it is configured correctly and not blocking the low frequencies.

5.2 So distorsionat

• Nivell de volum: Reduïu el volum. Sovint es produeix distorsió quan amplifier or woofer is overdriven.
• AmpRetall lifier: Si el amplifier's gain is set too high, it can cause clipping, leading to harsh distortion. Adjust amplifier gain settings carefully.
• Problemes de tancament: Check for air leaks in the enclosure or loose mounting, which can cause rattling or buzzing sounds.
• Damaged Woofer: Inspect the cone and surround for any physical damage. If damaged, the woofer may require replacement.

6. Especificacions

7. Informació de la garantia

Specific warranty terms and conditions for the Visaton W200S-4 woofer are provided by the manufacturer or retailer at the time of purchase. Please retain your proof of purchase and refer to the official warranty statement included with your product or available on the manufacturer's website for details regarding coverage, duration, and claims process.

8. Suport

For technical assistance, further troubleshooting, or inquiries regarding your Visaton W200S-4 woofer, please contact the retailer from whom you purchased the product or the official Visaton support channels. Contact information can typically be found on the manufacturer's weblloc web o a la documentació del producte.
