SCHOCK CRISTALITE NEMN100AGON Granite Kitchen Sink Instruction Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your SCHOCK CRISTALITE NEMN100AGON granite kitchen sink. Manufactured in Germany, this sink is designed for durability and functionality, featuring a robust CRISTALITE quartz composite material and a modern rectangular design. Please read these instructions carefully before installation and use to ensure proper function and longevity of your product.

Image 1: SCHOCK CRISTALITE NEMN100AGON Kitchen Sink, showcasing el seu disseny i color.

2. Configuració i instal·lació

The SCHOCK CRISTALITE NEMN100AGON sink is designed for countertop installation and requires a minimum base cabinet width of 60 cm. The sink features five pre-drilled holes for flexible placement of faucets or soap dispensers, which can be easily drilled out as needed.

2.1 Components inclosos

• SCHOCK CRISTALITE NEMN100AGON Sink
• 3.5" Waste Kit
• Colador de cistella
• Eccentric Control (for drain operation)
• Diamond Drill Bit (for pre-drilled holes)

2.2 Passos d'instal·lació (orientació general)

1. Preparar el taulell: Ensure the countertop opening matches the sink's dimensions (refer to technical drawing).
2. Drill Faucet Holes: Use the provided diamond drill bit to carefully open the desired pre-drilled holes for your faucet and/or soap dispenser.
3. Install Faucet and Accessories: Mount the faucet and any other accessories (like the soap dispenser) onto the sink before placing it into the countertop.
4. Aplicar segellador: Apply a suitable sealant around the edge of the sink opening on the countertop to prevent water leakage.
5. Place the Sink: Baixeu amb cura la pica a l'obertura del taulell.
6. Assegura la pica: Use the provided mounting clips (if applicable, check packaging) to secure the sink firmly to the underside of the countertop.
7. Connecteu la fontaneria: Connect the waste kit, basket strainer, and eccentric control to your household plumbing system. Ensure all connections are watertight.

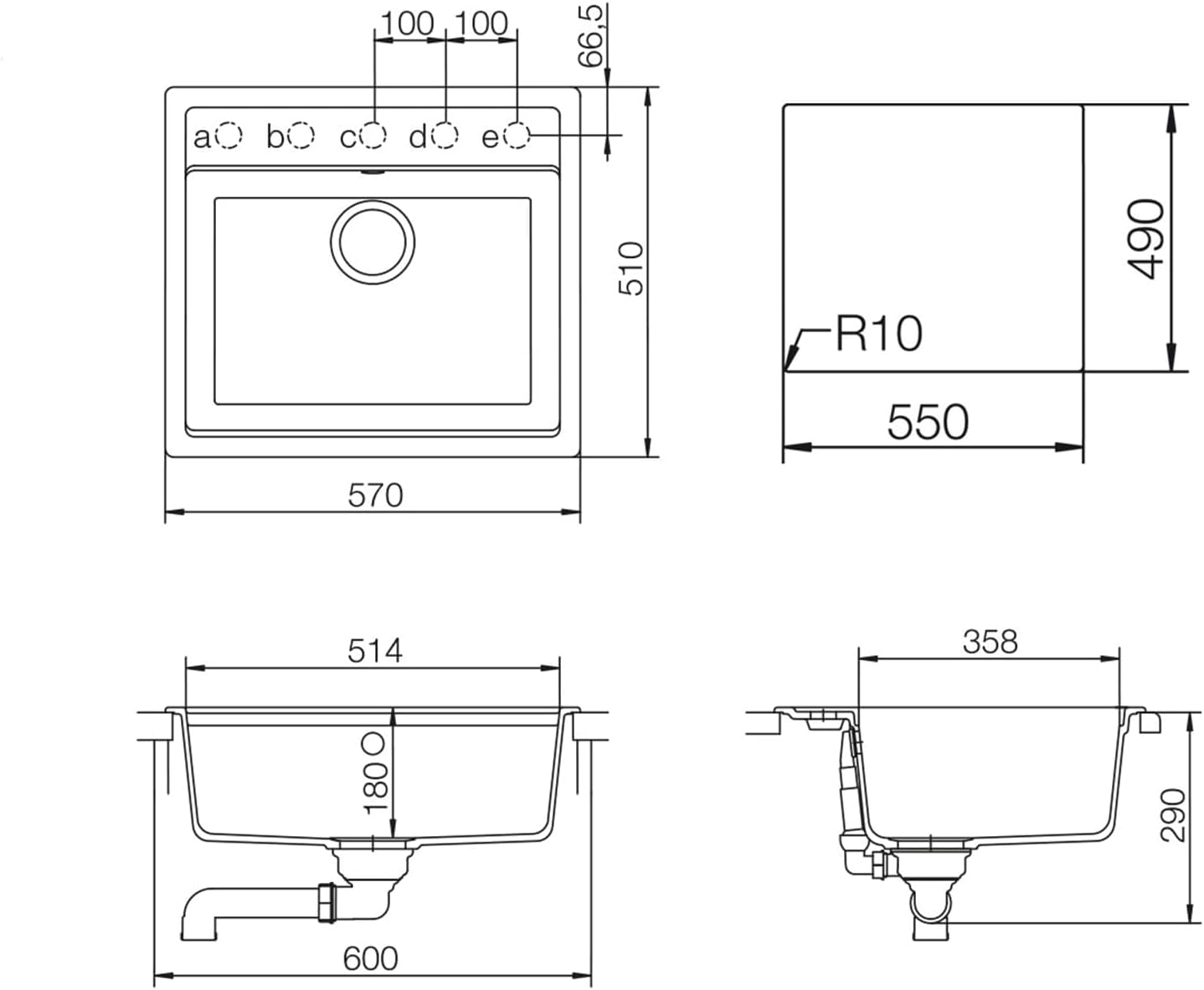

Image 2: Technical drawing showing precise dimensions and pre-drilled hole locations for installation.

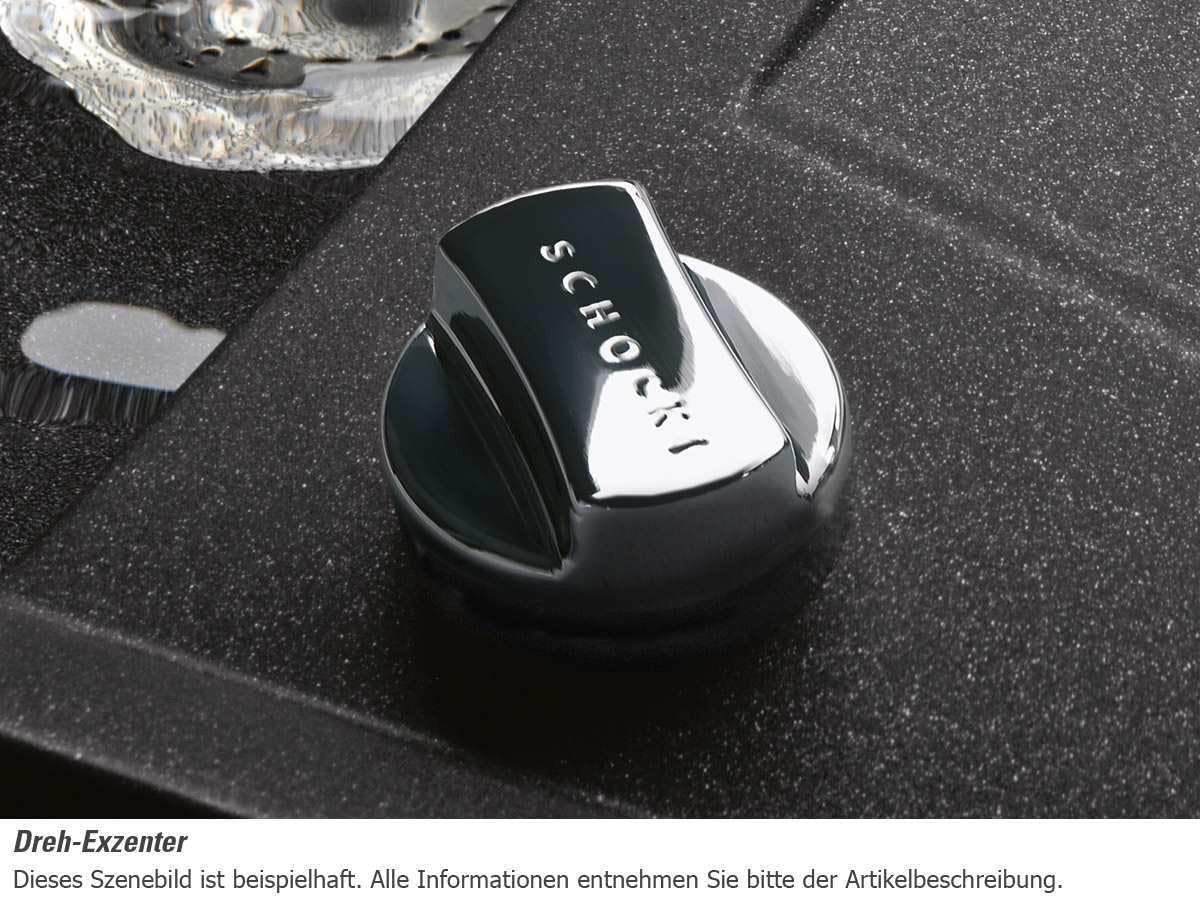

Imatge 3: Primer pla view of the eccentric control knob, used to operate the sink drain.

3. Instruccions de funcionament

Your SCHOCK CRISTALITE sink is designed for daily kitchen tasks with ease and efficiency.

3.1 Ús diari

• Spacious Bowl: The large single bowl provides ample space for washing large pots, pans, and baking sheets.
• Disseny esglaonat: The integrated stepped design allows for the use of additional accessories, such as steamer inserts or cutting boards, enhancing functionality.
• Operació de drenatge: Use the eccentric control knob to open and close the basket strainer for convenient draining without reaching into the water.

3.2 Propietats del material

The CRISTALITE material offers exceptional performance:

• Resistent a la calor: Withstands high temperatures from hot pots and pans.
• Odor Neutral: Does not absorb or retain food odors.
• Food Safe: Safe for contact with food items.
• Resistent a l'impacte: Highly resistant to impacts and shocks from dropped items.

Image 4 & 5: Examples of SCHOCK CRISTALITE sinks in different colors, demonstrating typical kitchen use.

4. Cura i Manteniment

The CRISTALITE material is known for its easy maintenance and robust surface. Regular cleaning will preserve its appearance and hygiene.

4.1 Neteja diària

• Wipe the sink with a soft cloth or sponge and a mild dish soap after each use.
• Esbandir bé amb aigua neta per eliminar tots els residus de sabó.
• Dry the sink with a soft cloth to prevent water spots, especially in hard water areas.

4.2 Eliminació de taques

• For stubborn stains (e.g., coffee, tea, red wine), use a non-abrasive cleaner specifically designed for granite or composite sinks.
• Apliqueu el netejador, deixeu-lo actuar uns minuts (segons les instruccions del netejador) i després fregueu suaument amb un raspall suau o una esponja.
• Rentar bé i assecar.

4.3 What to Avoid

• Avoid using abrasive cleaners, steel wool, or harsh chemicals (e.g., strong acids, alkalis, paint removers) as these can damage the surface.
• Do not place extremely hot items directly on the sink surface for extended periods, although the material is heat-resistant, extreme thermal shock should be avoided.
• Prevent prolonged contact with highly staining liquids or foods (e.g., beet juice, turmeric) to minimize the risk of discoloration, although the material is resistant.

Image 6: Visual representation of key material properties: color resistance, heat resistance, water repellent effect, food safety, impact resistance, odor neutrality, and durability.

5. Solució De Problemes

This section addresses common issues you might encounter with your kitchen sink. For problems not listed here, please contact customer support.

5.1 Water Spots or Limescale

• Causa: Dipòsits d'aigua dura.
• Solució: Regularly dry the sink after use. For existing limescale, use a mild descaling agent or a solution of white vinegar and water. Apply, let sit briefly, scrub gently, and rinse thoroughly.

5.2 Fading or Dull Appearance

• Causa: Accumulation of soap film or mineral deposits over time.
• Solució: Perform a deep clean using a specialized granite sink cleaner. Ensure all residues are removed. Regular drying after use helps maintain shine.

5.3 Slow Draining

• Causa: Clogged basket strainer or drain pipe.
• Solució: Clear any debris from the basket strainer. If the issue persists, check the P-trap for blockages. Use a plumbing snake or a chemical drain cleaner if necessary, following product instructions carefully.

6. Especificacions del producte

Detailed technical specifications for the SCHOCK CRISTALITE NEMN100AGON kitchen sink.

Image 7: Color representation of Onyx, highlighting the fine glimmer in the dark grey granite.

7. Garantia i Suport

7.1 Informació de la garantia

Specific warranty details for the SCHOCK CRISTALITE NEMN100AGON sink are typically provided at the point of purchase or can be found on the official SCHOCK website. Please retain your proof of purchase for any warranty claims. Warranty coverage usually includes manufacturing defects under normal use conditions.

7.2 Atenció al client

For technical assistance, spare parts, or any questions regarding your SCHOCK product, please contact your retailer or visit the official SCHOCK weblloc web per obtenir informació de contacte del servei d'atenció al client.
