Vanguard Espod 233AP Tripod with PH-30 Pan Head User Manual

1. Introducció

This manual provides essential instructions for the safe and effective use of your Vanguard Espod 233AP Tripod with PH-30 Pan Head. Please read this manual thoroughly before operating the product to ensure proper setup, operation, and maintenance. The Vanguard Espod 233AP Tripod is designed for amateur photographers, offering quick setup and stable support for cameras.

2. Producte acabatview

The Vanguard Espod 233AP Tripod is engineered for stability and ease of use. Key features include:

• Quick three-second setup.
• Legs adjustable to 25-degree angles for varied terrain.
• Tightening ring on the center column for rapid height adjustment.
• Anti-shock ring to minimize camera vibration.
• Integrated bubble level for precise leveling.
• Detachable center column hook for attaching additional weight, enhancing stability.
• Anti-slip rubber feet for secure placement on various surfaces.
• Quick clip leg locks for fast and secure leg extension.
• Removable quick shoe for convenient camera attachment and detachment.
• Three-section, 23mm aluminum legs.
• Two foam grips for comfortable handling.

Figure 2.1: The Vanguard Espod 233AP Tripod with PH-30 Pan Head in its fully extended configuration.

Figure 2.2: Detail of the tripod leg adjustment mechanism, illustrating the range of motion for setting leg angles.

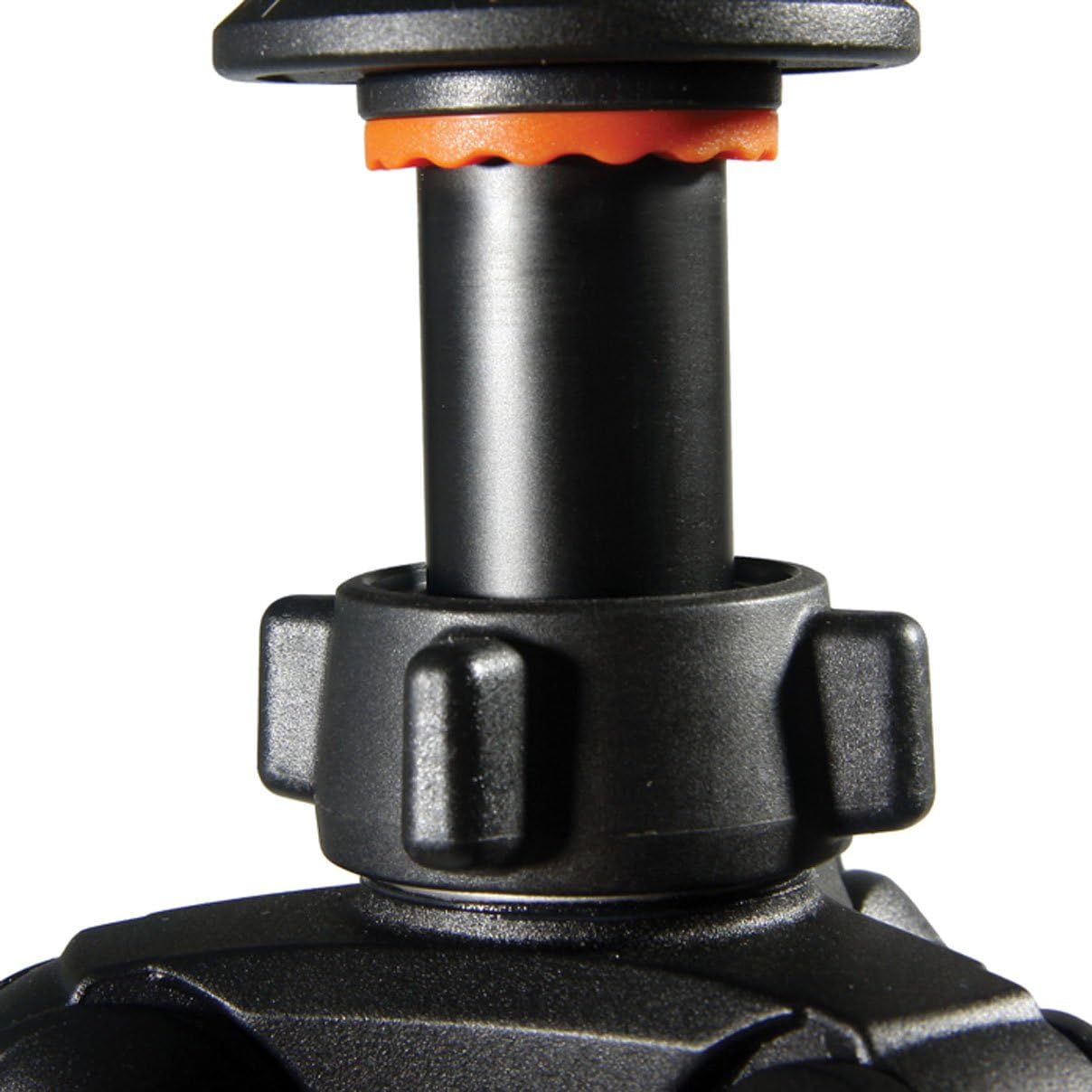

Figure 2.3: Close-up of the center column and its tightening ring, used for securing the column at desired heights.

Figure 2.4: The integrated bubble level, providing visual confirmation for precise horizontal alignment of the tripod head.

Figure 2.5: Detail of the anti-slip rubber feet, designed to provide stable contact with various surfaces and prevent movement.

3. Instruccions de configuració

1. Desplegant el trípode: Release the leg locks on each leg. Extend the legs outwards until they are fully spread or at your desired angle. Secure the leg locks. The legs can be adjusted to 25-degree angles for stability on uneven ground.
2. Ajust de l'alçada de la cama: Each leg consists of three sections. To extend a section, open the quick clip leg lock, pull the section to the desired length, and then firmly close the quick clip leg lock to secure it. Repeat for all sections and legs.
3. Adjusting Center Column Height: Loosen the tightening ring located at the base of the center column. Carefully raise or lower the center column to the desired height. Once positioned, tighten the ring firmly to secure the column.
4. Connectant la càmera:
   • Locate the removable quick shoe on the PH-30 pan head.
   • Press the quick release lever to detach the quick shoe from the pan head.
   • Attach the quick shoe to the base of your camera by screwing the camera mounting screw into the camera's tripod socket. Ensure it is securely fastened.
   • Slide the camera with the attached quick shoe back into the pan head until it clicks into place. Ensure the quick release lever is engaged and the camera is firmly seated.
5. Leveling the Tripod: Use the integrated bubble level on the pan head to ensure the tripod is perfectly horizontal. Adjust leg lengths as necessary until the bubble is centered.
6. Millora de l'estabilitat: For increased stability, especially in windy conditions or with heavier equipment, utilize the detachable hook located at the bottom of the center column. You can hang a weight (e.g., a camera bag) from this hook.

4. Instruccions de funcionament

1. Ajustaments de panoràmica i inclinació: The PH-30 pan head allows for smooth horizontal (pan) and vertical (tilt) movements. Loosen the pan and tilt locking knobs (typically located on the side and base of the head) to adjust the camera's angle. Once the desired position is achieved, tighten the knobs firmly to lock the camera in place.
2. Using the Pan Handle: The pan handle provides precise control over camera movement. Hold the handle to guide the camera smoothly during panning or tilting operations.
3. Orientació vertical: To switch your camera to a vertical (portrait) orientation, loosen the tilt locking knob and carefully rotate the camera on its axis until it is vertical. Re-tighten the knob.
4. Plegable per al transport: To fold the tripod, remove the camera, retract the center column, collapse all leg sections, and fold the legs upwards against the center column. Secure all quick clip leg locks.

5. Manteniment

• Neteja: Wipe down the tripod with a soft, dry cloth after each use. If necessary, use a slightly damp cloth with mild soap and water for stubborn dirt, then dry thoroughly. Avoid harsh chemicals or abrasive cleaners.
• Lubricació: The moving parts of the tripod, such as leg locks and pan head mechanisms, are designed for smooth operation. Avoid applying lubricants unless specifically instructed by Vanguard, as this can attract dust and dirt.
• Emmagatzematge: Store the tripod in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure it is clean and dry before storage.
• Inspecció: Periodically inspect all screws, bolts, and leg locks to ensure they are secure. Tighten any loose components. Check rubber feet for wear and tear.

6. Solució De Problemes

• El trípode és inestable:
  • Ensure all leg sections are fully extended and their quick clip locks are securely fastened.
  • Verify that the center column tightening ring is firmly secured.
  • Check that the legs are spread evenly and the bubble level indicates a level setup.
  • Consider using the center column hook to add weight for enhanced stability.
  • Ensure the anti-slip rubber feet are clean and making good contact with the surface.
• Camera movement is not smooth (pan/tilt):
  • Ensure the pan and tilt locking knobs are sufficiently loosened for movement.
  • Check for any obstructions or debris around the pan head mechanism.
  • Avoid over-tightening the locking knobs, as this can cause wear and affect smoothness.
• Quick shoe not attaching securely:
  • Ensure the camera mounting screw on the quick shoe is fully tightened to your camera.
  • Verify that the quick release lever on the pan head is fully open before inserting the quick shoe, and fully closed after insertion.
  • Check for any debris in the quick shoe slot on the pan head.

7. Especificacions

• Model: Espod 233AP
• Marca: VANGUARDA
• Dimensions del producte: 4.53 x 4.13 x 24.5 polzades (plegat)
• Pes de l'article: 3.97 lliures (aproximadament 4 lliures)
• Material: Alumini, cautxú
• Capacitat de càrrega màxima: 6.6 lliures
• Alçada màxima: 65 polzades
• Minimum Height (Folded Length): 24.5 polzades
• Seccions de cames: 3
• Diàmetre de la cama: 23 mm
• Tipus de capçal: PH-30 Pan Head
• Dispositius compatibles: Càmera
• Característiques especials: Adjustable, Lightweight, Portable, Compact

8. Garantia i Suport

For warranty information and customer support regarding your Vanguard Espod 233AP Tripod, please refer to the documentation included with your purchase or visit the official VANGUARD website. You may also find support and product information on the VANGUARD Store on Amazon.
