Hansgrohe Axor Montreux Two-Handle Wall-Mounted Bathtub Faucet

Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Hansgrohe Axor Montreux Two-Handle Wall-Mounted Bathtub Faucet, Model 16540820. Please read these instructions carefully before beginning installation or use to ensure proper function and longevity of the product.

Configuració i instal·lació

Professional installation is recommended for this wall-mounted bathtub faucet. Ensure all local plumbing codes are followed during installation.

1. Preparació: Turn off the main water supply before starting any installation work. Clear the installation area and ensure you have all necessary tools.
2. Muntatge: Securely mount the faucet body to the wall according to the provided dimensions. Ensure the mounting surface is flat and stable.
3. Connexions d'aigua: Connect the hot and cold water lines to the corresponding inlets on the faucet body. Use appropriate sealants and tighten all connections securely to prevent leaks.
4. Spout and Handles: Attach the spout and the two control handles. Ensure handles operate smoothly and are correctly oriented for hot and cold water.
5. Prova: Once all connections are made, slowly turn on the main water supply and check for any leaks. Operate both handles to ensure proper water flow and temperature control.

Figura 1: Technical drawing illustrating the dimensions and components of the Hansgrohe Axor Montreux Two-Handle Wall-Mounted Bathtub Faucet. Key dimensions include a spout projection of 91mm, handle spacing of 58mm, and overall width of 260mm with a center-to-center distance of 170mm for the main connections.

Instruccions de funcionament

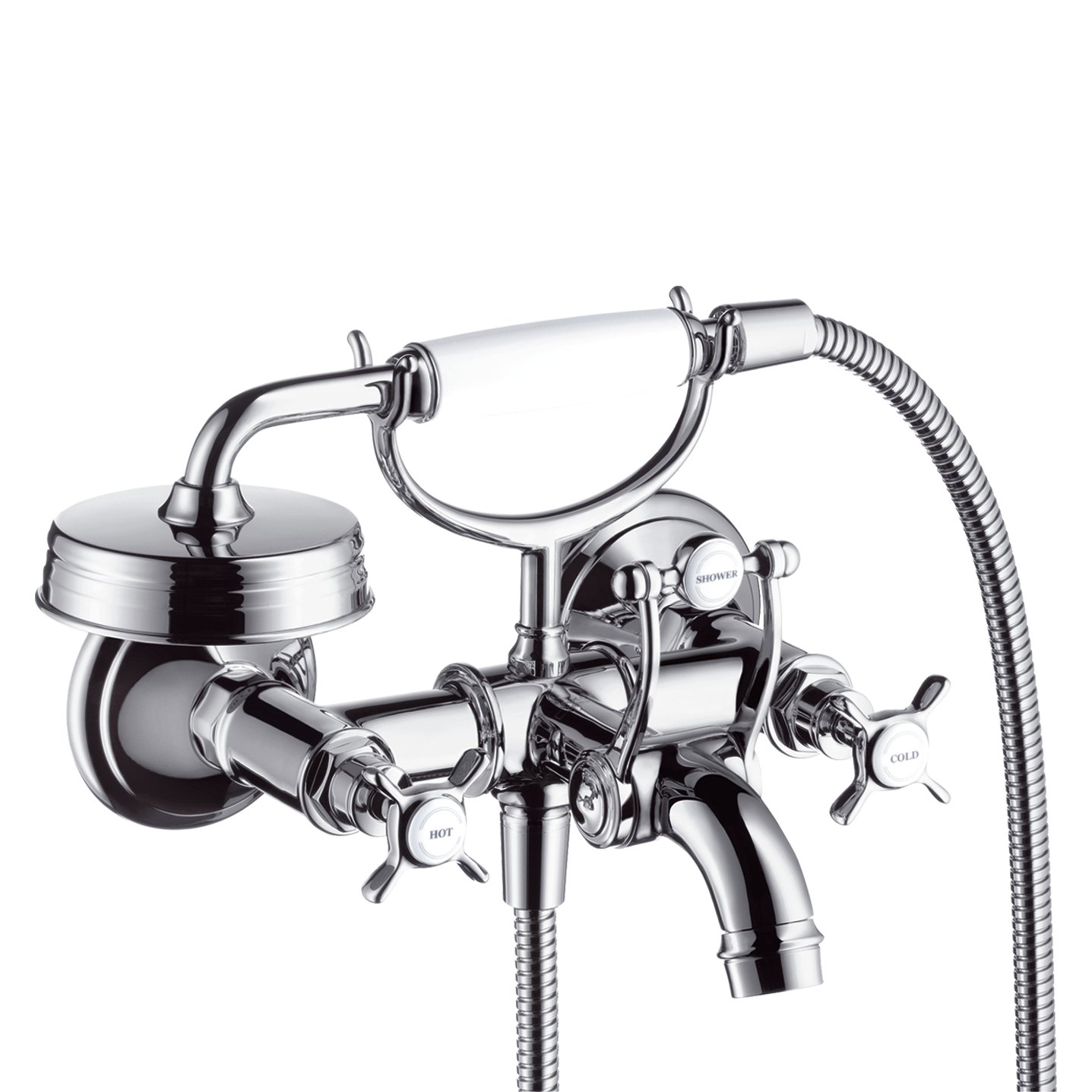

The Hansgrohe Axor Montreux bathtub faucet features two cross-style handles for precise control of water flow and temperature.

• Aigua freda: Turn the right handle counter-clockwise to open the cold water supply.
• Aigua calenta: Turn the left handle counter-clockwise to open the hot water supply.
• Control de temperatura: Ajusteu la temperatura de l'aigua desitjada barrejant aigua calenta i freda amb les dues manetes.
• Control de flux: Com més gireu les manetes, més gran serà el cabal d'aigua.
• Apagat: Turn both handles clockwise until they stop to completely shut off the water flow.

Manteniment i cura

Proper care will help maintain the brushed nickel finish and ensure the long-term performance of your faucet.

• Neteja: Clean the faucet regularly with a soft cloth and a mild, non-abrasive cleaner. Avoid using harsh chemicals, abrasive sponges, or cleaners containing alcohol, ammonia, or bleach, as these can damage the finish.
• Assecat: After cleaning, rinse thoroughly with clean water and dry the faucet with a soft cloth to prevent water spots and mineral buildup.
• Manteniment de l'airejador: Periodically unscrew and clean the aerator (if applicable) to remove any sediment or mineral deposits that may affect water flow.
• Comprovació de fuites: Regularly inspect connections for any signs of leaks. Tighten connections as needed, but do not overtighten.

Resolució de problemes

Si teniu problemes amb l'aixeta, consulteu els següents problemes i solucions habituals:

• Baix cabal d'aigua:
  • Comproveu si el subministrament principal d'aigua està completament obert.
  • Clean the aerator for any blockages.
  • Inspect water supply lines for kinks or obstructions.
• Fuita del broc:
  • Ensure handles are fully closed.
  • If persistent, internal components may require inspection by a qualified plumber.
• Leaking from Base/Connections:
  • Check and tighten all water supply connections. Do not overtighten.
  • Ensure proper sealing washers are in place.
• Difficulty Turning Handles:
  • Mineral buildup may be affecting the cartridge. Cleaning or replacement of the cartridge may be necessary.

For issues not resolved by these steps, contact Hansgrohe customer support or a qualified plumber.

Especificacions

Informació de la garantia

This Hansgrohe product is covered by the manufacturer's limited warranty. Please refer to the official Hansgrohe website or your purchase documentation for specific warranty terms, conditions, and registration details. Keep your proof of purchase for warranty claims.

Suport

For further assistance, technical support, or to order replacement parts, please contact Hansgrohe customer service. Visit the official Hansgrohe weblloc web amb informació de contacte i recursos de suport.
