Manual d'usuari de l'estirador de catifes ROBERTS Junior Power

Introducció

This manual provides instructions for the proper assembly, operation, maintenance, and troubleshooting of the ROBERTS Junior Power Carpet Stretcher 12-Piece Value Kit. Please read this manual thoroughly before using the product to ensure safe and effective operation.

The ROBERTS Junior Power Carpet Stretcher is designed for stretching carpet during installation. It is an economical power stretcher compatible with various carpet thicknesses due to its adjustable pin depth setting. The kit includes a non-marring tail block for quick and safe stretching without the need for additional support, and an adjustable locking tube for fast incremental adjustments. The entire kit is designed for easy storage and transportation with interlocking cases.

Components del kit

The ROBERTS Junior Power Carpet Stretcher 12-Piece Value Kit includes the following components:

ROBERTS 10-237 Junior Power Stretcher Head
Tail Block with Wheels
Six (6) 3 ft. Extension Tubes
ROBERTS 10-250 Adjustable Locking Tube
Tub de transferència
Interlocking Wheel Stretcher Carrying Case
Tube Carrying Case

Imatge: Més deview of the ROBERTS Junior Power Carpet Stretcher 12-Piece Value Kit, showing the stretcher head, extension tubes, tail block, and the two interlocking carrying cases.

Image: All components of the ROBERTS Junior Power Carpet Stretcher kit laid out on a carpeted floor, including the stretcher head, various extension tubes, tail block, and the two carrying cases.

Muntatge i muntatge

Desempaquetar components: Open the interlocking carrying cases. The larger case contains the stretcher head and tail block, while the smaller case holds the extension tubes.

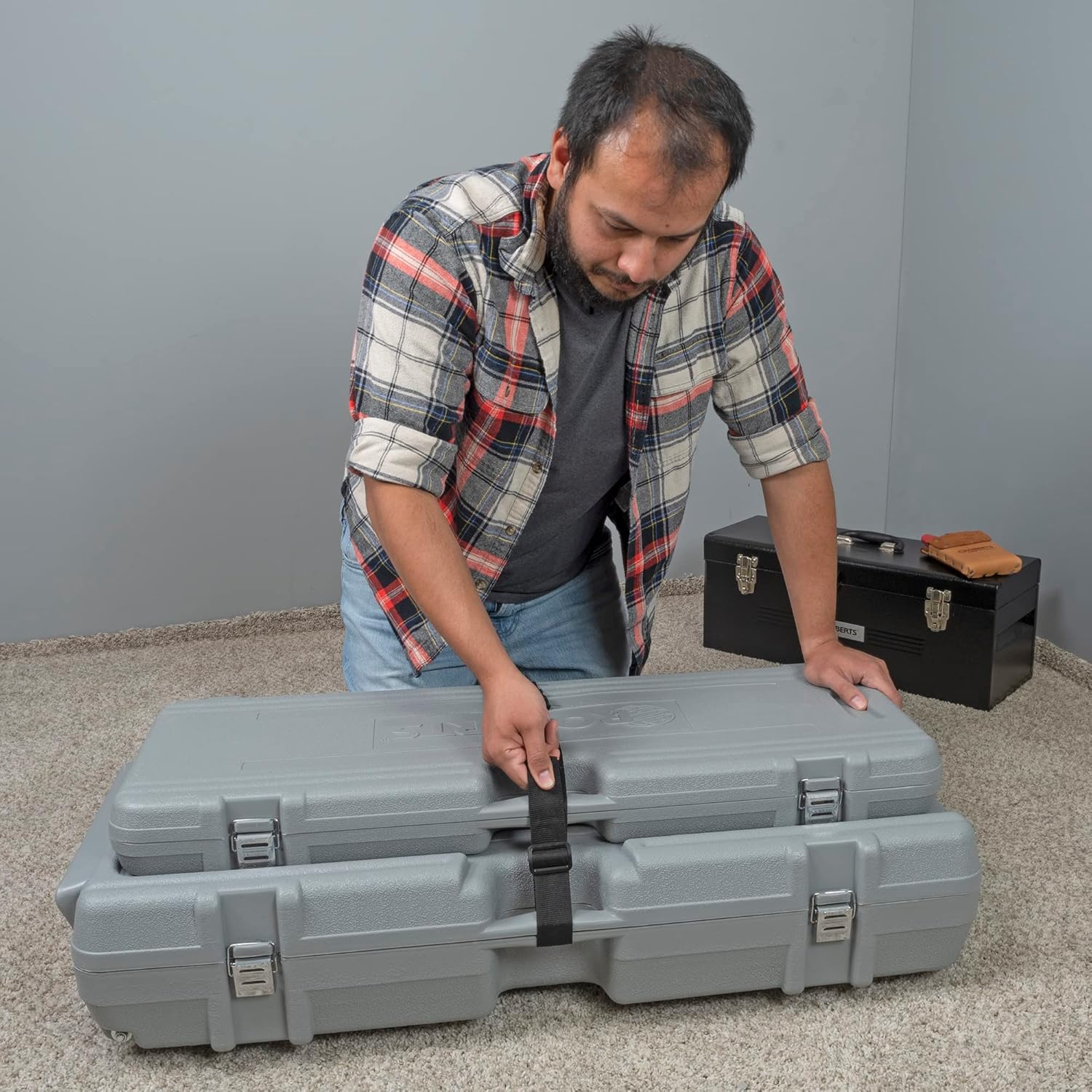

Man opening the carrying case for the carpet stretcher

Image: A person opening the grey carrying case, revealing the extension tubes stored inside.

Muntar els tubs d'extensió: Connect the desired number of 3 ft. extension tubes to achieve the required length for your stretching application. Insert the smaller end of one tube into the larger end of another, ensuring the locking pins engage securely.
Attach Adjustable Locking Tube: Connect the ROBERTS 10-250 Adjustable Locking Tube to the assembled extension tubes. This tube allows for fine-tuning the stretcher's length.
Connect Stretcher Head: Attach the Junior Power Stretcher head to one end of the assembled tube system. Ensure it is securely fastened.
Attach Tail Block: Connect the Tail Block with Wheels to the opposite end of the assembled tube system. The tail block provides stability and leverage against the wall.

Carpet stretcher in use, showing the tail block against a wall

Image: The ROBERTS Junior Power Carpet Stretcher in operation, with the tail block positioned against a wall and the user applying pressure to stretch the carpet.

Adjust Pin Depth: The stretcher head features an adjustable pin depth setting. Use a flathead screwdriver to adjust the two screws on the stretcher head to set the pin depth according to the carpet thickness. This ensures proper grip without damaging the carpet backing.

Instruccions de funcionament

Follow these steps for effective carpet stretching:

Position the Stretcher: Place the tail block firmly against the wall or a stable surface from which you intend to stretch. Position the stretcher head on the carpet, approximately 6-12 inches from the wall you are stretching towards.
Engage Carpet Pins: Press down on the stretcher head to engage the pins into the carpet. Ensure the pins are fully embedded for a secure grip.
Apply Leverage: Using the long handle, apply downward pressure and leverage to stretch the carpet. The adjustable locking tube allows for incremental adjustments to the stretcher's length as you work.

Carpet stretcher in use, showing the user applying pressure

Image: A person demonstrating the use of the ROBERTS Junior Power Carpet Stretcher, applying pressure to the handle to stretch the carpet towards a wall.

Secure the Carpet: Once the carpet is stretched taut, secure it to the tack strip along the wall. Use a knee kicker or other appropriate tools to ensure the carpet is properly seated.
Alliberament i reposicionament: Release the pressure on the stretcher handle and carefully disengage the pins from the carpet. Reposition the stretcher for the next section, overlapping slightly with the previously stretched area to ensure uniform tension.
Treball en seccions: Continue stretching and securing the carpet in sections until the entire area is properly installed. The kit allows stretching over 38 ft.

Manteniment

Proper maintenance will extend the life of your ROBERTS Junior Power Carpet Stretcher:

Neteja: After each use, wipe down all metal components with a clean, dry cloth to remove any dust, debris, or carpet fibers.
Lubricació: Periodically apply a light coat of machine oil to moving parts, such as the pivot points on the stretcher head and the locking mechanisms on the extension tubes, to ensure smooth operation.
Pin Inspection: Regularly inspect the carpet pins on the stretcher head for wear or damage. Replace the head if pins become dull or bent, as this can affect stretching performance and potentially damage carpet.
Atenció al cas: Keep the carrying cases clean and free of debris. Ensure latches and wheels are functioning correctly for easy transport and storage.

Man closing the interlocking carrying cases for the carpet stretcher

Image: A person securing the strap on the interlocking carrying cases after packing the carpet stretcher components, preparing for transport or storage.

Man rolling the interlocking carrying cases for the carpet stretcher

Image: A person rolling the interlocking carrying cases, demonstrating the ease of transport due to the integrated wheels.

Resolució de problemes

Problema	Causa possible	Solució
Stretcher not gripping carpet effectively.	Incorrect pin depth setting. Dull or damaged pins. Carpet too thick for current setting.	Adjust pin depth to be deeper. Inspect and replace stretcher head if pins are worn. Ensure pin depth is appropriate for carpet thickness.
Difficulty extending/retracting tubes.	Dirt or debris in tubes. Falta de lubricació. Bent tubes or locking pins.	Clean tubes thoroughly. Apply light lubricant to tube connections and locking pins. Inspect tubes for damage; replace if bent.
Tail block slipping.	Insufficient pressure against wall. Slippery floor surface. Damaged tail block pads/wheels.	Ensure tail block is firmly braced. Place a non-slip mat or carpet scrap under the tail block. Inspect and replace tail block if pads or wheels are damaged.

Especificacions

Número de model	10-237V
Marca	ROBERTS
Fabricant	QEP
Pes de l'article	86 lliures
Dimensions del producte	12 x 19 x 41 polzades
Color	Red (Stretcher Head)
Components inclosos	6 Extension Tubes, Carpet Stretcher, Locking Tube, Stretcher Case, Tail Block, Transfer Tube, Tube Case
Maximum Stretch Length	Més de 38 peus.

Informació de la garantia

This product comes with a manufacturer's warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact ROBERTS customer support. Proof of purchase may be required for warranty claims.

Suport i Contacte

For further assistance, technical support, or to inquire about replacement parts, please contact ROBERTS customer service. You may also find additional resources, including a downloadable PDF user manual, on the official ROBERTS weblloc.

Manual d'usuari oficial (PDF): Descarrega el manual en PDF
ROBERTS Official Store: Visit ROBERTS Store on Amazon
