16 AWG Purple Primary Wire User Manual

Introducció

This manual provides essential information for the safe and effective use of your PICO 16 AWG Purple Primary Wire, model 81169PT. This high-quality primary wire is designed for various electrical applications, particularly in automotive systems, offering reliable conductivity and durability.

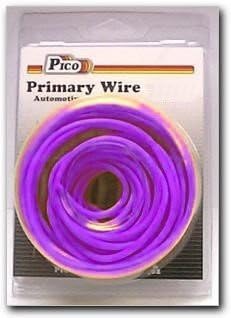

This image shows the PICO 16 AWG Purple Primary Wire, coiled and packaged in clear plastic, with the 'Pico Primary Wire Automotive' label visible at the top.

Característiques del producte

• Calibre: 16 AWG (American Wire Gauge) for standard electrical applications.
• Color: Distinctive purple insulation for easy identification in complex wiring systems.
• Aplicació: Universal fit, suitable for a wide range of automotive and general electrical wiring needs.
• Durabilitat: Designed for reliable performance and longevity.

Configuració i seguretat

Before beginning any electrical work, ensure you understand the circuit and take appropriate safety measures. Improper wiring can lead to damage, fire, or injury.

Precaucions de seguretat:

• Always disconnect power from the circuit before working with electrical wires.
• Utilitzeu l'equip de protecció individual (EPI) adequat, com ara guants aïllants i ulleres de seguretat.
• Assegureu-vos que totes les connexions estiguin ben fixades i degudament aïllades per evitar curtcircuits.
• Consult a qualified electrician or automotive technician if you are unsure about any wiring procedure.
• Verify the wire gauge is appropriate for the current load to prevent overheating.

Preparació:

1. Identify Circuit Needs: Determine the required length and gauge of wire for your specific application.
2. Recollida d'eines: Have wire strippers, crimpers, connectors, and heat shrink tubing (if needed) readily available.
3. Plan Routing: Map out the path for the wire to ensure it is protected from abrasion, heat, and moving parts.

Operating (Wiring Procedures)

This section outlines general steps for using primary wire in electrical circuits. Specific applications may require additional steps or specialized techniques.

1. Mesura i talla: Measure the required length of wire and cut it cleanly using wire cutters. Allow for some extra length for connections.
2. Aïllament en tires: Carefully strip approximately 1/4 to 1/2 inch of insulation from the ends of the wire using a wire stripper set to the 16 AWG setting. Avoid nicking the copper strands.
3. Fer connexions:
   • Crimpat: Insert the stripped wire into the appropriate crimp connector (e.g., spade, ring, butt connector) and crimp securely with a crimping tool. Tug gently to ensure a strong connection.
   • Soldadura: If soldering, ensure the connection is clean and apply heat evenly to the wire and component before introducing solder. Allow to cool without disturbance.
4. Connexions aïllades: After making a connection, insulate it using electrical tape, heat shrink tubing, or appropriate terminal covers to prevent accidental contact and short circuits.
5. Cablejat segur: Use cable ties or clips to secure the wire along its path, preventing it from dangling, rubbing against sharp edges, or interfering with moving parts.
6. Circuit de prova: Once all connections are made and secured, carefully reapply power and test the circuit to ensure proper functionality.

Manteniment i emmagatzematge

Proper maintenance and storage will ensure the longevity and performance of your primary wire.

• Inspecció: Periodically inspect exposed sections of wire for signs of wear, fraying, or damage to the insulation. Replace damaged sections immediately.
• Neteja: Keep the wire free from dirt, oil, and corrosive substances, which can degrade insulation over time.
• Emmagatzematge: Store unused wire in a cool, dry place away from direct sunlight and extreme temperatures. Keep it coiled neatly to prevent kinks and tangles.
• Protecció: When installed, ensure the wire is protected from physical damage, excessive heat, and moisture.

Resolució de problemes

This section addresses common issues related to electrical wiring. Always ensure power is disconnected before troubleshooting.

• Sense alimentació/alimentació intermitent:
  • Check all connections for looseness or corrosion. Re-crimp or re-solder as necessary.
  • Inspect the wire for breaks or damage along its length.
  • Verify the power source (e.g., battery, fuse) is functioning correctly.
• Short Circuit/Blown Fuse:
  • Look for exposed wire strands touching metal or other wires.
  • Ensure insulation is intact and not chafed or melted.
  • Confirm the wire gauge is sufficient for the current draw of the connected device.
• Sobreescalfament del cable:
  • This indicates the wire is carrying too much current for its gauge. Immediately disconnect power.
  • Replace with a heavier gauge wire (lower AWG number) suitable for the load.
  • Check for any unintended resistance in the circuit.

Especificacions

Garantia i Suport

Specific warranty information for the PICO 16 AWG Purple Primary Wire is not provided within this manual. For details regarding product warranty, returns, or technical support, please refer to the manufacturer's official weblloc web o contacteu directament amb el seu servei d'atenció al client.

Fabricant: PICO

For further assistance, please visit the official PICO weblloc web o contacteu amb els seus canals d'atenció al client.

Notes importants

No hi havia vídeos oficials de producte del venedor disponibles per incloure'ls en aquest manual.

Always adhere to local electrical codes and regulations when installing or modifying electrical systems.
