Manual d'usuari de l'interruptor de palanca RIDGID 89185 270

1. Introducció

This manual provides comprehensive instructions for the safe installation, proper operation, and routine maintenance of the RIDGID 89185 Toggle Switch 270. This electrical component is designed for ON-OFF control in various applications, particularly within building materials and material handling systems. Please read this manual thoroughly before installation and use to ensure optimal performance and safety.

2. Informació de seguretat

ADVERTIMENT: Electrical components can cause serious injury or death if not handled properly. Always follow these safety guidelines:

• Ensure power is disconnected at the source before installing, servicing, or removing the switch.
• Only qualified personnel should perform electrical installations.
• Verify all wiring connections are secure and correct according to applicable electrical codes.
• No supereu els valors elèctrics nominals de l'interruptor.
• Inspect the switch for any damage before installation. Do not install damaged components.

3. Producte acabatview i Components

The RIDGID 89185 is a robust toggle switch designed for reliable ON-OFF operation. It features a durable plastic body, brass contact material, and push-on terminals for straightforward connection.

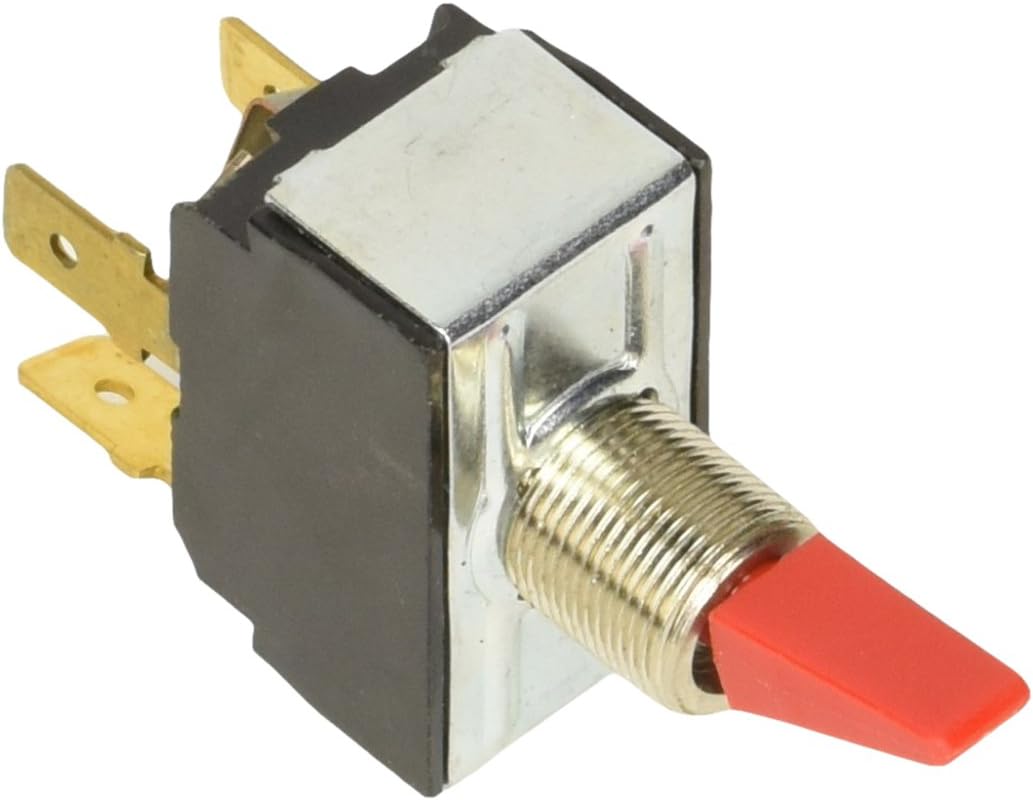

Figura 1: Davant i lateral view of the RIDGID 89185 Toggle Switch, showing the red toggle lever and threaded mounting shaft.

Figura 2: posterior view of the RIDGID 89185 Toggle Switch, illustrating the brass push-on terminals for electrical connections.

4. Instruccions d'instal·lació

The RIDGID 89185 Toggle Switch is designed for flush mounting. Follow these steps for proper installation:

1. Desconnecteu l'alimentació: Ensure all power to the circuit where the switch will be installed is completely disconnected at the main breaker or fuse box. Verify with a voltage provador.
2. Preparació del forat de muntatge: Create an appropriately sized hole for flush mounting the switch. The switch dimensions are approximately 3.5 x 3.5 x 1 inches (8.9 x 8.9 x 2.5 cm).
3. Muntar l'interruptor: Insert the threaded shaft of the toggle switch through the prepared hole. Secure it in place using the provided mounting hardware (nut and washer, if applicable) on the front panel.
4. Connexions de cable: Connect the electrical wires to the push-on terminals at the rear of the switch. Ensure connections are firm and correct for your specific application (ON-OFF operation). Refer to your equipment's wiring diagram.
5. Verifica la instal·lació: Double-check all connections and ensure the switch is securely mounted.
6. Restaura l'alimentació: Un cop finalitzada i verificada la instal·lació, restableix l'alimentació del circuit.

5. Funcionament de l'interruptor

The RIDGID 89185 Toggle Switch operates in a simple ON-OFF mode. To operate:

• Move the toggle lever to one position to engage the "ON" state, completing the circuit.
• Move the toggle lever to the opposite position to engage the "OFF" state, breaking the circuit.

The specific "ON" and "OFF" positions may vary depending on the switch orientation during installation. Always observe the effect of the switch on the connected device.

6. Manteniment

The RIDGID 89185 Toggle Switch requires minimal maintenance. Regular inspection and cleaning will help ensure its longevity and reliable operation.

• Neteja: Periodically wipe the exterior of the switch with a clean, dry cloth. Avoid using abrasive cleaners or solvents. Ensure power is off before cleaning.
• Inspecció: Regularly inspect the switch for any signs of physical damage, loose connections, or excessive wear. If any damage is observed, disconnect power and replace the switch immediately.
• Condicions ambientals: Ensure the switch is not exposed to conditions beyond its intended operating environment (e.g., excessive moisture, extreme temperatures, corrosive substances).

7. Solució De Problemes

If the RIDGID 89185 Toggle Switch is not functioning as expected, consider the following:

• Sense alimentació al dispositiu:
  • Check if the main power supply to the circuit is active.
  • Verify that the switch is in the "ON" position.
  • Inspect wiring connections at the switch terminals for looseness or corrosion.
  • Test the continuity of the switch using a multimeter (with power disconnected).
• Funcionament intermitent:
  • Comproveu si hi ha connexions de cablejat soltes.
  • Inspect the switch for internal damage or wear.

If troubleshooting steps do not resolve the issue, it may be necessary to replace the switch. Always disconnect power before attempting any repairs or replacements.

8. Especificacions

Key technical specifications for the RIDGID 89185 Toggle Switch:

Figura 3: Approximate dimensions of the RIDGID 89185 Toggle Switch, indicating a height of 2.2 inches (5 cm) for the visible portion.

9. Informació de la garantia

Specific warranty details for the RIDGID 89185 Toggle Switch are not provided within this manual. For information regarding product warranty, please refer to the official RIDGID website or contact RIDGID customer support directly.

10. Atenció al client

For technical assistance, replacement parts, or further inquiries regarding the RIDGID 89185 Toggle Switch, please visit the official RIDGID weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. La informació de contacte normalment es pot trobar a l'embalatge del producte o a la fitxa oficial del fabricant. weblloc.

Podeu visitar el RIDGID Store on Amazon per obtenir més informació sobre el producte.
