hjh OFFICE Venus One Ergonomic Swivel Office Chair Instruction Manual

Introducció

Thank you for choosing the hjh OFFICE Venus One ergonomic swivel office chair. This manual provides detailed instructions for the assembly, operation, and maintenance of your new chair, ensuring optimal comfort and longevity. The Venus One is designed with advanced technical specifications and high-quality materials to support ergonomic posture during long working hours.

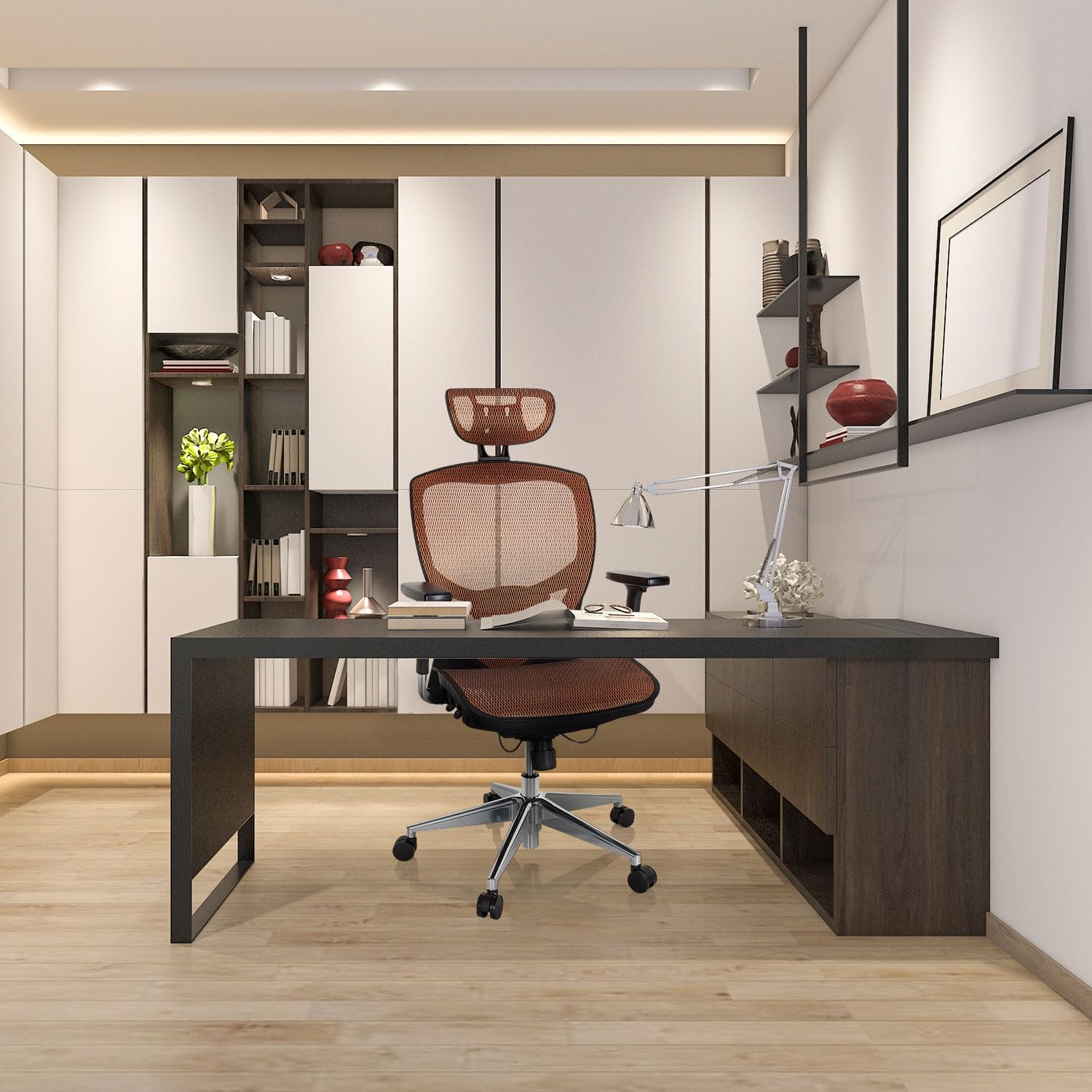

Image: The hjh OFFICE Venus One chair, showcasing its design and presence in a modern office environment.

Informació de seguretat

Please read and follow these safety guidelines carefully to prevent injury and ensure the safe operation of your chair:

• Do not use the chair if it is damaged or if any of its parts are loose. Inspect the chair regularly for wear and tear.
• Do not overload the chair. The maximum recommended weight capacity is 120 kg (264 lbs).
• Do not use the chair on unstable or slippery surfaces. Ensure the chair is on a level, stable floor.
• Keep your hands and fingers away from moving parts, such as the adjustment levers and mechanisms, while adjusting the chair to avoid pinching.
• Follow the assembly and maintenance instructions provided in this manual to ensure the chair's safety and durability.
• Children should not play with or on the chair.

Muntatge i muntatge

The hjh OFFICE Venus One chair requires assembly. Please ensure all components are present before beginning. Due to the chair's weight (approximately 22.3 kg), it is recommended to have two people for assembly to prevent injury.

Passos de muntatge:

1. Desembaleu tots els components i col·loqueu-los sobre una superfície neta i tova per evitar ratllades.
2. Attach the castors to the star base. Ensure they click securely into place.
3. Insert the gas lift cylinder into the center hole of the star base.
4. Attach the seat mechanism to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism aligns with the front of the seat.
5. Mount the backrest to the seat mechanism using the designated screws.
6. Attach the armrests to the seat using the provided screws.
7. Place the assembled seat and backrest onto the gas lift cylinder. Apply gentle downward pressure to secure it.
8. Attach the headrest to the top of the backrest.
9. Verify all screws are tightened and all parts are securely connected before use.

Image: A general illustration of office chair assembly. Refer to the included assembly guide for specific steps for the Venus One model.

Instruccions d'ús i ajustos

The hjh OFFICE Venus One chair offers a range of adjustments to customize your seating experience for optimal ergonomic support. Utilize the intuitive one-finger control system for precise adjustments.

Key Adjustments:

• Ajust de l'alçada del seient: Locate the lever under the right side of the seat. Pull the lever up to raise the seat. While seated, pull the lever up to lower the seat. Release the lever at the desired height.
• Seat Length Adjustment: A lever or button typically located under the front of the seat allows you to slide the seat forward or backward. Adjust until your feet are flat on the floor and there is a small gap between the back of your knees and the seat edge.
• Backrest Height Adjustment: The backrest can be adjusted vertically. Lift the backrest to the desired height. It may click into place. To lower, lift it to its highest point and then release it to drop to the lowest position, then readjust.
• Backrest Angle and Synchronous Mechanism: The chair features a synchronous mechanism that allows the seat and backrest to move together. A lever, usually on the left side, controls the recline and locking positions.
  • To recline, unlock the mechanism and lean back.
  • To lock the backrest in one of the 4 positions, engage the lever at your desired angle.
  • The tension of the recline can be adjusted with a knob located under the seat, allowing you to set it according to your body weight.
• Suport lumbar: The flexible lumbar support is integrated into the backrest. Its position and depth can often be adjusted by a knob or lever on the side of the backrest, or by sliding the backrest up or down. Adjust it to comfortably support the natural curve of your lower back.
• Ajust del recolzabraços: The armrests are vertically and horizontally adjustable.
  • To adjust height, press the button on the side of the armrest and slide it up or down. Release the button to lock.
  • To adjust horizontally, slide the armrest pad forward or backward, or pivot it left or right.
  Adjust them so your arms form a 90-degree angle at the elbow when typing.
• Headrest Height and Tilt Adjustment: The headrest can be adjusted for both height and tilt.
  • To adjust height, slide it up or down.
  • To adjust tilt, pivot it to the desired angle.
  Position it to comfortably support your head and neck.

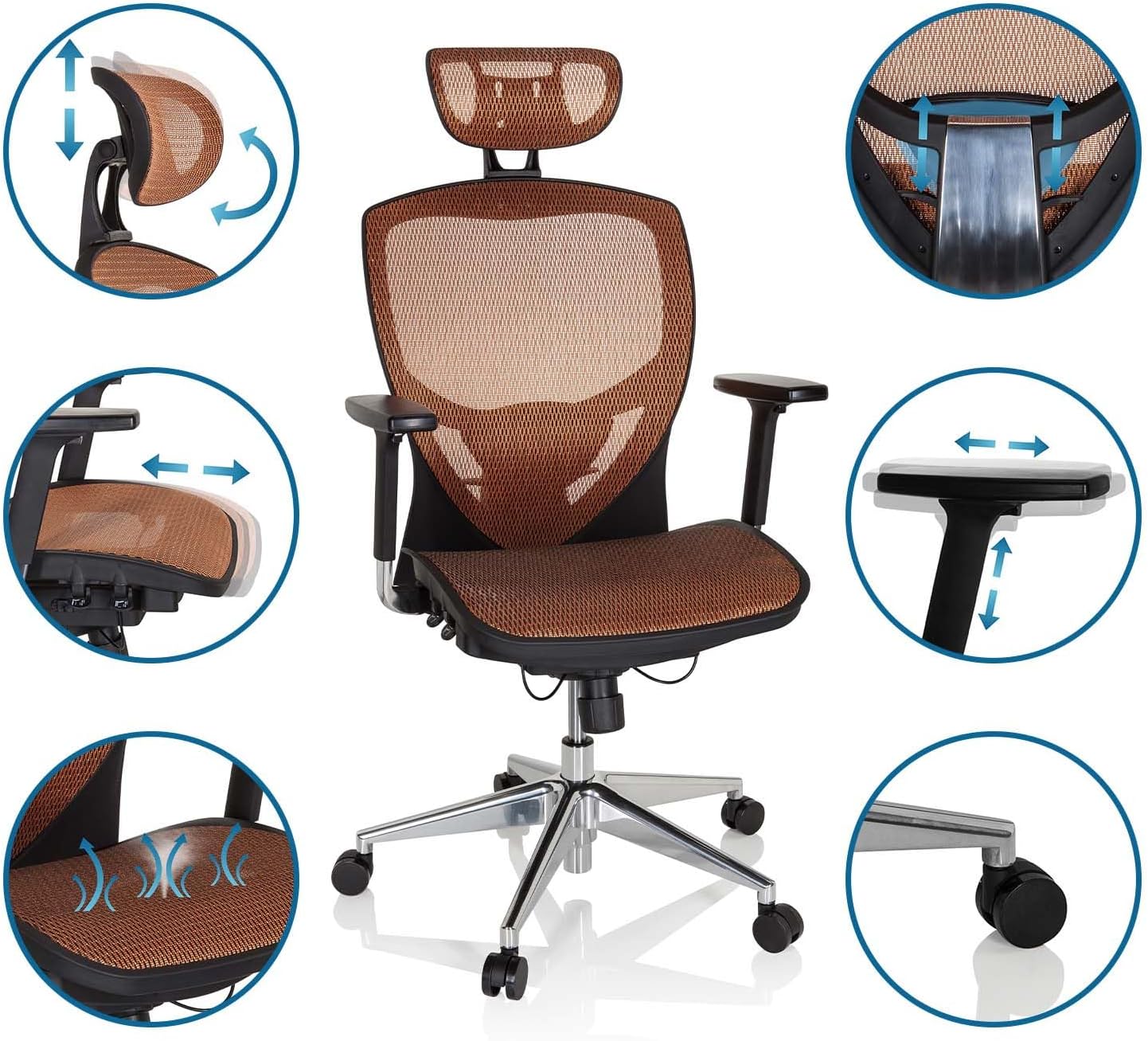

Image: Visual guide to the multiple adjustment points on the Venus One chair, including seat depth, armrest height, and backrest tension.

Image: Illustration of the chair's recline function and the locking mechanism for the backrest angle.

Manteniment

Regular maintenance will extend the life and performance of your hjh OFFICE Venus One chair.

• Neteja: Utilitzeu un suau, damp cloth to wipe down the mesh and frame. For more stubborn dirt, a mild soap solution can be used, followed by wiping with a clean, damp drap. Eviteu productes de neteja abrasius o productes químics agressius.
• Inspecció: Reviseu periòdicament tots els cargols i perns per assegurar-vos que estiguin ben ajustats. Torneu a apretar-los si cal.
• Parts mòbils: Ensure all adjustment mechanisms operate smoothly. If any part feels stiff, a small amount of silicone spray lubricant can be applied to moving metal parts, avoiding fabric or mesh.
• Rodes: Clean any hair or debris from the castors to ensure smooth movement.

Resolució de problemes

If you encounter issues with your hjh OFFICE Venus One chair, refer to the following common troubleshooting tips:

If these steps do not resolve the issue, please contact hjh OFFICE customer support for further assistance.

Especificacions

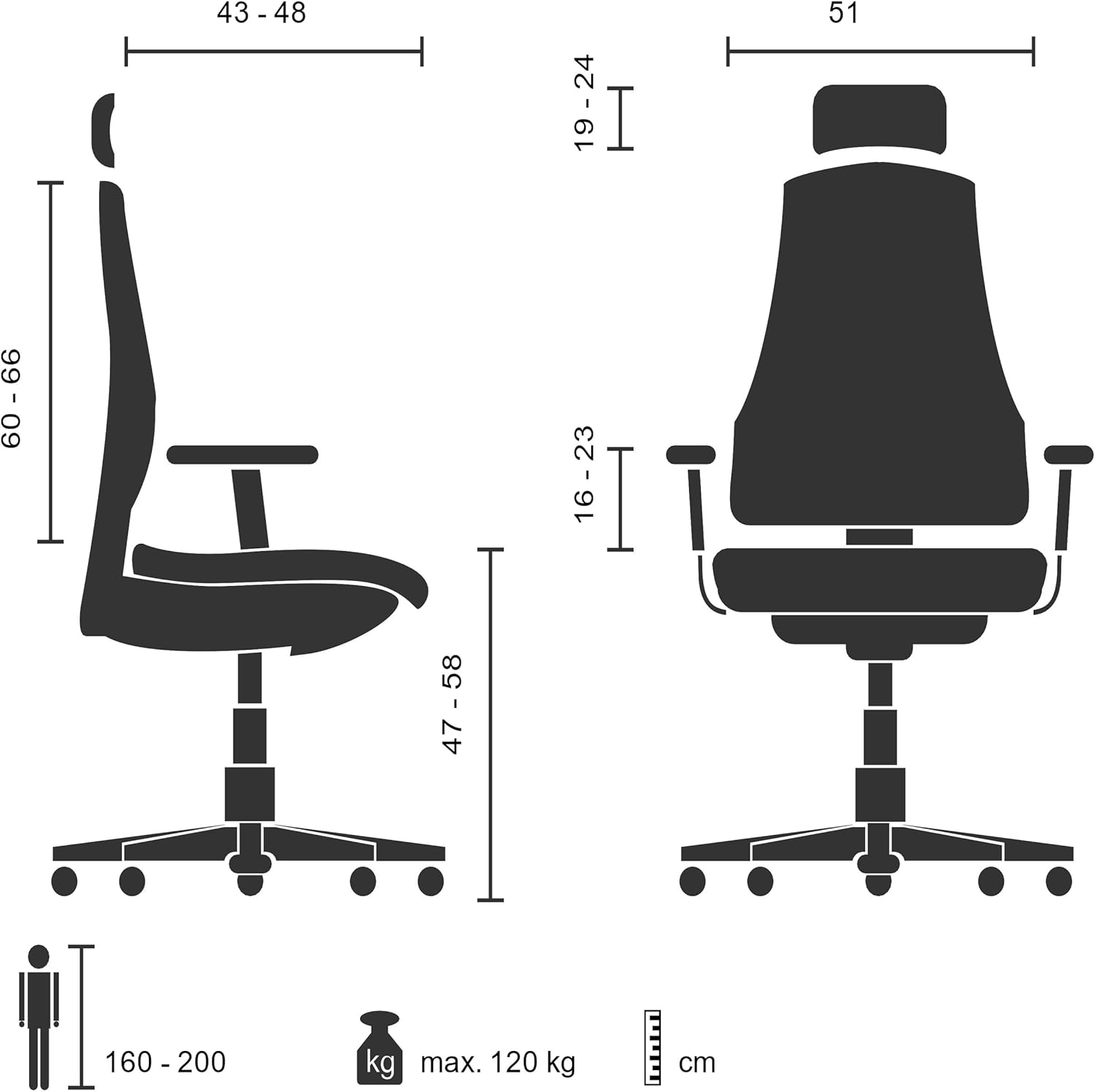

Imatge: Lateral view of the hjh OFFICE Venus One chair, illustrating its ergonomic profile and adjustable components.

Imatge: Frontal view of the hjh OFFICE Venus One chair, showcasing the breathable mesh material and overall design.

Informació de la garantia

The hjh OFFICE Venus One ergonomic swivel office chair comes with a 4 any de garantia des de la data de compra. Aquesta garantia cobreix defectes de fabricació i defectes de materials en condicions d'ús normal. Si us plau, conserveu el comprovant de compra per a reclamacions de garantia.

The warranty does not cover damage resulting from misuse, accidents, unauthorized repairs, or normal wear and tear. For detailed warranty terms and conditions, please refer to the documentation included with your purchase or contact hjh OFFICE customer support.

Atenció al client

For any questions, concerns, or assistance regarding your hjh OFFICE Venus One chair, please contact our customer support team:

• Weblloc: Visit the official hjh OFFICE weblloc web amb preguntes freqüents i informació de contacte.
• Correu electrònic: Consulteu la documentació de la compra per obtenir l'adreça de correu electrònic del servei d'atenció al client.
• Telèfon: Refer to your purchase documentation for the customer service phone number.

Quan contacteu amb el servei d'assistència, tingueu a mà el número de model (657020) i el comprovant de compra.
