Gardena 0.5 L Comfort Trigger Sprayer User Manual

1. Introducció

Thank you for choosing the Gardena 0.5 L Comfort Trigger Sprayer. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new sprayer. Please read these instructions carefully before first use and keep them for future reference.

2. Instruccions de seguretat

Always use the sprayer with appropriate liquids. Do not use with flammable, corrosive, or highly viscous substances.
Mantenir fora de l'abast dels nens i mascotes.
Do not spray towards electrical outlets or equipment.
After use, empty and clean the sprayer thoroughly, especially if used with chemicals.
Store the sprayer in a cool, dry place, away from direct sunlight and freezing temperatures.

3. Producte acabatview

The Gardena 0.5 L Comfort Trigger Sprayer is designed for versatile use in both household and garden environments. Its ergonomic design ensures comfortable handling, while the adjustable nozzle allows for precise application.

Característiques principals:

Adjustable Spray Head: Continuously adjustable from a fine mist to a powerful full jet.
Maneig còmode: Ergonomic handle designed for a perfect grip during use.
Large Filling Opening: Simplifies the process of filling the sprayer under a tap.
Practical Level Indicator: Allows you to monitor the liquid quantity without needing to open the sprayer.

Figure 1: The Gardena 0.5 L Comfort Trigger Sprayer. This image shows the complete sprayer unit, highlighting its ergonomic design and transparent bottle for liquid visibility.

4. Configuració

Before using your sprayer for the first time, follow these steps:

Desembalar: Carefully remove the sprayer from its packaging.
Inspeccionar: Check for any visible damage. Do not use if damaged.
Omplir: Unscrew the spray head from the bottle. Fill the bottle with the desired liquid (e.g., water, plant food solution) up to the 0.5 L mark. The large opening facilitates easy filling.

Figure 2: Filling the Gardena 0.5 L Comfort Trigger Sprayer under a tap. The image demonstrates the ease of filling due to the wide bottle opening.

Segur: Screw the spray head back onto the bottle firmly to prevent leaks.

5. Instruccions de funcionament

Using your Gardena trigger sprayer is straightforward:

Agarre: Hold the sprayer by its ergonomic handle.
Objectiu: Point the nozzle towards the area you wish to spray.
Ajustar el patró de polvorització: Rotate the orange nozzle cap at the front of the spray head to adjust the spray pattern. Turn clockwise for a fine mist and counter-clockwise for a direct, full jet.
Spray: Squeeze the trigger repeatedly to dispense the liquid.

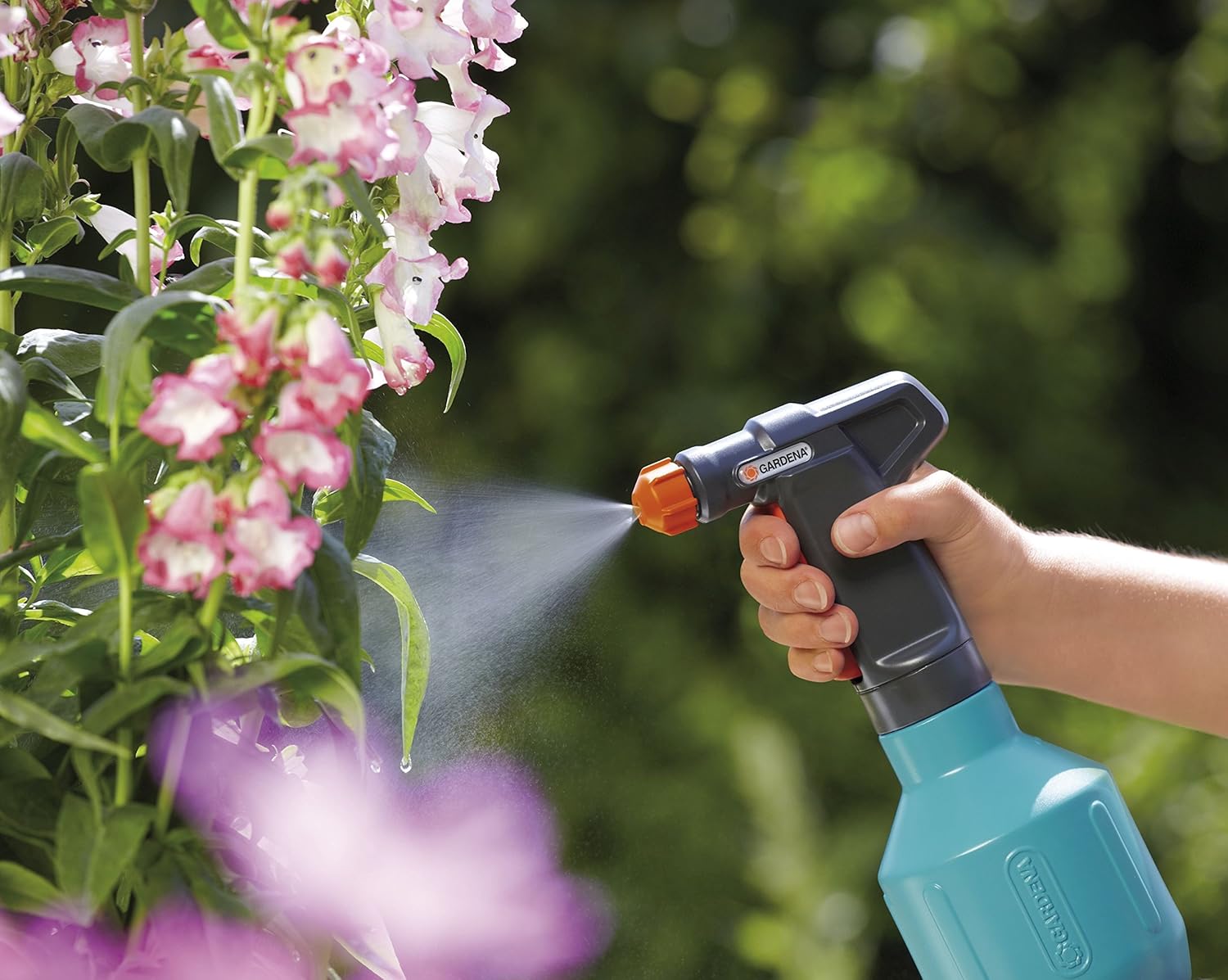

Figure 3: The Gardena 0.5 L Comfort Trigger Sprayer in use, misting a plant. This illustrates the fine mist spray pattern being applied to foliage.

6. Manteniment

Proper maintenance ensures the longevity and optimal performance of your sprayer.

Neteja després de l'ús: After each use, especially with non-water liquids, empty any remaining contents. Fill the bottle with clean water and spray until the water runs clear to flush out the nozzle and internal components.
Neteja profunda: Periodically, disassemble the spray head and rinse all parts under running water. Use a soft brush if necessary to remove any residue.
Emmagatzematge: Store the clean and dry sprayer in a protected area, away from extreme temperatures. Do not store with liquid inside for extended periods.

7. Solució De Problemes

If you encounter issues with your sprayer, refer to the following common problems and solutions:

Problema	Causa possible	Solució
Sense esprai o esprai feble	Nozzle clogged; Insufficient liquid; Air in pump mechanism	Clean the nozzle; Refill the bottle; Prime the pump by squeezing the trigger several times
Leaking from nozzle or seal	Nozzle not tightened; Seal damaged or improperly seated	Ensure nozzle cap is tightened; Check and reseat the main seal; If damaged, replace the spray head
Trigger is stiff or stuck	Residue buildup; Internal mechanism obstruction	Flush the sprayer with warm water; Disassemble and clean if possible; Do not force the trigger

8. Especificacions

Característica	Detall
Número de model	804-20
Capacitat	0.5 litres
Dimensions (L x A x A)	24.5 x 12 x 9 cm
Pes	131.54 grams
Material	Plàstic
Funcionament	Activador manual
Components inclosos	1 Gardena 0.5 L Comfort Trigger Sprayer

9. Garantia i Suport

Gardena products are known for their quality and reliability. For information regarding product warranty, spare parts, or repairs, please visit the official Gardena website's advice center. You can find comprehensive support and resources there to assist you with your Gardena products.

For further assistance, please refer to the contact information provided on the official Gardena weblloc: www.gardena.com
