This manual provides instructions for the installation, operation, and maintenance of the Lightolier 8021CCZW 6" Aperture Recessed Downlight. This product is designed for use with a single triple tube lamp and features a Champagne Bronze finish with a White Flange, intended for recessed lighting applications. It is compatible with Lightolier Frame-In-Kit 6100B and 6100V Series.
Figura 1: Frontal view of the Lightolier 8021CCZW Recessed Downlight, showing the 6-inch aperture and the Champagne Bronze interior with a White Flange.
Informació de seguretat
Always consult a qualified electrician for installation. Disconnect power at the circuit breaker before installation or servicing. Follow all local and national electrical codes. Do not modify the fixture. Use only lamps specified for this fixture.
Configuració i instal·lació
This recessed downlight trim is designed to be installed into a compatible Lightolier Frame-In-Kit (models 6100B and 6100V Series). Ensure the frame-in-kit is properly installed and wired according to its own instructions before proceeding with trim installation.
Eines i materials necessaris:
- Compatible Lightolier Frame-In-Kit (6100B or 6100V Series)
- Triple Tube Lamp (as specified for the fixture)
- Screwdriver (if needed for trim retention clips)
- Ulleres de seguretat
- Guants
Passos d'instal·lació:
- Desconnexió d'alimentació: Ensure power to the circuit is turned off at the main breaker before beginning any installation work.
- Prepare Frame-In-Kit: Verify that the compatible Lightolier Frame-In-Kit is securely installed in the ceiling and all electrical connections to the frame-in-kit are complete and safe.
- Insereix Lamp: Carefully insert the specified triple tube lamp into the socket within the frame-in-kit. Handle the lamp by its base to avoid touching the glass.
- Install Trim: Align the 8021CCZW trim with the frame-in-kit opening. Gently push the trim upwards into the frame-in-kit until the retention clips engage and hold the trim firmly in place against the ceiling.
- Secure Trim (if applicable): Some frame-in-kits may require additional screws or clips to secure the trim. Refer to your frame-in-kit manual for specific instructions.
- Restaura l'alimentació: Once the trim is securely installed, restore power at the circuit breaker.
- Prova de funcionament: Engegueu l'interruptor de la llum per confirmar el funcionament correcte.
Figura 2: Angle view of the downlight trim, showing the internal reflector and the white flange designed to sit flush with the ceiling.

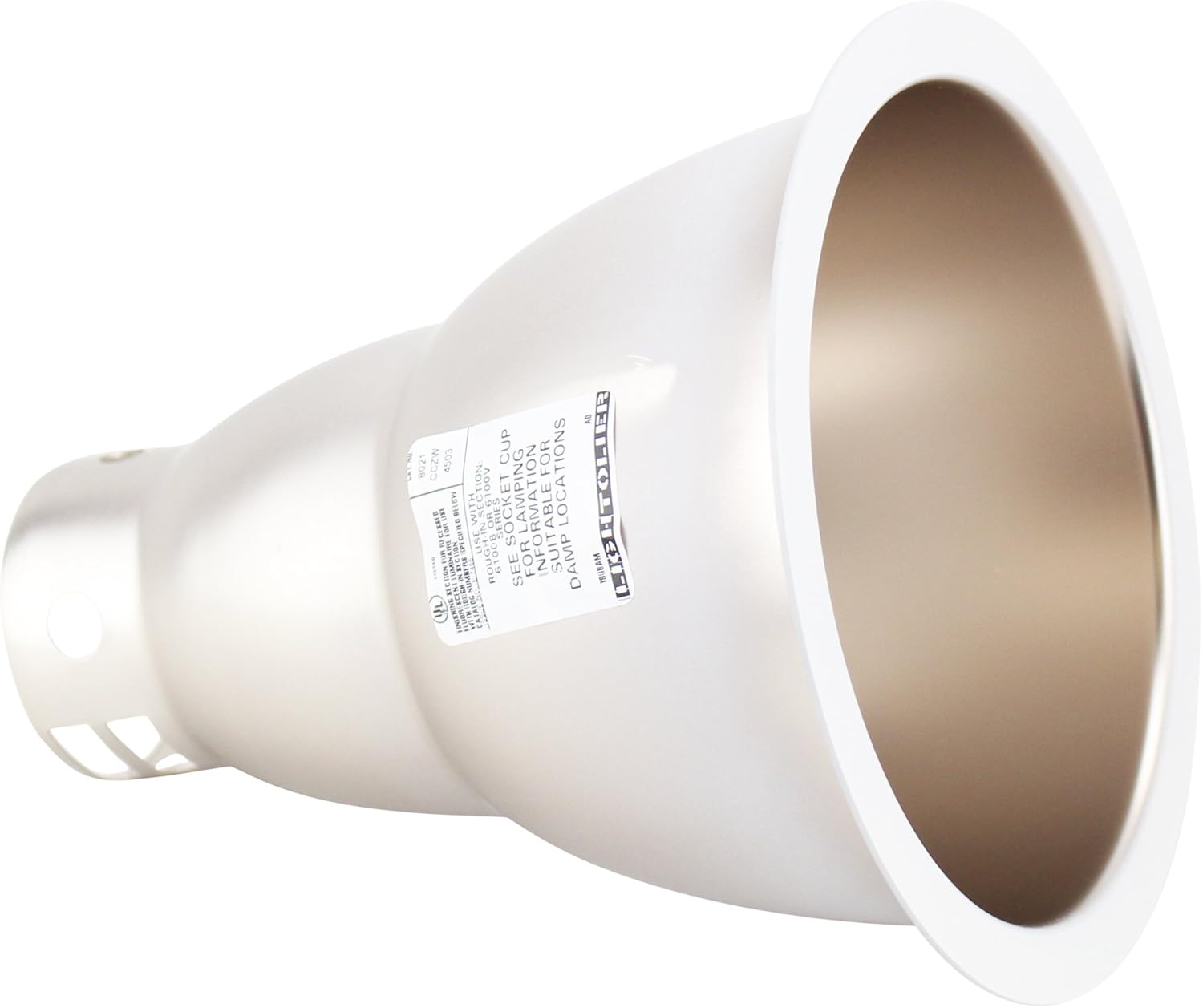

Figura 3: lateral view of the downlight trim, illustrating its conical shape and the attachment points for the frame-in-kit.
Instruccions de funcionament
The Lightolier 8021CCZW Recessed Downlight operates via a standard wall switch connected to the circuit. Once installed and powered, simply toggle the wall switch to turn the light fixture on or off.
Manteniment
Neteja:
Per netejar els guarniments, assegureu-vos que l'alimentació estigui tallada al disjuntor. Feu servir un drap suau, sec o lleugerament humit.amp cloth to wipe the exterior surfaces. Avoid abrasive cleaners or solvents, as these may damage the finish.
Lamp Substitució:
Abans de substituir la lamp, turn off power to the fixture at the circuit breaker. Allow the lamp to cool completely if it has been in use. Carefully remove the existing triple tube lamp from its socket. Insert the new, specified triple tube lamp, ensuring it is seated correctly. Restore power and test.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| La llum no s’encén. | No hi ha energia a l’aparell. Lamp is faulty or not properly seated. Wall switch is off or faulty. | Comproveu l'interruptor. Assegureu-vos lamp is correctly installed; replace if necessary. Check wall switch; test with another fixture if possible. |
| La llum parpelleja. | solta lamp connexió. Incorrecta lamp tipus. Defectuós lamp or dimmer switch. | Assegureu-vos lamp està ben assegut. Verifica lamp type matches fixture requirements. Substitueix lamp; if problem persists, consult an electrician regarding the dimmer switch. |
| Trim is not flush with ceiling. | Improper installation into frame-in-kit. Retention clips not engaged. | Re-seat the trim, ensuring retention clips fully engage. Refer to installation steps. |
Especificacions
| Atribut | Detall |
|---|---|
| Fabricant | Lightolier |
| Número de part | 8021CCZW |
| Número de model de l'article | 8021CCZW |
| Mida | 6 Inches (Aperture/Cutting Diameter) |
| Color | Champagne Bronze, White Flange |
| Estil | Modern |
| Acabar | Champagne Bronze, White Flange |
| Material | Bronze |
| Font d'alimentació | Elèctric per cable |
| Quantitat de paquet d'articles | 1 |
| Nombre de peces | 1 |
| Tipus de muntatge | Sostre |
| Format endoll | A- Estil nord-americà |
| Compatible Frame-In-Kit | Lightolier 6100B & 6100V Series |
Figure 4: Product packaging for the Lightolier 8021CCZW Recessed Downlight, showing model number and compatibility information.
Informació de la garantia
Specific warranty details for the Lightolier 8021CCZW Recessed Downlight are not provided in the product information. Please refer to the manufacturer's official website or contact Lightolier customer service for current warranty terms and conditions.
Suport i Contacte
For technical support, replacement parts, or further assistance, please contact Lightolier customer service. Contact information can typically be found on the manufacturer's official weblloc web o a l'embalatge del producte.
