Introducció
Thank you for choosing the Camco Olympian GM-3X Adjustable Flame Gas Match. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your gas match. Please read these instructions carefully before operation and retain them for future reference.
Image: The gas match being used for multiple applications including RVing, camping, grilling, and lighting fire pits.
Informació important de seguretat
- ADVERTIMENT: Keep out of reach of children. This product is CPSC certified for child safety, but proper supervision is always required.
- Contains flammable butane gas under pressure. Do not expose to heat above 120°F (49°C) or prolonged sunlight.
- No punxeu ni incinereu el recipient.
- Ensure the safety lock is engaged when not in use to prevent accidental ignition.
- Utilitzar només en zones ben ventilades.
- Do not attempt to repair or modify the gas match. Contact customer support for assistance.
- Avoid direct contact with flame.
- Do not use near face or clothing.
- Extinguish flame after each use.
Components del producte
The Camco Olympian GM-3X Gas Match features a durable design with several key components:
- Flexible Extender: A 15-inch long flexible neck for reaching difficult areas.
- Ignition Buttons: Top and bottom buttons to activate the flame.
- Safety Slide Lock: Prevents accidental ignition.
- Flame Adjustment Slider: Controls the flame size.
- Butane Refill Valve: Located at the base for refilling with butane lighter fluid.
- Combustible ViewFinestra d'entrada: Allows monitoring of butane levels.
- Compartiment de la bateria: Houses one AA battery for ignition.
Image: The Camco Olympian GM-3X Gas Match, showing its main body and flexible extender.
Configuració i ús inicial
1. Instal·lació de la bateria
- Locate the battery compartment, typically at the base or side of the handle.
- Open the compartment and insert one AA battery, ensuring correct polarity (+/-).
- Tanqueu el compartiment de la bateria de manera segura.
2. Butane Refilling
The gas match is shipped without butane fluid. It requires butane lighter fluid (sold separately) for operation.
- Ensure the gas match is cool and away from any ignition sources.
- Engage all safety locks and ensure the flame adjustment is set to minimum.
- Turn the gas match upside down to expose the refill valve at the base.
- Select a butane canister with a small plastic nozzle. Larger metal nozzles may not create a proper seal and can cause butane to spray.
- Firmly press the butane canister nozzle into the refill valve. Hold for 5-10 seconds.
- Observe the fuel viewing window to monitor the butane level. Do not overfill.
- Allow a few minutes for the gas to stabilize before attempting to ignite.
Image: The gas match demonstrating its 15-inch long flexible extender, designed for reaching difficult areas.
Instruccions de funcionament
1. Encesa
- Ensure the gas match is adequately filled with butane.
- Locate the safety slide lock and disengage it.
- Simultaneously press and hold both the top and bottom ignition buttons.
- Point the flexible extender towards the item to be lit, maintaining a safe distance. The flame should ignite.
- Once lit, you may release the bottom button if continuous electronic ignition is not required, holding only the top button to maintain the flame.
- Release all buttons to extinguish the flame.
- After use, engage the safety slide lock and twist both top and bottom buttons to their locked positions to prevent accidental activation.

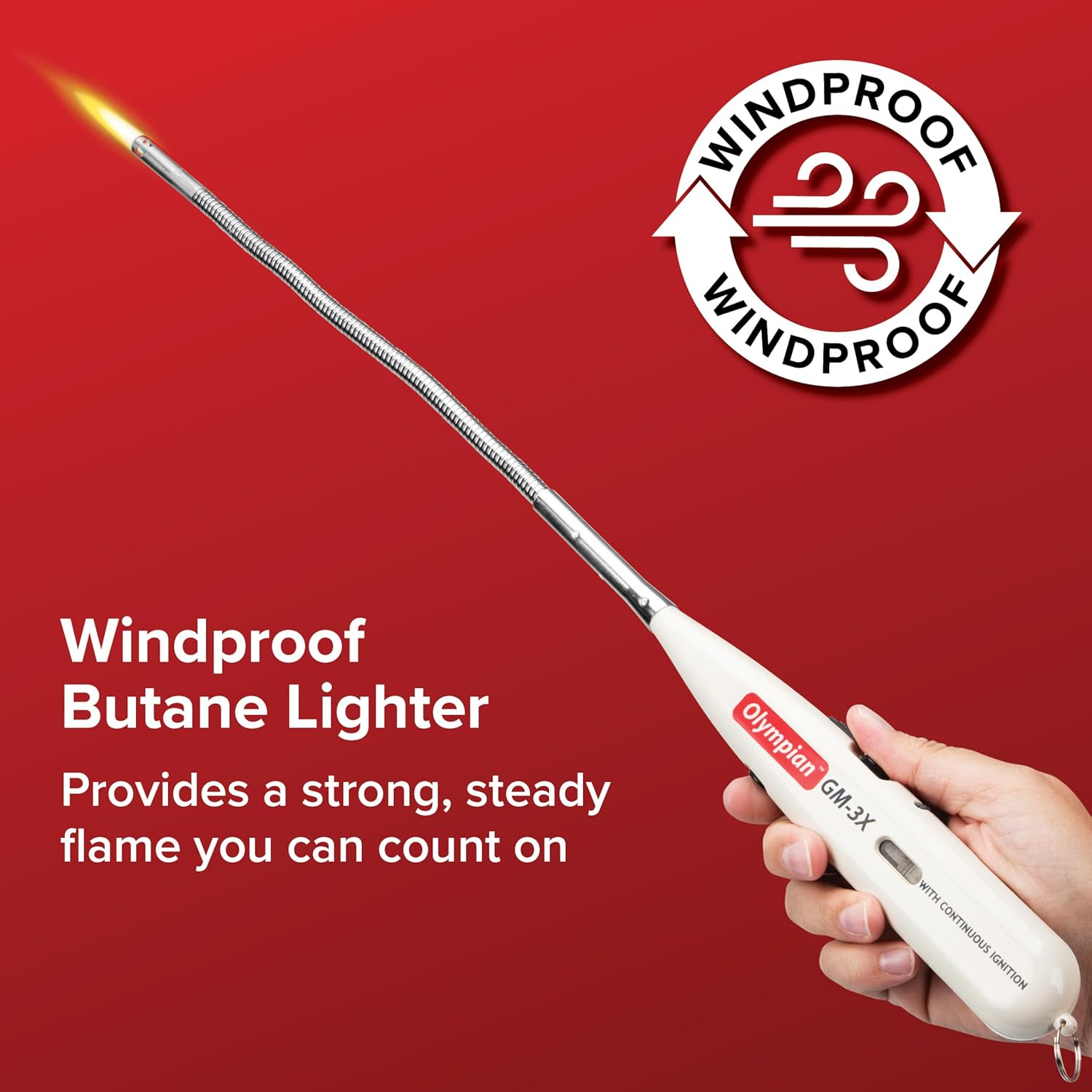

Image: The gas match showcasing its windproof butane flame, providing reliable ignition in various conditions.
2. Adjusting Flame Size
The GM-3X features an adjustable flame to suit various lighting needs.
- Locate the flame adjustment slider on the side of the handle.
- Slide towards the '+' symbol for a larger flame.
- Slide towards the '-' symbol for a smaller flame.
- Adjust the flame only when the lighter is ignited to observe the change.
Image: Visual representation of the adjustable flame feature, showing different flame sizes.
Image: The gas match highlighting its CPSC certification for child safety and the dependable safety lock mechanism.
Manteniment
Butane Refilling
Regular refilling is necessary for continued operation. Refer to the "Butane Refilling" section under Setup for detailed instructions. Always use high-quality butane lighter fluid.
Canvi de bateria
If the ignition spark becomes weak or fails, replace the AA battery. Follow the "Battery Installation" steps in the Setup section.
Neteja
Wipe the exterior of the gas match with a soft, dry cloth. Do not use abrasive cleaners or immerse in water.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| No flame when ignition button is pressed. |
|
|
| La flama és feble o inconsistent. |
|
|
| Butane sprays during refilling. | Incorrect butane nozzle type. | Use a butane canister with a small plastic nozzle for proper sealing. |
Especificacions
- Model: Camco Olympian GM-3X
- Número de peça: 57549
- Longitud total: Aproximadament 26 polzades
- Flexible Extender Length: 15 polzades
- Tipus de combustible: Butane Lighter Fluid (sold separately)
- Font d'alimentació: 1 bateries AA (incloses)
- Característiques: Windproof, Adjustable Flame, Safety Lock, Fuel Viewfinestra
- Certificacions: CPSC Certified for Child Safety
Garantia i assistència al client
For warranty information, technical support, or any questions regarding your Camco Olympian GM-3X Gas Match, please contact Camco customer service directly. Refer to the official Camco weblloc web per obtenir les dades de contacte més actualitzades.
You can visit the Camco store online for more information: Camco Official Store
