KRUPS KM9008 Cup On Request 12-Cup Coffee Maker Instruction Manual

Introducció

This instruction manual provides detailed guidance for the safe and efficient operation, maintenance, and care of your KRUPS KM9008 Cup On Request 12-Cup Coffee Maker. Please read all instructions carefully before first use and retain this manual for future reference.

Instruccions importants de seguretat

• Llegiu totes les instruccions abans d'utilitzar l'aparell.
• No toqueu superfícies calentes. Utilitzeu nanses o poms.
• Per protegir-se contra incendis, descàrregues elèctriques i lesions a les persones, no submergiu el cable, els endolls o l'aparell en aigua o altres líquids.
• És necessària una supervisió estreta quan qualsevol aparell és utilitzat per o a prop dels nens.
• Desendolleu la presa de corrent quan no utilitzeu i abans de netejar. Deixeu refredar abans de posar o treure peces i abans de netejar l'aparell.
• No feu servir cap aparell amb un cable o un endoll danyats o després que l'aparell funcioni malament o s'hagi fet malbé de cap manera. Torneu l'aparell al centre de servei autoritzat més proper per examinar-lo, reparar-lo o ajustar-lo.
• L'ús d'accessoris no recomanats pel fabricant de l'aparell pot provocar incendis, descàrregues elèctriques o lesions a persones.
• No utilitzar a l'aire lliure.
• No deixeu que el cable pengi de la vora de la taula o del taulell, ni toqui superfícies calentes.
• No col·loqueu-lo sobre o prop d'un cremador de gas o elèctric calent, ni en un forn calent.
• Connecteu sempre primer l'endoll a l'aparell i després el cable a la presa de corrent. Per desconnectar-lo, gireu qualsevol control a la posició "off" i, a continuació, retireu l'endoll de la presa de corrent.
• No utilitzeu l'aparell per a un altre ús que el previst.
• Es poden escaldar si es treu la tapa durant els cicles d'elaboració.

Producte acabatview

The KRUPS KM9008 is a programmable 12-cup coffee maker designed for convenient, on-demand coffee dispensing. Key features include a removable stainless steel water tank, an angled control panel, and an adjustable drip tray.

Figura 1: Davant view of the KRUPS KM9008 coffee maker, showing the control panel, dispensing area, and water level indicator.

Components:

• Tauler de control amb pantalla LCD
• Water Tank (Removable, Stainless Steel, 12-cup capacity)
• Water Level Window with Coffee Indicator
• Suport de cistella de filtre
• Adjustable Drip Tray
• broc dispensador
• Cable d'alimentació
• DuoFilter Water Filtration System

Figura 2: A dalt view of the KRUPS KM9008 coffee maker with the lid open, revealing the removable stainless steel water tank and filter basket area.

Configuració

1. Desembalatge i neteja inicial

1. Traieu tots els materials d'embalatge i les etiquetes promocionals de la cafetera.
2. Wash the removable water tank, filter basket, and drip tray in warm, soapy water. Rinse thoroughly and dry.
3. Netegeu l'exterior de la cafetera amb anunciamp tela.

2. Instal·lació del filtre d'aigua

The KRUPS KM9008 includes a DuoFilter water filtration system to improve coffee taste. Refer to the filter packaging for specific installation instructions. Typically, the filter is placed in a designated compartment within the water tank.

3. Primer ús / Imprimació

1. Fill the water tank with fresh, cold water up to the 12-cup mark.
2. Place an empty filter basket into its holder. Do not add coffee grounds for this initial cycle.
3. Tanqueu la tapa amb seguretat.
4. Place a large cup or container under the dispensing spout.
5. Premeu el botó ON/OFF button to start a brewing cycle. Allow the full cycle to complete.
6. Discard the hot water. This process cleans the internal components and prepares the machine for coffee brewing.

Instruccions de funcionament

1. Afegir aigua

1. Obriu la tapa superior de la cafetera.
2. Remove the stainless steel water tank.
3. Fill the tank with fresh, cold water to the desired level, observing the water level window. The maximum capacity is 12 cups.
4. Return the water tank to its position and close the lid.

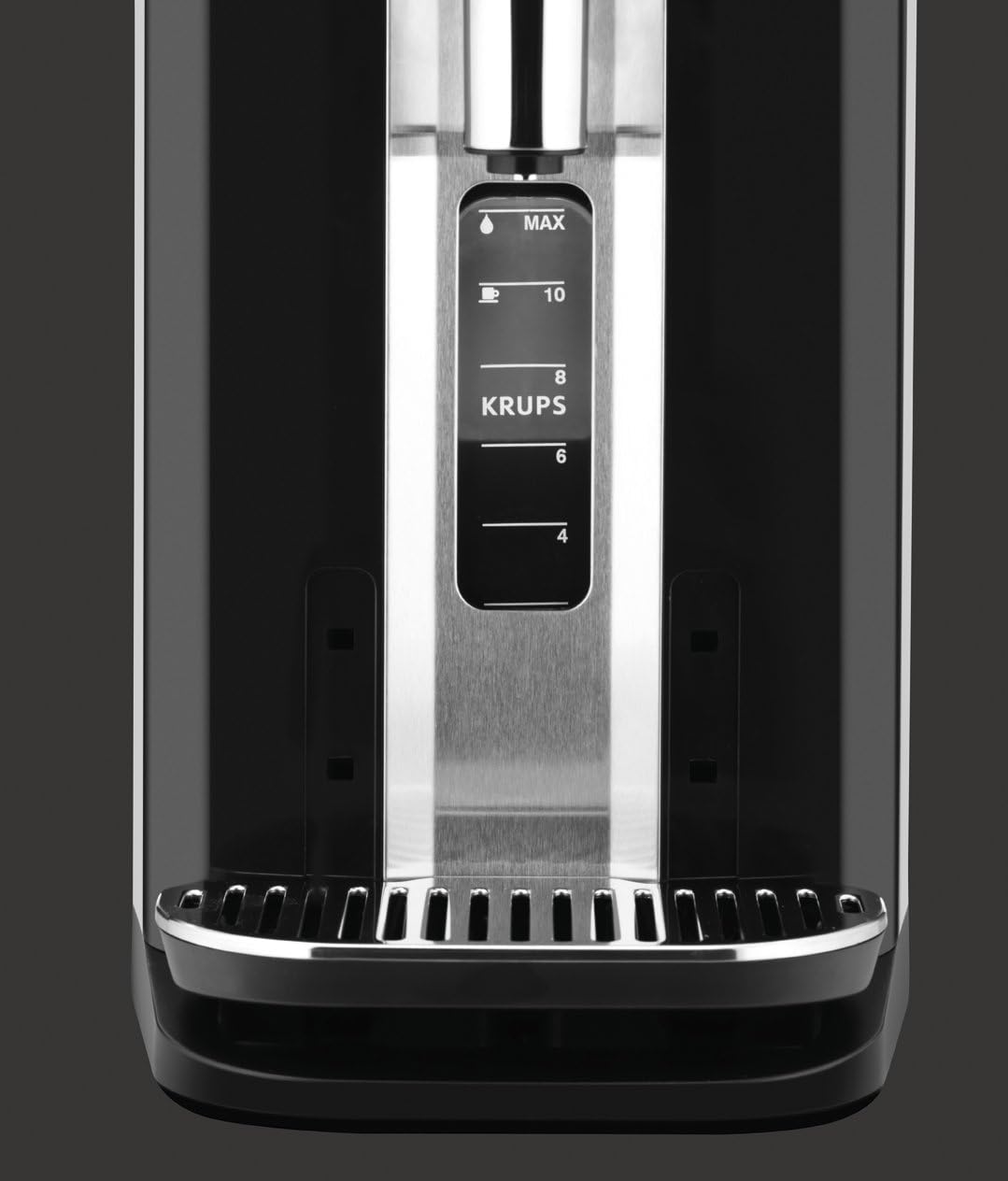

Figura 3: Close-up of the water level indicator on the KRUPS KM9008, showing markings for cup measurements.

2. Afegir un marc de cafè

1. Obriu la tapa superior.
2. Place a paper filter (size #6 cone filter) or a reusable gold-tone filter into the filter basket.
3. Add the desired amount of ground coffee. A general guideline is one tablespoon of ground coffee per cup, adjusted to personal preference.
4. Ensure the filter basket is properly seated and close the lid.

3. Elaboració de cafè

1. Ensure water and coffee grounds are loaded.
2. Premeu el botó ON/OFF button to begin the brewing cycle. The display will indicate brewing status.
3. To select a stronger brew, press the FORT button before brewing.
4. The coffee maker will automatically keep the coffee warm for up to 4 hours after brewing. The countdown timer on the display shows how long the coffee has been kept warm.

Figura 4: Close-up of the KRUPS KM9008 control panel, showing the digital display for time, keep warm status, and programming buttons.

4. Dispensació de cafè

1. Place your cup on the adjustable drip tray. The tray can be set to three different heights to accommodate various cup sizes, including travel mugs.
2. Premeu el botó PETIT button for a smaller serving or the GRAN button for a larger serving.
3. Alternativament, premeu i manteniu premut MANUAL button to dispense coffee continuously. Release the button when your cup is filled to the desired level.

Figura 5: A hand pressing the dispensing button on the KRUPS KM9008 coffee maker, demonstrating the on-demand dispensing feature.

5. Programming Auto-Start

The KM9008 allows you to program two different auto-start times for weekday and weekend brewing.

1. Premeu el botó PROG button. The display will show "P1" or "P2".
2. Utilitza el H (Hour) and MIN (Minute) buttons to set the desired auto-start time for the selected program (P1 or P2).
3. Premeu PROG again to confirm the time and move to the next program or exit programming mode.
4. To activate an auto-start program, ensure the coffee maker is loaded with water and coffee, then press the corresponding INICI AUTOMÀTIC button (1 or 2). The indicator light will illuminate.

Manteniment i Neteja

Una neteja regular garanteix un rendiment òptim i allarga la vida útil de la teva cafetera.

1. Neteja diària

1. Desendolleu sempre la cafetera abans de netejar-la i deixeu-la refredar completament.
2. Remove and empty the filter basket. Wash it in warm, soapy water or place it on the top rack of a dishwasher.
3. Remove the water tank and rinse it thoroughly. If necessary, wash with warm, soapy water.
4. Clean the drip tray and its cover with warm, soapy water.
5. Wipe the exterior surfaces of the coffee maker with a damp tela. No utilitzeu netejadors abrasius ni fregalls.

2. Descalcificació

Mineral deposits from water can build up over time and affect performance. Descale your coffee maker regularly, depending on water hardness and frequency of use (e.g., every 2-3 months).

1. Prepareu una solució descalcificadora segons les instruccions del fabricant (per exemple, vinagre blanc i aigua o un descalcificador comercial).
2. Aboqueu la solució al dipòsit d'aigua.
3. Executeu un cicle de preparació sense cafè mòlt.
4. After the cycle, run 2-3 cycles with fresh, clean water to rinse the system thoroughly.

3. Substitució del filtre d'aigua

The DuoFilter water filter should be replaced approximately every 2 months or after 60 brewing cycles, whichever comes first, to maintain optimal water quality and coffee taste. Refer to the filter packaging for specific replacement instructions.

Resolució de problemes

Especificacions

• Marca: KRUPS
• Nom del model: KM9008
• Capacitat: 12 tasses
• Potència: 1100 watts
• Color: Negre
• Característiques especials: Programmable, Precise Warming Technology, DuoFilter Water Filtration System, Adjustable Drip Tray
• Dimensions: 14.01 x 9.92 x 14.56 polzades (L x A x A)
• Pes de l'article: 9.9 lliures

Garantia i Suport

This KRUPS KM9008 coffee maker comes with a 2-year worldwide warranty. For warranty claims, technical support, or service inquiries, please contact KRUPS customer service or visit the official KRUPS weblloc web. Si us plau, conserveu el comprovant de compra per validar la garantia.

Per a més informació, visiteu l'oficial KRUPS Store on Amazon.
