Sloan Optima EAF-100-ISM Sensor Activated Touch-Free Faucet Instruction Manual

1. Producte acabatview

The Sloan Optima EAF-100-ISM is a commercial-grade, sensor-activated, touch-free faucet designed for bathroom use. It features a 1.5 GPM flow rate, hardwired power, and a deck-mounted mid-body design with a polished chrome finish. This faucet is engineered for durability and hygiene in high-traffic commercial environments, offering advanced water management and user convenience.

Imatge 1.1: Frontal view of the Sloan Optima EAF-100-ISM Sensor Activated Touch-Free Faucet.

2. Característiques clau

• Innovative Water Management: La revamped Optima Faucets from Sloan feature fewer parts and more standardized components, designed to reduce installation and maintenance. The control unit can be powered by batteries, hardwire with battery backup, or an optional hybrid energy turbine.
• Cabal de 1.5 GPM: Designed to optimize water usage, delivering an efficient flow rate of 1.5 gallons per minute.
• Integrated Side Mixer: Features an integrated side-mixer on the spout, allowing users to conveniently control water temperature.
• Touch-Free Sensor Technology: Equipped with Sloan Optima sensor technology for hands-free operation. The advanced sensor detects hand movements, triggering instant water flow and promoting improved hygiene.
• Durabilitat de grau comercial: Constructed with robust, commercial-grade materials to withstand rigorous daily use, ensuring durability and longevity in high-traffic areas.
• Fàcil instal·lació i manteniment: Designed for straightforward installation with standard connections and clear instructions. User-friendly design facilitates easy maintenance, including accessible parts and cartridge replacement.
• Self-Adapting Sensor Technology: Adjusts sensing range and sensitivity based on user behavior for seamless operation and reduced false activations.
• Double Infrared Sensors: Two infrared sensors automatically set up and calibrate, ensuring accurate and reliable detection. An indicator light provides visual feedback.
• Magnetic Solenoid Valve: Provides quick and precise control of water flow, reducing water waste and improving efficiency.
• 24 Hour Sentinel Activation: Offers an optional feature for continuous water flow for a specified period, useful in certain commercial applications.

3. Configuració i instal·lació

This faucet is designed for easy installation, including all necessary product and mounting hardware. Follow these general steps for proper setup:

1. Desembalatge i inspecció: Carefully remove all components from the packaging and inspect for any damage. Ensure all parts listed in the packing list are present.
2. Preparació de la superfície de muntatge: Ensure the deck-mounted surface is clean, dry, and properly prepared for faucet installation.
3. Aixeta de muntatge: Secure the faucet body to the deck using the provided mounting hardware. Ensure a stable and watertight seal.
4. Connecteu les línies d'aigua: Connect the hot and cold water supply lines to the appropriate inlets on the faucet. Tighten all connections securely to prevent leaks.
5. Connectar l'alimentació: Connect the hardwired power supply to the faucet's control unit as per electrical codes and instructions.
6. Prova de funcionament: Once installed, turn on the water supply and power. Test the faucet for proper sensor activation and water flow. Check for any leaks.

Imatge 3.1: View of the faucet with exposed mounting hardware, illustrating the installation components.

4. Instruccions de funcionament

The Sloan Optima EAF-100-ISM faucet is designed for intuitive, touch-free operation.

4.1. Sensor Activation

To activate water flow, simply place your hands within the sensing range of the faucet. The double infrared sensors will detect your presence and initiate water flow instantly. Water will stop automatically once your hands are removed from the sensing area, conserving water.

4.2. Control de temperatura

The faucet features an integrated side mixer. Use the lever on the side of the faucet to adjust the water temperature to your desired setting. Move the lever towards the red indicator for hotter water and towards the blue indicator for colder water.

4.3. Self-Adapting Sensor

The self-adapting sensor technology continuously adjusts its range and sensitivity based on environmental factors and user behavior, ensuring consistent and reliable performance.

4.4. 24 Hour Sentinel Activation (Optional)

For specific commercial applications requiring continuous water flow for a set period, the optional 24-hour sentinel activation feature can be configured. Refer to advanced settings in the full technical manual for details on enabling and disabling this function.

5. Manteniment

Regular maintenance ensures the longevity and optimal performance of your Sloan Optima EAF-100-ISM faucet.

5.1. Neteja

Clean the polished chrome finish regularly with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals or abrasive pads that could damage the finish or sensor lens. Ensure the sensor lens remains clear of obstructions or buildup for proper operation.

5.2. Substitució del cartutx

The faucet is designed with accessible parts for easy maintenance, including cartridge replacement. If water flow issues or leaks occur, consult a qualified plumber for cartridge inspection and replacement. Use only genuine Sloan replacement parts.

6. Solució De Problemes

Si teniu problemes amb l'aixeta, consulteu els següents consells habituals per a la resolució de problemes:

• Sense flux d'aigua:
  • Comproveu si les vàlvules de subministrament d'aigua estan completament obertes.
  • Verify that the power supply to the faucet is active.
  • Assegureu-vos que la lent del sensor estigui neta i lliure d'obstruccions.
• Flux d'aigua continu:
  • Check for any objects within the sensor's detection range.
  • Clean the sensor lens to remove any debris.
  • If the issue persists, the sensor may require recalibration or service.
• Inconsistent Sensor Activation:
  • Netegeu la lent del sensor.
  • Ensure adequate lighting in the area, as extreme light conditions can sometimes affect sensor performance.
• Baixa pressió d'aigua:
  • Check the water supply pressure to the building.
  • Inspeccioneu l'airejador per si hi ha obstruccions i netegeu-lo si cal.

For persistent issues, contact Sloan customer support or a certified technician.

7. Especificacions

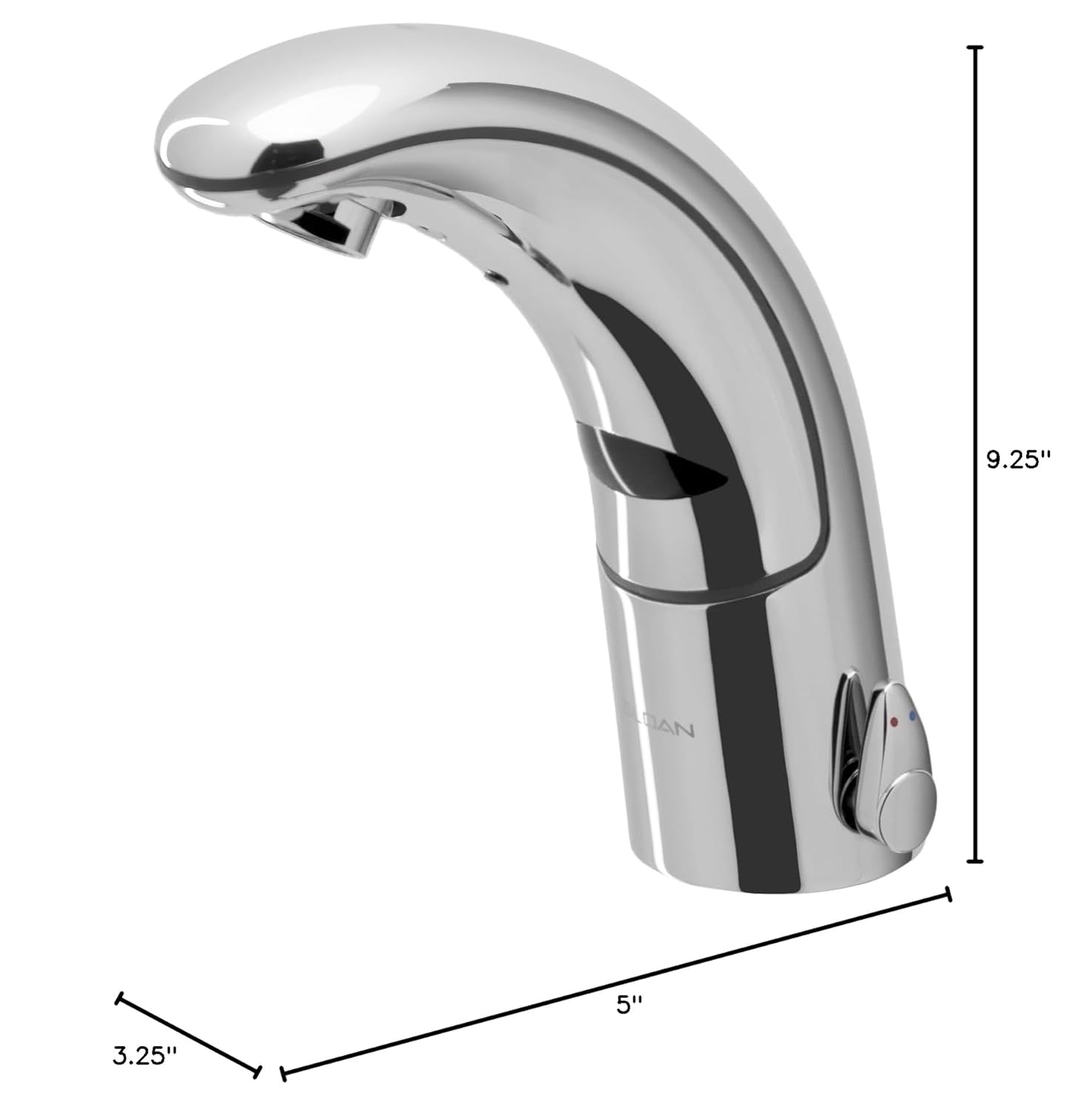

Image 7.1: Dimensional drawing of the Sloan Optima EAF-100-ISM Faucet, showing key measurements.

8. Informació de la garantia

The Sloan Optima EAF-100-ISM Sensor Activated Touch-Free Faucet comes with a garantia limitada. For specific terms, conditions, and duration of the warranty, please refer to the warranty documentation included with your product or visit the official Sloan weblloc.

9. Atenció al client

For technical assistance, replacement parts, or further inquiries, please contact Sloan customer support:

• Weblloc: Visit the official Sloan weblloc web amb informació sobre productes, preguntes freqüents i recursos d'assistència.
• Contacte: Refer to the contact section on the Sloan weblloc web per obtenir números de telèfon o assistència per correu electrònic.
