Introducció
This user manual provides detailed instructions for the installation, operation, and maintenance of your Moen Weymouth Two-Handle Widespread Cross Handle Bathroom Faucet Trim Set. Designed with elegant, traditional details and a distinctive chrome finish, this faucet brings a sense of luxury and timeless charm to any bathroom. Please read this manual thoroughly before beginning installation or operation to ensure proper function and longevity of your product.
Figure 1: Moen Weymouth Chrome Two-Handle Widespread Cross Handle Bathroom Faucet Trim Set.
Configuració i instal·lació
The Moen Weymouth faucet is designed for widespread installations and requires a Moen 9000 M-PACT Two-Handle Widespread Valve (sold separately) to complete the installation. The faucet handles can be installed at any distance between 8 to 16 inches for a customized widespread setup. This trim set is compatible with a three-hole sink configuration.
Llista de verificació prèvia a la instal·lació:
- Ensure you have the Moen 9000 M-PACT Two-Handle Widespread Valve.
- Verify your sink has a three-hole configuration.
- Gather necessary tools as per the detailed installation guide (refer to the official user guide PDF).
Figure 2: Illustration indicating the separate purchase of the required valve.
Figure 3: Diagram showing a typical three-hole sink configuration compatible with this faucet.
Instruccions de funcionament
The Moen Weymouth faucet features two cross handles for precise control over water temperature and flow. The hot side handle turns counter-clockwise to open, and the cold side handle turns clockwise to open. This faucet is WaterSense certified, meaning it uses up to 32 percent less water while maintaining optimal water pressure, contributing to water conservation without sacrificing performance.

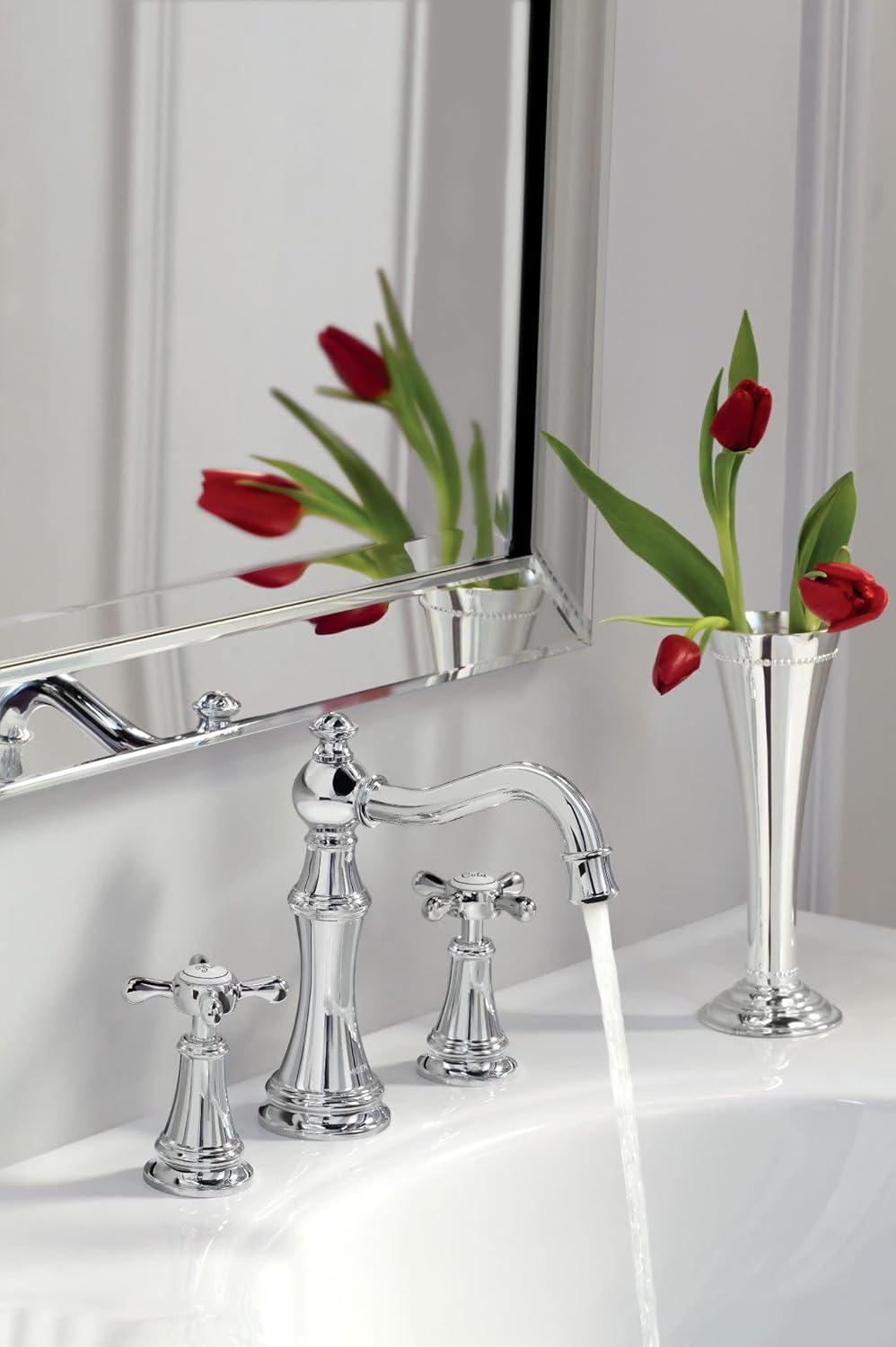

Figure 4: The Moen Weymouth faucet in a bathroom setting, demonstrating its high-arc spout and cross handles.
Manteniment
To maintain the beautiful chrome finish and ensure the longevity of your Moen Weymouth faucet, regular cleaning is recommended. Use a soft, damp cloth and a mild, non-abrasive soap. Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish. Periodically check for any leaks and address them promptly to prevent water damage.
Resolució de problemes
Should you encounter any issues with your Moen Weymouth faucet, please refer to the common troubleshooting tips below. For more detailed solutions or complex problems, consult the full user guide PDF or contact Moen customer support.
Problemes comuns:
- Baix cabal d'aigua: Check for debris in the aerator. Unscrew the aerator from the spout and clean any accumulated particles.
- Aixeta que goteja: Ensure all connections are tight. If leaking persists from the handles or spout, internal components may need inspection or replacement.
- Problemes de control de temperatura: Verify hot and cold water supply lines are correctly connected and fully open.
Especificacions
Below are the key specifications for the Moen Weymouth Chrome Two-Handle Widespread Cross Handle Bathroom Faucet Trim Set.
| Característica | Detall |
|---|---|
| Marca | Moen |
| Nom del model | Weymouth |
| Número de model | TS42114 |
| Tipus d'acabat | Chrome |
| Material | Metall |
| Nombre de nanses | 2 |
| Tipus de mànec | Creu |
| Tipus d'instal·lació | Widespread (3-hole application) |
| Caudal màxim | 1.2 galons per minut (certificat WaterSense) |
| Alçada del bec | 7.81 polzades |
| Abast del bec | 5.75 polzades |
| Pes de l'article | 1 lliures |
| Required Valve | Moen 9000 M-PACT Two-Handle Widespread Valve (sold separately) |
Figure 5: Detailed dimensions of the Moen Weymouth faucet components.
Figure 6: Moen's WaterSense certification, highlighting water efficiency.
Garantia i Suport
Your Moen Weymouth faucet is backed by a Limited Lifetime Warranty against leaks, drips, and finish defects, ensuring long-term peace of mind. For comprehensive support, additional resources, or to purchase protection plans, please refer to the official Moen weblloc web o el PDF de la guia d'usuari proporcionada.
