Franke FDL 664 XS Electronic Stainless Steel Hood, 60 cm

Introducció

Thank you for choosing the Franke FDL 664 XS Electronic Stainless Steel Hood. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new appliance. Please read this manual thoroughly before using the product and keep it for future reference.

Producte acabatview

• Nombre de velocitats: 3
• Maximum capacity DIN IEC 61591: 410 cubic meters/hour
• Maximum capacity DIN IEC 61591: 265 cubic meters/hour (This might be a typo in the source, usually one max capacity is listed, or it refers to different modes like ducted vs. recirculating. For informational purposes, both are included as per source.)
• Màxim soroll: DIN EN 60704-3 61 dB (A)
• Minimum noise: DIN EN 60704-3 49 dB (A)
• Power (watts): 125 watts
• Llum: 2 halogen bulbs with 28 watts
• Tipus de control: Mechanical push-button controls
• Número de peça: 110.0017.937

Configuració i instal·lació

The Franke FDL 664 XS hood is designed for wall-mounted installation. Proper installation is crucial for optimal performance and safety. It is recommended that installation be performed by a qualified technician.

Llista de verificació prèvia a la instal·lació

• Comproveu que tots els components estiguin presents i sense danys.
• Ensure the installation area meets the required dimensions and clearances.
• Confirm electrical supply matches the appliance's requirements (2.3E+2 Volts).
• Decide on the ventilation type: ducted (extraction) or recirculating.

Passos d'instal·lació (més enllà)view)

1. Muntatge: Securely attach the hood to the wall using appropriate fasteners, ensuring it is level and at the correct height above the cooking surface.
2. Ducting (if applicable): Connect the exhaust ductwork to the hood's outlet. Ensure the ducting is properly sealed and routed to the exterior. The ventilation type is ducted/vented.
3. Recirculation (if applicable): If using recirculation mode, install the charcoal filters (not included, sold separately) and ensure the air outlet is clear.
4. Connexió elèctrica: Connect the hood to a grounded electrical outlet according to local electrical codes.
5. Instal·lació del filtre: Install the metal grease filters into their designated slots.

Instruccions de funcionament

The Franke FDL 664 XS hood features mechanical push-button controls for easy operation.

Tauler de control

The control panel is located on the front of the hood and typically includes buttons for power, fan speed selection, and lighting.

Selecció de velocitat del ventilador

• Speed 1 (Min): Per a cocció lleugera, cocció a foc lent o circulació general de l'aire.
• Speed 2 (Mid): For normal cooking activities.
• Speed 3 (Max): For heavy cooking, frying, or when strong odors are present.

Il·luminació

Press the light button to turn the halogen lights on or off. The lights provide illumination for your cooking surface.

Consells generals d'ús

• Turn on the hood a few minutes before you start cooking to create an air flow.
• Allow the hood to run for a few minutes after cooking to clear any remaining steam or odors.
• For best results, use the appropriate fan speed for the amount of steam and odors being produced.

Manteniment i Neteja

Regular maintenance ensures the longevity and optimal performance of your Franke hood.

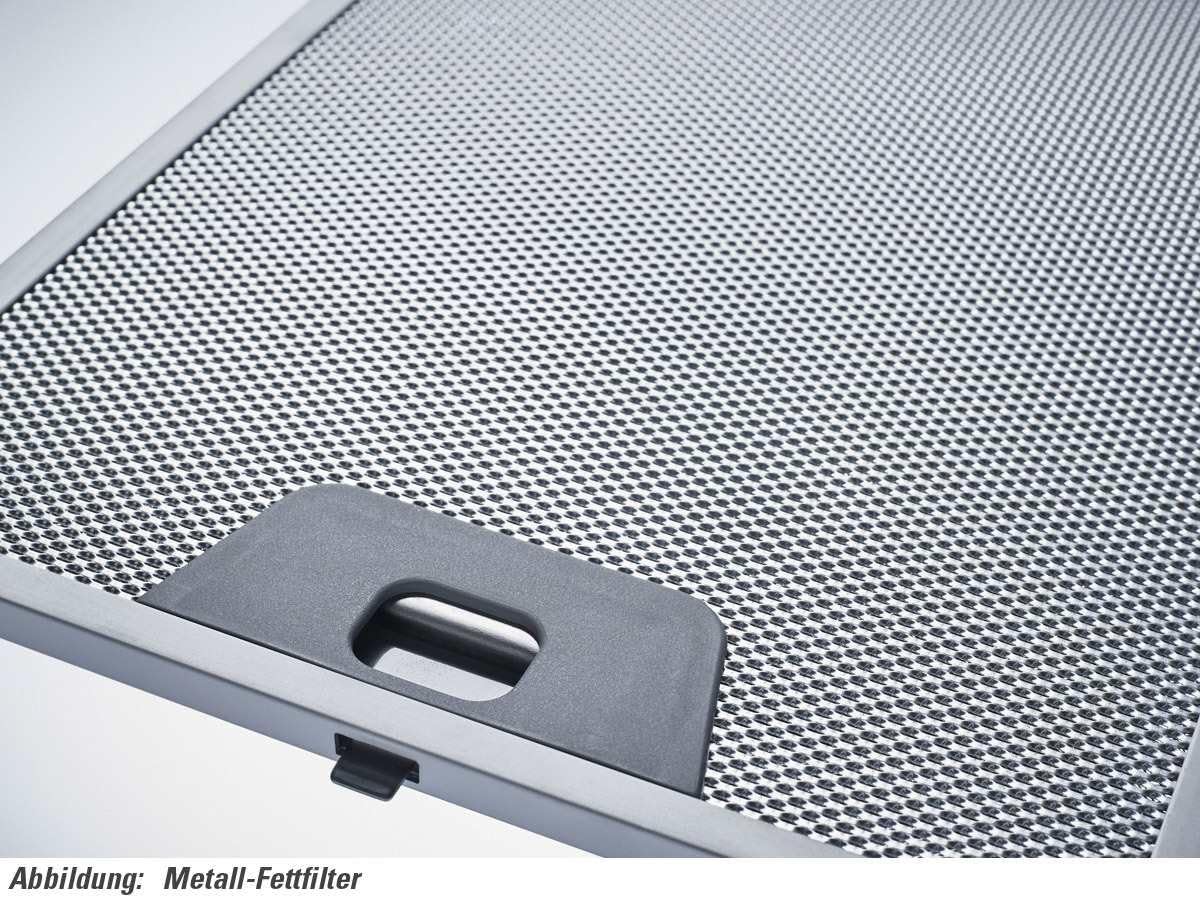

Metal Grease Filters

The hood is equipped with mesh-type metal grease filters. These filters trap grease particles from cooking fumes and should be cleaned regularly to prevent grease buildup and maintain extraction efficiency.

Procediment de neteja:

1. Turn off the hood and disconnect it from the power supply before cleaning.
2. Remove the metal grease filters by pulling the release latch and sliding them out.
3. Wash the filters by hand in hot water with a mild detergent, or in a dishwasher on a low-temperature cycle.
4. Esbandiu-les bé i deixeu-les assecar completament abans de tornar-les a instal·lar.
5. Clean the filters at least once a month, or more frequently depending on cooking habits.

Neteja exterior

• Clean the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner.
• Eviteu utilitzar netejadors abrasius, fregalls o productes químics agressius, ja que poden danyar l'acabat.
• Wipe in the direction of the grain for best results.

Halogen Light Replacement

If a halogen bulb needs replacement, ensure the hood is off and cool. Carefully remove the old bulb and replace it with a new 28-watt halogen bulb of the same type.

Resolució de problemes

This section provides solutions to common issues you might encounter with your hood. If the problem persists, contact customer support.

Especificacions

Detailed technical specifications for the Franke FDL 664 XS Electronic Stainless Steel Hood.

Garantia i Suport

For warranty information, please refer to the documentation provided with your purchase or contact Franke customer service directly. While specific warranty details are not provided in this manual, Franke products typically come with a manufacturer's warranty covering defects in materials and workmanship.

Atenció al client

If you require technical assistance, have questions about your product, or need to arrange for service, please contact Franke customer support. You can usually find contact information on the manufacturer's official weblloc o a l'embalatge del producte.

For general inquiries or to find authorized service centers, visit the official Franke weblloc: www.franke.com
