Canarm IOL156BK Treehouse 3-Light Outdoor Post-Light User Manual

Producte acabatview

The Canarm IOL156BK Treehouse 3-Light Outdoor Post-Light is designed to add welcoming illumination and character to the exterior of your home. This post lamp features a transitional style with a black finish and clear glass, suitable for various outdoor settings. It requires three 100W Type A bulbs (not included).

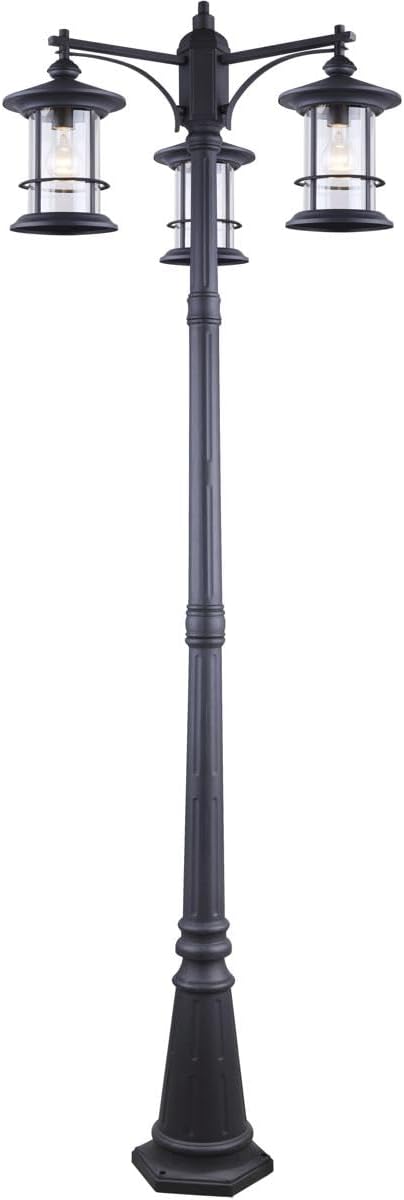

Figura 1: Frontal view of the Canarm IOL156BK Treehouse 3-Light Outdoor Post-Light, showcasing its black finish and clear glass lanterns.

Informació de seguretat

Always follow basic safety precautions when installing, operating, and maintaining electrical fixtures. Failure to do so may result in fire, electric shock, or personal injury.

• Assegureu-vos que l'alimentació estigui apagada a l'interruptor automàtic abans de la instal·lació o el manteniment.
• Consulteu un electricista qualificat si no esteu segur del procés d'instal·lació.
• Use only bulbs of the specified wattage and type (3 x 100W Type A).
• This fixture is rated for wet locations, but proper sealing during installation is crucial.
• No intenteu modificar el dispositiu.

Contingut del paquet

Verify that all components are present before beginning installation. If any parts are missing or damaged, do not proceed with installation and contact Canarm customer support.

• Post Light Fixture (Main Assembly)
• Clear Glass Panels (Pre-installed or separate, verify upon unboxing)
• Mounting Hardware (Included Components)
• Manual d'instruccions (Aquest document)

Nota: Les bombetes no estan incloses i s'han de comprar per separat.

Configuració i instal·lació

This outdoor post light requires a stable base for installation. Professional installation is recommended for optimal safety and performance, especially if a new concrete base is required.

Eines necessàries (no incloses):

• Tornavís (Phillips i Flathead)
• Pelafils
• Cinta elèctrica
• Clau anglesa ajustable
• Ulleres de seguretat
• Guants de treball

Passos d'instal·lació:

1. Prepareu l'àrea d'instal·lació: Ensure the power supply to the installation location is turned off at the main circuit breaker. Clear the area around the existing post or prepare a new concrete base according to local building codes.
2. Muntar l'aparell: Secure the post light base to the prepared mounting surface using the provided mounting hardware. Ensure the fixture is level and stable.
3. Connecteu el dispositiu: Connect the electrical wires from the fixture to the main power supply wires according to standard electrical codes (black to black, white to white, ground to ground). Use wire nuts to secure connections and electrical tape for added insulation.
4. Instal·leu les bombetes: Carefully screw three 100W Type A incandescent bulbs (or equivalent LED/CFL bulbs) into the sockets.
5. Secure Glass Panels (if applicable): If glass panels are not pre-installed, carefully insert them into the fixture's lantern sections.
6. Prova de funcionament: Restableix l'alimentació a l'interruptor i prova la làmpada.

Figure 2: The Canarm IOL156BK post light installed in an outdoor setting, demonstrating its aesthetic integration into a home's exterior.

Instruccions de funcionament

The Canarm IOL156BK Treehouse Post-Light operates via a standard electrical switch (Push Button Switch Type, as per specifications) connected to its power source. There are no complex controls or settings on the fixture itself.

• Activació/desactivació: Use the wall switch or external timer/sensor connected to the light's circuit to turn the light on or off.
• Substitució de bombetes: To replace bulbs, ensure power is off at the circuit breaker. The bottom of the light "globe" is open, allowing for easy access to change light bulbs. Unscrew the old bulb and screw in a new 100W Type A bulb (or equivalent).

Figura 3: Un primer pla view of one of the light fixtures, illustrating the clear glass and the bulb socket for easy replacement.

Manteniment

Regular maintenance will help preserve the appearance and functionality of your outdoor post light.

• Neteja: Netegeu periòdicament l'aparell amb un drap suau iamp cloth. Avoid abrasive cleaners or solvents that could damage the finish or glass. Ensure the power is off before cleaning.
• Comprovació de la bombeta: Inspect bulbs regularly and replace them as needed.
• Integritat estructural: Occasionally check the mounting and overall structure for any signs of loosening or damage. Tighten screws if necessary.
• Glass Condition: Inspect glass panels for cracks or damage. Replace if necessary to maintain weather resistance.

Resolució de problemes

If the problem persists after attempting these solutions, contact a qualified electrician or Canarm customer support.

Especificacions

Garantia i Suport

The Canarm IOL156BK Treehouse 3-Light Outdoor Post-Light comes with a 1 any de garantia des de la data de compra. Aquesta garantia cobreix els defectes de materials i de mà d'obra en ús normal.

For warranty claims, technical support, or missing parts, please contact Canarm customer service. Keep your proof of purchase for warranty validation.

Canarm Customer Support:

• Visit the official Canarm weblloc per obtenir informació de contacte.
• Refer to the packaging or included documentation for specific contact details.

Nota: La garantia no cobreix els danys causats per una instal·lació incorrecta, un mal ús, accidents o modificacions no autoritzades.
