1. Introducció

This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of the Dometic 8032214R20 Refrigerator Sidewall Vent. This product is designed to enhance the ventilation of your refrigerator, particularly in recreational vehicles (RVs) and campers, ensuring optimal performance and longevity of the appliance. Please read all instructions carefully before proceeding with installation or use. Retain this manual for future reference.

2. Informació de seguretat

ADVERTIMENT: Failure to follow these safety instructions could result in fire, electric shock, or serious injury.

• Always disconnect power before installing, servicing, or cleaning the vent.
• La instal·lació ha de ser realitzada per un tècnic qualificat d'acord amb tots els codis elèctrics i d'edificació locals i nacionals.
• Assegureu-vos que la font d'alimentació coincideixi amb el voltage i wattage requirements specified for the vent.
• Do not operate the vent with a damaged cord or plug.
• Keep all foreign objects clear of the vent opening to prevent obstruction and damage.
• This product is intended for its specified purpose only. Do not modify or use for unintended applications.

3. Producte acabatview

The Dometic 8032214R20 is a high-velocity sidewall vent designed to improve air circulation around your refrigerator. It features an integrated fan to actively draw out warm air, contributing to the refrigerator's cooling efficiency. The vent is constructed from durable materials and finished in polar white to blend with most RV exteriors.

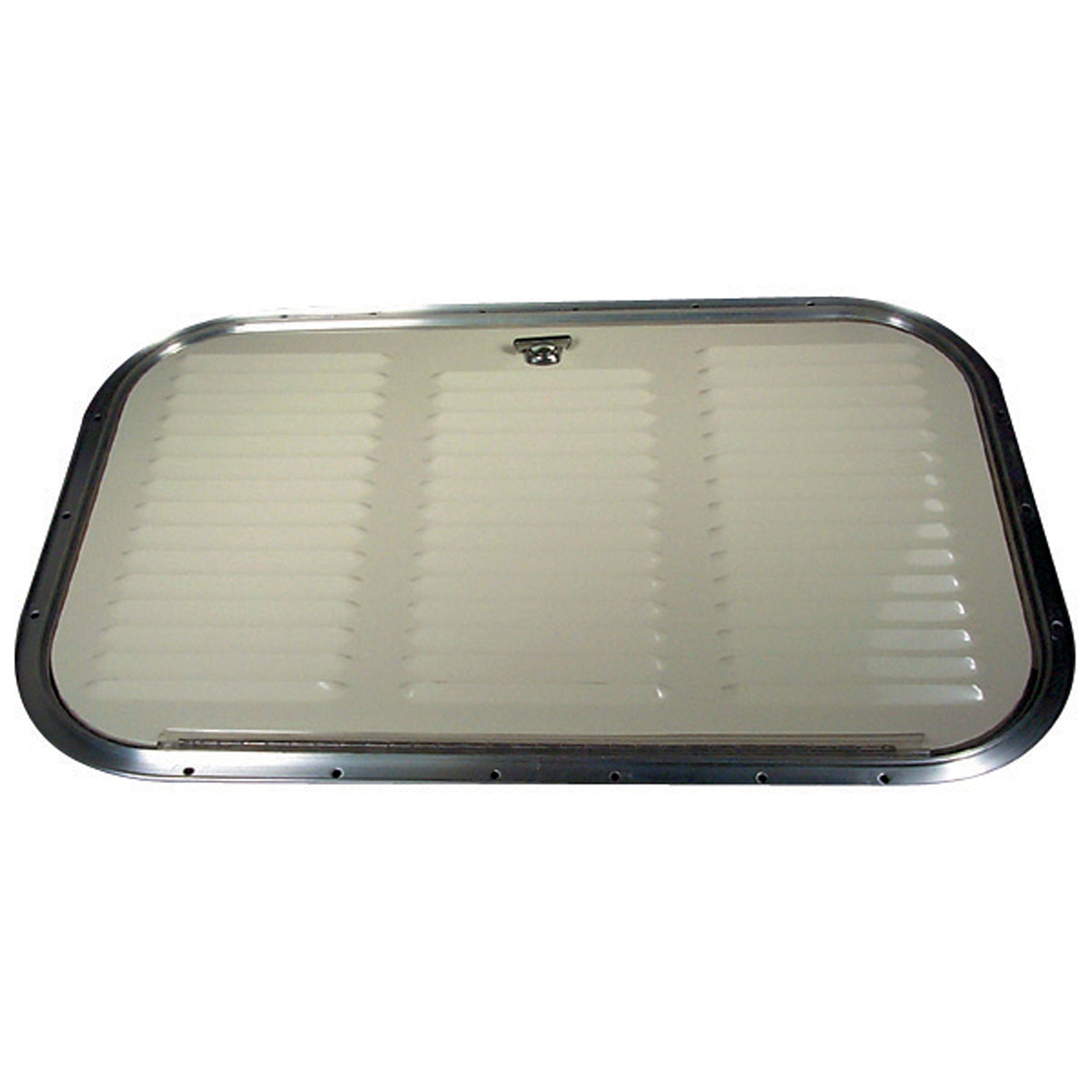

Figura 1: Dometic 8032214R20 Refrigerator Sidewall Vent. This image displays the exterior view of the polar white vent, featuring its louvered design for air intake and exhaust.

Característiques principals:

• High Velocity Fan: Ensures efficient air movement.
• Muntatge a la paret lateral: Designed for flush installation on the exterior sidewall.
• Control de botó: Simple operation for the integrated fan.
• Construcció duradora: Built to withstand outdoor conditions.

4. Instruccions d'instal·lació

Proper installation is crucial for the performance and safety of your Dometic refrigerator vent. Refer to your refrigerator's manual for specific ventilation requirements.

4.1 Eines i materials necessaris

• Trepant
• Serra de trencaclosques o serra alternativa
• Cinta mètrica i llapis
• Tornavís
• Sealant (e.g., silicone or butyl tape)
• Wire strippers and connectors
• Appropriate fasteners (screws)

4.2 Passos d'instal·lació

1. Prepareu la ubicació de muntatge:

   Select a suitable location on the sidewall, typically above the refrigerator's condenser coils, ensuring adequate clearance both inside and outside the vehicle. Mark the dimensions for the cutout based on the vent's rough opening requirements. Ensure no structural elements, wiring, or plumbing are in the way.
2. Talla l'obertura:

   Carefully cut the marked opening using a jigsaw or reciprocating saw. Smooth any rough edges. For curved surfaces, the vent material is designed to conform slightly, allowing for a smooth fit without significant deformation.

3. Wire the Vent:

   Route the electrical wiring from a suitable 12V DC power source to the vent opening. Connect the vent's wires to the vehicle's electrical system, ensuring correct polarity (positive to positive, negative to negative). Use appropriate wire connectors and ensure all connections are secure and insulated. Refer to the wiring diagram provided with the vent (if applicable).

4. Aplicar segellador:

   Apply a continuous bead of approved exterior sealant around the perimeter of the cutout on the vehicle's exterior. This will create a watertight seal between the vent and the sidewall.
5. Muntar la ventilació:

   Carefully insert the vent into the prepared opening. Press firmly to ensure the sealant makes good contact. Secure the vent to the sidewall using appropriate fasteners through the designated mounting holes. Do not overtighten screws, as this may damage the vent housing or the vehicle's sidewall.

6. Funcionalitat de prova:

   Once installed, restore power and test the vent's fan operation using the push-button control. Verify that air is being drawn out efficiently.

5. Instruccions de funcionament

The Dometic 8032214R20 Refrigerator Sidewall Vent is designed for simple operation.

• Encès/apagat: Locate the push-button switch on the vent unit. Press the button once to turn the fan ON. Press it again to turn the fan OFF.
• Funcionament continu: For optimal refrigerator performance, especially in warm climates or during heavy use, it is recommended to operate the vent fan continuously.
• Seguiment: Periodically check that the fan is running and that airflow is unobstructed.

6. Manteniment

Regular maintenance ensures the longevity and efficient operation of your Dometic vent.

• Neteja: Periodically clean the exterior grille of the vent to remove dust, dirt, and debris. Use a soft cloth and mild soap solution. Avoid abrasive cleaners or solvents.
• Inspecció: Annually inspect the vent for any signs of damage, cracks, or loose fasteners. Check the sealant around the perimeter for deterioration and reapply if necessary to maintain a watertight seal.
• Comprovació del ventilador: Listen for unusual noises from the fan during operation, which could indicate a need for service. Ensure the fan blades are free from obstructions.

7. Solució De Problemes

If you encounter issues with your Dometic refrigerator vent, refer to the following common problems and solutions:

If you are unable to resolve an issue using these troubleshooting steps, contact Dometic customer support or a certified service technician.

8. Especificacions

Technical specifications for the Dometic 8032214R20 Refrigerator Sidewall Vent:

9. Garantia i Suport

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official Dometic weblloc web. Conserveu el comprovant de compra per a reclamacions de garantia.

Dometic Customer Service: For technical assistance, spare parts, or service inquiries, please contact Dometic directly through their official channels.
