Eureka Genuine Geared Belt Instruction Manual

Introducció

This manual provides essential instructions for the proper installation, operation, and maintenance of your Eureka Genuine Geared Belt. This replacement belt is designed to restore optimal performance to your compatible Eureka vacuum cleaner by ensuring the brush roll functions correctly. Please read these instructions carefully before proceeding with installation or maintenance.

Compatibilitat

This Eureka Genuine Geared Belt (part number 60957) is compatible with the following Eureka Boss and Lite series vacuum cleaner models:

• Eureka Boss and Lite Series: 402, 403, 404, 405, 409, 442, 443, 570, 442A, 71A, 71B

Always verify your vacuum cleaner's model number before purchasing and installing a replacement belt to ensure proper fit and function.

Configuració i instal·lació

Follow these steps to safely and correctly install the replacement geared belt:

1. La seguretat primer: Before beginning any installation or maintenance, always unplug your vacuum cleaner from the electrical outlet to prevent accidental startup and potential injury.
2. Accés al rotlle de raspall: Turn the vacuum cleaner over to access the underside. Depending on your specific model, you may need to remove a bottom plate or cover. This typically involves unscrewing several screws. For some handheld models like the 71B, locate and remove approximately three screws, one of which may be hidden by a 'riser visor' or plug.
3. Treure el cinturó vell: Carefully remove the worn or broken belt from the motor shaft and brush roll. Note how the old belt was routed for easier installation of the new one.
4. Instal·lar cinturó nou: Place the new geared belt around the motor shaft. Then, stretch the belt around the brush roll. Ensure the belt is centered on both the motor shaft and the brush roll, and that the teeth of the belt engage properly with the gears on the brush roll and motor shaft.
5. Rotació de prova: Manually rotate the brush roll a few times to ensure the belt is seated correctly and moves freely without obstruction.
6. Torneu a muntar: Reattach any covers or plates that were removed, securing them with their screws.
7. Comprovació final: Plug the vacuum cleaner back into the electrical outlet and briefly turn it on to confirm the brush roll is spinning correctly.

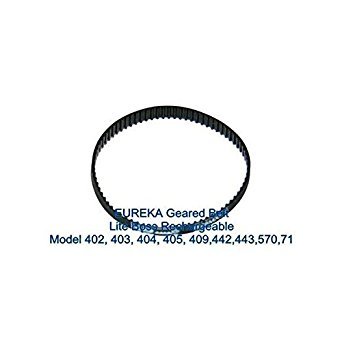

This image displays the Eureka Genuine Geared Belt, a replacement part designed to power the brush roll in compatible Eureka vacuum cleaner models. The belt features a geared, ribbed surface for optimal traction and durability.

En funcionament

Once installed, the geared belt operates automatically when the vacuum cleaner is powered on, transferring rotational energy from the motor to the brush roll. This enables the brush roll to spin, agitating carpet fibers and effectively lifting dirt and debris for suction.

Manteniment

Regular maintenance of your vacuum belt can extend its lifespan and ensure consistent cleaning performance:

• Inspecció periòdica: Routinely inspect the belt for signs of wear, such as cracks, fraying, stretching, or missing teeth. A worn belt can lead to reduced brush roll performance.
• Rotlle de raspall net: Frequently remove hair, string, and other debris that can become wrapped around the brush roll. Excessive debris can put strain on the belt, causing it to wear out prematurely or break.
• Horari de substitució: Belts are wear-and-tear items. It is generally recommended to replace your vacuum belt every 6 to 12 months, or sooner if you notice a decrease in cleaning effectiveness or visible damage to the belt.

Resolució de problemes

If you encounter issues with your vacuum cleaner's brush roll, consider the following:

• El corró del raspall no gira: Ensure the vacuum is plugged in and powered on. If the brush roll still does not spin, unplug the vacuum and inspect the belt. It may be broken, dislodged, or severely stretched. Reinstall or replace the belt as needed.
• Reduced Cleaning Effectiveness: A stretched or worn belt may not transfer enough power to the brush roll, causing it to spin slowly or inconsistently. This can lead to poor dirt pickup. Inspect and replace the belt if it shows signs of wear.
• Sorolls inusuals: Grinding or squealing noises from the brush roll area could indicate a misaligned belt, an obstruction in the brush roll, or a worn belt. Unplug the vacuum and inspect the area thoroughly.

Especificacions

Garantia i Suport

For warranty information regarding this Eureka Genuine Geared Belt, please refer to the terms provided by your original retailer or the manufacturer, Eureka. If you require further assistance or have questions not covered in this manual, please contact the seller or Eureka customer support directly.
