Yato YT-1707 Bottle Jack Instruction Manual

1. Introducció

Thank you for choosing the Yato YT-1707 Bottle Jack. This hydraulic bottle jack is designed for lifting vehicles and other heavy objects in automotive repair, construction, and general workshop environments. It features a robust construction and a lifting capacity of 20 tonnes, making it suitable for demanding tasks. Please read this manual thoroughly before operation to ensure safe and efficient use of the product.

Figure 1: The Yato YT-1707 Bottle Jack. This image shows the black, cylindrical hydraulic jack with its lifting saddle, pump handle socket, and base. The YATO logo is visible on the side.

2. Informació de seguretat

Always prioritize safety when operating the Yato YT-1707 Bottle Jack. Failure to follow these instructions may result in property damage, personal injury, or death.

• Llegeix tot el manual: Enteneu totes les instruccions i advertències abans d'utilitzar-lo.
• Capacitat: Never exceed the rated lifting capacity of 20 tonnes.
• Superfície estable: Always operate the jack on a hard, level, and stable surface. Avoid soft ground or uneven terrain.
• Stands de suport: After lifting, always support the load with appropriate jack stands before working underneath. The jack is a lifting device only, not a support device.
• Centrar la càrrega: Ensure the load is centered on the jack's saddle to prevent slipping.
• Àrea clara: Keep hands, feet, and other body parts clear of moving parts and the load during lifting and lowering.
• Inspeccionar abans d'utilitzar: Check the jack for any damage, leaks, or loose parts before each use. Do not use if damaged.
• Emmagatzematge adequat: Store the jack in a clean, dry place, fully lowered.
• Manteniment: Feu el manteniment regular tal com es descriu en aquest manual.

3. Configuració

3.1 Desembalatge i inspecció inicial

1. Carefully remove the jack from its packaging.
2. Inspect the jack for any signs of shipping damage, such as dents, leaks, or bent components. If damage is found, do not use the jack and contact your supplier.
3. Ensure all components are present, including the pump handle.

3.2 Preparing the Jack for Use

1. Bleeding the Hydraulic System: Before first use, or if the jack has been stored for a long time, it may be necessary to bleed air from the hydraulic system.
   • Gireu la vàlvula d'alliberament en sentit antihorari per obrir-la.
   • Pump the handle several times to force air out.
   • Gireu la vàlvula d'alliberament en sentit horari per tancar-la.
2. Comprovar el nivell d'oli: Ensure the hydraulic oil level is correct. Refer to the Maintenance section for details.
3. Posicionament: Place the jack on a firm, level surface directly under the lifting point of the load.

4. Instruccions de funcionament

4.1 Lifting the Load

1. Ensure the jack is on a stable, level surface and the load is properly positioned on the saddle.
2. Tanqueu la vàlvula d'alliberament fermament girant-la en sentit horari fins que estigui ajustada. No l'estrengueu massa.
3. Introduïu la maneta de la bomba a la presa de la maneta.
4. Pump the handle steadily up and down. The jack's ram will extend, lifting the load.
5. Lift the load only to the necessary height. Do not extend the ram beyond its maximum extension mark.
6. Once the desired height is reached, immediately place appropriate jack stands under the load for support. The jack is not designed to hold a load for extended periods.

4.2 Reducció de la càrrega

1. Ensure the area around the load is clear of personnel and obstructions.
2. If jack stands are in use, slightly raise the load with the jack to remove the stands.
3. Slowly turn the release valve counter-clockwise. The load will begin to descend. Control the descent speed by adjusting how much you open the valve.
4. Un cop la càrrega estigui completament baixada, retireu el gat.

5. Manteniment

Regular maintenance ensures the longevity and safe operation of your Yato YT-1707 Bottle Jack.

5.1 Hydraulic Oil Level Check and Refill

1. With the jack fully lowered, remove the oil filler plug.
2. The oil level should be just below the filler hole.
3. If low, refill with a high-quality hydraulic jack oil. Do not use brake fluid or motor oil.
4. Replace the oil filler plug securely.

5.2 Neteja i lubricació

• Mantingueu el gat net i lliure de brutícia, greix i materials corrosius.
• Lubriqueu periòdicament les peces mòbils amb oli de màquina lleuger.

5.3 Emmagatzematge

Store the jack in a dry, clean environment with the ram fully retracted to protect the hydraulic seals.

6. Solució De Problemes

For issues not listed or if solutions do not resolve the problem, contact qualified service personnel.

7. Especificacions

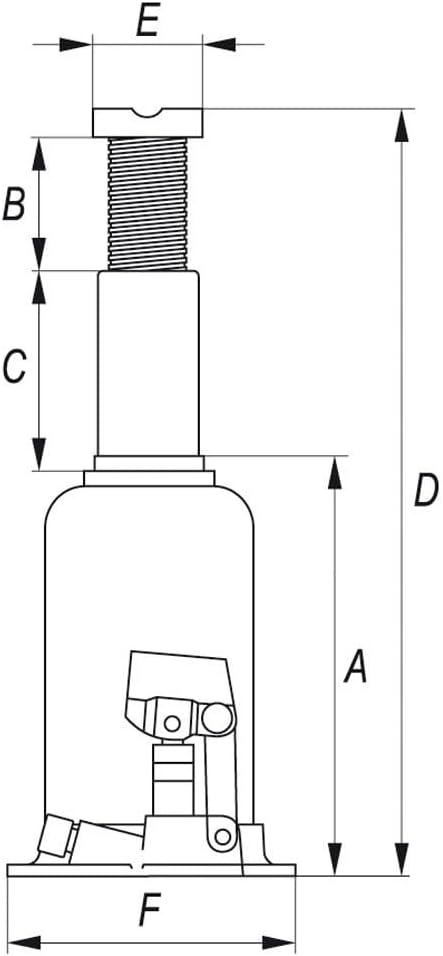

Figure 2: Dimensional diagram of the Yato YT-1707 Bottle Jack. This diagram illustrates various measurements labeled A through F, representing the jack's height, ram extension, and base dimensions.

Note: Dimensions A, B, C, D, E, F refer to the diagram above. Specific values for C, E, F are not provided in the source data.

8. Garantia i Suport

Warranty information for the Yato YT-1707 Bottle Jack is not explicitly provided in the product details. Please refer to your purchase documentation or contact the seller, parts24h, for specific warranty terms and conditions.

For technical support or service inquiries, please contact your authorized Yato dealer or the retailer from whom you purchased the product.

Venedor: parts24h
