Manual d'instruccions del bufador/aspirador elèctric de fulles IKRA IBV2800 E/GY 8732

1. Introducció

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your IKRA IBV2800 E/GY 8732 Electric Leaf Blower/Vacuum. Please read these instructions carefully before using the appliance and retain them for future reference.

The IKRA IBV2800 E/GY 8732 is a versatile 3-in-1 garden tool designed for blowing, vacuuming, and shredding leaves and light garden debris. It features a powerful 2800 Watt electric motor and a 45-liter collection bag.

2. Instruccions de seguretat

Observeu sempre les precaucions de seguretat bàsiques per reduir el risc d'incendi, descàrrega elèctrica i lesions personals.

2.1 Seguretat general

• Llegeix el manual: Familiaritzeu-vos amb tots els controls i el seu ús correcte abans de fer funcionar el dispositiu.
• Utilitzeu equips de protecció individual (EPI): Always wear safety glasses, hearing protection, and sturdy footwear. Long pants are recommended.
• Mantingueu allunyats els nens i els vianants: Ensure no one, especially children, is in the operating area.
• Inspeccionar abans d'utilitzar: Comproveu si hi ha peces danyades, connexions soltes o qualsevol altra condició que pugui afectar el funcionament.

2.2 Seguretat elèctrica

• Font d'alimentació: Connect the appliance only to a 230 Volt AC power supply.
• Cable d'alimentació: Do not abuse the cord. Never carry the appliance by the cord or yank it to disconnect from the receptacle. Keep the cord away from heat, oil, sharp edges, or moving parts.
• Eviteu condicions humides: Do not operate the appliance in rain or wet conditions. Do not handle the plug or appliance with wet hands.
• Desconnecteu quan no estigui en ús: Always unplug the appliance from the power supply before making adjustments, changing accessories, or storing it.

2.3 Seguretat personal

• Estigueu alerta: Pay attention to what you are doing and use common sense. Do not operate when tired or under the influence of drugs, alcohol, or medication.
• No sobrepasseu: Mantenir un bon peu i un equilibri en tot moment.
• Roba segura: No porteu roba ampla ni joies. Mantingueu els cabells, la roba i els guants allunyats de les parts mòbils.

3. Producte acabatview

The IKRA IBV2800 E/GY 8732 is an electric leaf blower, vacuum, and shredder. It is designed for efficient garden maintenance, offering three primary functions in one compact unit.

Figura 1: IKRA IBV2800 E/GY 8732 Electric Leaf Blower/Vacuum with collection bag attached.

3.1 Components clau

• Unitat motora: Houses the 2800 Watt electric motor and controls.
• Blower/Vacuum Tube: The main tube for directing airflow or collecting debris. Features a 30 cm telescopic extension.
• Bossa de recollida: A 45-liter capacity bag for collecting vacuumed and shredded material.
• Rodes: Integrated wheels for easy maneuverability during operation.
• Mànec: Disseny ergonòmic per a una subjecció i un control còmodes.

Figura 2: The 45-liter collection bag with the IKRA logo, designed for efficient leaf collection.

3.2 Característiques

• Funcionalitat 3 en 1: Blow, vacuum, and shred.
• Motor potent: 2800 Watt electric motor for strong performance.
• High Shredding Ratio: 10:1 shredding ratio reduces debris volume.
• Adjustable Blowing Speed: Up to 275 km/h for various tasks.
• High Suction Capacity: Maximum 13.0 m³/minute.
• Tub telescòpic: 30 cm extendable tube for user comfort.

4. Configuració

Follow these steps to assemble your leaf blower/vacuum before first use.

4.1 Attaching the Collection Bag

1. Assegureu-vos que l'aparell estigui desconnectat.
2. Align the opening of the collection bag with the outlet port on the main unit.
3. Securely attach the bag using the provided fastening mechanism. Ensure it is firmly in place to prevent accidental detachment during operation.

Figura 3: A user attaching the collection bag to the main unit.

4.2 Adjusting the Telescopic Tube

The blower/vacuum tube can be adjusted in length for user comfort and specific tasks.

1. Locate the tube adjustment lever or button on the side of the main tube.
2. Press or release the mechanism and extend or retract the tube to the desired length.
3. Ensure the tube is securely locked in position before use.

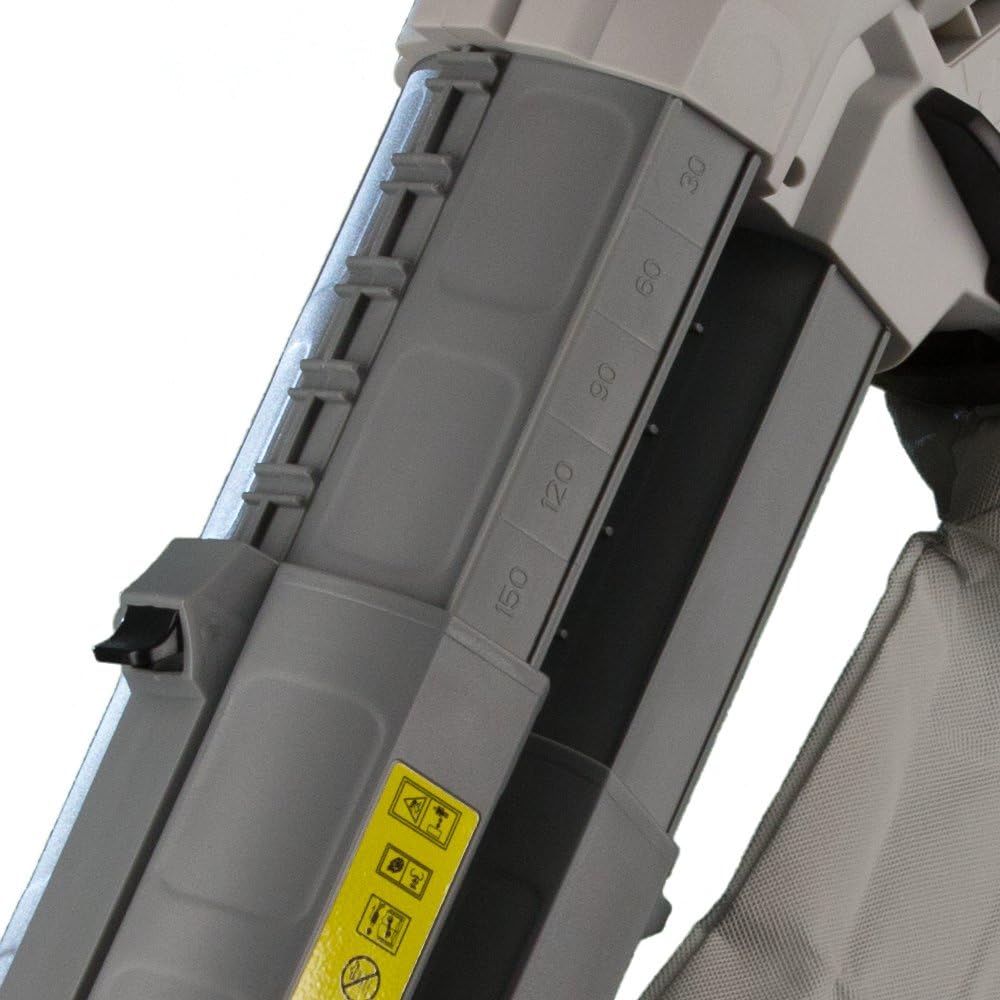

Figura 4: Close-up of the telescopic tube adjustment mechanism with length markings.

4.3 Controls and Wheels

Familiarize yourself with the main controls and the integrated wheels for ease of use.

Figura 5: Detail of the main handle and control switch.

Figura 6: Integrated wheels for easy maneuverability.

5. Instruccions de funcionament

Ensure all safety precautions are followed before operating the appliance.

5.1 Funció de bufat

1. Ensure the appliance is set to blow mode (refer to the mode selector switch on the unit).
2. Connecteu l'aparell a una presa de corrent adequada.
3. Direct the nozzle towards the leaves or debris you wish to clear. Use a sweeping motion to gather material into piles.
4. Adjust the blowing speed as needed using the variable speed control.

Figura 7: A user operating the IKRA IBV2800 E/GY 8732 to blow leaves.

5.2 Vacuuming and Shredding Function

1. Ensure the collection bag is securely attached and the appliance is set to vacuum mode.
2. Connecteu l'aparell a una presa de corrent adequada.
3. Guide the vacuum nozzle over the leaves and debris. The integrated wheels can assist in maneuvering the unit.
4. As material is vacuumed, it will be automatically shredded by the internal impeller before entering the collection bag.
5. Superviseu la bossa de recollida i buideu-la quan estigui plena per mantenir un rendiment òptim.

Figura 8: A user vacuuming leaves with the IKRA IBV2800 E/GY 8732.

Figura 9: A user adjusting the telescopic tube for comfortable operation.

6. Manteniment

Un manteniment regular garanteix la longevitat i el rendiment òptim del vostre electrodomèstic.

6.1 Neteja de la unitat

1. Desconnecteu sempre l'aparell abans de netejar-lo.
2. Netegeu l'exterior del bloc amb l'anunciamp tela. No utilitzeu productes químics aggressivs ni netejadors abrasius.
3. Ensure the air vents are clear of debris to prevent overheating.

6.2 Emptying the Collection Bag

Empty the collection bag regularly, especially when it is full, to maintain suction efficiency.

1. Desendolleu l'aparell.
2. Detach the collection bag from the main unit.
3. Locate the zipper at the bottom of the bag and open it to empty the shredded debris.
4. Close the zipper securely before reattaching the bag.

Figura 10: A user emptying the collection bag after use.

Figura 11: A user opening the zipper at the bottom of the collection bag.

6.3 Checking for Blockages

If suction or blowing power decreases, check for blockages in the tube or impeller area.

1. Always unplug the appliance before checking for blockages.
2. Remove the collection bag and inspect the outlet port.
3. Carefully inspect the blower/vacuum tube for any lodged debris. Use a non-metallic object to clear blockages if necessary.
4. Ensure the impeller area is clear.

6.4 Emmagatzematge

Store the appliance in a dry, secure place, out of reach of children. Ensure the power cord is neatly coiled and not kinked.

7. Solució De Problemes

Aquesta secció tracta els problemes habituals que podeu trobar. Per a problemes que no figuren aquí, poseu-vos en contacte amb l'atenció al client.

8. Especificacions

9. Garantia i Suport

For information regarding warranty coverage, please refer to the warranty card included with your product or contact the manufacturer directly. Keep your proof of purchase for any warranty claims.

If you encounter any issues not covered in this manual or require further assistance, please contact IKRA customer support. Contact details can typically be found on the manufacturer's weblloc web o a l'embalatge del producte.
