Manual d'usuari del monitor de pressió arterial Microlife BP3MS1-4K

Introducció

This user manual provides detailed instructions for the safe and effective operation of your Microlife BP3MS1-4K Blood Pressure Monitor. Please read this manual thoroughly before first use and keep it for future reference. This device is designed for accurate measurement of blood pressure and heartbeat at home.

Informació de seguretat

• Consult your doctor before using this device if you have any medical conditions.
• No utilitzeu el dispositiu en nadons, nens o persones que no puguin expressar el seu consentiment.
• Avoid taking measurements in a moving vehicle or during physical activity.
• Mantingueu el dispositiu i els seus components fora de l'abast dels nens petits.
• Use only original Microlife accessories and parts.

Producte acabatview

The Microlife BP3MS1-4K Blood Pressure Monitor is a comprehensive system for home blood pressure monitoring. It includes the main unit, an arm cuff, and necessary power accessories.

Image: Complete set of the Microlife BP3MS1-4K Blood Pressure Monitor, including the main unit, a carrying case, an arm cuff, a power adapter, and a USB cable, laid out on a flat surface.

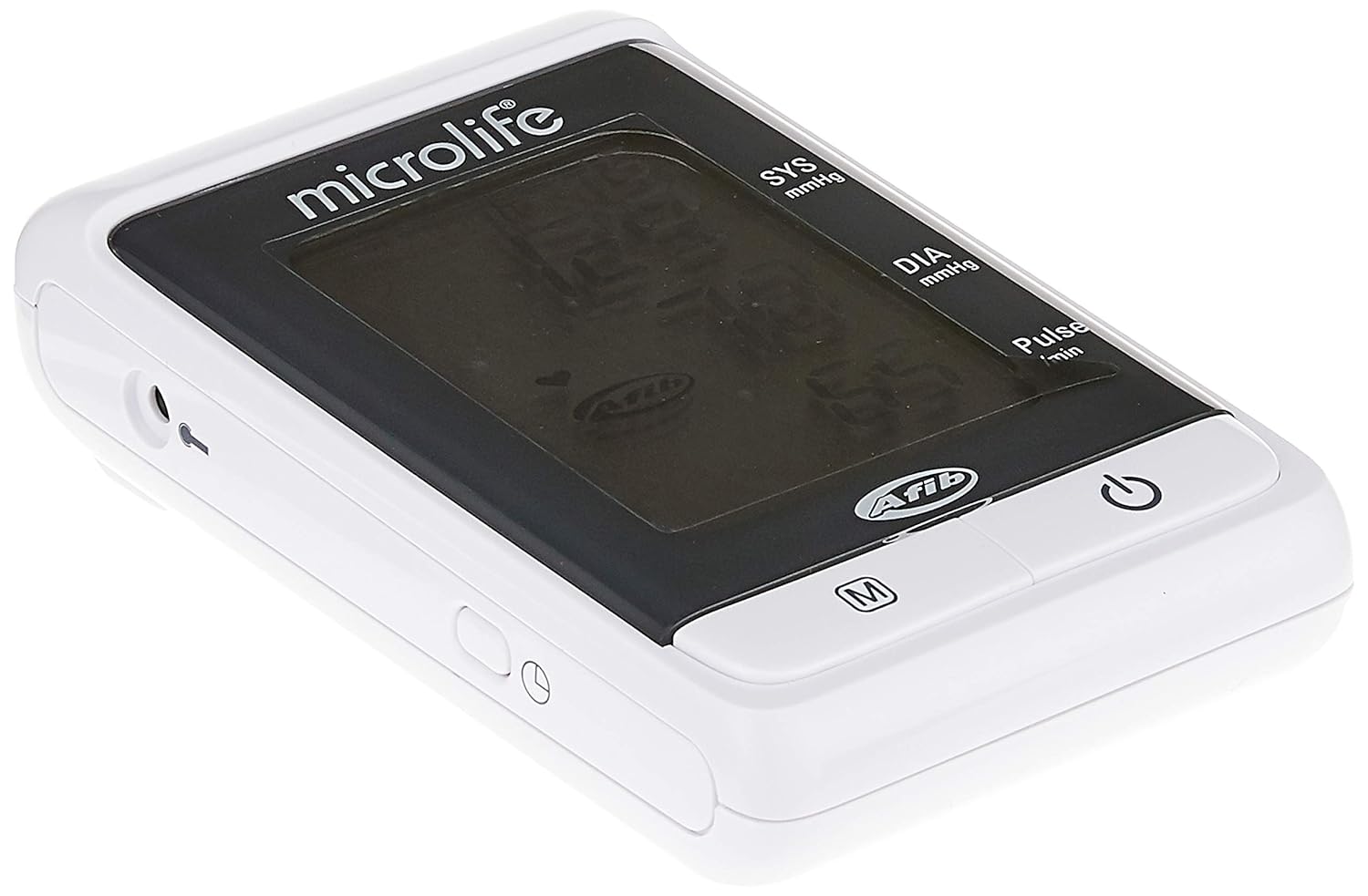

Imatge: Una imatge detallada view of the Microlife BP3MS1-4K Blood Pressure Monitor unit, highlighting its display screen and control buttons.

The device features an XL-Display for easy reading of measurements and includes a USB port for data transfer.

Configuració

1. Font d'alimentació

The Microlife BP3MS1-4K can be powered by batteries or an AC adapter.

• Instal·lació de la bateria: Open the battery compartment on the back of the device. Insert the required batteries, ensuring correct polarity (+/-). Close the compartment. A low battery indicator will appear on the display when batteries need replacement.
• Connexió de l'adaptador de CA: Connect the AC adapter to the device's power input jack and then plug it into a wall outlet.

2. Connexió del maneguet

Insert the air tube connector of the cuff firmly into the air jack on the side of the monitor unit.

3. Configuració de la data i l'hora

Refer to the device's on-screen prompts or specific button combinations (usually involving the 'M' or 'Set' button) to set the current date and time. This ensures accurate time-stamping for stored measurements.

Instruccions de funcionament

1. Preparació per a la mesura

• Avoid eating, smoking, or exercising for at least 30 minutes before measurement.
• Rest for 5-10 minutes in a quiet environment before taking a reading.
• Sit upright with your back supported, feet flat on the floor, and legs uncrossed.
• Col·loca el braç sobre una taula de manera que el maneguet quedi a l'alçada del cor.

2. Aplicació del puny

Wrap the cuff around your bare upper arm, approximately 2-3 cm above the elbow joint. Ensure the air tube runs down the center of your arm. The cuff should be snug but not too tight.

3. Taking a Measurement (MAM Technology)

The device features MAM (Microlife Average Mode) technology, which automatically takes three measurements in quick succession and calculates an average for a more reliable result.

• Premeu el botó ON/OFF botó per iniciar la mesura.
• The cuff will inflate, and the device will automatically take three consecutive readings with a short pause between each.
• After the third measurement, the average systolic, diastolic, and pulse readings will be displayed on the XL-Display.

Image: The display of the Microlife BP3MS1-4K Blood Pressure Monitor showing a time of 12:15, systolic pressure of 129 mmHg, diastolic pressure of 78 mmHg, and a pulse rate of 65 beats per minute.

4. Funció de memòria

The device stores up to 200 measurements. To review lectures anteriors, premeu la tecla M (Memory) button. Each press will cycle through the stored measurements.

5. Connectivitat USB

The integrated USB port allows for data transfer to a computer for analysis and tracking. Refer to the Microlife software instructions for detailed steps on connecting and downloading data.

Manteniment

Neteja

• Clean the monitor unit and cuff with a soft, dry cloth.
• Si cal, utilitzeu un drap lleugerament sec.ampnetejat amb aigua o un netejador suau i no abrasiu.
• Do not use harsh chemicals, abrasive cleaners, or immerse the device in water.

Emmagatzematge

• Store the device in its carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.
• Si no les feu servir durant un període prolongat, traieu les piles per evitar fuites.

Resolució de problemes

If problems persist, contact Microlife customer support.

Especificacions

Image: The Microlife BP3MS1-4K Blood Pressure Monitor unit with measurement lines indicating its dimensions, approximately 15 cm (6.3 inches) in height.

Garantia i Suport

Microlife products are manufactured to the highest quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official Microlife weblloc web. Conserveu el rebut de compra com a comprovant de compra per a reclamacions de garantia.
