1. Introducció
The Superfish Koi Flow 20 Ventilation Kit is designed to provide essential aeration for large ponds and Koi ponds, ensuring a healthy, oxygen-rich aquatic environment. This kit includes a powerful air pump, air stones (diffusers), and air tubing, all engineered for reliable performance. Please read this manual carefully before installation and operation to ensure proper use and longevity of your product.
Figure 1: Superfish Koi Flow 20 Ventilation Kit packaging.
2. Configuració
2.1 Desembalatge i comprovació de components
Carefully remove all components from the packaging. Verify that all parts are present and undamaged. If any parts are missing or damaged, contact your retailer immediately.
- Air Pump Unit
- Air Tubing (approx. 50 meters)
- XXL Air Stones (6 pieces)
- Air Manifold/Splitter
Figure 2: Kit components including pump, tubing, air stones, and manifold.
2.2 Instruccions de muntatge
- Col·locació de la bomba d'aire: Place the air pump unit in a dry, sheltered location, away from direct sunlight, rain, or excessive moisture. Ensure it is placed above the water level of the pond to prevent water backflow into the pump.
- Connect Air Tubing to Air Stones: Attach one end of the air tubing to the inlet nozzle of each XXL air stone. Ensure a snug fit to prevent air leaks.
- Connect Air Tubing to Manifold: Connect the other ends of the air tubing from the air stones to the individual outlets on the air manifold/splitter.
- Connect Manifold to Air Pump: Connect the main inlet of the air manifold to the air outlet nozzle on the air pump unit.
- Place Air Stones in Pond: Carefully place the air stones into your pond at desired locations. Ensure they are submerged and stable.
- Connexió d'alimentació: Once all connections are secure and the pump is safely positioned, plug the power cable into a suitable, grounded electrical outlet.

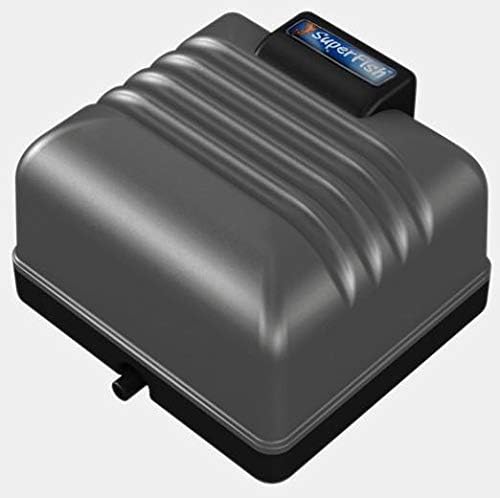

Figure 3: Superfish Air Pump Unit.

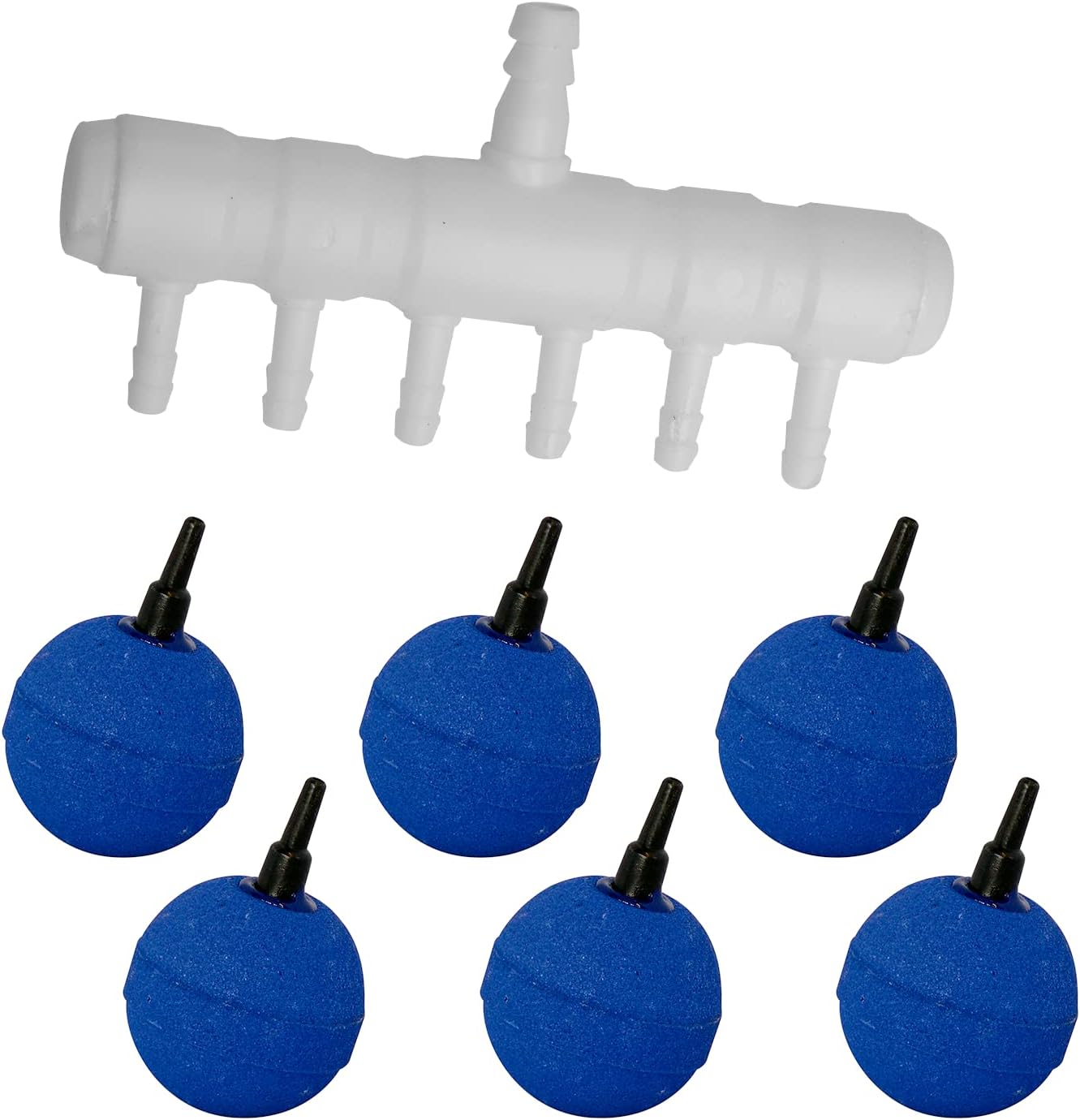

Figure 4: Air stones and manifold.
3. Instruccions de funcionament
3.1 Posada en marxa inicial
- After plugging in the pump, it should start operating immediately, producing air bubbles from the air stones in the pond.
- Observe the air flow from each air stone to ensure even distribution.
- Adjust the placement of air stones if necessary to achieve optimal aeration throughout the pond.
3.2 Funcionament diari
- Ensure the air pump remains in a dry, protected area.
- Regularly check the air tubing for kinks or blockages that could impede air flow.
- Monitor the pond for consistent bubbling, indicating proper operation.
- In freezing conditions, ensure the air stones are placed deep enough to prevent the pond surface from completely freezing over, which can be beneficial for fish.
4. Manteniment
4.1 Neteja regular
- Air Stones: Over time, air stones may become clogged with algae or debris, reducing air flow. Periodically remove them from the pond and clean them thoroughly. You can gently brush them or soak them in a mild, non-toxic cleaning solution (e.g., diluted vinegar) to remove buildup. Rinse thoroughly before returning to the pond.
- Air Tubing: Inspect the air tubing for any signs of algae growth or blockages. If necessary, flush the tubing with water or use a flexible brush to clear any obstructions.
- Bomba d'aire: Keep the exterior of the air pump clean and free from dust and debris. Ensure the air intake vents are clear to allow for proper ventilation and prevent overheating. Do not submerge the pump in water.
4.2 Manteniment estacional
Before winter, if the pond is likely to freeze solid, consider removing the air stones and tubing to prevent damage from ice expansion. Store them in a dry, frost-free location. The air pump should also be stored indoors during extreme cold or if not in continuous use.
5. Solució De Problemes
If you encounter issues with your Superfish Koi Flow 20 Ventilation Kit, refer to the table below for common problems and their solutions.
| Problema | Causa possible | Solució |
|---|---|---|
| No air flow from air stones |
|
|
| Flux d'aire feble |
|
|
| La bomba és sorollosa |
|
|
6. Especificacions
| Característica | Detall |
|---|---|
| Marca | Superpeix |
| Número de model | 671050 |
| Dimensions (L x A x A) | 11 x 11 x 11 cm |
| Pes | 200 grams |
| Material | Stainless steel, Metal |
| Font d'alimentació | Cable elèctric |
| Caudal màxim | 3600 litres per hora |
| Air Stone Quantity | 6 XXL Air Stones |
| Longitud de la tuberia | Aprox. 50 metres |
7. Garantia i Suport
For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Superfish weblloc web. Els termes i condicions de la garantia poden variar segons la regió i el distribuïdor.
If you require technical assistance, have questions about product operation, or need to report a defect, please contact your original retailer or the Superfish customer support directly. Have your product model number (671050) and purchase date ready when contacting support.
