Woods 59745WD

Woods 59745WD 24-Hour Mechanical In-Wall Timer Instruction Manual

Model: 59745WD | Brand: Woods

Introducció

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Woods 59745WD 24-Hour Mechanical In-Wall Timer. Please read all instructions carefully before installation and use. Retain this manual for future reference.

Woods 59745WD 24-Hour Mechanical In-Wall Timer

Image 1: Woods 59745WD 24-Hour Mechanical In-Wall Timer. This image shows the front view of the white mechanical timer with its circular dial and two-prong outlet.

Informació de seguretat

ADVERTÈNCIA: Risc de descàrrega elèctrica. Installation requires working with electrical wiring. If you are not familiar with electrical wiring, consult a qualified electrician. Improper installation can result in serious injury or death.

  • Desconnecteu l'alimentació a l'interruptor o a la caixa de fusibles abans d'instal·lar o fer el manteniment del temporitzador.
  • Assegureu-vos que totes les connexions de cablejat siguin segures i que compleixin els codis elèctrics locals.
  • This timer is designed for indoor use only.
  • Do not exceed the maximum electrical ratings of the device.

Contingut del paquet

Verifiqueu que tots els components siguin presents abans de començar la instal·lació:

  • Woods 59745WD 24-Hour Mechanical In-Wall Timer
  • Manual d'instruccions
  • Cargols de muntatge (si escau)

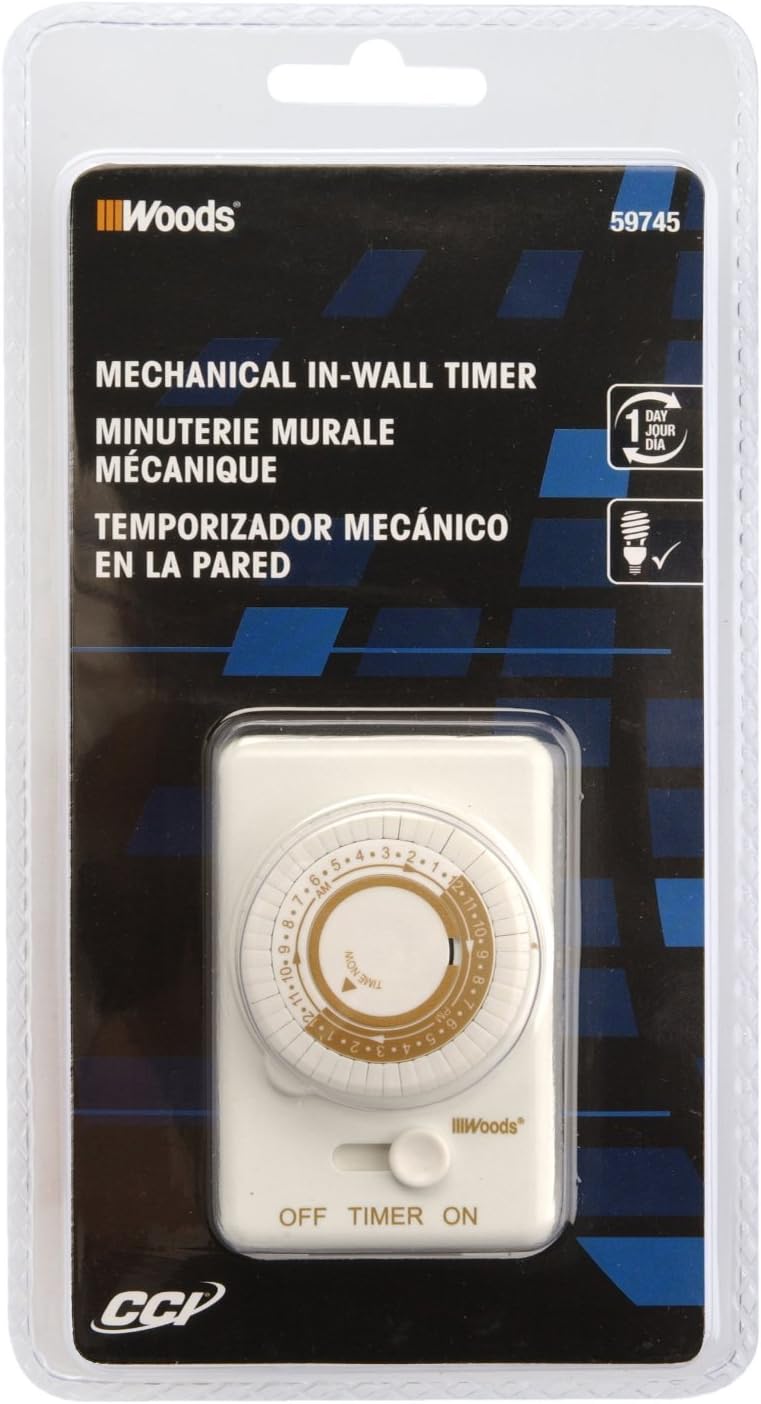

Woods 59745WD In-Wall Timer Packaging

Image 2: Packaging for the Woods 59745WD In-Wall Timer. The image displays the product in its retail packaging, highlighting the brand and model number.

Configuració i instal·lació

This timer is designed to replace a standard wall light switch. Professional installation is recommended.

  1. Apagueu l'alimentació: Locate the circuit breaker or fuse that controls the light switch you intend to replace. Turn off the power completely to avoid electrical shock. Verify power is off using a voltage provador.
  2. Treure l'interruptor antic: Carefully remove the wall plate and unscrew the existing light switch from the electrical box. Disconnect the wires from the old switch. Note the connections: typically, a neutral (white), an incoming hot (black), and an outgoing load (black or red).
  3. Connecteu el temporitzador: Connect the Woods 59745WD timer according to the following common wiring scheme. Note: Wiring colors may vary. If unsure, consult a qualified electrician.
    • Connecteu el blanc wire from the timer to the neutral (white) wires in the electrical box.
    • Connecteu el negre wire from the timer to the incoming hot (black) wire from the power source.
    • Connecteu el vermell wire from the timer to the outgoing load (black or red) wire that goes to the light fixture.
    • If a ground wire is present in the electrical box, connect it to the timer's ground terminal (if available). The product specifications indicate no explicit ground wire mentioned in some reviews, but proper grounding is always recommended.
  4. Muntar el temporitzador: Carefully push the wired timer into the electrical box. Secure it with the provided screws.
  5. Instal·leu la placa frontal: Attach the decorative wall plate over the timer. The instructions suggest disassembling the timer (removing the time knob and face plate held by 2 screws), installing the light according to the wiring diagram, securing the timer in the box, placing the decorative light plate over it and screwing the plate to the timer. The opening aligns to the timer as you screw the plate and the timer together. Install the timer faceplate and secure with the two screws. Replace the knobs.
  6. Restaura l'alimentació: Torneu a connectar l'alimentació a l'interruptor o a la caixa de fusibles.

Instruccions de funcionament

The Woods 59745WD timer features a 24-hour mechanical dial with 30-minute interval settings.

  1. Estableix l'hora actual: Rotate the inner dial clockwise until the current time aligns with the "TIME NOW" arrow indicator. The dial is marked with 24 hours (1-12 AM/PM).
  2. Horaris d'encesa/apagada del programa: The outer ring of the dial has small pins. Each pin represents a 30-minute interval.
    • Per establir un ON period, pull the pins cap a fora for the desired duration.
    • Per establir un OFF period, push the pins cap a dins for the desired duration.

    Per example, to turn a light on from 7 PM to 11 PM, pull out all pins corresponding to the 7:00 PM, 7:30 PM, 8:00 PM, 8:30 PM, 9:00 PM, 9:30 PM, 10:00 PM, and 10:30 PM segments.

  3. Seleccioneu el mode de funcionament: Use the side switch to select the desired mode:
    • ACTIVITAT: El dispositiu connectat romandrà contínuament encès, ignorant la configuració del temporitzador.
    • TEMPORIZADOR: The connected device will operate according to the programmed ON/OFF times.
    • DESACTIVAT: The connected device will remain continuously off, bypassing the timer settings.
Woods In-Wall Timer in use

Image 3: Woods In-Wall Timer in a home setting. This image illustrates the timer installed in a wall, controlling a light fixture, demonstrating its practical application.

Manteniment

The Woods 59745WD timer requires minimal maintenance.

  • Neteja: Disconnect power before cleaning. Wipe the exterior with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
  • Inspecció: Periodically inspect the timer for any signs of damage, loose connections, or wear. If any issues are found, discontinue use and consult a qualified electrician.

Resolució de problemes

ProblemaCausa possibleSolució
Timer does not turn ON/OFF at set times.
  • Side switch is not in "TIMER" mode.
  • Pins are not correctly set (pulled out for ON, pushed in for OFF).
  • Configuració incorrecta de l'hora actual.
  • No hi ha alimentació al temporitzador.
  • Ensure the side switch is set to "TIMER".
  • Verify pins are correctly positioned for desired ON/OFF periods.
  • Adjust the inner dial to the correct current time.
  • Comproveu el disjuntor i les connexions del cablejat.
Timer stops working or does not keep accurate time.
  • Internal mechanical failure.
  • Interrupció elèctrica.
  • This may indicate a defect. Consider replacement.
  • Ensure continuous power supply.
Light remains ON or OFF continuously.
  • Side switch is in "ON" or "OFF" mode.
  • All pins are pulled out (always ON) or pushed in (always OFF).
  • Set the side switch to "TIMER".
  • Ajusteu els pins per crear els cicles ON/OFF desitjats.

Especificacions

CaracterísticaDetall
Número de model59745WD
Tipus24-Hour Mechanical In-Wall Timer
Voltage125 volts de corrent altern
Nombre de configuracions24 daily settings, programmable in 30-minute intervals
Tipus de muntatgeMuntatge de paret
Tipus de canvi1 vies
Dimensions (P x A x A)2.25 "P x 4.25" W x 8.25" H
Pes de l'article4.69 unces
MaterialBarrejar
UPC078693597459

Informació de la garantia

According to available product information, there is no specific warranty description provided for this product.

Suport

For further assistance or technical support, please contact the manufacturer, Woods, or refer to their official website. When contacting support, please have your product model number (59745WD) and UPC (078693597459) available.

You can visit the Woods store on Amazon for more information: Woods Store
