1. Introducció
The Schneider Electric ZBE101 is a Normally Open (N/O) contact block designed for use in various electrical control applications. This component is part of Schneider Electric's range of connected technologies and solutions aimed at managing energy and processes safely, reliably, efficiently, and sustainably. This manual provides essential information for the safe and correct installation, operation, and maintenance of the ZBE101 contact block.
2. Informació de seguretat
ADVERTIMENT: Electrical shock hazard. Installation and maintenance should only be performed by qualified personnel. Disconnect all power before working on the device or associated equipment. Failure to follow these instructions can result in death or serious injury.
- Always ensure power is disconnected and locked out before installation, removal, or maintenance.
- Utilitzar equips de protecció individual (EPI) adequats.
- Verify all connections are secure and correct before re-applying power.
- Compliu tots els codis elèctrics locals i nacionals.
3. Contingut del paquet
The package for the Schneider Electric ZBE101 Contact Block typically contains:
- 1 x Schneider Electric ZBE101 N/O Contact Block

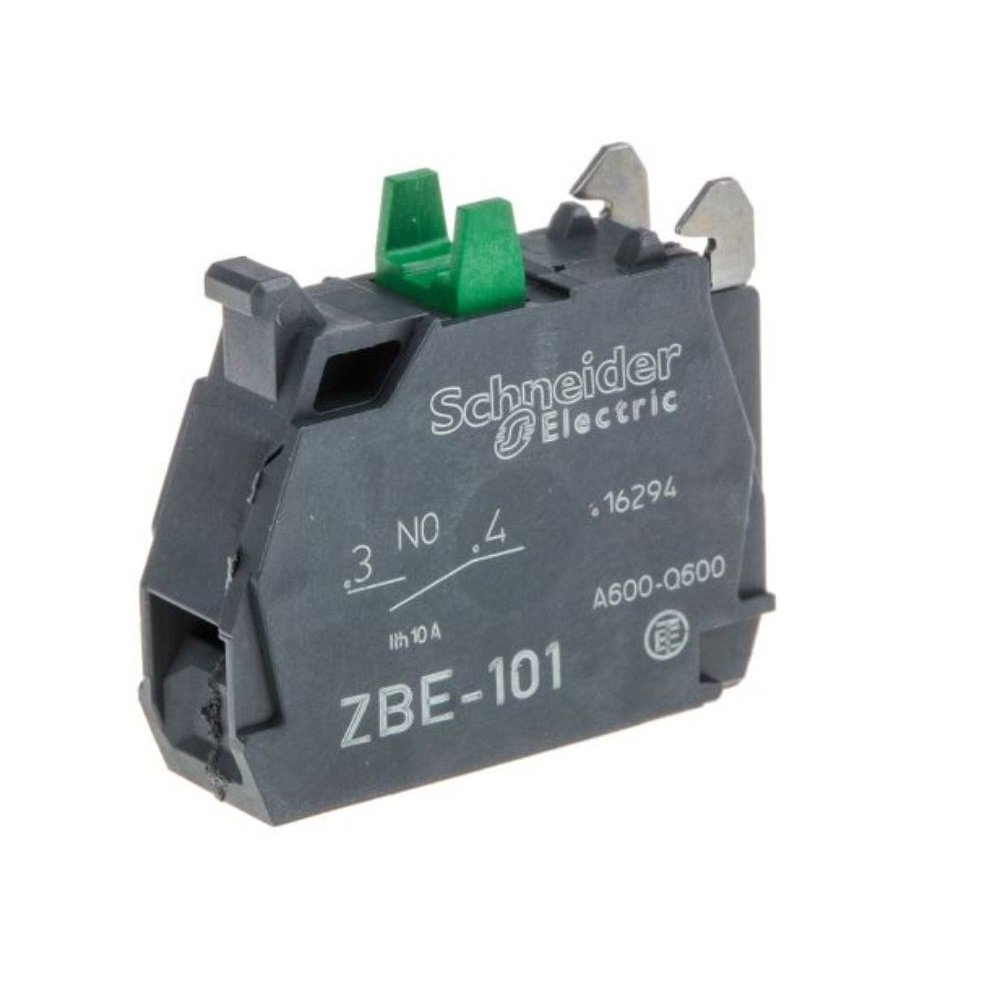

Image: The Schneider Electric ZBE101 N/O Contact Block, a black component with screw terminals for electrical connections.
4. Configuració i instal·lació
The ZBE101 contact block is designed for panel mounting and utilizes screw-type connectors for secure wiring. Follow these general steps for installation:
- Preparació: Ensure all power to the control panel or equipment is disconnected and verified as de-energized.
- Muntatge: The ZBE101 is a panel mount component. Securely attach the contact block to the designated mounting location on the control panel. Refer to the specific control device (e.g., push button, selector switch) with which this contact block will be used for precise mounting instructions.
- Cablejat: Connect the electrical wires to the screw terminals. The ZBE101 is a Normally Open (N/O) contact block, meaning the circuit is open (no current flows) when the actuator is at rest, and closes (current flows) when the actuator is operated.
- Strip wire insulation to the appropriate length for the screw terminals.
- Insert the wire into the terminal and tighten the screw firmly to ensure a good electrical connection and prevent loosening due to vibration.
- Verify correct polarity and circuit configuration according to your system's wiring diagram.
- Verificació: After installation, visually inspect all connections for correctness and security.
5. Instruccions de funcionament
The ZBE101 is a passive component designed to provide a switching function within a control circuit. As a Normally Open (N/O) contact block, its operation is directly tied to the mechanical action of the associated control device (e.g., a push button or selector switch). When the control device is actuated, the ZBE101 contact block will close, completing the electrical circuit. When the control device returns to its rest position, the contact block will open, breaking the circuit.
No direct user interaction is required with the contact block itself beyond its initial installation and wiring.
6. Manteniment
Regular maintenance helps ensure the longevity and reliable operation of the ZBE101 contact block. Always disconnect power before performing any maintenance.
- Inspecció: Periodically inspect the contact block for any signs of physical damage, discoloration, or loose connections.
- Neteja: Si cal, netegeu suaument l'exterior del bloc de contacte amb un drap sec i sense borrissol. No utilitzeu dissolvents ni netejadors abrasius.
- Estanquitat del terminal: Re-check the tightness of the screw terminals periodically, especially in environments with vibration.
- Condicions ambientals: Assegureu-vos que l'entorn de funcionament es mantingui dins dels rangs de temperatura i humitat especificats per evitar el desgast prematur o avaries.
7. Solució De Problemes
If the ZBE101 contact block or the associated control circuit is not functioning as expected, consider the following troubleshooting steps:
- No Circuit Closure:
- Verify that the associated control device (e.g., push button) is actuating correctly and fully engaging the contact block.
- Comproveu si hi ha cablejat solt o incorrecte als terminals de cargol.
- Assegureu-vos que el bloc de contacte estigui ben muntat i no estigui obstruït.
- Test the continuity of the contact block using a multimeter (with power disconnected) to confirm it closes when actuated.
- Funcionament intermitent:
- Inspeccioneu si hi ha connexions de cablejat soltes.
- Check for any debris or foreign objects interfering with the contact block's mechanism.
- Danys físics: Si el bloc de contacte mostra signes de cremada, fusió o danys físics greus, s'ha de substituir immediatament.
If issues persist after performing these checks, contact qualified electrical personnel or Schneider Electric support.
8. Especificacions
| Característica | Detall |
|---|---|
| Número de model | ZBE101 |
| Tipus de contacte | Normalment obert (N/O) |
| Nombre de contactes | 1 |
| Tipus de connector | Cargol |
| Tipus de muntatge | Suport al tauler |
| Material | Phenolic/Polycarbonate |
| Color | Negre |
| Voltage Classificació | 600 Volts |
| Nombre de pols | 1 |
| Especificació Met | Conforme a RoHS/REACH |
| Classificació de temperatura superior | 105 graus centígrads |
| Pes de l'article | 0.32 unces |
| Dimensions del producte (L x A x A) | 1.3 x 1.2 x 0.4 polzades |
| GTIN (UPC) | 785901355632 |
9. Garantia i Suport
Garantia: The Schneider Electric ZBE101 Contact Block comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
Suport: For technical assistance, troubleshooting beyond the scope of this manual, or warranty inquiries, please contact Schneider Electric customer support. You can find contact information on the official Schneider Electric weblloc (www.se.com).
