1. Introducció
This manual provides detailed instructions for the assembly, operation, and maintenance of your Real Flame Fresno 72" TV Stand with Electric Fireplace. Please read all instructions carefully before assembly and use to ensure safe and efficient operation.

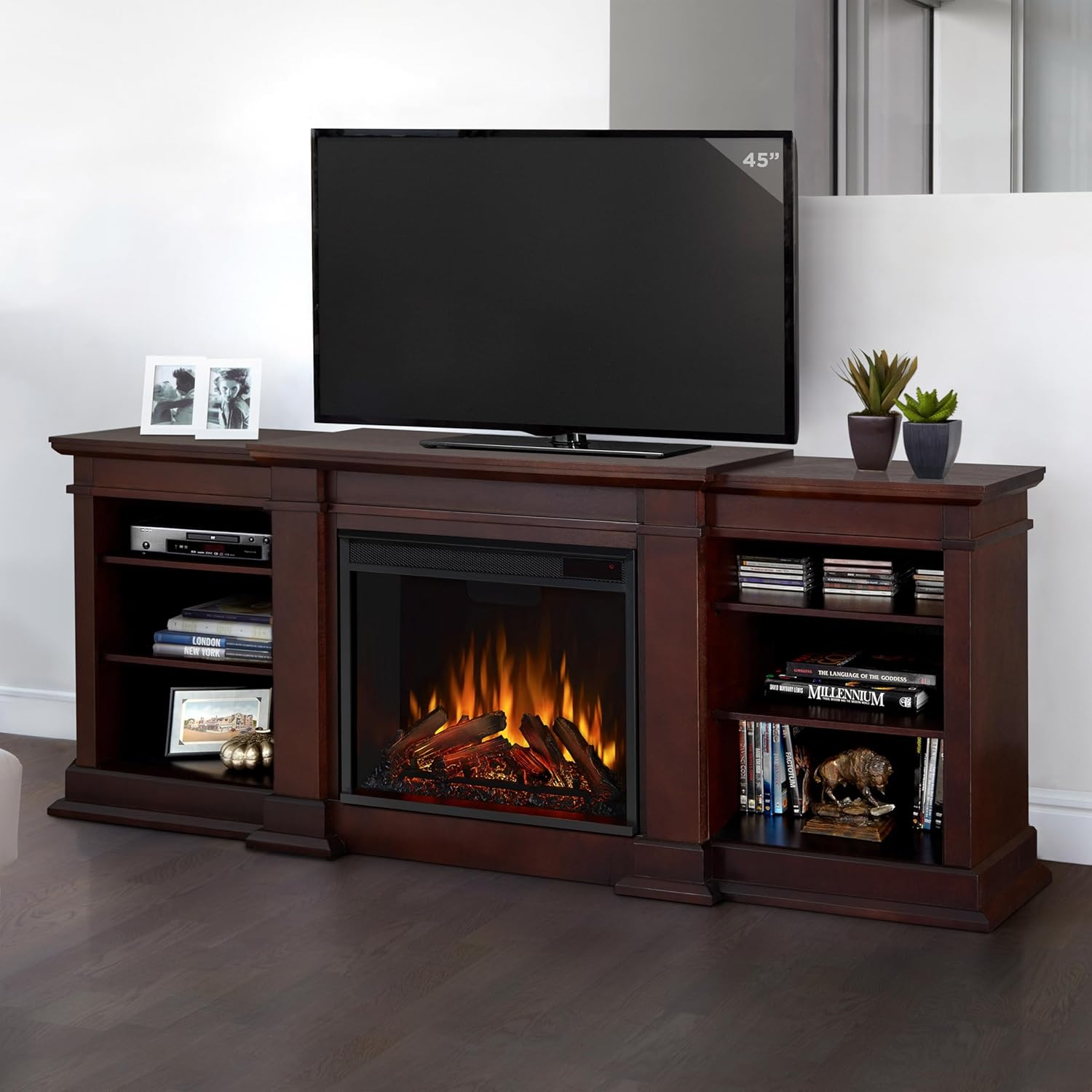

Imatge 1.1: Frontal view of the Real Flame Fresno 72" TV Stand with Electric Fireplace in Dark Walnut.
2. Informació de seguretat
Instruccions importants de seguretat:
- Llegiu totes les instruccions abans d'utilitzar aquest aparell.
- Mantingueu els materials combustibles, com ara mobles, coixins, roba de llit, papers, roba i cortines com a mínim a 3 peus (0.9 m) de la part davantera de l'escalfador i allunyeu-los dels laterals i de la part posterior.
- No feu funcionar cap escalfador amb un cable o endoll danyats ni després que l’escalfador funcioni malament, s’hagi caigut o s’hagi danyat de qualsevol manera.
- No passeu el cable sota la catifa. No cobriu el cable amb catifes, corredors o revestiments similars. Col·loqueu el cable lluny de la zona de trànsit i on no s'ensopegui.
- Per desconnectar l'escalfador, apagueu els controls i, a continuació, traieu l'endoll de la presa.
- No introduïu ni deixeu que entrin objectes estranys a cap obertura de ventilació o d'escapament, ja que això podria provocar una descàrrega elèctrica o incendi, o danyar l'escalfador.
- Utilitzeu aquest escalfador només tal com es descriu en aquest manual. Qualsevol altre ús no recomanat pel fabricant pot causar incendi, descàrrega elèctrica o lesions a les persones.
- This product is equipped with an automatic safety shut-off feature to prevent overheating.
3. Contingut del paquet
Verify that all components are present before beginning assembly. If any parts are missing or damaged, contact Real Flame customer support.
- Wooden Mantel (Dark Walnut)
- Fogata elèctrica
- Control remot (requereix 2 piles AAA, no incloses)
- Pack de maquinari
- Manual d'instruccions
4. Instruccions de muntatge
Assembly of the Real Flame Fresno TV Stand is required. Please follow the step-by-step instructions provided in the included manual. It is recommended to have two people for assembly due to the weight and size of the unit.
- Ensure you have a Phillips screwdriver for assembly.
- Lay out all components on a soft, clean surface to prevent scratching.
- Carefully attach the wooden mantel pieces according to the diagrams.
- Install the electric firebox into the designated opening.
- Adjustable shelving is included to accommodate various electronics.
Image 4.1: Labeled features of the TV stand, including adjustable shelving and power outlet.
5. Configuració
Col·locació:
- Place the assembled TV stand on a flat, stable surface.
- This unit is designed to hold a television up to 70 inches (diagonal) and with a weight of 100 lbs or less.
- Ensure adequate clearance around the unit for proper ventilation.
Image 5.1: Real Flame Fresno TV Stand functioning as an entertainment center with a television.
Connexió d'alimentació:
- The Vivid Flame Electric Firebox plugs into any standard 120V AC outlet.
- Ensure the outlet is properly grounded and not overloaded with other appliances.
6. Instruccions de funcionament
The electric fireplace features both touch screen controls on the unit and a multifunction remote control for convenient operation.
Electric Firebox Features:
- Tecnologia de flama: Features ultra-bright LED technology with 5 brightness settings and dynamic ember effects for realistic flame realism.
- Multicolored Flame Options: Choose from 6 different multicolored flame options to suit your ambiance.
- Termostat ajustable: Programmable thermostat with a digital display in either Fahrenheit (°F) or Celsius (°C) to maintain your desired room temperature.
- Funció de temporitzador: Set an automatic shut-off timer for up to 9 hours.
- Potència de calor: The 1400 Watt heater delivers over 4700 BTUs per hour, utilizing infrared heating technology.
- Heatless Flames: Enjoy the visual ambiance of the flames year-round by turning off the heating function.
Image 6.1: Remote control and firebox display for operating the electric fireplace.
Vídeo oficial del producte:
Video 6.1: This video demonstrates the features of the Real Flame 4199 Standard Firebox, including its best-in-class flame technology, adjustable thermostat, infrared heating, 4,700 BTUs of heat output, touch screen controls, remote control functionality, and six multicolored flame options. It also shows the dynamic glowing embers and the ability to use the flames with or without heat.
7. Manteniment
Neteja:
- Always unplug the fireplace from the power outlet before cleaning.
- Netegeu les superfícies exteriors amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
- Periodically dust the air intake and exhaust vents to ensure proper airflow.
Atenció general:
- There are no user-serviceable parts inside the electric firebox. Do not attempt to open or repair the unit.
- Guardeu el comandament a distància en un lloc segur quan no l'utilitzeu.
8. Solució De Problemes
If you experience issues with your electric fireplace, refer to the following common solutions:
- Sense energia: Ensure the power cord is securely plugged into a working 120V AC outlet. Check the circuit breaker.
- Sense calor: Verify that the heating function is activated and the thermostat is set to a temperature higher than the ambient room temperature.
- Flames Not Working: Check if the flame effect is turned on via the control panel or remote.
- El comandament a distància no respon: Replace the AAA batteries in the remote control. Ensure there are no obstructions between the remote and the firebox sensor.
- Sobreescalfament: If the unit shuts off unexpectedly, it may have overheated. Unplug the unit, wait 10-15 minutes for it to cool down, and ensure vents are not blocked before plugging it back in.
For further assistance, contact Real Flame customer support.
9. Especificacions
| Marca | Flama real |
| Nom del model | Fresno Media Electric Fireplace (G1200E-DW) |
| Color | Noguera fosca |
| Material | Fusta d'enginyeria |
| Tipus d'acabat | Pintat |
| Dimensions del producte (total) | 16.63 "P x 71.7" W x 29.7" H |
| Dimensions de la caixa de foc | 8.75 "P x 23.5" W x 20.0" H |
| Pes de l'article | 145 lliures |
| Font d'alimentació | Elèctric amb cable |
| Consum d'energia | 1500 watts |
| Sortida de calor | 5100 Unitats tèrmiques britàniques (BTU) |
| Característiques especials | Multi flame colors and brightness levels, adjustable thermostat, timer, over heat protection, automatic safety shut off, option to turn off heater to enjoy heatless flames year round. |
| Certificacions | CSA Certified, FCC Certified |
| UPC | 752370120078, 752370410056, 752370120047 |
Image 9.1: Detailed dimensions of the Real Flame Fresno TV Stand.
Image 9.2: Dimensions of the electric firebox insert.
10. Garantia i Suport
Informació de la garantia:
- Aquest producte ve amb un Garantia limitada d'un any.
- La garantia cobreix defectes de fabricació i avaries en condicions d'ús normal.
- Conserveu el vostre comprovant de compra per a reclamacions de garantia.
Image 10.1: Certifications and warranty details.
Atenció al client:
For any questions, troubleshooting, or warranty claims, please contact Real Flame Customer Support. Refer to the contact information provided with your product packaging or visit the official Real Flame weblloc.
