Vivitar VIV-385HV Professional Flash User Manual

1. Introducció

Thank you for choosing the Vivitar VIV-385HV Professional Flash. This advanced shoe-mount flash unit is designed to provide versatile and powerful lighting for your photography needs. Featuring a guide number of 126' (42m) at ISO 100 and 85mm, a zoom flash head, auto bounce control, and built-in vari-power control, the VIV-385HV offers enhanced creative control and reliable performance. Please read this manual thoroughly before using the flash to ensure proper operation and to maximize its capabilities.

2. Precaucions de seguretat

• No desmunteu ni modifiqueu la unitat de flaix. This can cause electric shock or damage the unit.
• Keep the flash unit dry. Do not expose it to rain, moisture, or high humidity. Water can cause electric shock or malfunction.
• Eviteu l'exposició directa dels ulls al flaix. The intense light can temporarily impair vision.
• Utilitzeu només les bateries especificades. Incorrect battery types or improper installation can lead to leakage, overheating, or explosion.
• Mantenir fora de l'abast dels nens.
• No utilitzeu en presència de gasos o líquids inflamables.
• Manipular amb cura. Eviteu deixar caure la unitat ni sotmetre-la a impactes forts.

3. Contingut del paquet

Assegureu-vos que tots els elements següents estiguin presents al vostre paquet:

• Vivitar VIV-385HV Professional Flash Unit
• 20mm Wide Angle Lens (Diffuser)
• Placa reflectora
• Manual d'usuari

4. Producte acabatview

Familiarize yourself with the main components of your Vivitar VIV-385HV flash unit:

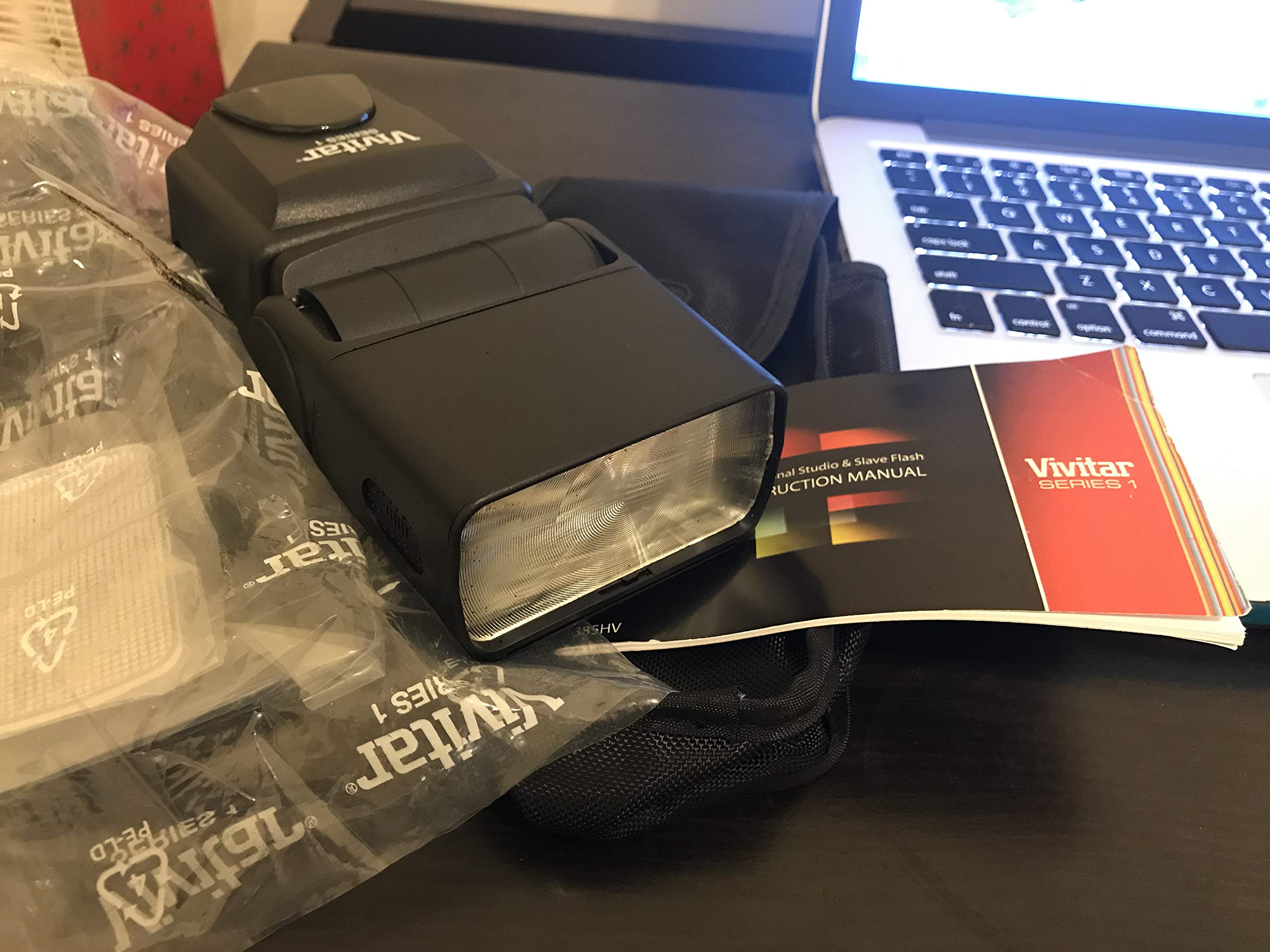

Figure 1: Vivitar VIV-385HV Professional Flash Unit. This image displays the main flash unit, typically showing the flash head, LCD screen, and control buttons.

• Capçal de flaix: Emits light. Can be zoomed and tilted/swiveled for bounce flash.
• Pantalla LCD: Shows current settings, mode, and battery status.
• Botons de control: For power, mode selection, power adjustment, and other settings.
• Muntatge de sabata calenta: Connects the flash to your camera's hot shoe.
• Compartiment de la bateria: Holds the AA batteries.
• Port de sincronització de PC: For connecting to cameras or triggers via a PC sync cable.

5. Configuració

5.1 Instal·lació de la bateria

1. Locate the battery compartment cover on the back or side of the flash unit.
2. Obriu la coberta fent-la lliscar o aixecar-la segons l'indicador.
3. Introduïu quatre (4) piles AA, assegurant-vos de la polaritat correcta (+/-) tal com s'indica a l'interior del compartiment.
4. Tanqueu bé la tapa del compartiment de la bateria.

Nota: Always use fresh, high-quality AA alkaline or NiMH rechargeable batteries for optimal performance. Remove batteries if the flash will not be used for an extended period.

5.2 Muntatge a la càmera

1. Assegureu-vos que tant la càmera com el flaix estiguin apagats.
2. Slide the flash's hot shoe mount into your camera's hot shoe slot.
3. Tighten the locking mechanism (if present) on the flash unit to secure it firmly to the camera. Do not overtighten.
4. Alternatively, the flash can be used off-camera via a PC sync cable connected to the PC sync port, or as a slave unit.

6. Instruccions de funcionament

6.1 Encès/Apagat

• Premeu i manteniu premut el botó d'engegada per encendre o apagar la unitat de flaix.
• The LCD display will illuminate, showing the current settings.

6.2 Selecció del mode

The VIV-385HV offers several operating modes:

• Auto Mode (A): The flash automatically adjusts its output based on the ambient light and subject distance. This mode utilizes the flash's auto aperture feature.
• Mode manual (M): Allows you to manually set the flash power output (e.g., 1/1, 1/2, 1/4, up to 1/128). Use the control buttons to adjust the power level.
• Slave Mode (S): The flash will fire in sync with another flash unit. Set your camera's built-in flash or another external flash to fire, and the VIV-385HV will detect the light pulse and fire simultaneously.

Press the "Mode" button to cycle through the available modes.

6.3 Ajust de la potència del flaix (mode manual)

In Manual Mode, use the directional buttons or dial (if present) to increase or decrease the flash power output. The LCD will display the current power setting (e.g., 1/1 for full power, 1/8 for one-eighth power).

6.4 Zoom Flash Head

The flash head can be manually zoomed to match the focal length of your lens, optimizing light coverage. Adjust the zoom head by sliding it forward or backward. The current zoom setting (e.g., 28mm, 50mm, 85mm) will be displayed on the LCD.

6.5 Bounce Flash and Reflecting Plate

• Bounce Flash: The flash head can be tilted upwards and swiveled horizontally. This allows you to bounce the flash light off a ceiling or wall for softer, more natural illumination, reducing harsh shadows.
• Reflecting Plate: Pull out the small white reflecting plate from the flash head. When bouncing the flash, this plate can direct a small amount of light forward to add a catchlight to your subject's eyes.

6.6 Wide Angle Diffuser

For wider lens coverage (e.g., 20mm), pull out the built-in wide-angle diffuser from the flash head. This spreads the light over a broader area, ideal for wide-angle shots.

6.7 Advanced IGBT Circuit

The flash incorporates an Advanced IGBT (Insulated Gate Bipolar Transistor) circuit, which allows for precise control over flash duration and power output, contributing to consistent and efficient performance.

7. Manteniment

• Neteja: Use a soft, dry cloth to clean the flash unit. For stubborn dirt, lightly dampen the cloth with water and then wipe dry. Do not use solvents or abrasive cleaners.
• Emmagatzematge: Store the flash in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries if storing for an extended period to prevent leakage.
• Cura de la bateria: Replace batteries when the low battery indicator appears on the LCD. Dispose of used batteries responsibly.

8. Solució De Problemes

9. Especificacions

10. Garantia i assistència

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Vivitar weblloc web. Les dades de contacte del servei d'atenció al client solen estar disponibles a la pàgina d'assistència del fabricant.

Manufacturer: Sakar International, Inc.
