1. Introducció
This manual provides essential information for the proper installation, operation, and maintenance of your Technical Pro LZ6200 2U Professional 2-Channel Power Amplifier. Please read this manual thoroughly before using the amplificador per garantir un rendiment i una seguretat òptims.
The LZ6200 is a professional-grade 2-channel power amplifier designed for reliable audio amplification in various settings. It features a robust design, versatile input/output options, and a selectable operating voltage de 110V o 220V.
2. Instruccions de seguretat
- Font d'alimentació: Assegureu-vos el amplifier is connected to a power source matching the selected voltage (110V or 220V) on the rear panel. Incorrect voltage selection can cause severe damage.
- Ventilació: Do not block ventilation openings. Ensure adequate airflow around the unit to prevent overheating. Maintain at least 4 inches (10 cm) of clear space around the ampmés viu.
- Humitat: No exposar el amplifier to rain, moisture, or excessive humidity. Keep liquids away from the unit.
- Col·locació: Col·loca el ampl'escalfador sobre una superfície estable i plana. Eviteu col·locar-lo a prop de fonts de calor o sota la llum solar directa.
- Manteniment: No intenteu fer el manteniment d'aquesta unitat vosaltres mateixos. Envieu totes les tasques de manteniment a personal de servei qualificat.
- Posada a terra: Always use a grounded power cord.
3. Contingut del paquet
Comproveu que el vostre paquet contingui els elements següents:
- Technical Pro LZ6200 Power AmpUnitat lificadora
- Cable d'alimentació de CA.
- Manual d'instruccions (aquest document)
- Key for Front Panel Lock
Image: Packaging box for the Technical Pro LZ6200 amplifier, showing the model number and brand logo.
4. Característiques del panell frontal
Imatge: Frontal view of the Technical Pro LZ6200 amplifier, displaying the power button, level controls, LED meters, and lock switch.
- Botó d'encendre: Activa o desactiva ampencendre i apagar el lificador.
- CH-A / CH-B Level Controls: Rotary knobs to adjust the output level for Channel A and Channel B independently.
- CLIP Indicators: Red LEDs that illuminate when the input signal is too high, indicating potential distortion. Reduce the input level if these LEDs light up frequently.
- Mesuradors LED: Multi-segment LED displays showing the output level for each channel.
- Interruptor de bloqueig: A key-operated switch to prevent unauthorized operation of the amplifier. Insert the provided key to enable or disable the amplifier's functions.

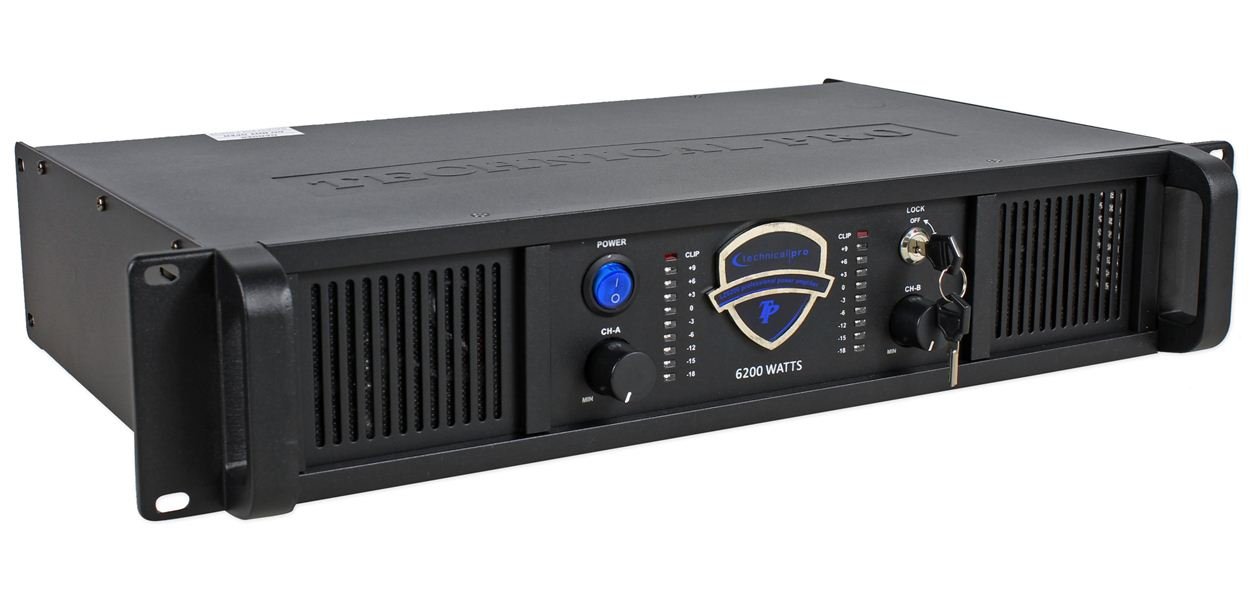

Imatge: Frontal view of the Technical Pro LZ6200 amplifier with the security key inserted into the lock switch.
5. Connexions del panell posterior
Imatge: Part posterior view of the Technical Pro LZ6200 amplifier, showing input and output connectors, mode switches, and power input.
- INPUT (CH-A / CH-B): Balanced XLR and 1/4" TRS combo jacks for connecting audio sources.
- OUTPUT (CH-A / CH-B): Speakon and Binding Post terminals for connecting speakers.
- Interruptor de MODE: Selecciona el fitxer amplifier's operating mode: ESTÈREO (two independent channels), PONT (combines both channels for mono, higher power output), or MONO (parallel input to both channels, independent outputs).
- LIFT / GROUND Switch: Used to break the ground loop if hum or noise is present in the audio signal.
- LED CONTROL Switch: Toggles the front panel LED meters on or off.
- POWER SELECT Switch (110V/220V): Selects the appropriate operating voltage per a la teva regió. Ensure this is set correctly before connecting to power.
- ENTRADA CA: Standard IEC power inlet for the AC power cable.
6. Configuració
6.1 Col·locació
Col·loca el amplifier in a location that allows for proper ventilation. Avoid enclosed spaces or stacking other heat-generating equipment directly on top of the unit. Ensure the surface is stable and can support the amppes del vidador.
6.2 Connexió d'alimentació
- Verifiqueu el SELECCIÓ DE POTÈNCIA switch on the rear panel is set to the correct voltage (110V or 220V) for your electrical supply.
- Connect the supplied AC power cable to the ENTRADA CA on the rear panel and then to a grounded electrical outlet.
6.3 Connexions d'entrada
Connecteu la font d'àudio (mesclador, preamplificador)amplificador, etc.) a la ENTRADA jacks (XLR or 1/4" TRS) on the rear panel. Use high-quality shielded cables to minimize noise.
6.4 Output Connections (Speakers)
Connecteu els vostres altaveus al SORTIDA terminals (Speakon or Binding Post) on the rear panel. Ensure correct polarity (+ to + and - to -) for all connections. Match speaker impedance to amplifier capabilities.
6.5 Selecció del mode
Estableix el MODE switch on the rear panel according to your desired configuration:
- ESTÉREO: For typical two-channel operation, with independent signals for Channel A and Channel B.
- PONT: For combining both channels into a single, higher-power mono output. Connect the speaker to the designated bridge output terminals (refer to markings on the unit).
- MONO: For parallel input to both channels, with independent outputs. Both channels receive the same input signal.
7. Instruccions de funcionament
- Ensure all connections (power, input, output) are secure and correct.
- Baixeu el CH-A i CH-B Level Controls on the front panel to their minimum (MIN) position.
- Premeu el botó PODER botó per encendre el amplifier. The power indicator will illuminate.
- If desired, insert the key into the BLOC switch and turn it to the 'ON' position to enable ampfuncions de lificació.
- Comença a reproduir àudio des del dispositiu font.
- Augmenta lentament el CH-A i CH-B Level Controls per aconseguir el volum desitjat.
- Monitoritzar el Mesuradors LED to observe output levels and the CLIP Indicators to prevent distortion. If a CLIP indicator flashes frequently, reduce the input level from your source or the amplifier's level control.
- Per apagar el amplifier, first reduce the level controls to minimum, then press the PODER botó.
8. Manteniment
- Neteja: Desconnecteu el amplifier from power before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
- Ventilació: Regularly check that the ventilation grilles are free from dust and obstructions. Dust accumulation can lead to overheating.
- Connexions: Periodically check all cable connections for tightness and wear.
9. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sense poder | Power cable disconnected; Power switch off; Incorrect voltage selection; Blown fuse; Lock switch engaged. | Check power cable connection; Ensure power switch is ON; Verify 110V/220V switch setting; Check/replace fuse (by qualified personnel); Disengage lock switch with key. |
| Sense sortida de so | Input cables disconnected; Speaker cables disconnected/incorrectly wired; Input source not playing; Amplifier level controls at minimum; Incorrect mode selection. | Check all input and output cable connections; Ensure input source is active; Increase amplifier level controls; Verify MODE switch setting. |
| So distorsionat | Input signal too high (clipping); Speaker impedance mismatch; Damaged speaker. | Reduce input level from source or amplifier level controls; Ensure speaker impedance is compatible; Test with different speakers. |
| Zum o soroll | Ground loop; Poor cable shielding. | Engage the LIFT switch on the rear panel; Use higher quality shielded cables. |
| Sobreescalfament | Ventilació bloquejada; Càrrega excessiva. | Ensure adequate airflow around the unit; Reduce output level or speaker load. |
10. Especificacions
- Marca: Tècnic Pro
- Model: LZ6200
- Canals: 2
- Potència màxima: 6200W
- Vol. Operatiutage: 110V/220V (selectable)
- Connectors d'entrada: XLR, jack TRS de 1/4"
- Connectors de sortida: Speakon, Binding Post
- Configuració del canal de so envoltant: 2
- Dimensions (paquet): 52.07 x 35.56 x 14.73 cm (aproximadament)
- Pes de l'article: 7.98 kg (aproximadament)
11. Garantia i Suport
For warranty information and technical support, please refer to the documentation provided at the time of purchase or contact Technical Pro customer service directly. Keep your purchase receipt as proof of purchase.
Per obtenir més ajuda, visiteu el lloc web oficial de Technical Pro. weblloc web o poseu-vos en contacte amb els seus centres de servei autoritzats.
