Introducció
Welcome to your new Memorex ML310 Portable Speaker Case. This manual provides essential information for setting up, operating, and maintaining your device, ensuring you get the best audio experience while protecting your music player or smartphone.
Producte acabatview
The Memorex ML310 is a portable speaker solution designed to protect your music player or smartphone while delivering quality stereo sound. Its robust design makes it ideal for on-the-go use, providing both audio playback and device protection.
Característiques clau
- Integrated speaker case compatible with iPhone, iPod, and Android devices.
- Shock-resistant exterior material and soft interior lining for enhanced device protection.
- High-quality stereo sound output for an immersive listening experience.
- Convenient external control buttons for easy volume adjustment.
- Battery-powered for ultimate portability (requires 4 AAA batteries).

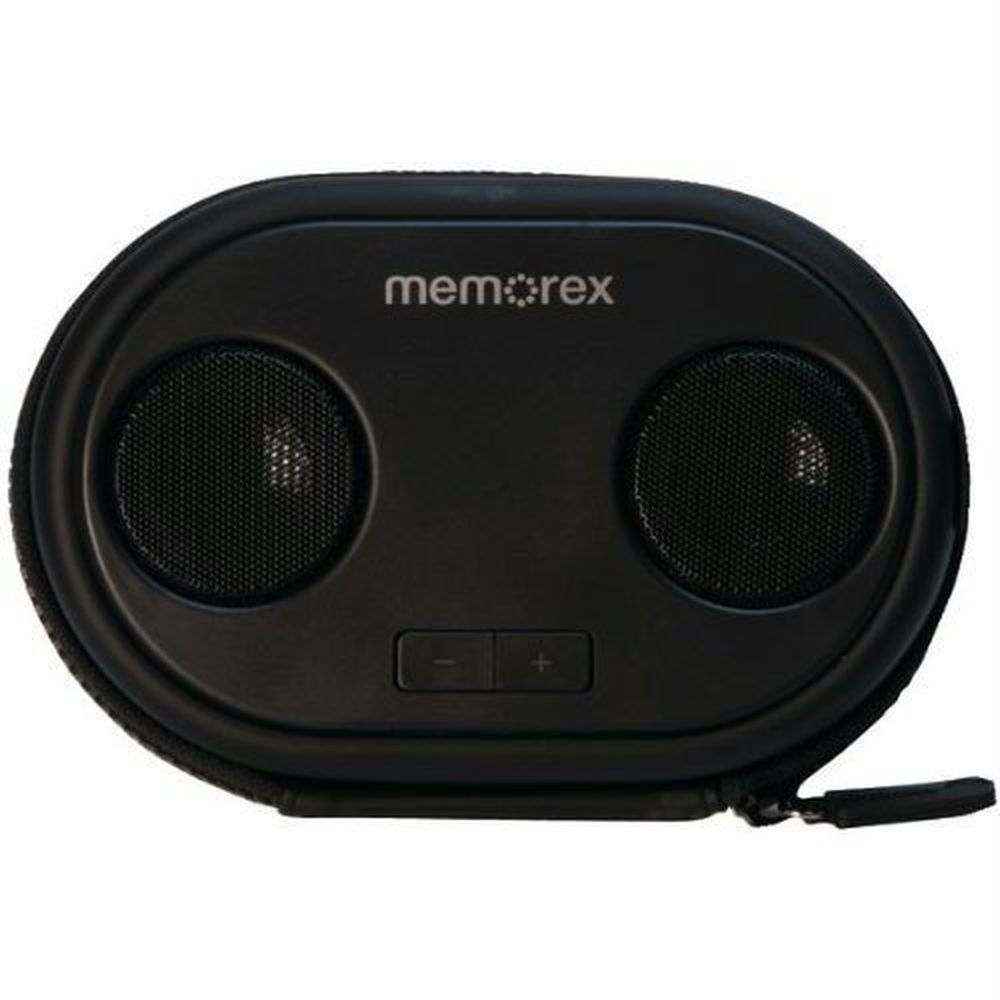

Imatge del producte
This image displays the Memorex ML310 Portable Speaker Case. It features two circular speaker grilles on the front, with "memorex" branding above them. Below the speakers, there are two rectangular buttons for volume control, marked with '-' and '+'. The case itself is black, with a zippered closure visible around the edge.
Contingut del paquet
Si us plau, comproveu el paquet per veure si hi ha els elements següents:
- Memorex ML310 Portable Speaker Case
- Built-in 3.5mm audio cable
- Manual d'usuari (aquest document)
Configuració
Instal·lació de la bateria
The Memorex ML310 requires 4 AAA batteries for operation. Ensure you have fresh batteries available.
- Localitzeu el compartiment de la bateria del dispositiu.
- Obriu la tapa del compartiment de la bateria.
- Insert 4 AAA batteries, ensuring correct polarity (+ and -) as indicated inside the compartment.
- Tanqueu bé la tapa del compartiment de la bateria.
Important Note: Some AAA batteries with shorter positive terminals may not make proper contact. If the unit does not power on, try different brand batteries with standard-sized positive terminals.
Connexió del dispositiu
The speaker case features a built-in 3.5mm audio cable for easy connection to your media device.
- Open the main compartment of the speaker case.
- Place your smartphone or music player inside the protective interior.
- Connect the built-in 3.5mm audio cable from the speaker case to the headphone jack of your device.
- Securely close the zipper of the case to protect your device.
Instruccions de funcionament
Encès/Apagat
The unit powers on automatically when a connected device is playing audio and batteries are installed. There is no dedicated power button.
Control de volum
Use the external '+' and '-' buttons located on the front of the speaker case to adjust the volume.
- Premeu el botó '+' per augmentar el volum.
- Premeu el botó '-' per baixar el volum.
You may also need to adjust the volume directly on your connected smartphone or music player for optimal sound levels.
Reproducció d'àudio
Once your device is connected and the speaker case is powered, simply start playing audio from your device (e.g., music, podcasts, videos). The sound will be routed through the Memorex ML310 speakers.
Manteniment
Neteja
To clean the exterior of the speaker case, use a soft, dry cloth. Do not use liquid cleaners, solvents, or abrasive materials, as these may damage the finish.
Emmagatzematge
When not in use for extended periods, remove the batteries to prevent leakage and potential damage to the device. Store the speaker case in a cool, dry place away from direct sunlight and extreme temperatures.
Resolució de problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Sense so | Les bateries estan esgotades o instal·lades incorrectament. | Replace batteries with new AAA batteries, ensuring correct polarity. Try a different brand of AAA batteries if the positive terminal seems too short. |
| Sense so | Cable d'àudio no completament connectat. | Ensure the 3.5mm audio cable is securely plugged into your device's headphone jack. |
| Sense so | El volum del dispositiu és massa baix o silenciat. | Increase the volume on your connected smartphone or music player. |
| So distorsionat | Volume is too high on either the speaker case or the connected device. | Reduce the volume on both the speaker case and your connected device until distortion is eliminated. |
| External volume buttons unresponsive | Buttons may be stuck or damaged. | Premeu suaument els botons per assegurar-vos que no estiguin enganxats. Si el problema persisteix, poseu-vos en contacte amb l'atenció al client. |
If you encounter issues not listed here, please refer to the support section for further assistance.
Especificacions
| Característica | Detall |
|---|---|
| Model | ML310BK |
| Tipus d'altaveu | Altaveus estèreo portàtils |
| Mode de sortida d'àudio | estèreo |
| Configuració del canal | 2.0 |
| Connectivitat | Amb cable (connector d'àudio de 3.5 mm) |
| Font d'alimentació | 4 piles AAA (no incloses) |
| Dispositius compatibles | Smartphones, MP3 Players (iPhone, iPod, Android devices) |
| Tipus de control | Button (Volume +/-) |
| Color | Negre |
| Dimensions (L x A x A) | 5.72 x 16.51 x 10.8 cm (2.25 x 6.5 x 4.25 polzades) |
| Pes | 330 g (0.73 lliures) |
| Fabricant | Imation Enterprises Corp |
Les especificacions estan subjectes a canvis sense previ avís.
Informació de seguretat
- Do not expose the device to water or excessive moisture. It is not waterproof.
- Do not disassemble or attempt to repair the device yourself. This will void the warranty and may cause damage.
- Mantingueu les piles fora de l'abast dels nens.
- Eliminar les bateries usades correctament d'acord amb la normativa local.
- Avoid extreme temperatures and direct sunlight, which can damage the device and batteries.
- Do not block the speaker grilles during operation to ensure optimal sound quality and prevent overheating.
Garantia i Suport
For warranty information and technical support, please refer to the documentation included with your original purchase or visit the official Memorex weblloc web. Conserveu el comprovant de compra per a qualsevol reclamació de garantia.
