Makita GA4530K 4-1/2-inch Angle Grinder User Manual

1. Introducció

The Makita GA4530K 4-1/2-inch Angle Grinder is a robust power tool designed for industrial grinding performance. It features a powerful 6 amp motor, delivering 11,000 RPM for demanding applications. Engineered for durability, it incorporates machined bevel gears for extended tool life, an all-ball bearing design, and a metal gear housing. Labyrinth construction and a protective zig-zag varnish on the armature prevent dust and debris contamination, ensuring prolonged motor and bearing life. This grinder is suitable for a wide range of tasks including cutting, grinding, polishing, and rust removal on various materials such as ferrous metal, stone, and tile.

Its compact and ergonomic design, weighing only 3.55 kg (approximately 7.8 lbs) with a small 2-1/4 inch barrel grip, enhances user comfort and control. The gear housing can be adjusted every 90 degrees, and the side handle can be conveniently installed on either side, offering versatility for different cutting and grinding applications.

Figure 1: Makita GA4530K 4-1/2-inch Angle Grinder

2. Informació de seguretat

Prioritzeu sempre la seguretat quan feu servir eines elèctriques. Llegiu i enteneu tots els avisos de seguretat, instruccions, il·lustracions i especificacions que s'inclouen amb aquesta eina elèctrica. Si no seguiu totes les instruccions que s'indiquen a continuació, podeu patir descàrregues elèctriques, incendis i/o lesions greus.

• Equips de protecció individual (EPI): Utilitzeu sempre ulleres de seguretat o ulleres amb pantalles laterals, protecció auditiva i guants resistents. Es recomana una màscara antipols per a operacions amb molta pols.
• Seguretat de l'àrea de treball: Mantingueu la zona de treball neta i ben il·luminada. Les zones desordenades o fosques conviden als accidents. No feu servir eines elèctriques en atmosferes explosives, com ara en presència de líquids, gasos o pols inflamables.
• Seguretat elèctrica: Power tool plugs must match the outlet. Never modify the plug in any way. Avoid body contact with earthed or grounded surfaces. Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool.
• Tool Specific Safety: Ensure the guard is properly positioned and secured before operation. Always use the side handle for maximum control. Never force the tool. Allow the tool to reach full speed before contacting the workpiece.
• Prevenció de contracops: Maintain a firm grip on the tool. Position your body and arm to allow you to resist kickback forces. Kickback is the result of improper tool use or operating procedures and can be avoided by taking proper precautions.

3. Configuració

3.1 Fixació de la nansa lateral

The side handle can be attached to either side of the gear housing, depending on user preference and application requirements. Screw the side handle firmly into one of the threaded holes on the gear housing until it is secure.

3.2 Changing the Grinding Wheel

1. Assegureu-vos que el molinet estigui desendollat ​​de la font d'alimentació.
2. Premeu i manteniu premut el botó de bloqueig del cargol situat a la carcassa de l'engranatge.
3. Using the provided wrench, loosen and remove the flange nut by turning it counter-clockwise.
4. Remove the old grinding wheel.
5. Place the new grinding wheel onto the spindle, ensuring it is properly seated.
6. Re-attach the flange nut and tighten it securely with the wrench while holding the spindle lock button. Do not overtighten.

Figure 2: Angle Grinder with Side Handle Attached

4. Instruccions de funcionament

4.1 Engegada/apagada

To start the grinder, slide the paddle switch forward. To turn it off, release the paddle switch. For continuous operation, some models may feature a lock-on button; refer to your specific model's instructions if applicable. Always ensure a firm grip on the tool before starting.

4.2 Funcionament general

Allow the grinding wheel to reach full operating speed before bringing it into contact with the workpiece. Apply moderate pressure and move the grinder smoothly across the surface. Avoid excessive pressure, which can lead to overheating, reduced performance, and premature wear of the wheel and tool. Always direct sparks away from yourself and others.

5. Manteniment

Regular maintenance ensures optimal performance and extends the lifespan of your Makita GA4530K Angle Grinder.

• Neteja: Regularly clean the tool's ventilation openings to prevent dust buildup. The labyrinth construction helps protect internal components from dust, but external cleaning is still important. Use a soft brush or compressed air.
• Inspecció del cable: Periodically inspect the power cord for any damage, cuts, or fraying. Replace damaged cords immediately to prevent electrical hazards.
• Escombretes de carbó: If your model uses carbon brushes, inspect them periodically for wear. Replace both brushes when either is worn down to the limit mark. Refer to the detailed service manual for specific instructions on brush replacement.
• Comprovació general: Ensure all screws and fasteners are tight. Check the grinding wheel for cracks or damage before each use.

6. Solució De Problemes

If you encounter issues with your grinder, refer to the following common troubleshooting steps:

• L'eina no s'inicia: Check if the power cord is securely plugged into a functional outlet. Ensure the paddle switch is fully engaged. Verify that the circuit breaker has not tripped.
• Loss of Power/Overheating: This can occur due to excessive pressure during operation or prolonged use. Reduce pressure, allow the tool to cool down, and ensure ventilation openings are clear. The motor's protective features are designed to prevent damage from overheating.
• Vibració excessiva: A vibrating tool may indicate a damaged or improperly installed grinding wheel. Inspect the wheel for damage and ensure it is correctly mounted and tightened.
• Soroll inusual: Discontinue use immediately. Unusual noises can indicate internal damage or worn components. Contact Makita service for inspection.

7. Especificacions

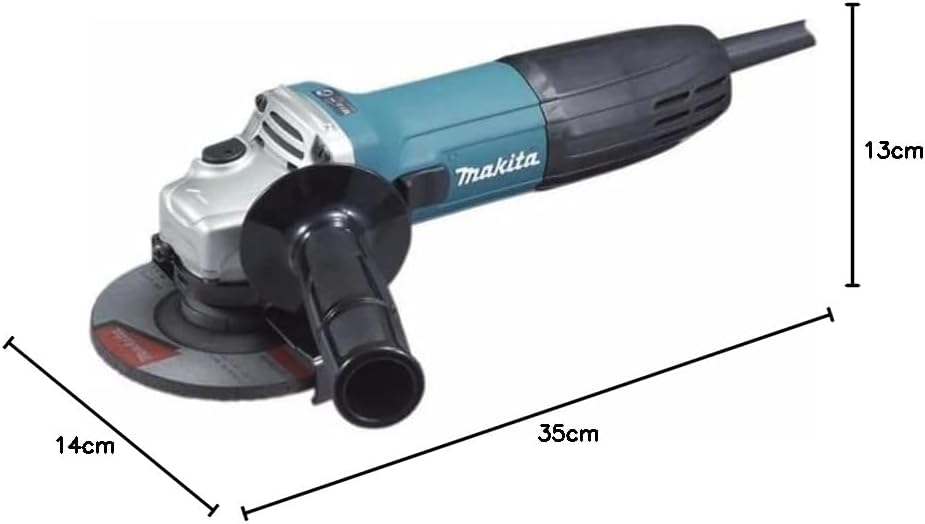

Figure 3: Makita GA4530K Angle Grinder with Dimensions

8. Garantia i Suport

8.1 Informació de la garantia

This Makita GA4530K Angle Grinder comes with a Garantia limitada de 1 anys from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, abuse, normal wear and tear, or unauthorized repairs.

8.2 Atenció al client

For technical assistance, service, or warranty inquiries, please contact Makita Customer Service. You can find contact information on the official Makita website or through your local authorized dealer. When contacting support, please have your model number (GA4530K) and serial number ready.
