1. Introducció
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of the OSRAM QTP8 1x36/230-240 T8 Fluorescent Ballast. Please read this manual thoroughly before proceeding with installation or use. Retain this manual for future reference.
2. Informació de seguretat
WARNING: Risk of electric shock. Installation and servicing must be performed by a qualified electrician in accordance with all applicable national and local electrical codes and regulations.
- Always disconnect power at the circuit breaker or fuse box before installing, servicing, or removing the ballast.
- Assegureu-vos de posar a terra adequadament per evitar descàrregues elèctriques.
- Do not operate the ballast with damaged wiring or if the casing està compromesa.
- Comproveu que l'entrada voltage i lamp wattage match the ballast specifications.
- This ballast is designed for indoor use only.
3. Producte acabatview

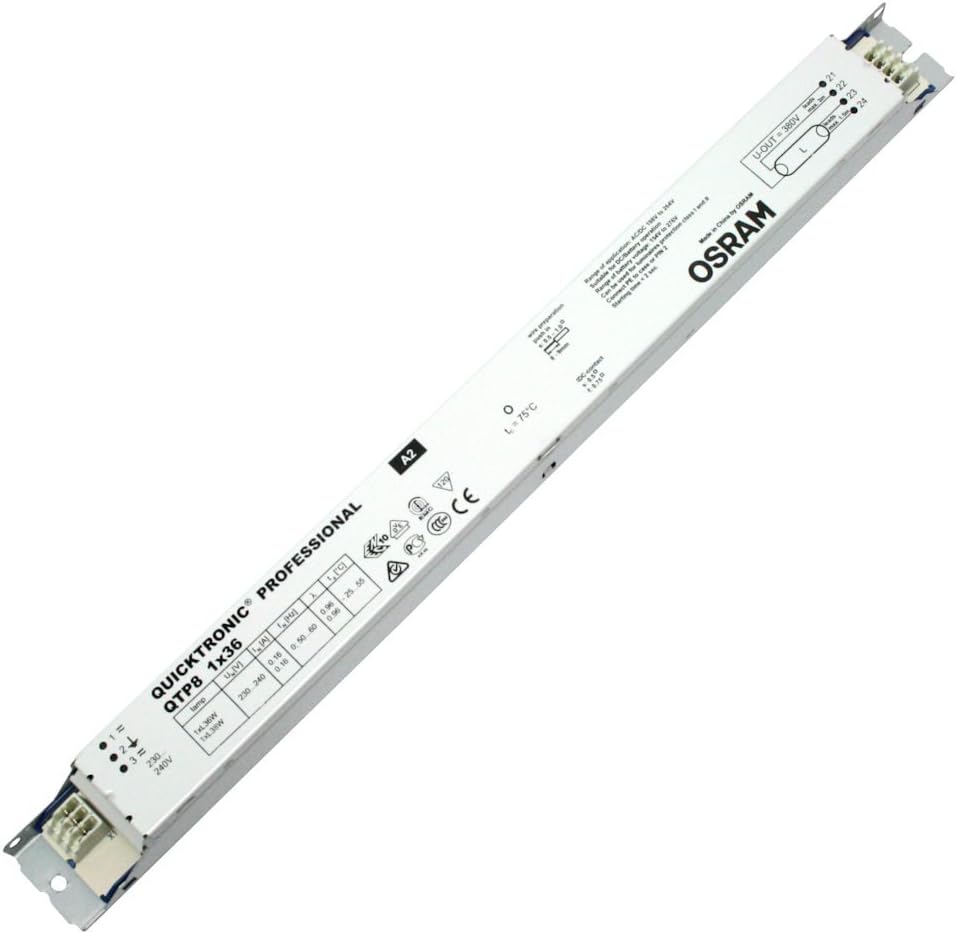

The OSRAM QTP8 1x36/230-240 is an electronic fluorescent ballast designed to power one 36-watt T8 fluorescent lamp. It provides efficient and reliable operation, ensuring instant start and stable light output for compatible fluorescent lighting fixtures. The ballast operates on a 230-240 volt AC supply.
4. Instal·lació
Follow these steps for proper installation of the ballast:
- Desconnexió d'alimentació: Ensure the main power supply to the fixture is turned off at the circuit breaker before beginning any installation work.
- Muntatge: Securely mount the ballast within the lighting fixture using appropriate fasteners. Ensure adequate ventilation around the ballast.
- Connexions de cablejat: Refer to the wiring diagram printed on the ballast label and the general guidelines below. Use appropriate wire gauges for all connections.
- Input Power (230-240V AC): Connect the Live (L) and Neutral (N) wires from the main power supply to the corresponding input terminals on the ballast.
- Lamp Connexions: Connecteu la lamp wires to the ballast output terminals (typically labeled 21, 22, 23, 24) as indicated by the wiring diagram for a single T8 fluorescent lamp. Ensure all connections are firm and secure.
- Verificació: Double-check all wiring connections for correctness and security. Ensure no bare wires are exposed.
- Restaura l'alimentació: Un cop finalitzada i verificada la instal·lació, restableix l'alimentació a l'aparell.
5. Instruccions de funcionament
The OSRAM QTP8 1x36/230-240 T8 Fluorescent Ballast is designed for automatic operation. Once properly installed and connected to a compatible 36W T8 fluorescent lamp and power supply, the lamp will illuminate instantly upon activation of the power switch. The electronic design ensures flicker-free starting and stable light output.
6. Manteniment
This ballast contains no user-serviceable parts. Regular maintenance is limited to:
- Neteja: Periodically clean the exterior of the ballast and fixture to prevent dust accumulation, which can affect heat dissipation. Ensure power is disconnected before cleaning.
- Inspecció: Annually inspect wiring for signs of wear, damage, or loose connections. Replace any damaged components immediately.
- Lamp Substitució: Replace fluorescent lamps with compatible 36W T8 lamps when they reach the end of their life or show signs of degradation.
7. Solució De Problemes
Si la lamp fails to operate correctly, perform the following checks:
- Sense llum:
- Verifiqueu que l'alimentació de l'aparell estigui activa.
- Check that the fluorescent lamp is correctly seated and not faulty. Try replacing the lamp with a known good one.
- Inspeccioneu totes les connexions del cablejat per detectar si hi ha fluïdesa o danys.
- Parpellejant Lamp:
- Assegureu-vos que lamp is fully inserted into its sockets.
- Substituïu la lamp if it is old or showing signs of end-of-life flickering.
- Verify stable input voltage.
- Ballast Overheating:
- Assegureu-vos de ventilar adequadament al voltant del balast.
- Confirm the correct lamp tipus i wattage are being used.
If issues persist after performing these checks, contact a qualified electrician or OSRAM customer support.
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | OSRAM |
| Número de model | 1131621 |
| Número de part | 131621 |
| Tipus de llum | Fluorescent |
| Nombre de Lamps | 1 |
| Tipus de bombeta compatible | T8 |
| Wattage (per lamp) | 36 watts |
| Entrada Voltage | 230-240 volts de corrent altern |
| Dimensions (W x H) | 1.18 cm x 14.17 cm |
| Pes de l'article | 3.52 unces (0.22 lliures) |
| Material | Glass (referring to lamp compatibilitat) |
| Ús interior/exterior | Interior |
| Font d'alimentació | Elèctric amb cable |
9. Garantia i Suport
This OSRAM product is covered by the manufacturer's standard warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official OSRAM website. For technical assistance, troubleshooting, or warranty claims, please contact OSRAM customer support directly.
Oficial d'OSRAM Weblloc: www.osram.com
