Sauder Palladia Book Shelf Instruction Manual

1. Introducció

This manual provides detailed instructions for the assembly, operation, and maintenance of your Sauder Palladia Book Shelf, Model 412019. This unit is designed to offer versatile storage and display options with adjustable shelving and concealed storage behind doors. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

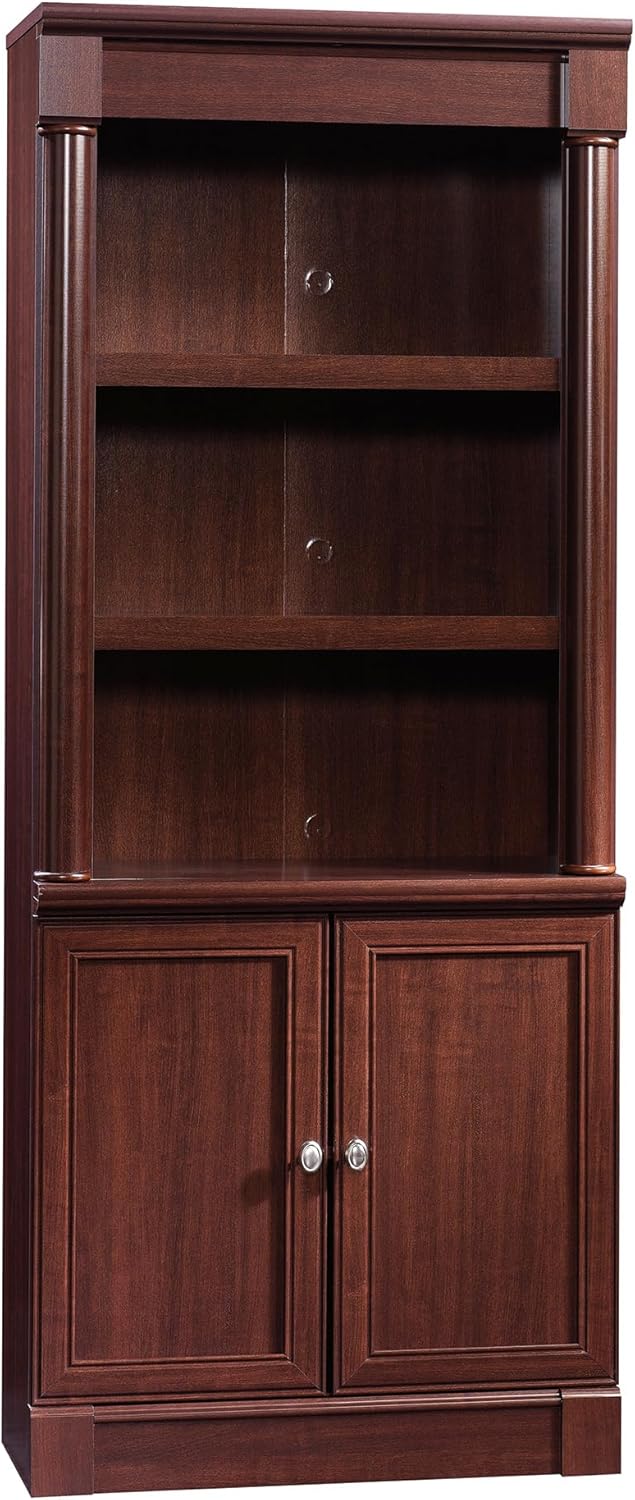

Figure 1: Assembled Sauder Palladia Book Shelf

2. Informació de seguretat

• No sobrecarregueu els prestatges: Ensure that the weight distributed on each shelf does not exceed its capacity. Overloading can cause structural damage or tipping.
• Ensure proper installation: Follow all assembly steps precisely to prevent tipping. It is recommended to secure the unit to a wall using appropriate anti-tip hardware (if included or recommended by local safety standards).
• Mantingueu les peces petites fora de l'abast dels nens: During assembly, ensure all small hardware components are kept out of reach of children to prevent choking hazards.

AVÍS: Si no es segueixen aquestes instruccions de seguretat, es poden produir lesions o danys al producte.

3. Components inclosos

Before beginning assembly, verify that all components are present and undamaged. Refer to the packing list provided with your product for specific part identification. The package typically includes:

• Instruccions de muntatge
• Hardware (screws, dowels, cam locks, shelf pins, hinges, handles)
• All necessary wood panels and moldings

If any parts are missing or damaged, please contact Sauder customer support for replacements.

4. Instruccions de muntatge

Assembly of the Sauder Palladia Book Shelf is designed for ease with patented slide-on moldings. Follow the step-by-step diagrams and written instructions provided in your product's specific assembly guide.

Passos de l'Assemblea General:

1. Desempaquetar i organitzar: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Group similar hardware items.
2. Muntar els panells base i laterals: Attach the base and side panels according to the instructions, utilizing the patented slide-on moldings for secure connections.
3. Instal·leu prestatges fixos: Secure any fixed shelves as indicated in the manual.
4. Fixeu el panell posterior: Install the back panel. Ensure the unit is square before securing the back panel, as this contributes to structural integrity. The back panel includes cut-outs for cable management.
5. Instal·leu prestatges ajustables: Insert shelf pins into desired holes for the adjustable shelves. The unit features three adjustable shelves.
6. Assemble and Attach Doors: Assemble the doors and attach the self-closing adjustable hinges. It is often easier to attach hinges to the cabinet first, then align and attach the doors.
7. Instal·leu les nanses: Attach the decorative handles to the doors.

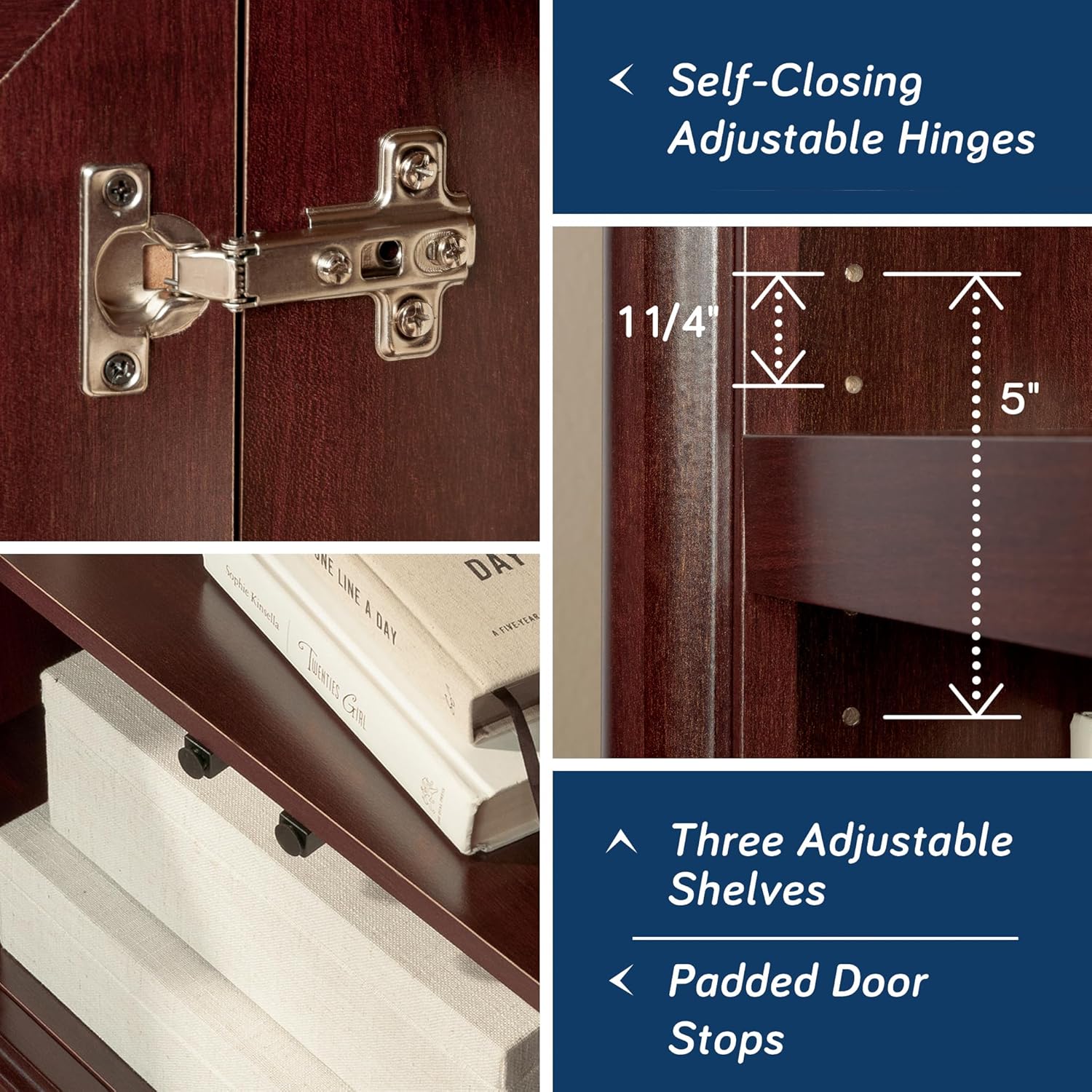

Figure 2: Detail of Adjustable Hinges and Shelf Pin Holes

5. Instruccions de funcionament

The Sauder Palladia Book Shelf offers flexible storage solutions:

• Prestatges ajustables: The upper section features three adjustable shelves. To adjust, remove items from the shelf, lift the shelf, remove the shelf pins, reposition the pins to the desired height, and then place the shelf back onto the pins.
• Emmagatzematge ocult: The lower section includes a hidden storage area behind two doors, containing one large adjustable shelf. This area is ideal for concealing items or organizing office essentials.
• Gestió de cables: The enclosed back panel includes cut-outs to facilitate convenient routing of cables and cords, helping to maintain an organized appearance.

Figure 3: General Storage with Doors Open

Figure 4: Storage Behind Doors

6. Manteniment

To maintain the appearance and longevity of your Sauder Palladia Book Shelf:

• Neteja: Wipe surfaces with a dry cloth. Avoid abrasive cleaners or harsh chemicals, which can damage the finish.
• Vessaments: Promptly wipe up any spills to prevent moisture damage.
• Comprovació de maquinari: Reviseu periòdicament tots els cargols i elements de fixació per assegurar-vos que romanen ajustats. Torneu a apretar-los si cal.

7. Solució De Problemes

Si teniu problemes durant el muntatge o l'ús, tingueu en compte el següent:

• Peces que falten o danyades: If any components are missing or damaged upon arrival, refer to the parts list in your assembly guide and contact Sauder customer support for replacements.
• Difficulty with Door Hinges: If doors do not align correctly, adjust the self-closing hinges. The hinges typically allow for minor adjustments in multiple directions to achieve proper door alignment. Refer to the specific hinge adjustment instructions in your assembly manual.
• Shelf Not Fitting: Ensure shelf pins are fully inserted and aligned. Some designs may require careful maneuvering around internal brackets; if a shelf is difficult to slide into place, temporarily remove adjacent pins, position the shelf, and then reinsert the pins.
• Unitat inestable: Ensure all fasteners are tightened. Verify the unit is on a level surface. If necessary, use shims under the base to stabilize.

8. Especificacions

Figura 5: Dimensions detallades del producte

9. Informació de la garantia

The Sauder Palladia Book Shelf comes with a 5 anys de garantia de peces. This warranty covers manufacturing defects in materials and workmanship under normal use. For specific terms and conditions, please refer to the warranty documentation included with your product or contact Sauder customer support.

10. Atenció al client

For assistance with assembly, missing parts, or any other product-related inquiries, please contact Sauder customer support:

• Xat en directe: Available for on-demand support.
• Domestic Call Center: Ready to assist with your questions.
• Peces de recanvi: Quick shipping for necessary replacement components.
• Assembly Tip Videos: Access helpful insight through online resources.

Visit the official Sauder weblloc web per obtenir dades de contacte i recursos addicionals.
