1. Introducció
This manual provides essential information for the safe and efficient operation, setup, and maintenance of your VacMaster VP321 Chamber Vacuum Sealer. Please read all instructions carefully before using the appliance to ensure optimal performance and longevity.
The VacMaster VP321 is designed for commercial and food service operations, offering robust vacuum sealing capabilities to extend food life, maintain quality, reduce freezer burn, and minimize food waste. Its heavy-duty construction and powerful pump are built for prolonged and continuous use.
Image: The VacMaster VP321 helps increase food shelf life up to 5 times longer by vacuum packaging. This image highlights benefits such as sealing liquids, double-sealed protection, marinating capabilities, and stainless steel construction with a clear dome lid, alongside an ETL Sanitation Listed certification.
2. Producte acabatview
The VacMaster VP321 is a robust chamber vacuum sealer featuring a durable stainless steel construction and a clear domed lid. It is equipped with a powerful 1.5 HP rotary oil pump and two 17-inch seal bars for efficient and reliable sealing.
2.1 Components clau
- Carcassa d'acer inoxidable: Provides durability and easy cleaning.
- Clear Domed Lid: Allows visibility during the vacuum process and increases chamber height to 7 inches.
- Tauler de control: Intuitive interface for setting vacuum, seal, and cooling times.
- Cambra de buit: Large capacity for various bag sizes.
- Seal Bars: Two 17-inch removable seal bars with double seal wire for secure sealing.
- 1.5 HP Rotary Oil Pump: Ensures strong and consistent vacuum performance.

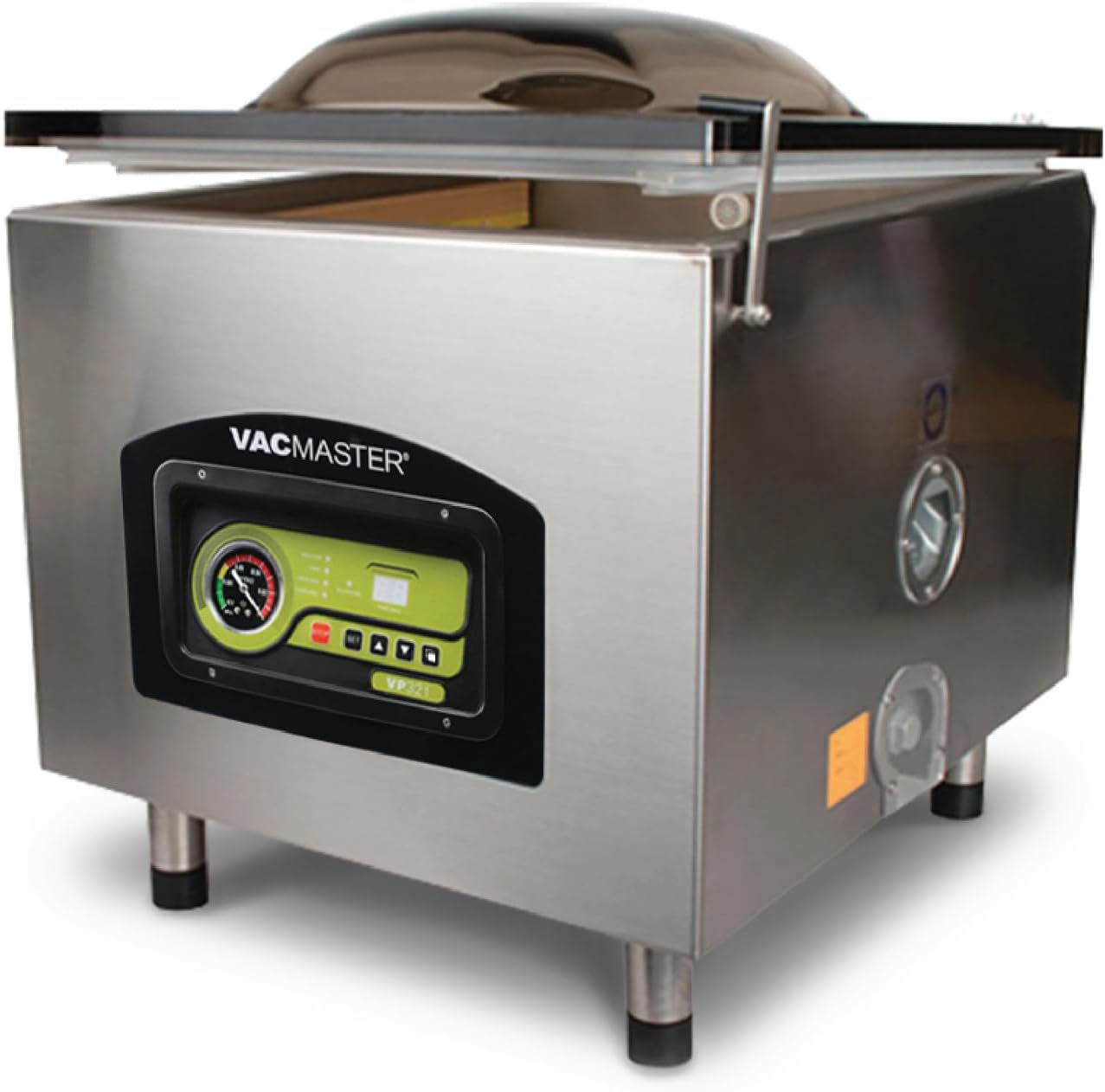

Imatge: Frontal view of the VacMaster VP321 Chamber Vacuum Sealer, showcasing its stainless steel exterior, control panel, and clear domed lid.
Imatge: De dalt a baix view of the VacMaster VP321 with the clear domed lid open, revealing the spacious vacuum chamber and the seal bar mechanism.
Image: This graphic highlights the VacMaster VP321's heavy-duty 1.5 HP rotary oil pump, emphasizing its efficient design with two seal bars, extra-large chamber, durability for continuous use, 10 customizable vacuum-seal-time cycles, and an easy-to-use control panel with pressure indicator.
3. Configuració
3.1 Desembalatge i col·locació
- Carefully remove the vacuum sealer from its packaging. Due to its weight (approximately 210 lbs), it is recommended to use appropriate lifting equipment or assistance.
- Place the unit on a stable, level surface capable of supporting its weight. Ensure adequate clearance around the machine for ventilation and operation.
- Inspect the unit for any shipping damage. Contact customer support immediately if any damage is found.
3.2 Initial Oil Fill
The VacMaster VP321 utilizes a rotary oil pump. Before initial operation, ensure the oil level is correct. Refer to the oil sight glass on the side of the machine. If the oil level is low, add the appropriate vacuum pump oil (typically included or specified by VacMaster) until it reaches the recommended level.
Imatge: Part posterior view of the VacMaster VP321, showing the location of the oil sight glass and other connections. Ensure the oil level is checked before operation.
3.3 Connexió d'alimentació
Connecteu el cable d'alimentació a una presa de corrent amb connexió a terra amb el volum correctetage (2.3E+2 Volts, 350 Watts). Ensure the power switch is in the OFF position before plugging in the unit.
4. Instruccions de funcionament
The VacMaster VP321 features an intuitive control panel for easy operation. Familiarize yourself with the controls before beginning the sealing process.
4.1 Tauler de control acabatview
Imatge: Un primer pla view of the VacMaster VP321's control panel, showing the vacuum gauge, indicator lights for vacuum, gas, sealing, cooling, and working, along with buttons for STOP, SET, and adjustment arrows.
- Indicador de buit: Displays the current vacuum level.
- Llums indicadores: Show the status of the vacuum, gas, sealing, cooling, and working cycles.
- Botó SET: S'utilitza per entrar al mode de programació i confirmar la configuració.
- Fletxes amunt/avall: Adjust vacuum time, seal time, and cooling time settings.
- Botó STOP: Immediately stops the current cycle.
4.2 Basic Vacuum Sealing Process
- Prepara la bossa: Place the item to be sealed inside a vacuum chamber pouch. Ensure the open end of the bag is clean and free of food debris.
- Col·locació de la bossa: Lay the open end of the bag flat across the seal bar inside the vacuum chamber. Ensure the entire opening is on the seal bar and not wrinkled.
- Tanqueu la tapa: Firmly close the clear domed lid. The machine will automatically begin the vacuum cycle or wait for a manual start depending on settings.
- Monitor the Cycle: The vacuum gauge will show the vacuum level increasing. Indicator lights will illuminate to show the progress (Vacuum, Sealing, Cooling).
- Remove the Bag: Once the cycle is complete and the lid releases, carefully remove the sealed bag.
Image: A user wearing blue gloves carefully places a whole chicken into a vacuum bag, positioning it within the chamber of the VacMaster VP321 for sealing.
4.3 Customizable Cycles and Applications
The VP321 offers 10 customizable vacuum-seal-time cycles, allowing you to optimize settings for various food types and applications.
- Sealing Liquids: The chamber technology allows for vacuum sealing of liquids and liquid-rich foods without drawing them out of the bag.
- Marinar: Use the vacuum cycle to rapidly infuse marinades into food, enhancing flavor.
- Preparació Sos Vide: Prepare foods for sous vide cooking by vacuum sealing them in precise portions.
Image: A transparent vacuum-sealed bag containing a liquid-rich food item with corn and red peppers, demonstrating the VP321's ability to seal liquids effectively.
Image: This graphic illustrates the "On Demand VACUUM SEALING" capabilities of the VacMaster VP321, highlighting food prep & preservation, medium to high volume use, and sous vide applications. It also details key specifications: 16" removable seal bar, 16.75" W x 18" L x 7" H chamber dimensions, max bag size up to 16" x 18", and 10 unique custom settings for quick task switching.
5. Manteniment
Regular maintenance is crucial for the longevity and optimal performance of your VacMaster VP321.
5.1 Neteja
- Desconnecteu sempre la unitat abans de netejar-la.
- Netegeu l'exterior d'acer inoxidable amb anuncisamp drap i detergent suau. Eviteu els netejadors abrasius.
- Clean the vacuum chamber and lid with a damp cloth. Ensure no liquid enters the vacuum pump intake.
- Periodically clean the seal bars and replace the seal wire and Teflon tape as needed to ensure consistent seals.
5.2 Canvis d'oli
The rotary oil pump requires regular oil changes to prevent moisture buildup and maintain efficiency. It is recommended to change the oil at least 3-4 times a year, especially in environments with changing seasonal climates, or more frequently with heavy use. Refer to the oil sight glass for oil condition and level. Consult the full service manual for detailed oil change procedures.
6. Solució De Problemes
This section addresses common issues you might encounter with your VacMaster VP321. For more complex problems, contact customer support.
| Problema | Causa possible | Solució |
|---|---|---|
| La màquina no s'encén | Sense subministrament elèctric; interruptor automàtic saltat; cable d'alimentació defectuós. | Check power connection and outlet; reset circuit breaker; inspect power cord for damage. |
| Poor vacuum or incomplete seal | Bag not positioned correctly; seal bar/wire issues; lid not fully closed; dirty seal area; low oil level. | Reposition bag; clean seal bar and replace wire/tape if worn; ensure lid is firmly closed; clean chamber gasket; check and replenish oil. |
| Lid does not open after cycle | Residual vacuum in chamber. | Wait for pressure to equalize; ensure vacuum release valve is clear. |
7. Especificacions
Below are the technical specifications for the VacMaster VP321 Chamber Vacuum Sealer.
- Marca: Vacmaster
- Número de model: VP321
- Material: Acer inoxidable
- Color: Plata
- Dimensions del producte (L x A x A): 22.25" x 20" x 20.5"
- Pes de l'article: 210 lliures
- Font d'alimentació: Elèctric amb cable
- Mode de funcionament: Automàtic
- Wattage: 350 watts
- Voltage: 2.3E+2 volts
- Bomba: Bomba d'oli rotativa de 1.5 CV
- Seal Bars: Two 17" seal bars
- Alçada de la cambra: 7" (with domed lid)
- UPC: 054202923216
- Fabricant: ARY, Incorporated
- Primera data disponible: 19 d'octubre de 2010
Image: The VacMaster VP321 Chamber Vacuum Sealer shown with its key dimensions: 20" width, 22.25" length, and 20.5" height, including the domed lid.
8. Garantia i Suport
For warranty information, service, or technical support, please refer to the official VacMaster weblloc web o poseu-vos en contacte amb el seu departament d'atenció al client. Conserveu el rebut de compra com a comprovant de compra per a qualsevol reclamació de garantia.
Podeu visitar el Vacmaster Store on Amazon per obtenir informació addicional sobre el producte i accessoris.
