1. Introducció i finalview
This manual provides comprehensive instructions for the RCA Digital Alarm Clock, Model RCD30A. Designed for simplicity and reliability, this alarm clock features a large, easy-to-read LED display and essential functions for daily use.
Característiques principals:
- 1.4 inch red LED display
- Easy to use control buttons
- Repeating snooze functionality with a large, full-width button
- High/low display brightness control
- AC powered operation
- "No Worry" battery backup option (9V battery not included) to retain time settings and alarm function during power outages.
Figura 1: Frontal view of the RCA Digital Alarm Clock.
2. Configuració
2.1 Connexió d'alimentació
Connect the AC power cord from the alarm clock to a standard electrical outlet. The display will illuminate, and the clock will be ready for time setting.
2.2 Instal·lació de la bateria de reserva
For "No Worry" battery backup, install a 9V battery (not included) into the battery compartment located on the back of the unit. This feature ensures that time settings and alarm functions are retained during power interruptions, although the digital display will not light up when operating on battery power.

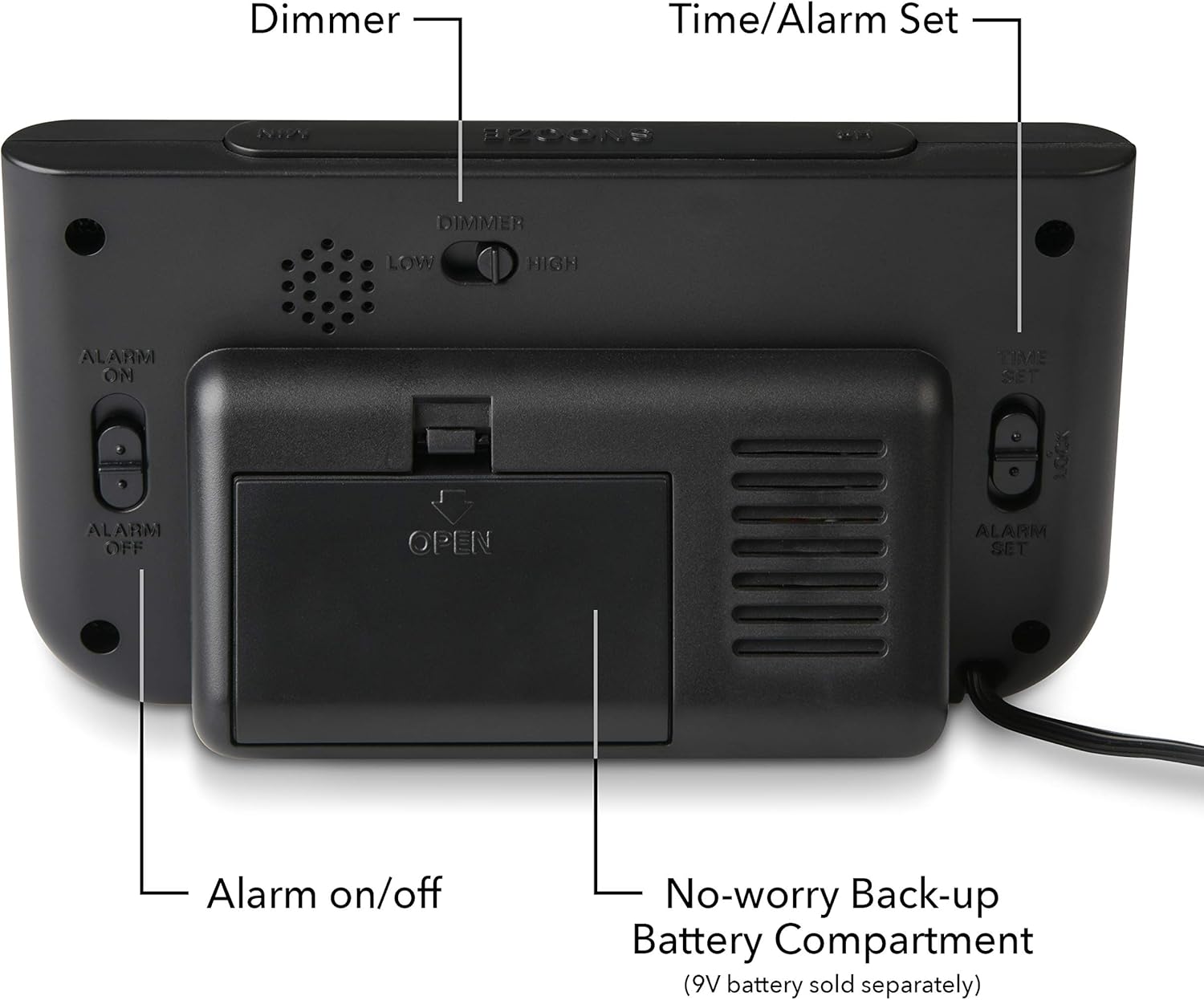

Figura 2: posterior view with battery compartment and controls labeled.
3. Instruccions de funcionament
3.1 Configuració de l'hora
- Localitza el HORA CONFIGURADA botó a la part posterior del rellotge.
- Manteniu premut el botó HORA CONFIGURADA botó. La pantalla començarà a parpellejar.
- Mentre aguanta HORA CONFIGURADA, premeu HORA per ajustar l'hora. Observeu l'indicador PM per a la configuració correcta d'AM/PM.
- Mentre aguanta HORA CONFIGURADA, premeu MIN per ajustar els minuts.
- Allibera el HORA CONFIGURADA botó per desar l'hora actual.
3.2 Configuració de l'alarma
- Localitza el CONJUNT D'ALARMES botó a la part posterior del rellotge.
- Manteniu premut el botó CONJUNT D'ALARMES button. The alarm time will begin to flash.
- Mentre aguanta CONJUNT D'ALARMES, premeu HORA per ajustar l’hora de l’alarma.
- Mentre aguanta CONJUNT D'ALARMES, premeu MIN botó per ajustar els minuts de l'alarma.
- Allibera el CONJUNT D'ALARMES botó per desar l'hora de l'alarma.
- Per activar l'alarma, feu lliscar el ALARMA ON / OFF switch to the "ON" position. An alarm indicator light will appear on the display.
3.3 Ús de la funció Snooze
Quan soni l'alarma, premeu el botó gran DORMITAR button located on the top of the clock. This will temporarily silence the alarm for approximately 9 minutes. The alarm will sound again after the snooze period ends.
Figura 3: superior view highlighting the Snooze button.
3.4 Ajust de la brillantor de la pantalla
The clock features a high/low display brightness control. Locate the DIMMER switch on the back of the unit and slide it to your preferred brightness level (High or Low).
4. Manteniment
4.1 Neteja
To clean the clock, wipe the surface with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
4.2 Substitució de la bateria
If the clock experiences frequent power outages or if the battery backup feature is not functioning correctly, replace the 9V battery in the battery compartment. Ensure proper polarity when inserting the new battery.
5. Solució De Problemes
If you encounter issues with your RCA Digital Alarm Clock, please refer to the following common problems and solutions:
| Problema | Possible causa/solució |
|---|---|
| Display is blank / Clock not working | Ensure the AC power cord is securely plugged into a working electrical outlet. Check if the outlet has power. |
| La configuració de l'hora/alarma es perd després d'un apagadatage | The 9V battery for backup may be missing or depleted. Install a new 9V battery. Note: The display does not light up during battery backup operation. |
| L'alarma no sona | Assegureu-vos el ALARMA ON / OFF switch is in the "ON" position. Verify the alarm time is set correctly. |
| Els botons no responen | Desendolleu l'aparell de la presa de corrent durant uns minuts i torneu-lo a connectar per reiniciar-lo. |
For further assistance, you may refer to the official User Manual (PDF) available aquí.
6. Especificacions
| Característica | Detall |
|---|---|
| Marca | RCA |
| Número de model | RCD30A |
| Tipus de visualització | LED digital |
| Mida de la pantalla | 1.4 polzades |
| Color | Negre |
| Font d'alimentació | Elèctric amb cable |
| Còpia de seguretat de la bateria | 9V (battery not included) |
| Dimensions del producte | 5 cm d'amplada x 6 cm d'alçada |
| Material | Plàstic |
| Característiques especials | Snooze, Alarm, High/Low Brightness Control |
7. Garantia i Suport
7.1 Informació de la garantia
This RCA Digital Alarm Clock comes with a Limited Warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, or visit the official RCA weblloc per obtenir informació detallada sobre la garantia.
7.2 Atenció al client
For technical support, product inquiries, or service, please visit the official RCA Store on Amazon: RCA Store.
