1. Introducció
Thank you for choosing the Walimex Pro 8mm f/3.5 Fisheye Lens Version II. This manual provides essential information for the safe and effective use of your new lens. This lens is designed to offer a unique perspective with its 180° angle of view, ideal for creative photography, including panoramas and wide-angle shots in confined spaces. Its manual focus and aperture control provide photographers with full creative command, allowing for brilliant panorama shots and exciting wide-angle pictures with exceptional depth of focus.
2. Informació de seguretat
- Do not expose the lens to extreme temperatures, humidity, or direct sunlight for extended periods.
- Eviteu deixar caure l'objectiu ni sotmetre-lo a impactes forts.
- Mantingueu la lent allunyada de camps magnètics forts.
- Do not attempt to disassemble or repair the lens yourself. Contact qualified service personnel.
- Quan no l'utilitzeu, col·loqueu les tapes de l'objectiu davantera i posterior per protegir els elements òptics.
- Avoid touching the lens surfaces directly with your fingers.
3. Contingut del paquet
Verifiqueu que tots els elements siguin presents al vostre paquet:
- Walimex Pro 8mm f/3.5 Fisheye Lens Version II
- Tap de l'objectiu frontal
- Tap de la lent posterior
- Removable Lens Hood
- Lens Pouch (may vary by region)
- Manual d'instruccions (aquest document)
4. Producte acabatview
The Walimex Pro 8mm f/3.5 Fisheye Lens is a manual focus, manual aperture lens designed for APS-C sensor cameras, such as Sony E-Mount/NEX models. It features multi-coated glass elements for optimal image quality and a fixed lens hood to minimize flare and reflections. The lens has a focal length of 8mm and a fast lens speed of 1:3.5, allowing for excellent shots even in less favorable lighting conditions.
Figure 4.0: The Walimex Pro 8mm f/3.5 Fisheye Lens Version II for Sony E-Mount/NEX.
Figura 4.1: Frontal view of the Walimex Pro 8mm f/3.5 Fisheye Lens with its integrated lens hood.
Figura 4.2: lateral view of the lens, showing the focus and aperture rings, and the lens hood.

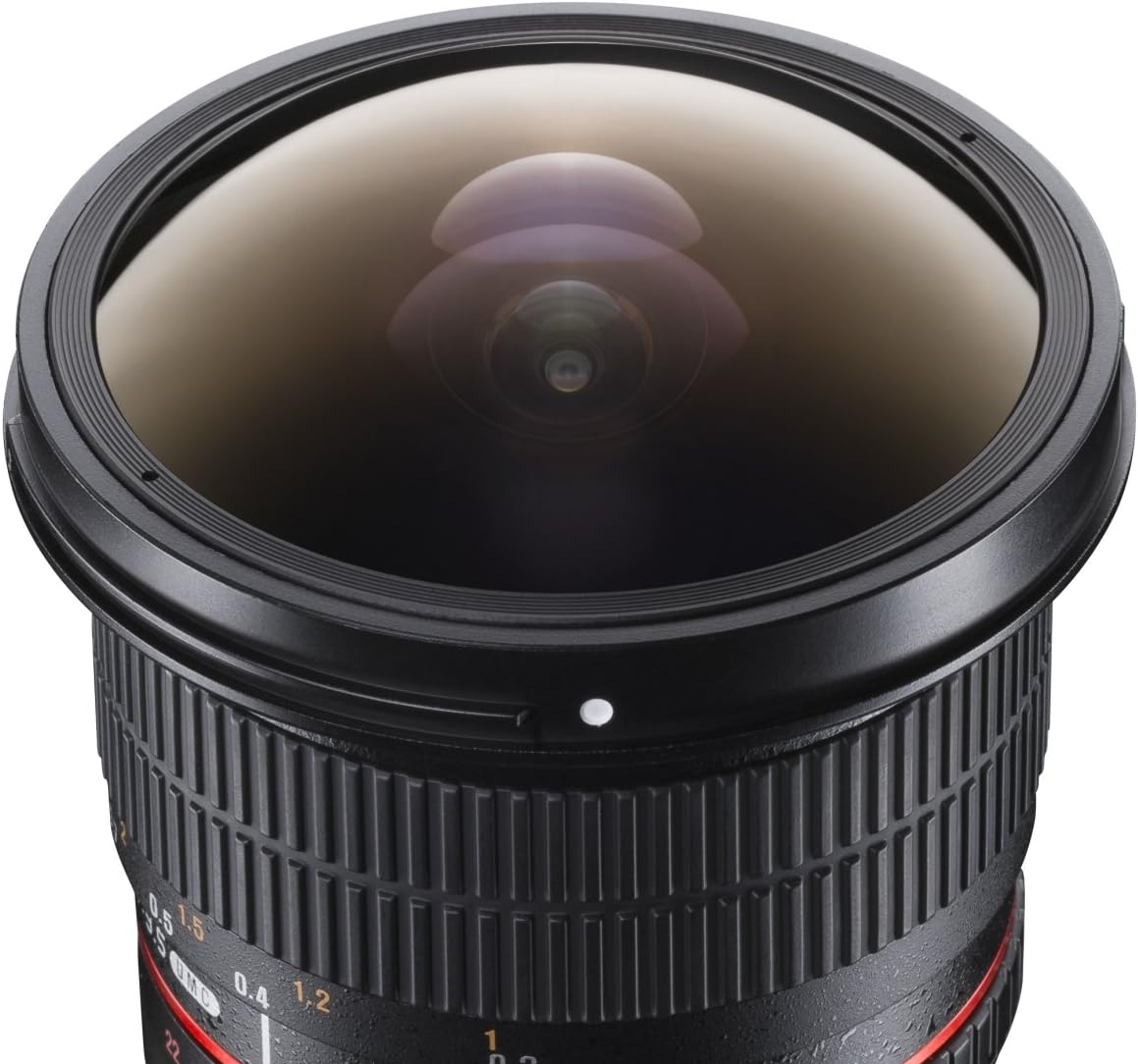

Figura 4.3: Primer pla view of the bulbous front element of the fisheye lens.
Figure 4.4: The Walimex Pro 8mm f/3.5 Fisheye Lens shown with its removable petal-shaped lens hood detached.
Lens Components:
- Anell de focus: Used to manually adjust the focus.
- Anell d'obertura: Used to manually set the aperture (f-stop).
- Parasol: Fixed or removable, helps reduce flare and protect the front element.
- Mounting Index: A small dot or line on the lens barrel that aligns with a corresponding mark on your camera body for proper attachment.
5. Configuració
5.1 Fixació de la lent
- Assegureu-vos que la càmera estigui apagada.
- Remove the rear lens cap from the lens and the body cap from your camera.
- Align the mounting index (white dot) on the lens barrel with the corresponding mounting index on your Sony E-Mount camera body.
- Introduïu l'objectiu a la muntura de la càmera i gireu-lo en sentit horari fins que encaixi. No forceu l'objectiu.
5.2 Desmuntatge de la lent
- Assegureu-vos que la càmera estigui apagada.
- Mentre premeu el botó d'alliberament de l'objectiu del cos de la càmera, gireu l'objectiu en sentit antihorari fins que s'aturi.
- Traieu amb cura l'objectiu del suport de la càmera.
- Col·loqueu la tapa posterior de l'objectiu a l'objectiu i la tapa del cos a la càmera per protegir-les de la pols i els danys.
Figure 5.1: Diagram showing the Walimex Pro 8mm f/3.5 Fisheye Lens mounted on a camera body, with overall dimensions indicated.
6. Funcionament de l'objectiu
6.1 Enfocament manual
This is a manual focus lens. To achieve sharp images:
- Set your camera to Manual Focus (MF) mode.
- Mira a través del viewfinder or use the camera's LCD screen.
- Rotate the focus ring on the lens until your subject appears sharp. Many modern cameras offer focus peaking or magnification aids to assist with manual focusing. Refer to your camera's manual for these features.
- For fisheye lenses, due to their wide depth of field, precise focusing is often less critical, especially at smaller apertures (higher f-numbers) and for distant subjects. The minimum focusing distance is approximately 0.3 meters.
6.2 Manual Aperture Control
The aperture (f-stop) is controlled directly on the lens:
- Rotate the aperture ring on the lens to select your desired f-stop (e.g., f/3.5, f/5.6, f/8, etc.).
- A smaller f-number (e.g., f/3.5) indicates a wider aperture, allowing more light and creating a shallower depth of field.
- A larger f-number (e.g., f/22) indicates a narrower aperture, allowing less light and creating a greater depth of field.
- Your camera should be set to a manual exposure mode (M) or aperture priority mode (A) to properly utilize the manual aperture control.
6.3 Understanding Fisheye Perspective
This 8mm fisheye lens produces a distinct barrel distortion and a 180° angle of view. Straight lines not passing through the center of the image will appear curved. This effect is inherent to fisheye lenses and is used for creative purposes. Experiment with different compositions to achieve unique results.
7. Manteniment
7.1 Neteja de la lent
- Cos de la lent: Use a soft, clean cloth, slightly dampened with water or a mild cleaning solution, to wipe the exterior of the lens.
- Elements de la lent:
- First, use a blower brush to remove any loose dust or particles.
- If smudges or stubborn dirt remain, apply a small amount of lens cleaning fluid to a clean lens cleaning cloth (microfiber) and gently wipe the lens surface in a circular motion from the center outwards.
- Never apply cleaning fluid directly to the lens surface.
7.2 Emmagatzematge
- Col·loqueu sempre les tapes frontal i posterior de l'objectiu quan no l'utilitzeu.
- Store the lens in a cool, dry place, away from direct sunlight and high humidity.
- If storing for extended periods, consider using a dehumidifying agent or a dry cabinet to prevent mold growth.
8. Solució De Problemes
| Problema | Causa possible | Solució |
|---|---|---|
| Images are blurry/out of focus. | Incorrect manual focus. | Ensure your camera is set to MF mode. Use focus peaking or magnification on your camera to assist with precise focusing. Rotate the focus ring until the subject is sharp. |
| Images are too dark or too bright. | Incorrect aperture setting or exposure. | Adjust the aperture ring on the lens. Ensure your camera's exposure settings (shutter speed, ISO) are appropriate for the lighting conditions and chosen aperture. Use your camera's light meter. |
| Lens cannot be attached/detached. | Misalignment or lens release button not pressed. | Ensure the mounting index marks are aligned. For detachment, firmly press the lens release button on the camera body while rotating the lens. Do not force. |
| Dust or smudges on images. | Dust on lens elements or camera sensor. | Clean the lens elements as described in the Maintenance section. If the issue persists, clean your camera's sensor or have it professionally cleaned. |
9. Especificacions
| Marca | Walimex Pro |
| Número de model | 18700 |
| Distància focal | 8 mm |
| Apertura màxima | f/3.5 |
| Obertura mínima | f/22 |
| Tipus de lent | Fisheye, Wide Angle |
| Muntatges compatibles | Sony E-Mount |
| Tipus d'enfocament | Enfocament manual |
| Distància mínima d'enfocament | 0.3 meters (approx. 1 foot) |
| Angle de View | 180° (on APS-C sensor) |
| Product Dimensions (Diameter x Length) | Approx. 77.8 mm x 101.1 mm (3.06 in x 3.98 in) |
| Pes de l'article | 1.5 lliures |
Figure 9.1: Technical diagram illustrating the dimensions of the Walimex Pro 8mm f/3.5 Fisheye Lens.
10. Garantia i Suport
For warranty information, please refer to the documentation provided with your purchase or contact your local Walimex Pro distributor or retailer.
For technical support or service inquiries, please visit the official Walimex Pro weblloc o poseu-vos en contacte amb el seu departament d'atenció al client.
