Yato YT-3609 Hand Riveting Tool Instruction Manual

1. Introducció

This manual provides essential instructions for the safe and effective use of your Yato YT-3609 Hand Riveting Tool. This tool is designed for installing blind rivets in various materials, suitable for professional applications. Please read this manual thoroughly before operating the tool and retain it for future reference.

2. Informació de seguretat

Observeu sempre les següents precaucions de seguretat per evitar lesions i danys a l'eina:

• Protecció ocular: Always wear approved safety glasses or goggles when operating the riveting tool. Rivet mandrels can break and eject at high speed.
• Protecció de les mans: Wear appropriate gloves to protect your hands from sharp edges and pinching hazards.
• Àrea de treball: Ensure your work area is clean, well-lit, and free from obstructions. Keep bystanders away from the work area.
• Condició de l'eina: Inspect the tool before each use. Do not use if any parts are damaged, loose, or missing.
• Correct Rivet Size: Use only rivets that match the specified diameter range (2.4mm - 4.8mm) and the installed nose piece.
• Adherència adequada: Mantingueu una subjecció ferma dels mànecs de l'eina durant el funcionament.
• Emmagatzematge: Guardeu l'eina en un lloc sec i segur, fora de l'abast dels nens.

3. Contingut del paquet

The Yato YT-3609 Hand Riveting Tool package typically includes:

• 1 x Yato YT-3609 Hand Riveting Tool
• Multiple interchangeable nose pieces (for various rivet diameters)
• 1 x Wrench (for changing nose pieces)

Figure 1: Yato YT-3609 Hand Riveting Tool shown with its retail packaging.

4. Components mésview

Familiarize yourself with the main parts of the Yato YT-3609 Hand Riveting Tool:

1. Nanses: Ergonomically designed for comfortable grip and leverage.
2. Assemblea del cap: Contains the jaw mechanism and nose piece attachment point.
3. Nose Pieces: Interchangeable tips that hold the rivet in place and are sized according to the rivet diameter.
4. Spent Mandrel Collector: A transparent container designed to catch the broken-off rivet mandrels.
5. Wrench Holder: A slot or clip on the tool to store the nose piece wrench.

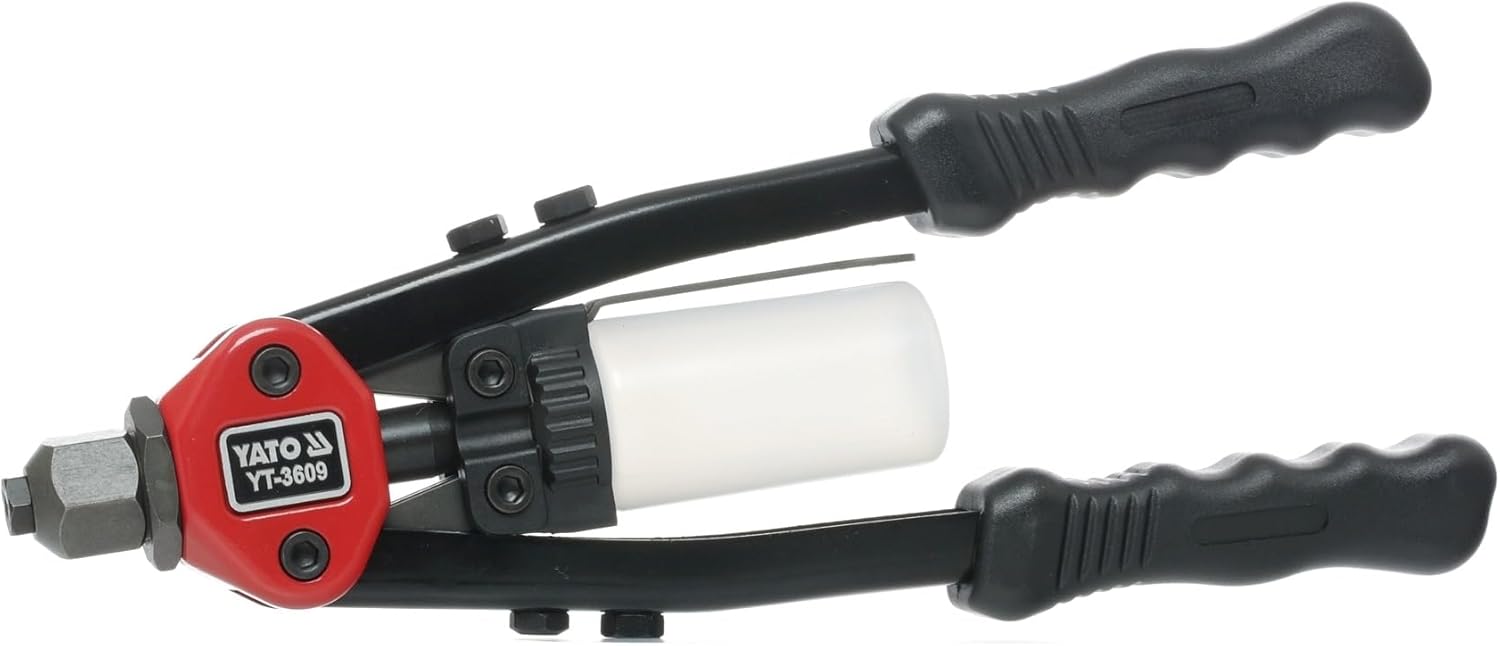

Figure 2: The Yato YT-3609 Hand Riveting Tool, illustrating its main components.

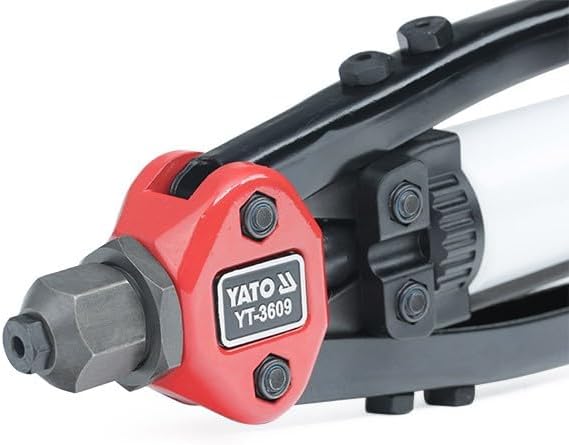

Figura 3: Detallada view of the tool's head assembly, showing the nose piece.

Figure 4: The transparent spent mandrel collector, located on the tool body.

5. Configuració

5.1 Selecting and Attaching the Nose Piece

The Yato YT-3609 tool supports rivets with diameters from 2.4mm to 4.8mm. It is crucial to select the correct nose piece that matches the diameter of the rivet you intend to use.

1. Identify the diameter of your rivet.
2. Select the corresponding nose piece from the included accessories. The nose pieces are typically marked with their respective diameters.
3. Unscrew the currently installed nose piece (if any) from the tool's head. Use the provided wrench if necessary.
4. Screw the correct nose piece firmly into the tool's head. Ensure it is tightened securely to prevent loosening during operation.

6. Instruccions de funcionament

Follow these steps for proper operation of the Yato YT-3609 Hand Riveting Tool:

1. Preparar la peça de treball: Drill a hole through the materials to be joined. The drill bit diameter should match the rivet body diameter precisely.
2. Introduïu el rebló: Insert the rivet's body through the prepared hole. The rivet head should rest flush against the surface of the material.
3. Carregueu l'eina: Insert the rivet's mandrel (the pin) into the nose piece of the riveting tool until it is fully seated.
4. Col·loca l'eina: Place the nose piece firmly against the rivet head, ensuring the tool is perpendicular to the workpiece.
5. Operar l'eina: Squeeze the handles of the riveting tool together with firm, steady pressure. You will feel resistance as the tool pulls the mandrel, causing the rivet body to expand and form a blind head on the opposite side of the material. Continue squeezing until the mandrel snaps off with an audible "pop."
6. Release and Eject: Release the handles. The spent mandrel will typically fall into the transparent collector. If it does not, gently tap the tool or open the handles fully to allow it to drop.
7. Inspect the Rivet: Verify that the rivet is securely set and flush with the material surface.

Nota: The Yato YT-3609 is designed for blind rivets with diameters of 2.4mm, 3.2mm, 4.0mm, and 4.8mm. Always use the correct nose piece for the rivet size.

7. Manteniment

Regular maintenance ensures the longevity and optimal performance of your riveting tool.

• Neteja: After each use, wipe down the tool with a clean, dry cloth to remove any dust, debris, or metal shavings.
• Empty Mandrel Collector: Regularly empty the transparent spent mandrel collector to prevent it from becoming overfilled and obstructing operation.
• Lubricació: Periodically apply a small amount of light machine oil to the pivot points and jaw mechanism to ensure smooth operation. Avoid excessive lubrication.
• Nose Piece Inspection: Check nose pieces for wear or damage. Replace worn nose pieces to ensure proper rivet setting.
• Emmagatzematge: Store the tool in a clean, dry environment to prevent rust and corrosion.

8. Solució De Problemes

9. Especificacions

10. Garantia i Suport

Specific warranty information for the Yato YT-3609 Hand Riveting Tool is not provided in this document. For details regarding warranty coverage, technical support, or replacement parts, please contact Yato customer service or refer to the official Yato weblloc web. Conserveu el rebut de compra com a comprovant de compra.

For further assistance, you may visit the official Yato weblloc: www.yato.com
