YATO YT-8310 Battery Tester Instruction Manual

1. Introducció

The YATO YT-8310 Battery Tester is a reliable tool designed for quick and accurate assessment of 6V and 12V lead-acid automotive batteries and their charging systems. This manual provides essential information for the safe and effective use of your battery tester.

Figure 1: YATO YT-8310 Battery Tester. This image shows the main unit of the battery tester, featuring a central analog display, a red load button, and attached red and black battery clamps.

2. Informació de seguretat

Always observe the following safety precautions when using the battery tester:

• Protecció ocular: Utilitzeu sempre protecció ocular aprovada per l'ANSI quan treballeu a prop de bateries.
• Ventilació: Ensure adequate ventilation. Batteries can produce explosive gases.
• Evitar les espurnes: Do not smoke or allow sparks or flames in the vicinity of the battery.
• Polaritat correcta: Connecteu el clamps to the correct battery terminals (red to positive, black to negative). Incorrect connection can damage the tester or battery.
• Durada de la prova: Do not apply the load for more than 10 seconds to prevent overheating of the tester and battery. Allow a cool-down period between tests.
• Aïllament: Ensure the tester's cables and clamps are not damaged and are properly insulated.

3. Contingut del paquet

The YATO YT-8310 Battery Tester package typically includes:

• 1 x YATO YT-8310 Battery Tester unit with integrated cables and clamps.

Figure 2: Retail packaging of the YATO YT-8310 Battery Tester. The image displays the product box, showing the tester unit and key specifications like 6V/12V compatibility and CCA range.

4. Producte acabatview

Familiarize yourself with the components of your YATO YT-8310 Battery Tester:

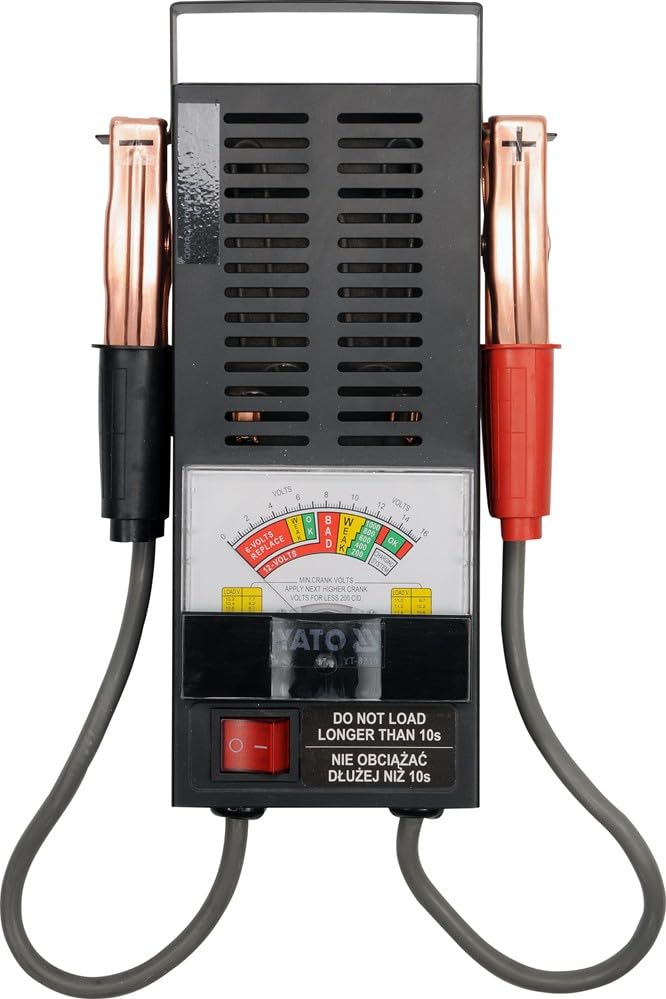

Figura 3: Frontal view of the YATO YT-8310. This image highlights the analog display with voltage and condition indicators, and the red load button at the bottom.

• Pantalla analògica: Mostra el volum de la bateriatage, condition (Weak, OK, Bad), and charging system status.
• Load Button: Activates the load test. Press and hold for testing.
• Bateria Clamps: Vermell per a positiu (+), Negre per a negatiu (-).
• Ranures de ventilació: Located on the sides of the unit to dissipate heat during testing.

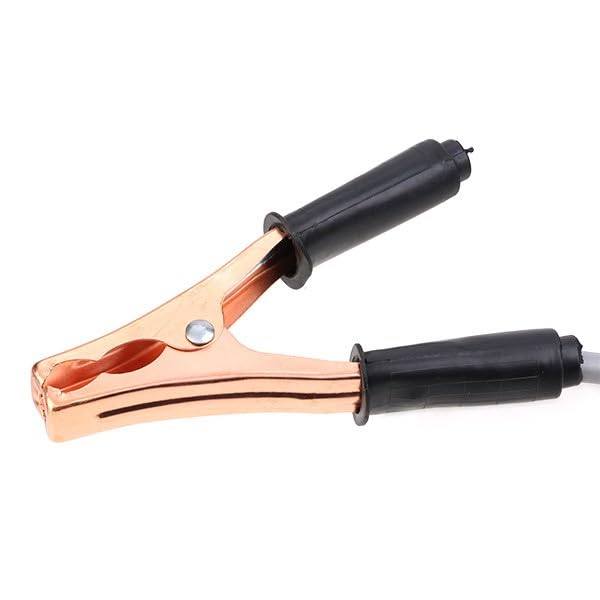

Figure 4: Close-up of a battery clampAquesta imatge proporciona una informació detallada view of the robust, copper-plated battery clamp with its insulated handle, designed for secure connection to battery terminals.

5. Configuració

Before performing any tests, ensure the battery terminals are clean and free of corrosion for accurate readings.

1. Connecteu el Cl vermellamp: Connecteu el cl vermell positiu (+)amp al terminal positiu (+) de la bateria.
2. Connecteu el Black Clamp: Attach the black negative (-) clamp al terminal negatiu (-) de la bateria.
3. Verifica la connexió: Assegureu-vos tant clamps have a firm and secure connection to the battery terminals.

6. Instruccions de funcionament

The YATO YT-8310 can perform two primary tests: a battery load test and a charging system test.

6.1. Battery Load Test

1. Ensure the tester is correctly connected to the battery as described in Section 5.
2. Premeu i aguantar the red load button on the front of the tester.
3. Observe the analog display. The needle will drop and then stabilize.
4. Després no més de 10 segons, release the load button.
5. Interpret the results based on the display (see Section 7).
6. Allow the tester to cool down for at least one minute before performing another load test.

6.2. Charging System Test

1. Ensure the tester is correctly connected to the battery.
2. Start the vehicle engine and let it idle.
3. Observe the analog display. The needle should indicate a voltage within the "Charging System OK" range (typically around 13.5V to 14.5V for a 12V system).
4. Si el voltage is too low or too high, it may indicate an issue with the vehicle's alternator or voltage regulador.

7. Reading the Display and Results Interpretation

The analog display provides visual indications of battery and charging system health.

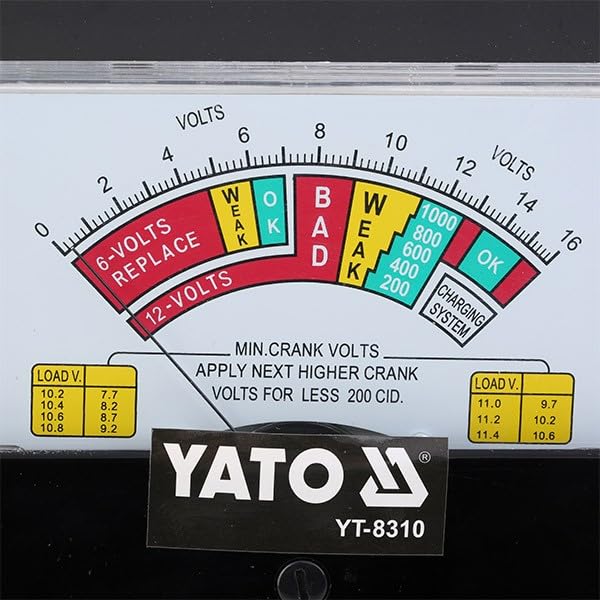

Figura 5: Detallada view of the analog display. This image clearly shows the voltage scale, the colored zones for battery condition (6-Volts Replace, Weak, OK, Bad), the CCA scale, and the 'Charging System OK' indicator.

• Voltage Scale (0-16 Volts): The top scale indicates the battery's voltage.
• Battery Condition Indicators:
  • 6-Volts REPLACE (Red): Indicates a severely discharged or faulty 6V battery.
  • WEAK (Yellow): Battery is weak and may need charging or replacement.
  • OK (Green): La bateria està en bon estat.
  • BAD (Red): Indicates a severely discharged or faulty 12V battery.
• CCA Scale (200-1000A): Provides an approximate indication of Cold Cranking Amps sota càrrega.
• Charging System OK: This section indicates if the vehicle's charging system is functioning correctly.
• MIN. CRANK VOLTS Table: This table provides reference values for minimum cranking volts. For example, if your battery's CCA is 200, and the voltage drops below 7.7V during cranking, it might indicate an issue.

8. Manteniment

To ensure the longevity and accuracy of your YATO YT-8310 Battery Tester:

• Neteja: Wipe the unit with a dry, soft cloth after each use. Do not use abrasive cleaners or solvents.
• Emmagatzematge: Store the tester in a clean, dry place, away from direct sunlight and extreme temperatures.
• Inspecció del cable: Inspeccioneu regularment els cables i el clampsi hi ha signes de danys, desfiladura o corrosió. Substituïu-los si cal.

9. Solució De Problemes

If you encounter issues with your battery tester, consider the following:

• No Reading/Inaccurate Reading:
  • Assegureu-vos que clamps are securely connected to clean battery terminals.
  • Check for proper polarity (red to positive, black to negative).
  • Comproveu el volum de la bateriatage is within the tester's operating range (6V or 12V).
• Tester Overheating:
  • Ensure you are not holding the load button for more than 10 seconds.
  • Allow sufficient cool-down time between tests.

10. Especificacions
