ATD Tools 720 20-Piece Punch and Chisel Set Instruction Manual

Producte acabatview

The ATD Tools 720 20-Piece Punch and Chisel Set is a comprehensive collection of tools designed for various metalworking and general mechanical applications. This set includes a variety of pin punches, starter punches, center punches, and flat chisels, all crafted from high-quality chrome vanadium steel for durability and performance.

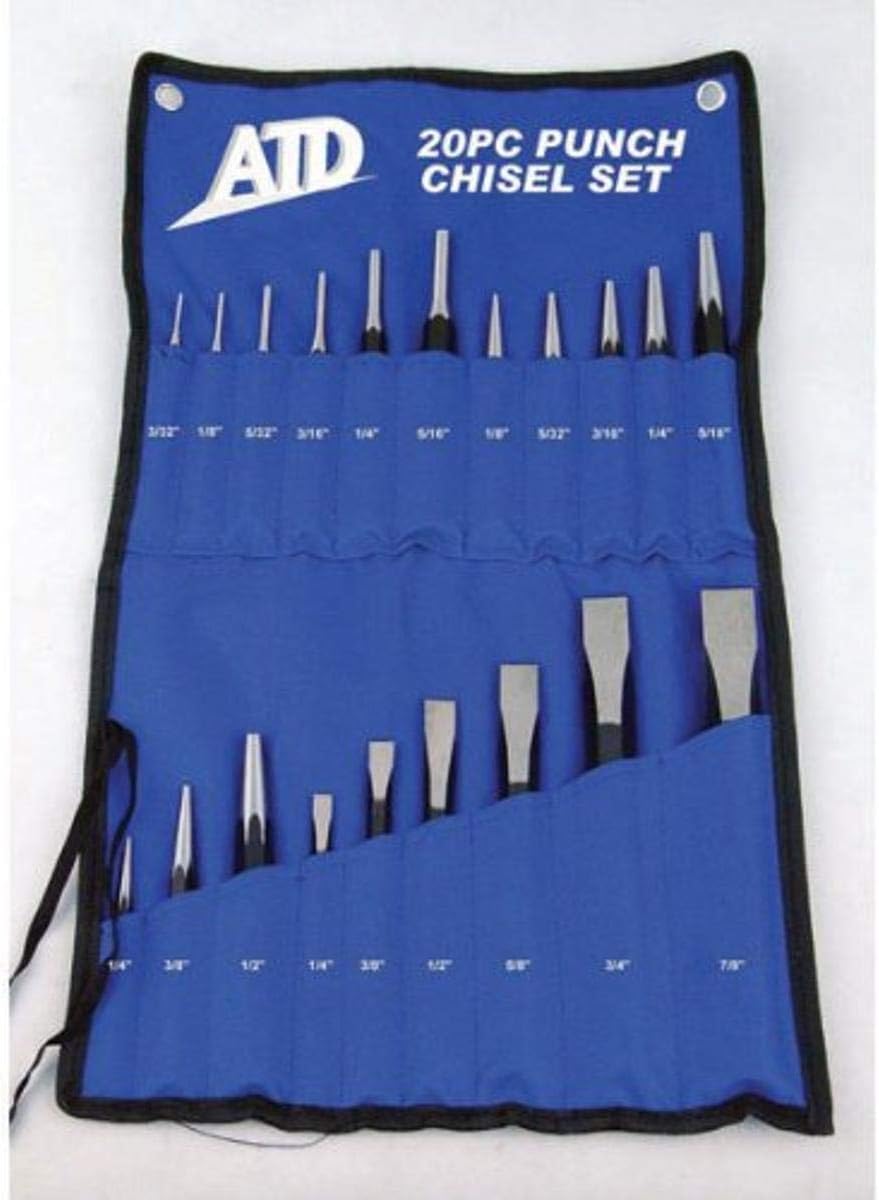

Image: The ATD Tools 720 20-Piece Punch and Chisel Set displayed in its blue roll-up storage pouch. The set includes various sizes of punches and chisels, neatly organized within the pouch.

Components del conjunt:

• Pin Punches (6): 3/32 inch, 1/8 inch, 5/32 inch, 3/16 inch, 1/4 inch, 5/16 inch
• Starter Punches (5): 1/8 inch, 5/32 inch, 3/16 inch, 1/4 inch, 5/16 inch
• Center Punches (3): 1/4 de polzada, 3/8 de polzada, 1/2 polzada
• Flat Chisels (6): 1/4 inch, 3/8 inch, 1/2 inch, 5/8 inch, 3/4 inch, 7/8 inch

The set is provided with a convenient roll-up storage pouch for organization and portability.

Informació de seguretat

Always observe the following safety precautions when using punches and chisels:

• Wear appropriate personal protective equipment (PPE), including safety glasses or goggles, to protect against flying debris.
• Assegureu-vos que la peça de treball estigui ben ferma clamped or supported to prevent movement during striking.
• Use a hammer of appropriate weight and type for the task. Avoid using oversized or undersized hammers.
• Inspect punches and chisels before each use for signs of wear, mushrooming, or cracking. No utilitzeu eines danyades.
• Strike the tool squarely and firmly. Avoid glancing blows.
• Keep hands and fingers clear of the striking area and the cutting edge.
• Store tools properly in their roll-up pouch to prevent damage and corrosion.
• Mantenir fora de l'abast dels nens.

Muntatge i preparació

Before using the punch and chisel set, ensure your workspace is clean, well-lit, and free of obstructions. Gather all necessary additional tools, such as a hammer, vise, and safety equipment.

1. Unroll the storage pouch and select the appropriate punch or chisel for your task.
2. Verify the tool is clean and free from any defects or damage.
3. Put on all required personal protective equipment, especially eye protection.
4. Secure the material you will be working on. For example, use a vise to hold metal securely when using chisels or punches.

Instruccions de funcionament

Using Punches:

Punches are used to drive out pins, align holes, or mark centers for drilling.

• Pin Punches: Used to drive out pins or rivets after they have been loosened by a starter punch. Select a pin punch slightly smaller than the pin being removed.
• Starter Punches: Used to loosen tight or stuck pins. They have a short, stout taper to withstand heavy blows.
• Center Punches: Used to create an indentation in metal before drilling, preventing the drill bit from wandering. Place the tip precisely where the hole is desired and strike with a hammer.

To use a punch, hold it firmly and vertically against the workpiece. Strike the head of the punch with a hammer, applying controlled force. For driving pins, use successive blows until the pin is removed or driven flush.

Using Chisels:

Chisels are used for cutting, shaping, or removing material, particularly metal.

• Flat Chisels: Ideal for cutting off rivet heads, splitting nuts, or general cutting of metal. Hold the chisel at the appropriate angle for the cut, typically between 30-45 degrees relative to the surface.

To use a chisel, position the cutting edge against the material at the desired angle. Strike the head of the chisel with a hammer, applying consistent force. For longer cuts, reposition the chisel and strike again, overlapping slightly to ensure a continuous cut.

Manteniment i cura

Proper maintenance extends the life and ensures the safe operation of your ATD Tools punch and chisel set.

• Neteja: After each use, wipe down tools to remove dirt, grease, and metal shavings. A clean cloth is usually sufficient.
• Afilat: Chisels and punches may require occasional sharpening to maintain their effectiveness. Use a grinding wheel or file, ensuring the correct angle is maintained for the cutting edge or tip. Cool the tool frequently to prevent overheating.
• Inspecció: Regularly inspect the striking end of punches and chisels for mushrooming or chipping. If mushrooming occurs, grind the head back to its original shape to prevent metal fragments from breaking off during use.
• Emmagatzematge: Store the tools in the provided roll-up pouch in a dry environment to prevent rust and corrosion.
• Lubricació: Apply a light coat of oil to tools if they are to be stored for extended periods or in humid conditions.

Resolució de problemes

Most issues with punches and chisels relate to improper use or lack of maintenance.

Especificacions

Garantia i Suport

For information regarding warranty coverage, product support, or to inquire about replacement parts, please contact ATD Tools customer service. Refer to the packaging or the official ATD Tools weblloc web per obtenir la informació de contacte i els detalls de la garantia més actualitzats.

Note: Specific warranty terms may vary by region and retailer. Always retain your proof of purchase.
