Yato YT-2180 Flaring Hand Tools Set User Manual

1. Introducció

This manual provides essential information for the safe and effective use of the Yato YT-2180 Flaring Hand Tools Set. This 7-piece tool set is designed for manual flaring of brass, aluminum, and soft copper tubes, making it suitable for applications such as fuel and brake lines. Please read these instructions carefully before operating the tool set and retain this manual for future reference.

2. Informació de seguretat

Always observe basic safety precautions when using hand tools to reduce the risk of injury. Failure to follow these instructions may result in personal injury or damage to the tool.

• Porteu protecció ocular: Utilitzeu sempre ulleres o ulleres de seguretat per protegir els ulls de les deixalles que suren volant.
• Use Appropriate Gloves: Protect your hands from sharp edges and potential pinch points.
• Inspeccionar les eines: Before each use, inspect all components of the flaring set for damage, wear, or loose parts. Do not use damaged tools.
• Peça de treball segura: Ensure the tube is securely clamped in the flaring bar to prevent slipping during operation.
• Work in a Clean Area: Mantingueu la vostra zona de treball neta i ben il·luminada per evitar accidents.
• Mantenir els nens allunyats: Store tools out of reach of children and ensure they are not present during tool operation.
• No forçar: Apply steady, controlled pressure. Do not force the tool, as this can cause damage to the tool or the workpiece.

3. Contingut del paquet

The Yato YT-2180 Flaring Hand Tools Set includes the following components, typically supplied in a blow-molded case:

Imatge 1: acabatview of the Yato YT-2180 Flaring Hand Tools Set, showing the flaring bar, clamp, and various adapters.

• Flaring Bar (with various tube diameter holes)
• Flaring Clamp/Yoke
• Multiple Flaring Adapters/Dies
• Tube diameters supported: 3, 5, 6, 8, 10, 12, 14, 15, 16, 19 mm

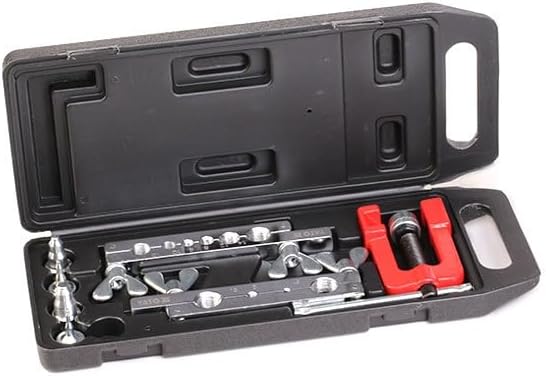

Image 2: The Yato YT-2180 Flaring Hand Tools Set neatly organized within its protective blow-molded case.

4. Configuració

Before flaring, ensure your tube is cut squarely and deburred. A clean, burr-free end is crucial for a proper flare.

1. Select Flaring Bar: Choose the appropriate flaring bar for your tube diameter. The bars are marked with corresponding sizes (e.g., 3, 5, 6, 8, 10, 12, 14, 15, 16, 19 mm).
2. Inserir tub: Insert the end of the tube into the correct size hole on the flaring bar.
3. Adjust Tube Height: Position the tube so that it extends slightly above the surface of the flaring bar. The exact height depends on the desired flare size, typically about 1/16 to 1/8 inch (1.5 to 3 mm).
4. Secure Flaring Bar: Tighten the wing nuts on the flaring bar firmly to clamp the tube securely in place. This prevents the tube from slipping during the flaring process.

Imatge 3: Primer pla view of the flaring bar, showing the various tube diameter markings and the wing nuts for securing the tube.

5. Instruccions de funcionament

This section details the steps for creating a flare on a tube using the Yato YT-2180 set.

1. Attach Flaring Clamp/Yoke: Place the flaring clamp (yoke) over the flaring bar, ensuring the cone-shaped adapter is centered directly above the tube opening.
2. Align Adapter: If using a separate flaring adapter, insert it into the clamp and ensure it is aligned with the tube.
3. Begin Flaring: Slowly turn the handle of the flaring clamp clockwise. This will push the cone-shaped adapter down into the tube, gradually expanding it.
4. Aplicar una pressió constant: Continue turning the handle with steady, even pressure. The tube will begin to form a flare against the tapered opening of the flaring bar.
5. Complete Flare: Continue until the flare is fully formed and the cone adapter makes firm contact with the flaring bar. Do not overtighten, as this can damage the flare or the tube. The maximum angle of opening is 90 degrees.
6. Release Tool: Turn the flaring clamp handle counter-clockwise to retract the cone adapter.
7. Remove Tube: Loosen the wing nuts on the flaring bar and carefully remove the flared tube.
8. Inspect Flare: Visually inspect the flare for uniformity, cracks, or imperfections. A properly formed flare should be smooth and even.

Image 4: Instructional diagram illustrating the steps for flaring a tube using the Yato YT-2180 tool set, as depicted on the product packaging.

6. Manteniment

Proper maintenance ensures the longevity and reliable performance of your Yato YT-2180 Flaring Hand Tools Set.

• Neteja: After each use, wipe down all tool components with a clean, dry cloth to remove any metal shavings or debris.
• Lubricació: Periodically apply a light coat of machine oil to the screw threads of the flaring clamp per garantir un funcionament suau i evitar la corrosió.
• Emmagatzematge: Store the tool set in its original blow-molded case in a dry, clean environment to protect it from dust, moisture, and physical damage.
• Inspecció: Regularly inspect the flaring bar and adapters for wear, deformation, or damage. Replace any worn or damaged components to maintain optimal performance and safety.

7. Solució De Problemes

Consulteu els següents problemes comuns i les seves possibles solucions:

8. Especificacions

Key specifications for the Yato YT-2180 Flaring Hand Tools Set:

9. Garantia i Suport

Specific warranty information for the Yato YT-2180 Flaring Hand Tools Set is not provided in the product data. For warranty claims, technical support, or inquiries regarding replacement parts, please contact Yato directly through their official website or authorized distributors. Always refer to the manufacturer's official documentation for the most current warranty terms and conditions.
