EUFAB 11521 PREMIUM 2 Bicycle Carrier

Producte acabatview

The EUFAB 11521 PREMIUM 2 is a high-quality bicycle carrier designed for secure and convenient transport of up to two bicycles on a towbar. This carrier is suitable for E-Bikes, comes completely pre-assembled, and features an anti-theft locking mechanism. Its robust construction and user-friendly design make it an ideal solution for transporting your bicycles.

Les característiques clau inclouen:

• Designed for transporting bicycles on the towbar.
• Equipped with a quick-release mechanism and lockable for security.
• Features a tilting mechanism with foot pedal operation for easy access to the vehicle's trunk.
• Suitable for bicycles with oversize and Y-frames up to 6 cm diameter.
• Completely pre-assembled for immediate use.
• E-Bike compatible (observe load distribution).
• Maximum tire width in the rail: up to 2.2 inches.
• Foldable design with an included transport bag for compact storage.
• Payload capacity: 60 kg.
• Net weight: approximately 21 kg.

Davant view of the EUFAB 11521 PREMIUM 2 Bicycle Carrier, showcasing el seu disseny robust.

Configuració i instal·lació

The EUFAB 11521 PREMIUM 2 bicycle carrier is delivered largely pre-assembled, simplifying the initial setup. Follow these steps for quick and secure installation on your vehicle's towbar.

1. Unfold the Carrier: Carefully unfold the carrier from its compact storage position. Ensure all components click into place securely.
2. Mount on Towbar: Place the carrier onto the towbar. The quick-release mechanism allows for easy attachment. Adjust the position on the ball to ensure a firm fit, then engage the lever until it locks securely. The carrier should be stable and not wobble.
3. Connecteu l'endoll elèctric: Connect the 13-pin electrical plug to your vehicle's socket. Ensure a secure connection for proper functioning of the lights.
4. Adjust License Plate Holder: Insert your vehicle's license plate into the adjustable holder. Ensure it is securely fastened and clearly visible.
5. Extend Light Bar: Extend the light bar sections to their full operational width. Ensure the lights are properly aligned and functional.

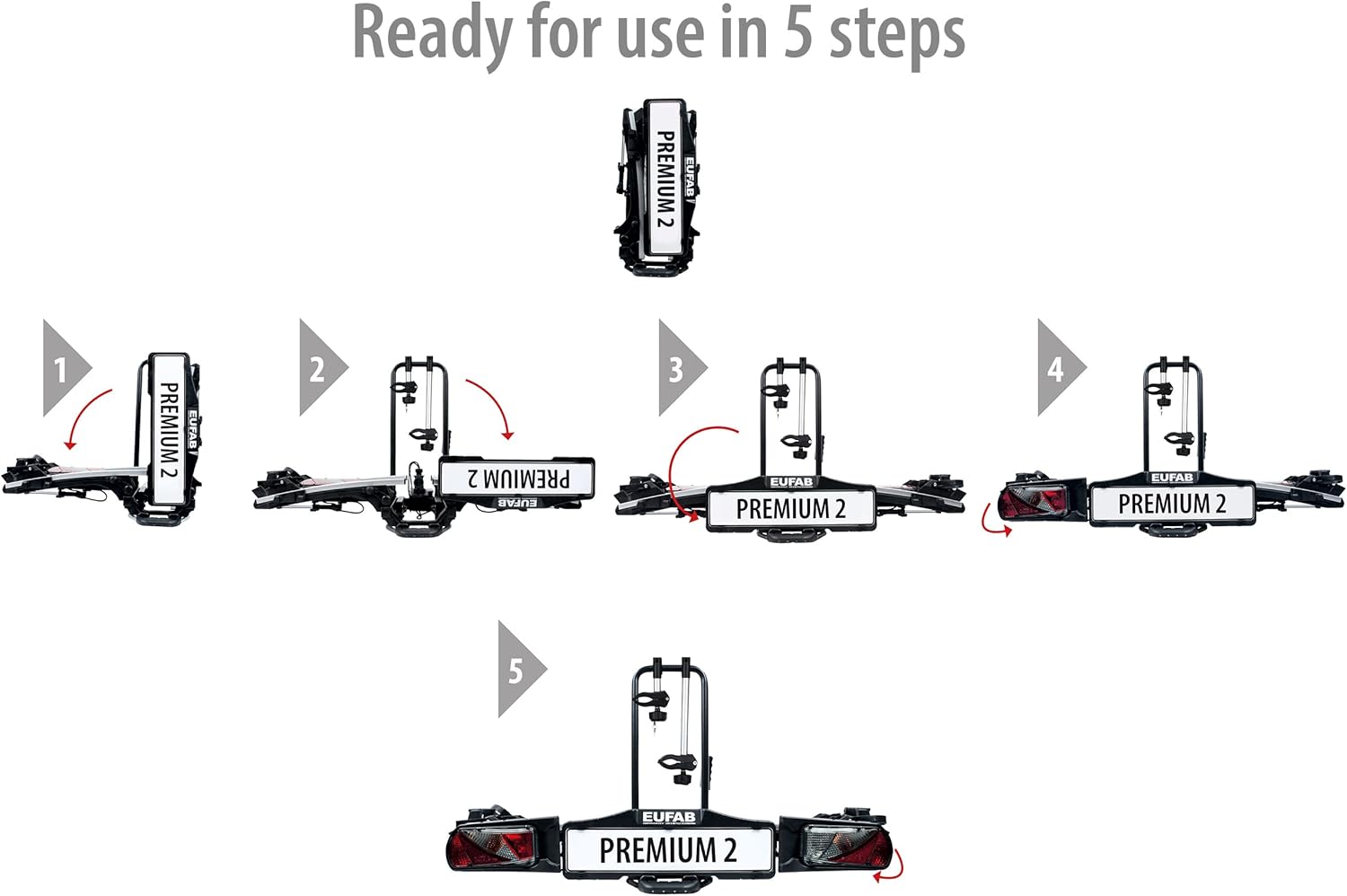

Visual guide illustrating the five steps to prepare the carrier for use.

The bicycle carrier securely mounted on the rear of a vehicle, ready for use.

Close-up of the adjustable license plate holder, designed for various plate sizes.

Instruccions de funcionament

Once installed, the EUFAB 11521 PREMIUM 2 offers straightforward operation for loading and securing your bicycles.

1. Loading Bicycles: Place your bicycles onto the carrier's rails. Ensure proper weight distribution, especially for E-Bikes, to maintain stability. The carrier is designed to accommodate two bicycles with a maximum combined payload of 60 kg.
2. Securing Bicycles: Use the provided frame clamps to secure the bicycle frames to the carrier's main support. These clamps are lockable for added security. Fasten the wheels to the rails using the quick-release straps. The maximum tire width supported is 2.2 inches.
3. Mecanisme d'inclinació: To access your vehicle's trunk without removing the bicycles, use the foot pedal tilting mechanism. Press the pedal firmly to tilt the carrier downwards, providing ample space to open the tailgate.

The carrier with two bicycles securely mounted, ready for transport.

Illustration indicating the maximum tire width of 2.2 inches that the carrier can accommodate.

The carrier tilted downwards with bicycles, demonstrating easy access to the vehicle's trunk.

A foot engaging the smart foot pedal tilt mechanism for convenient trunk access.

Manteniment

Regular maintenance ensures the longevity and safe operation of your EUFAB 11521 PREMIUM 2 bicycle carrier.

• Neteja: After each use, especially after driving in adverse weather conditions (rain, snow, road salt), clean the carrier with water and a mild detergent. Rinse thoroughly and dry completely to prevent corrosion.
• Lubricació: Periodically lubricate moving parts such as hinges, locking mechanisms, and the tilting mechanism with a suitable lubricant to ensure smooth operation.
• Inspecció: Before each use, inspect all bolts, nuts, and straps for tightness and wear. Check the electrical connections and lights for proper function. Replace any worn or damaged parts immediately.
• Emmagatzematge: When not in use, fold the carrier and store it in the included transport bag in a dry, protected area. This protects it from dust, dirt, and potential damage.

The carrier folded and stored compactly within its dedicated transport bag.

Resolució de problemes

This section addresses common issues you might encounter with your bicycle carrier.

• Carrier Wobbles on Towbar: Ensure the quick-release lever is fully engaged and locked. The clamping force might need adjustment. Refer to the initial setup instructions to ensure correct mounting on the towbar ball.
• Els llums no funcionen: Check the electrical plug connection to the vehicle. Ensure it is fully inserted and free of dirt or corrosion. Verify that the vehicle's fuses for the trailer lights are intact. Inspect the carrier's light bulbs for damage and replace if necessary.
• Tilting Mechanism Stiff: Apply a suitable lubricant to the pivot points of the tilting mechanism. Ensure no debris is obstructing the movement.
• Bicycles Not Secure: Double-check that all frame clamps are tightened and locked, and wheel straps are securely fastened. Ensure the bicycle frames are within the compatible diameter range (up to 6 cm).

Especificacions

Key dimensions and capacities of the EUFAB PREMIUM 2 carrier.

Visual summary of key features and specifications.

Garantia i Suport

For warranty information and technical support, please refer to the documentation provided with your purchase or contact EUFAB customer service directly. You can also visit the official EUFAB brand store for additional resources and contact details:

Visit the EUFAB Brand Store
