ARROW T59 Wire & Cable Staple Gun Instruction Manual

Introducció

The ARROW T59 Wire & Cable Staple Gun is a manual tool designed for securely fastening low-voltage wires and cables. This instruction manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your T59 staple gun. Please read this manual thoroughly before use and retain it for future reference.

Informació de seguretat

WARNING: Failure to follow these safety instructions may result in serious injury.

• Always wear safety glasses that comply with ANSI Z87.1 standards when operating this tool.
• Never point the staple gun at yourself or others.
• Keep fingers and other body parts away from the staple exit area and the staple path.
• Ensure the work surface is stable and secure before stapling.
• Do not use near live electrical wires or gas lines without taking appropriate safety precautions.
• Keep this tool out of reach of children and untrained individuals.
• Always unload staples from the tool when not in use or before performing maintenance.

Producte acabatview

The ARROW T59 is specifically engineered for installing various types of low-voltage wiring, including telephone, data, and communication cables. It utilizes T59 series staples to provide a secure, non-damaging hold on cables up to 1/4 inch (6mm) in diameter. Its robust construction ensures durability and reliable performance for professional and DIY applications.

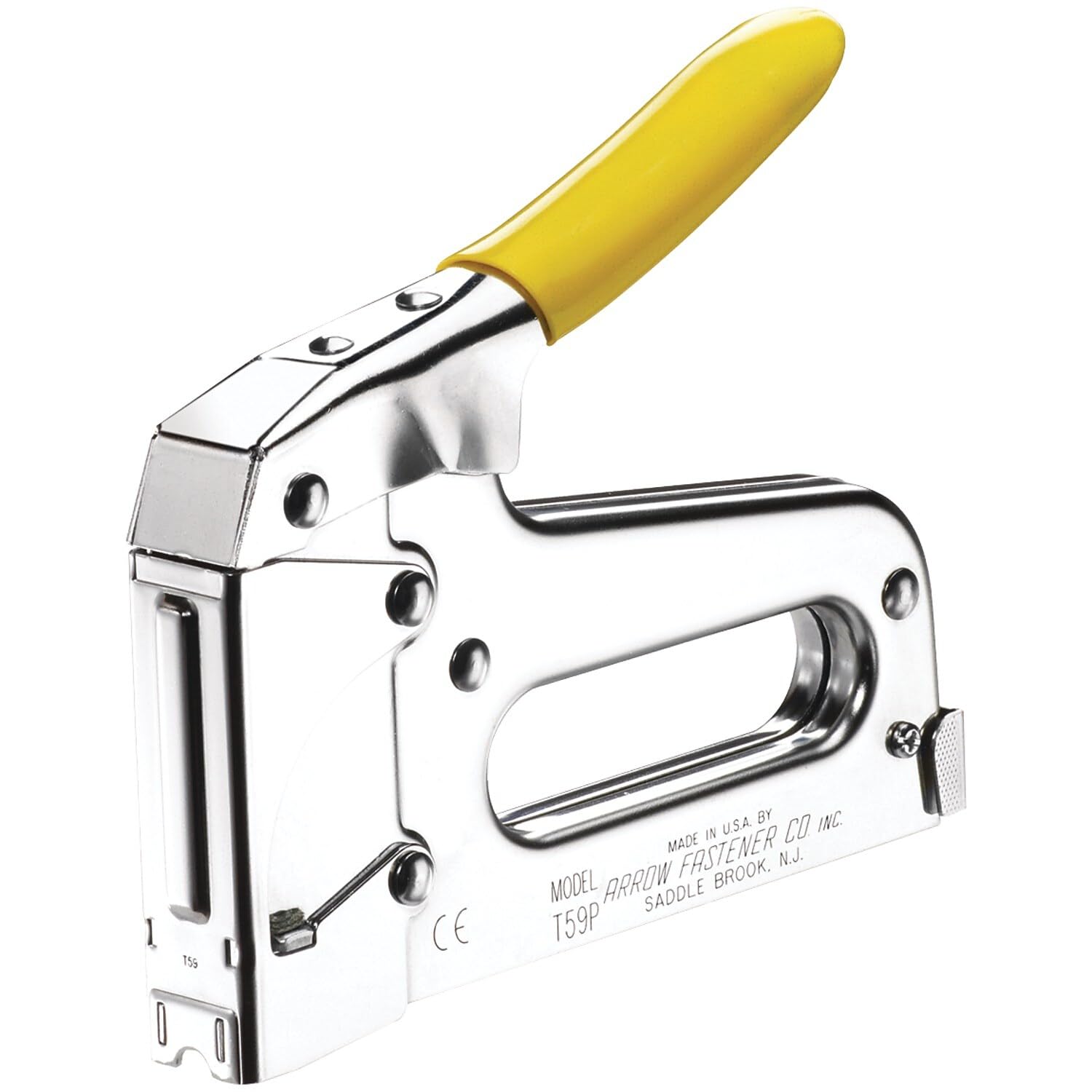

This image displays the ARROW T59 Wire & Cable Staple Gun, a manual tool designed for securing wires and cables. The staple gun features a durable metal construction, a comfortable grip, and a mechanism for loading and firing staples.

Setup: Loading Staples

Proper staple loading is crucial for efficient operation.

1. Obre la revista: Locate the staple magazine release latch, typically at the rear or bottom of the staple gun. Press or pull the latch to open the magazine.
2. Inseriu grapes: Place a stick of compatible T59 staples (e.g., 591168, 591188, 591189) into the magazine with the staple points facing forward. Ensure the staples are seated correctly within the guide channel.
3. Tanca la revista: Push the magazine closed until it locks securely into place. Verify that it is fully latched to prevent staples from falling out during use.

Instruccions de funcionament

Segueix aquests passos per a un funcionament segur i eficaç:

1. Position the Staple Gun: Place the nose of the staple gun firmly and squarely against the surface where the cable is to be fastened. Ensure the cable is properly seated in the guide channel of the staple gun, allowing the staple to straddle the cable without pinching.
2. Depress the Handle: Squeeze the handle firmly and completely to drive a staple. A full and consistent squeeze is necessary for proper staple penetration and to prevent misfires.
3. Check Fastening: After each staple, visually inspect the cable to ensure it is securely fastened without being pinched, cut, or damaged. Adjust pressure or technique as needed for optimal results.
4. Eliminació d'embussos: If a staple jam occurs, immediately stop operation and refer to the Troubleshooting section for instructions. Always unload staples before attempting to clear a jam.

Manteniment

Regular maintenance will prolong the life of your staple gun and ensure consistent performance.

• Neteja: Keep the staple gun clean and free of dust, dirt, and debris. Use a dry cloth to wipe down the exterior. Do not use harsh solvents or abrasive cleaners that could damage the tool's finish or internal components.
• Lubricació: Periodically apply a small amount of light machine oil to moving parts, such as the pivot points of the handle and the staple pusher mechanism, to ensure smooth operation. Avoid over-lubricating.
• Emmagatzematge: Store the staple gun in a dry, safe place, away from moisture, extreme temperatures, and corrosive environments. Always store the tool unloaded.

Resolució de problemes

Aquí teniu solucions a problemes comuns que podeu trobar:

• Staples Not Firing:
  • Check if the magazine is loaded with the correct type and size of T59 staples and is properly closed and latched.
  • Ensure the handle is being fully and firmly depressed.
  • Inspect for any staple jams within the firing mechanism or magazine.
• Grapes encallades:
  • Unload the staple gun completely.
  • Carefully open the magazine and remove any jammed staples or debris using pliers or a small screwdriver. Do not force anything.
  • Ensure only compatible T59 staples are used, as incorrect staples can cause frequent jams.
• Staples Not Penetrating Fully:
  • Apply more firm and consistent pressure to the nose of the staple gun against the work surface during operation.
  • Ensure the material being stapled is suitable for the staple length. Very hard materials may require pre-drilling or a different fastening method.
  • Check for worn or damaged parts that might affect the firing mechanism's force.

Especificacions

Garantia i Suport

For detailed warranty information, product registration, or technical assistance, please contact Arrow Fastener customer support directly. Refer to the product packaging or the official Arrow Fastener weblloc web per obtenir les dades de contacte i els termes de garantia més actualitzats aplicables a la vostra regió.
