JetBeam DDR-26 XM-L2 Rechargeable Digital Display LED Flashlight User Manual

1. Introducció

Thank you for choosing the JetBeam DDR-26 XM-L2 Rechargeable Digital Display LED Flashlight. This manual provides detailed instructions for the proper use, setup, operation, and maintenance of your new flashlight. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.

2. Producte acabatview

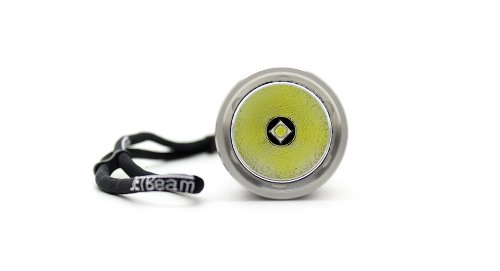

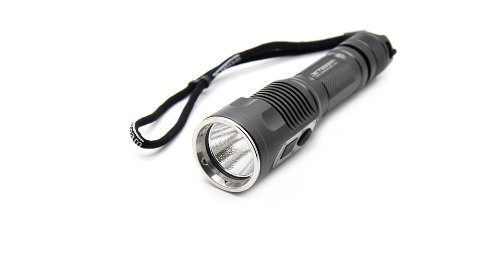

The JetBeam DDR-26 is a high-performance, rechargeable LED flashlight featuring an advanced XM-L2 LED and a convenient digital display. Its robust design and versatile functionality make it suitable for various applications.

3. Configuració

3.1 Instal·lació de la bateria

The JetBeam DDR-26 requires 1 CR123A battery (or compatible rechargeable battery). To install the battery:

1. Desenrosqueu la tapa posterior de la llanterna girant-la en sentit antihorari.
2. Inseriu la pila amb l'extrem positiu (+) mirant cap al cap de la llanterna.
3. Screw the tail cap back on clockwise until it is securely tightened. Ensure the O-ring is properly seated to maintain water resistance.

3.2 Càrrega

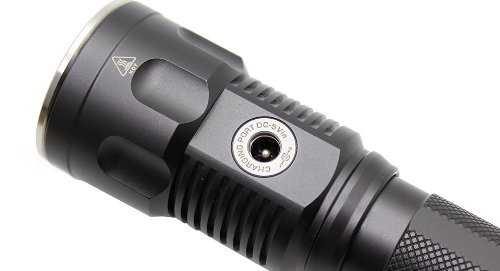

The DDR-26 features a built-in charging port (refer to Figure 2.5). To charge the flashlight:

1. Locate the charging port cover on the side of the flashlight and gently lift it to expose the port.
2. Connect the appropriate charging cable (not specified in product data, assume standard DC 5V) to the port and a compatible power source.
3. The digital display will typically indicate the charging status.
4. Once charging is complete, disconnect the cable and securely close the charging port cover to protect it from dust and water.

4. Instruccions de funcionament

4.1 Encès/Apagat

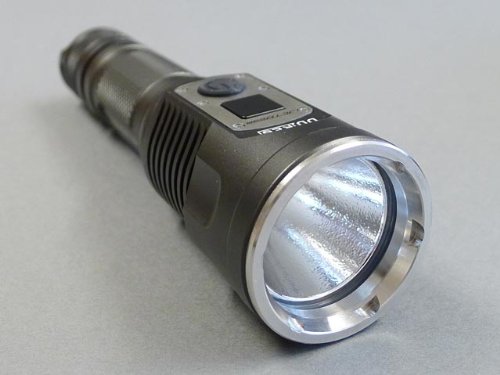

To turn the flashlight on or off, press the main power button located near the digital display (refer to Figure 2.3).

4.2 Selecció del mode

While the flashlight is on, press the power button repeatedly to cycle through different brightness modes (e.g., Low, Medium, High) and special modes (e.g., Strobe, SOS), if available. The digital display may show the current brightness level or mode.

4.3 Digital Display Functionality

The digital display provides real-time information, which may include:

• Bateria voltage or remaining battery life.
• Current brightness level or output.
• Charging status when connected to a power source.

5. Manteniment

5.1 Neteja

Netegeu regularment el cos de la llanterna amb un drap suau iamp drap. No utilitzeu productes de neteja abrasius ni dissolvents. Mantingueu la lent neta per a una sortida de llum òptima.

5.2 O-Ring Lubrication

To maintain water resistance, periodically inspect and lubricate the O-rings with silicone grease. Replace O-rings if they appear damaged or worn.

5.3 Emmagatzematge

If the flashlight will not be used for an extended period, remove the battery to prevent leakage and store the flashlight in a cool, dry place.

6. Solució De Problemes

• La llanterna no s'encén: Check if the battery is installed correctly with the positive end facing the head. Ensure the battery is charged. Tighten the tail cap securely.
• La llum és tènue o parpelleja: The battery may be low; recharge or replace it. Ensure battery contacts are clean.
• La pantalla digital no funciona: Ensure the battery is properly installed and charged. If the issue persists, contact customer support.
• Problema de càrrega: Verify the charging cable is properly connected to both the flashlight and the power source. Ensure the power source is active.

7. Especificacions

8. Garantia i Suport

For warranty information or technical support, please refer to the warranty card included with your product or visit the official JETBeam weblloc web. Conserveu el rebut de compra com a comprovant de compra.
