Filtrete Ultra Allergen Reduction Filter 1500 MPR Instruction Manual

Introduction to Filtrete Ultra Allergen Reduction Filter

Indoor air quality is a significant concern, with pollutant levels often two to five times higher indoors than outdoors. Poor indoor air quality is recognized as one of the top five environmental risks to public health. The Filtrete Ultra Allergen Reduction Filter is designed to help improve your home's air quality by effectively reducing airborne particles that contribute to these issues, while maintaining proper airflow within your HVAC system.

This manual provides essential information on the performance, installation, and maintenance of your Filtrete filter to ensure optimal operation and air quality in your home.

Filter Performance

The Filtrete Ultra Allergen Reduction Filter has a Microparticle Performance Rating (MPR) of 1500. The MPR system measures a filter's effectiveness at capturing the smallest airborne particles. 3M calculates the MPR by measuring particle data between 0.3 and 1 micron. This specific size range is considered the most challenging to capture, as 99% of typical atmospheric particles are smaller than one micron.

Electrostatic filters, like this Filtrete model, are most effective when new and clean. Regular replacement ensures consistent performance in capturing allergens and other airborne particles.

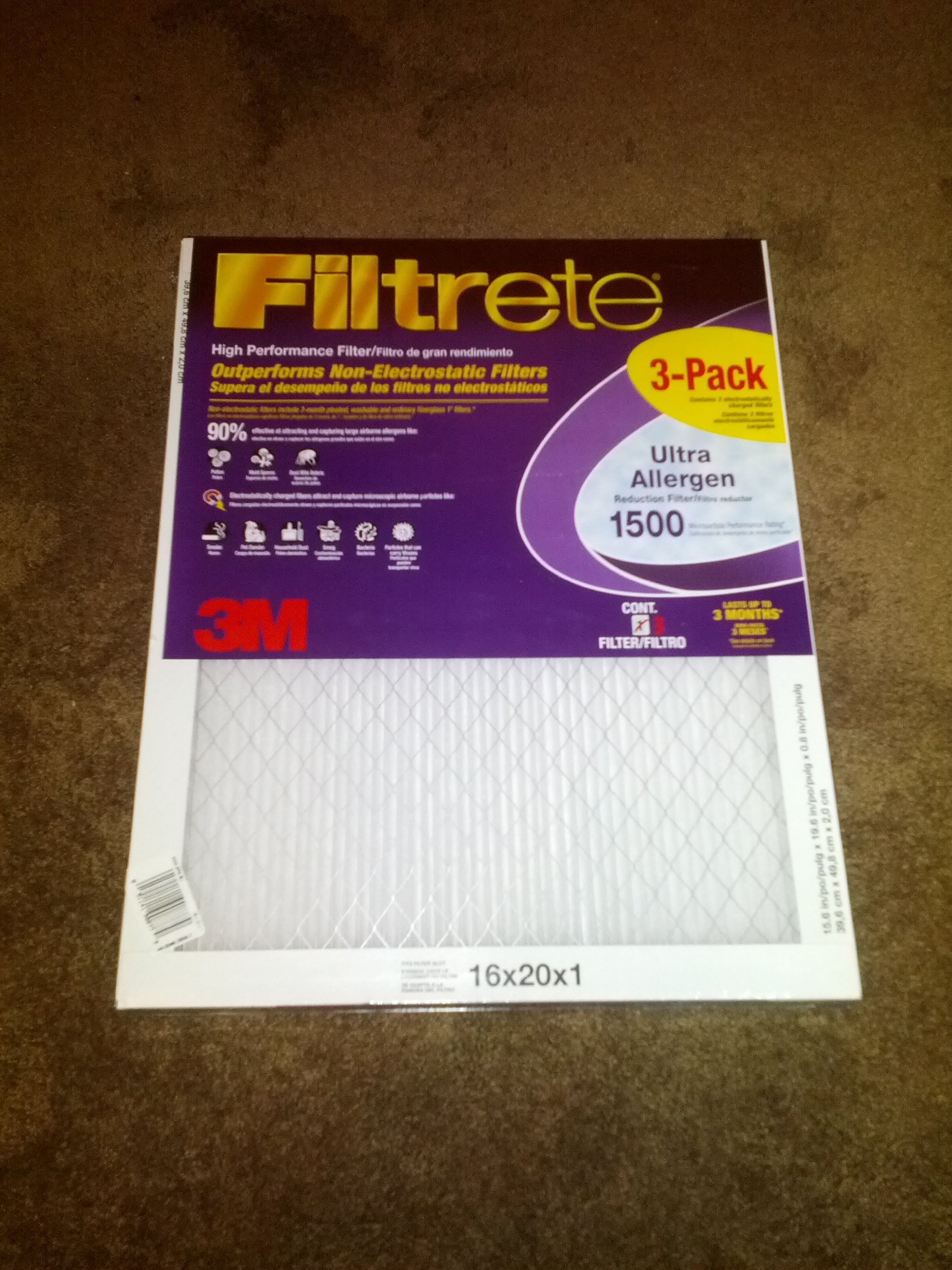

Image showing the Filtrete Ultra Allergen Reduction Filter packaging. The left side details 'Filter Performance' with a '90% Effective' claim and icons representing various captured particles such as dust, pollen, pet dander, mold spores, bacteria, viruses, and smoke. It highlights the 1500 MPR rating and explains its significance in capturing small airborne particles. The right side provides 'Installation Instructions' and 'How often should I change my filter?' information.

This filter is designed to be effective at attracting and capturing airborne allergens and microscopic particles, contributing to cleaner indoor air.

Instruccions d'instal·lació

1. Prepareu el filtre: Remove any plastic wrap and paper inserts from the filter. Do not cut or remove the cardboard frame.
2. Insereix el filtre: Insert the filter into the designated opening in your home furnace or air conditioning system. Ensure the arrow printed on the filter frame points towards the blower motor. This indicates the correct direction of air flow through the filter.

Image showing a diagram from the filter packaging illustrating the correct installation of the filter. It depicts arrows indicating the direction of air flow through the filter, which should point towards the blower motor of the HVAC system. The diagram also shows a house with an HVAC system to contextualize the filter's placement.

Filter Maintenance: How Often to Change Your Filter

For optimal air quality and system efficiency, it is recommended to change your Filtrete filter at least every three months. Changing your filter more frequently can also contribute to a more efficient HVAC system operation.

Certain conditions in your home can significantly increase the particle load on the filter, shortening its effective life to less than three months and reducing its ability to capture particles. These conditions include:

• Conductes brutes
• Sanding Projects
• Burning Candles
• Treballs de construcció
• Animals de companyia
• Fum de tabac
• Fireplace and Wood-Burning Stove Smoke

Additionally, continuously running your furnace or air conditioning fan can help clean the air but may also shorten the filter's life. If you operate your Filtrete filter under these conditions, it may restrict airflow, particularly in energy-efficient furnace and air conditioning systems. In such cases, more frequent filter changes are necessary.

Especificacions del producte

Suport i informació de contacte

For more information about Filtrete products or if you have questions, please visit the official Filtrete weblloc o contacteu amb el servei d'atenció al client.

• Weblloc: www.filtrete.com
• Customer Service (US & Canada): 1-800-388-3458

All rights reserved. Filtrete is a trademark of 3M.
