1. Introducció
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Eldom ELDBOI72324PMP-5LTR electric water heater. This 5-liter, pressure-resistant boiler is designed for under-sink or in-kitchen-cabinet installation, offering a compact and reliable solution for hot water supply. Please read these instructions carefully before installation and use, and retain them for future reference.
2. Instruccions de seguretat
ADVERTIMENT: Failure to follow these safety instructions may result in electric shock, fire, property damage, or personal injury.
- Ensure the appliance is installed by a qualified professional in accordance with local regulations and standards.
- Before any maintenance or service, disconnect the appliance from the main power supply.
- No feu funcionar l'escalfador d'aigua si està danyat o no funciona correctament.
- This appliance is designed for heating water only. Do not use it for other liquids or purposes.
- Ensure proper grounding of the electrical connection.
- The water heater must be filled with water before being switched on.
- Do not block the safety valve. Regular checks of the safety valve are recommended.
- Mantingueu els nens i les persones no autoritzades allunyats de l'aparell durant el funcionament.
3. Contingut del paquet
Verifiqueu que tots els components siguin presents i no estiguin danyats:
- Eldom ELDBOI72324PMP-5LTR Electric Water Heater (5 Liter)
- Installation Package (includes inlet with combined safety valve and mounting screws)
- Manual d'instruccions (aquest document)
4. Instal·lació
The Eldom ELDBOI72324PMP-5LTR water heater is designed for under-sink or in-kitchen-cabinet installation. It is a pressure-resistant (closed) system, suitable for connection to multiple draw-off points, though typically used for a single point of use.
4.1 Muntatge
The unit is designed for wall mounting. Ensure the mounting surface is strong enough to support the weight of the boiler when full (approximately 11 kg). Use the provided mounting screws and follow standard plumbing practices for secure attachment.

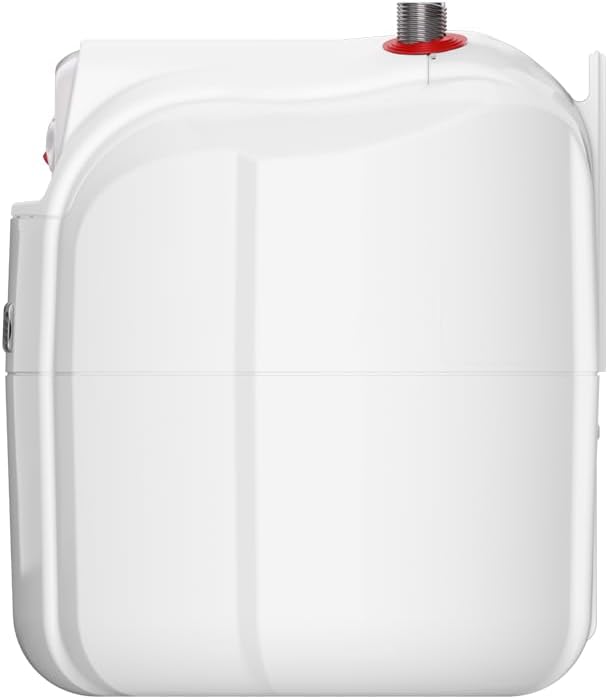

Figura 1: lateral view of the Eldom ELDBOI72324PMP-5LTR water heater, illustrating its compact design for under-sink installation.
4.2 Connexions d'aigua
Connect the water inlet and outlet pipes. The boiler operates under pressure, so ensure all connections are watertight. The included installation package contains an inlet with a combined safety valve, which deu be installed on the cold water inlet to prevent overpressure.

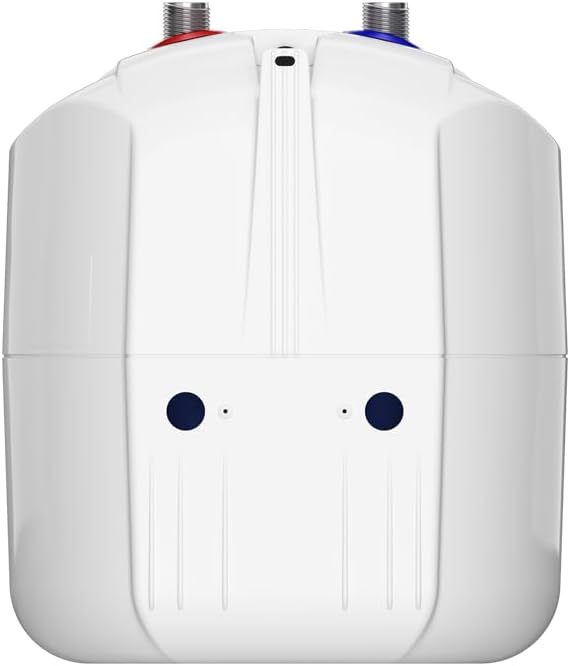

Figura 2: superior view of the Eldom ELDBOI72324PMP-5LTR water heater, highlighting the water inlet and outlet connections.
4.3 Connexió elèctrica
Connect the appliance to a grounded 230 V AC power supply. Ensure the circuit is adequately protected by a fuse or circuit breaker. The nominal power of the unit is 1.5 kW.
5. Instruccions de funcionament
5.1 Filling the Boiler
Before switching on the appliance, open a hot water tap to allow the boiler to fill with water and air to escape. Once water flows steadily from the tap, the boiler is full.
5.2 Encès/Apagat
The water heater features an illuminated on/off switch. Press the switch to turn the unit on or off. The illumination indicates that the unit is powered.
5.3 Configuració de la temperatura
Adjust the desired water temperature using the external mechanical thermostat. Turn the dial to increase or decrease the temperature. The boiler can heat water from 12°C to 65°C in approximately 13 minutes.
6. Manteniment
Un manteniment regular garanteix la longevitat i el funcionament eficient del vostre escalfador d'aigua.
- Descalcificació: Depending on water hardness, limescale can build up inside the tank and on the heating element. Periodic descaling by a qualified technician is recommended to maintain efficiency.
- Comprovació de la vàlvula de seguretat: Periodically check the safety valve for proper operation. Refer to the safety valve manufacturer's instructions for specific testing procedures.
- Connexions: Inspect water and electrical connections regularly for any signs of leaks or damage.
- Neteja: Netegeu l'exterior de l'aparell amb un damp tela. No utilitzeu netejadors abrasius ni dissolvents.
7. Solució De Problemes
Si teniu problemes amb el vostre escalfador d'aigua, consulteu els següents problemes i solucions habituals:
| Problema | Causa possible | Solució |
|---|---|---|
| Sense aigua calenta | No power; thermostat set too low; heating element failure | Check power supply and circuit breaker; adjust thermostat; contact service technician |
| L'aigua no és prou calenta | Thermostat set too low; excessive hot water usage; limescale buildup | Increase thermostat setting; allow time for reheating; consider descaling |
| Fuites d'aigua | Loose connections; faulty safety valve; tank corrosion | Tighten connections; check/replace safety valve; contact service technician for tank inspection |
| Safety valve dripping | Normal expansion during heating; faulty valve | This is normal during heating. If excessive, check water pressure or replace valve. |
For problems not listed here or if solutions do not resolve the issue, please contact a qualified service technician.
8. Especificacions
| Característica | Especificació |
|---|---|
| Marca | ELDOM |
| Número de model | ELDBOI72324PMP-5LTR |
| Capacitat | 5 litres |
| Font d'energia | Cablejat elèctric |
| Dimensions del producte (A x A x P) | 340 x 285 x 288 mm |
| Característiques especials | Stainless Steel, Pressure-resistant |
| Color | Blanc |
| Wattage | 1.5 kW |
| Voltage | 230 Volts AC |
| Material | Acer inoxidable |
| Pes de l'article | 6 kg (13.23 lliures) |
| Temperatura màxima | 65 graus centígrads |
| Sortida de calor | 1.5 quilowatts |
| Classe d'eficiència | B |
| Pressió màxima de funcionament | 8 Bar (0.8 MPa) |
| Tipus de muntatge | Mur |
| Temps d'escalfament (de 12 °C a 65 °C) | 13 minuts |
| GTIN | 03800035700176 |
9. Garantia i Suport
Your Eldom ELDBOI72324PMP-5LTR water heater comes with a warranty to ensure your peace of mind:
- Boiler Tank: 3 anys de garantia
- Components elèctrics: 2 anys de garantia
For warranty claims, technical support, or service inquiries, please contact your retailer or an authorized Eldom service center. Ensure you have your proof of purchase and the product model number available.
