Zalman ZM-VE400B External HDD Virtual Drive User Manual

1. Introducció

This manual provides detailed instructions for the installation, operation, and maintenance of your Zalman ZM-VE400B External HDD Virtual Drive. The ZM-VE400B is a 2.5-inch USB 3.0 external HDD enclosure with advanced virtual drive capabilities, allowing you to mount ISO files directly from the device. Please read this manual thoroughly before using the product to ensure proper functionality and to prevent damage.

2. Producte acabatview

2.1. Característiques

2.5-inch USB 3.0 External HDD Enclosure
SATA Interface for internal drive connection
Virtual Drive Functionality (ISO emulator)
Supports HDD, ODD, and Hybrid modes
Integrated keypad for navigation and selection
Data encryption capabilities

2.2. Contingut del paquet

The Zalman ZM-VE400B package typically includes:

Zalman ZM-VE400B External HDD Virtual Drive Enclosure
Cable USB 3.0
Protective Pouch (may vary by region/retailer)
Screws for HDD/SSD installation (if applicable)
Manual d'usuari (aquest document)

2.3. Diagrama del producte

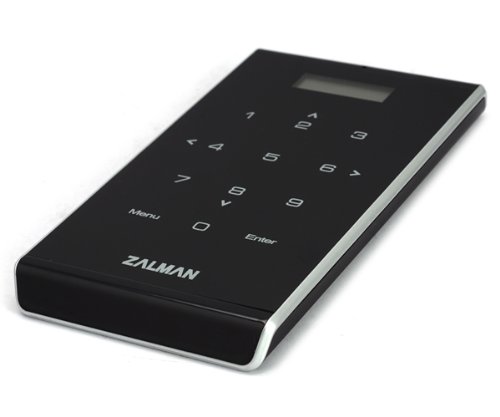

Figura 1: Davant view of the Zalman ZM-VE400B External HDD Virtual Drive Enclosure. This image displays the compact design and the integrated keypad for user interaction.

3. Configuració

3.1. Hardware Installation (HDD/SSD)

Carefully open the enclosure by sliding the cover or removing the necessary screws.
Connect your 2.5-inch SATA HDD or SSD to the SATA connector inside the enclosure. Ensure a firm connection.
Secure the drive within the enclosure using the provided screws, if applicable.
Close the enclosure cover, ensuring it is properly seated and secured.

Nota: Handle internal components with care to avoid static discharge.

3.2. Configuració Inicial

Connect the Zalman ZM-VE400B to your computer using the supplied USB 3.0 cable.
The device will power on and display its initial boot screen.
Your operating system should detect the device as an external storage drive. If it's a new HDD/SSD, you may need to initialize and format it through your operating system's disk management tools.
To utilize the virtual drive features, create a folder named _ISO in the root directory of your installed HDD/SSD. Place your ISO image files en aquesta carpeta.

4. Instruccions de funcionament

4.1. Device Modes

The ZM-VE400B supports three primary operating modes:

HDD Mode: Functions as a standard external hard drive.
ODD Mode (Optical Disc Drive Mode): Emulates an optical drive, allowing you to mount ISO files as virtual CDs/DVDs.
Mode híbrid: Allows simultaneous access to both the physical HDD/SSD and a mounted ISO file.

Switch between modes using the keypad and display on the device. Refer to the on-screen prompts for navigation.

4.2. Mounting ISO Files

Ensure your ISO files are placed in the _ISO folder on the root of the internal drive.
Enceneu el dispositiu.
Using the keypad, navigate to the ODD or Hybrid mode.
Browse the list of ISO files displayed on the device's screen.
Select the desired ISO file and confirm to mount it. The ISO will now appear as a virtual optical drive on your computer.

4.3. Xifratge de dades

The ZM-VE400B supports data encryption to protect your stored information. Access the encryption settings through the device's menu using the keypad. Follow the on-screen instructions to set up and manage your encryption password.

Avís: Forgetting your encryption password will result in permanent loss of access to your encrypted data. Zalman is not responsible for data loss due to forgotten passwords.

5. Manteniment

Mantingueu el dispositiu net i lliure de pols. Feu servir un drap suau i sec per netejar-lo.
Eviteu exposar el dispositiu a temperatures extremes, humitat o llum solar directa.
No deixeu caure ni sotmeti el dispositiu a impactes forts.
Expulseu sempre el dispositiu de l'ordinador de manera segura abans de desconnectar el cable USB per evitar que les dades es corrompin.

6. Solució De Problemes

Problema	Causa possible	Solució
Dispositiu no reconegut per l'ordinador	Loose USB connection, faulty cable, uninitialized drive.	Ensure USB cable is securely connected to both the device and the computer. Prova amb un port o cable USB diferent. Check Disk Management (Windows) or Disk Utility (macOS) to see if the drive needs initialization or formatting.
ISO files not appearing or mounting	Incorrect folder name, corrupted ISO, incorrect device mode.	Verify that ISO files are in a folder named _ISO at the root of the internal drive. Ensure the device is in ODD or Hybrid mode. Test with a different ISO file to rule out corruption.
Keypad unresponsive or inaccurate	Firmware issue, physical defect.	Disconnect and reconnect the device. If issues persist, contact Zalman support for potential firmware updates or service.
Device fails to boot or freezes	Power issue, internal drive issue, firmware issue.	Disconnect the device, hold the reset button (if available), and reconnect. Ensure the internal HDD/SSD is properly seated. Prova de connectar-te a un altre port USB o ordinador.

7. Especificacions

Característica	Detall
Número de model	ZM-VE400B
Dimensions del producte	5.71 x 3.18 x 0.55 polzades
Pes de l'article	3.2 unces
Fabricant	Zalman
Interfície	USB 3.0 (External), SATA (Internal)
Compatibilitat amb la unitat	2.5-inch SATA HDD/SSD
Virtual Drive Support	ISO files

8. Garantia i Suport

For warranty information and technical support, please refer to the official Zalman website or contact their customer service directly. Warranty terms and conditions may vary by region and retailer. Keep your proof of purchase for warranty claims.

Official Zalman Weblloc: www.zalman.com
