Graco CitiLite R Stroller Instruction Manual

Introducció

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Graco CitiLite R Stroller. Designed for portability and convenience, this ultra-lightweight stroller features a one-hand fold, a reversible and height-adjustable handlebar, a multi-position reclining seat, and a 5-point harness system. Please read all instructions carefully before use and retain this manual for future reference.

Informació important de seguretat

• ADVERTIMENT: No deixeu mai el vostre fill sense vigilància al cotxet.
• Always use the 5-point harness system to secure your child. Ensure it is properly adjusted and fastened.
• Do not exceed the maximum weight recommendation of 15 kilograms (approximately 0-3 years of age).
• Ensure all locking mechanisms are engaged before placing a child in the stroller.
• No feu servir el cotxet si hi ha alguna peça danyada o que en falta.
• Avoid placing heavy bags on the handlebar, as this can cause the stroller to tip over.
• Keep children clear of moving parts during folding and unfolding to prevent injury.
• Aquest cotxet no és apte per córrer o patinar.

Contingut del paquet

• Graco CitiLite R Stroller (1 unit)

Muntatge i muntatge

Your Graco CitiLite R Stroller comes largely pre-assembled. Follow these steps to prepare it for use:

1. Desplegant el cotxet: Release the storage latch, typically located on the side of the frame. Lift the handlebar firmly until the stroller frame fully extends and locks into place. Listen for an audible click to confirm it is securely open.
2. Attaching Wheels (if separate): If the wheels are not pre-attached, push each wheel onto its axle until it clicks securely into place. Pull on the wheel to ensure it is firmly attached.
3. Verifying Assembly: Before first use, ensure all parts are securely connected and all locking mechanisms are engaged.

Instruccions de funcionament

Ajust del manillar

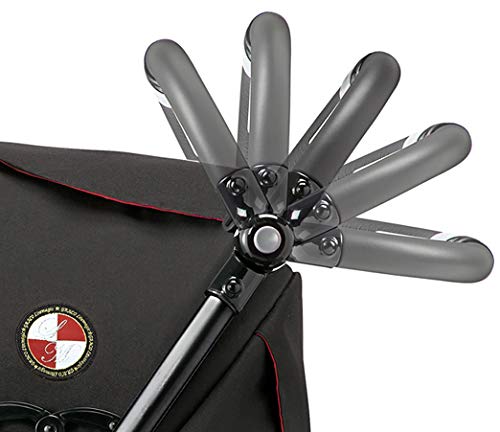

The Graco CitiLite R Stroller features a reversible and height-adjustable handlebar, allowing your child to face you or the world.

1. To Reverse Direction: Locate the release buttons or levers on both sides of the handlebar. Press these simultaneously and pivot the handlebar over the canopy to the desired position. Ensure it locks securely into place.
2. Per ajustar l'alçada: Some models may have additional buttons or levers for height adjustment. Press these and slide the handlebar up or down to your preferred height, ensuring it locks.

Reclinant el seient

The multi-position reclining seat provides comfort for your child.

1. Locate the recline adjustment mechanism, usually a lever or strap system at the back of the seat.
2. Follow the specific instructions on the mechanism to adjust the seat to the desired recline angle. Ensure it is securely locked in position before placing your child in the seat.

Securing Your Child with the 5-Point Harness

Always use the 5-point harness to ensure your child's safety.

1. Col·loca el teu fill al seient.
2. Passeu les corretges de les espatlles per sobre de les espatlles del vostre fill i les corretges de la cintura al voltant dels malucs.
3. Insert the buckle tongues into the buckle housing until they click.
4. Adjust the straps to ensure a snug fit, without being too tight. The harness should be positioned at or slightly above your child's shoulders.

Using the Wheels and Brakes

• Lockable Front Swivel Wheels: For maneuverability, the front wheels can swivel. For stability on uneven terrain or when parking, engage the wheel locks, typically a lever or button near each front wheel.
• Frens: To engage the parking brake, press down firmly on the brake pedal(s) located near the rear wheels. Ensure the stroller does not move. To release, lift the pedal(s) up. Always engage the brakes when the stroller is stationary.

Plegant el Cotxet

The Graco CitiLite R Stroller features a convenient one-hand fold mechanism.

1. Ensure the seat is in its most upright position and the canopy is retracted.
2. Locate the one-hand fold release mechanism, usually a button or lever on the handlebar or side of the frame.
3. Activate the release and push the handlebar forward or down, allowing the stroller to collapse.
4. Engage the storage latch to keep the stroller in its folded position for transport or storage.

Manteniment i cura

• Neteja de peces de tela: The polyester fabric can be spot cleaned with a mild soap and damp cloth. Do not use bleach. Allow to air dry completely.
• Marc de neteja: Netegeu el marc metàl·lic amb anunciamp drap i sabó suau. Assecar bé.
• Manteniment de rodes: Periodically check wheels for debris and clean as necessary. Lubricate moving parts with a silicone-based lubricant if they become stiff.
• Emmagatzematge: Guardeu el cotxet en un lloc sec i fresc, allunyat de la llum solar directa, per evitar que s'esvaeixi i es degradi el material.

Resolució de problemes

• Stroller does not unfold or fold easily: Ensure all locking mechanisms are disengaged before unfolding. When folding, ensure the seat is upright and the canopy is retracted. Apply firm, even pressure. If a mechanism feels stuck, do not force it; re-check the instructions for the specific release points.
• Les rodes són rígides o grinyolen: Clean any debris from the wheel axles. Apply a small amount of silicone lubricant to the moving parts of the wheels.
• Harness is difficult to buckle/unbuckle: Ensure the buckle tongues are aligned correctly with the buckle housing. Clean any dirt or debris from the buckle mechanism.

Especificacions

Garantia i Suport

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For product support or inquiries, you may contact the manufacturer or importer:

• Fabricant: Newell Rubbermaid Asia Pacific Limited, 40/F, Manhattan Place 23 Wang T AI Road Kowloon Bay, Kowloon, Hong Kong. Phone: +852 26659511
• Importador (Índia): Aarete Marketing LLP, 2, 1st Floor, Framroz court, D.S. Phalke Road, Dadar East, Mumbai 400014. Contact No. 9769626040
