Aldes T.Zen C3000 Control Keypad User Manual

1. Producte acabatview

The Aldes T.Zen C3000 Control Keypad is designed for use with Aldes T.Zen 400 and T.Zen 4000 ventilation and heating systems. This keypad provides essential control functionalities, including specific integration for hot water management through connection to a B200 H2O storage tank.

This manual provides detailed instructions for the proper installation, operation, and maintenance of your C3000 control keypad to ensure optimal performance and longevity.

2. Informació de seguretat

Please read all safety instructions carefully before installation or operation. Failure to follow these instructions may result in electric shock, fire, or damage to the product.

• Seguretat elèctrica: The device operates on 230 Volts. All electrical work must be performed by a qualified electrician in accordance with local and national electrical codes.
• Instal·lació: Ensure the main power supply is disconnected before beginning any installation or wiring procedures.
• Medi ambient: Do not expose the keypad to water, excessive humidity, or extreme temperatures.
• Manteniment: Només realitzeu les tasques de manteniment descrites en aquest manual. Per a reparacions complexes, contacteu amb personal de servei qualificat.

3. Contingut del paquet

Verifiqueu que tots els elements siguin presents al paquet:

• Aldes T.Zen C3000 Control Keypad
• Connection cable for B200 H2O storage tank
• Maquinari de muntatge (cargols, ancoratges)

4. Instal·lació i configuració

4.1 Muntatge del teclat numèric

The C3000 Control Keypad is designed for wall mounting. Choose a suitable location that is easily accessible, away from direct sunlight, heat sources, and drafts.

1. Marqueu la posició de muntatge desitjada a la paret.
2. Perforar forats pilot per als cargols de muntatge.
3. Secure the keypad base to the wall using the provided mounting hardware.

4.2 Connexió elèctrica

The keypad requires a 230 Volts wired electrical connection. Ensure power is OFF at the main circuit breaker before proceeding.

1. Route the electrical wiring to the keypad's designated connection terminals.
2. Connect the live, neutral, and ground wires according to the wiring diagram provided with your T.Zen system.
3. Assegureu totes les connexions fermament.

4.3 System and Storage Tank Connection

The C3000 keypad connects to your T.Zen 400/4000 central unit and the B200 H2O storage tank.

1. Connect the keypad to the T.Zen 400/4000 central unit using the appropriate communication cable (not included with keypad, typically part of the T.Zen system).
2. Connect the provided cable from the keypad to the B200 H2O storage tank. This connection is typically made at the top-left of the C3000 H2O central unit. Refer to the B200 H2O storage tank manual for specific connection points.

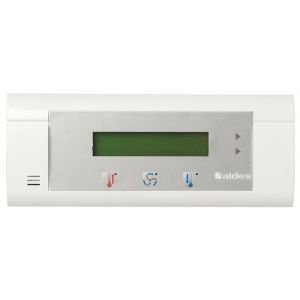

Figura 1: Aldes T.Zen C3000 Control Keypad. This image shows the rectangular form factor and digital display of the control unit, designed for wall mounting and integration with Aldes T.Zen systems.

5. Funcionament

The Aldes T.Zen C3000 Control Keypad features a digital display and push-button controls for managing your T.Zen system and hot water functions.

5.1 Funcions bàsiques

• Pantalla digital: Shows current system status, temperature settings, and operational modes.
• Controls amb botons: Used to navigate menus, adjust settings, and select operating modes.

5.2 Control de temperatura

The keypad allows for temperature control for both heating and cooling functions, as well as specific settings for residential/commercial heating and hot water management. Refer to your T.Zen 400/4000 system's main manual for detailed programming and operational modes.

6. Manteniment

The Aldes T.Zen C3000 Control Keypad requires minimal maintenance to ensure continued reliable operation.

• Neteja: Netegeu la superfície del teclat amb un drap suau i sec. No utilitzeu productes de neteja abrasius ni dissolvents.
• Connexions: Periodically check all wired connections to ensure they are secure.
• Actualitzacions de programari: Any system software updates would typically be managed through the main T.Zen central unit. Consult your T.Zen system manual for details.

7. Solució De Problemes

If you experience issues with your C3000 Control Keypad, consider the following basic troubleshooting steps:

• Sense pantalla/alimentació: Check the main power supply to the T.Zen system and ensure all electrical connections to the keypad are secure. Verify the circuit breaker has not tripped.
• El teclat no respon: Ensure the keypad is properly connected to the T.Zen central unit. Try restarting the T.Zen system (refer to its manual for safe restart procedures).
• Lectures incorrectes: If temperature or status readings appear incorrect, ensure the keypad is not exposed to direct heat or cold sources that could affect its internal sensors.

For persistent issues, consult the comprehensive troubleshooting guide in your T.Zen 400/4000 system manual or contact Aldes customer support.

8. Especificacions

9. Garantia i Suport

Specific warranty information for the Aldes T.Zen C3000 Control Keypad is not provided in this document. For details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your complete Aldes T.Zen system or contact Aldes customer support directly.

For technical support, spare parts, or service inquiries, please visit the official Aldes website or contact your local Aldes distributor.
